Honeywell 51201557-350 Retrofit-Ready I/O Link for Experion PKS

Honeywell 51201557-350 Retrofit-Ready I/O Link Module for Experion PKS Control Systems

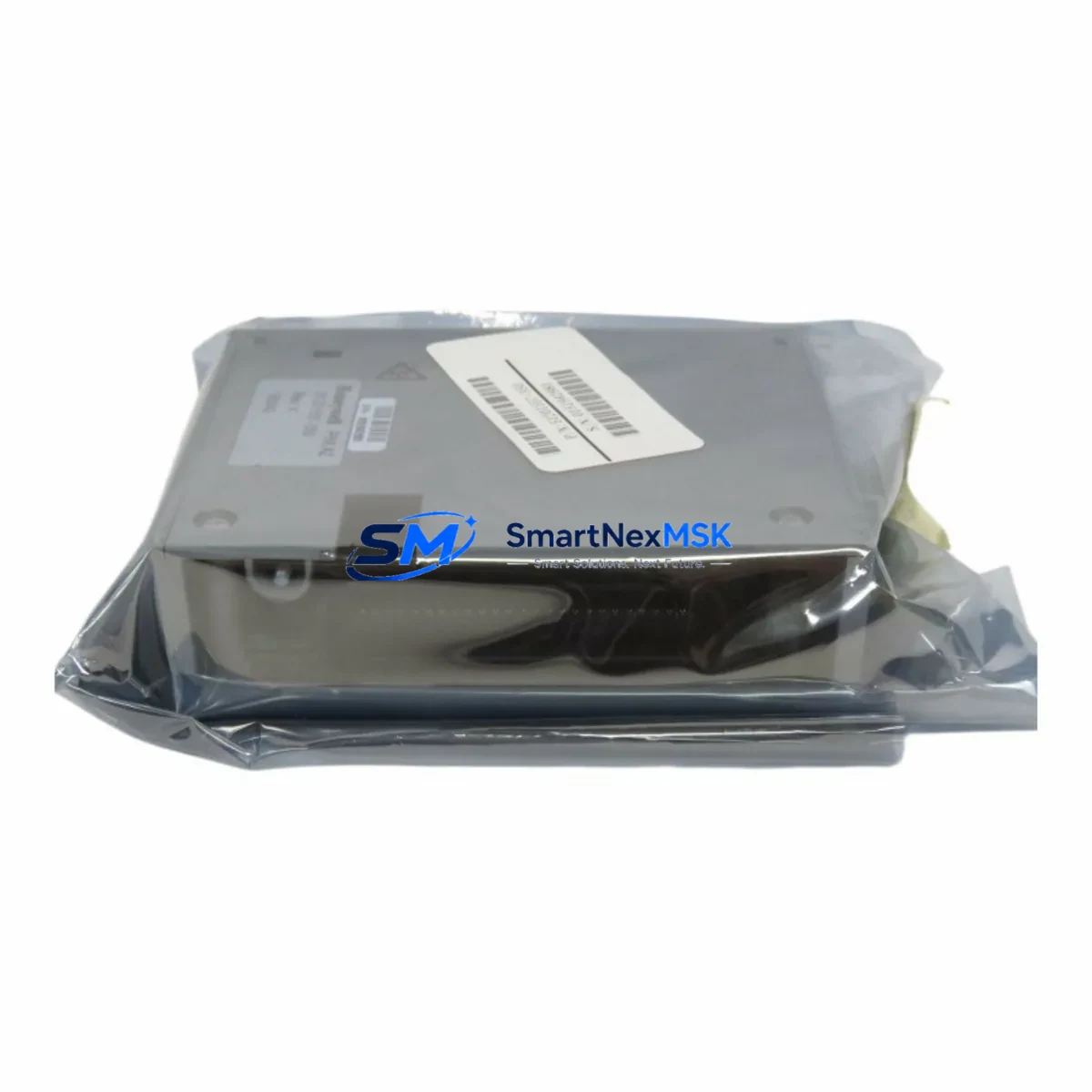

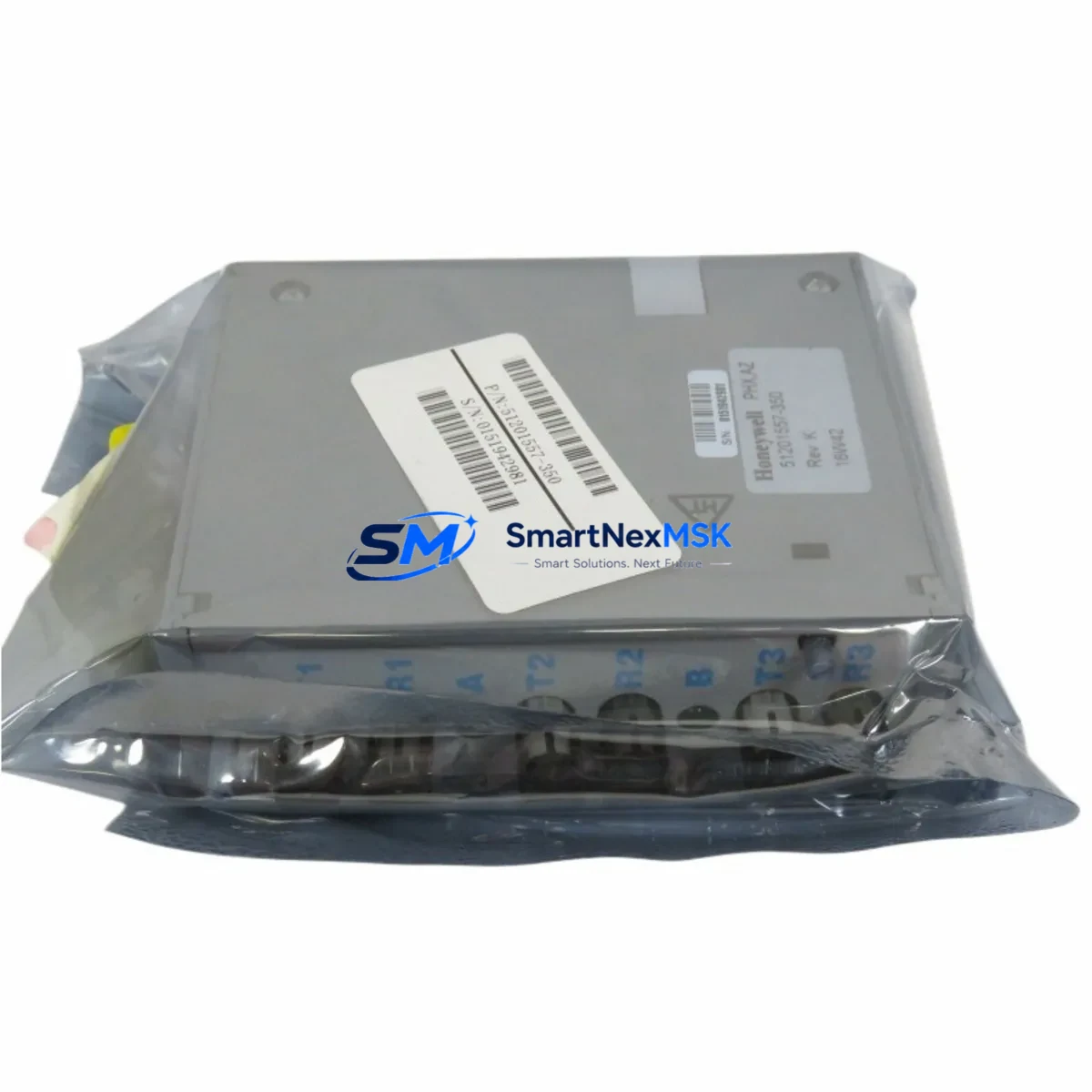

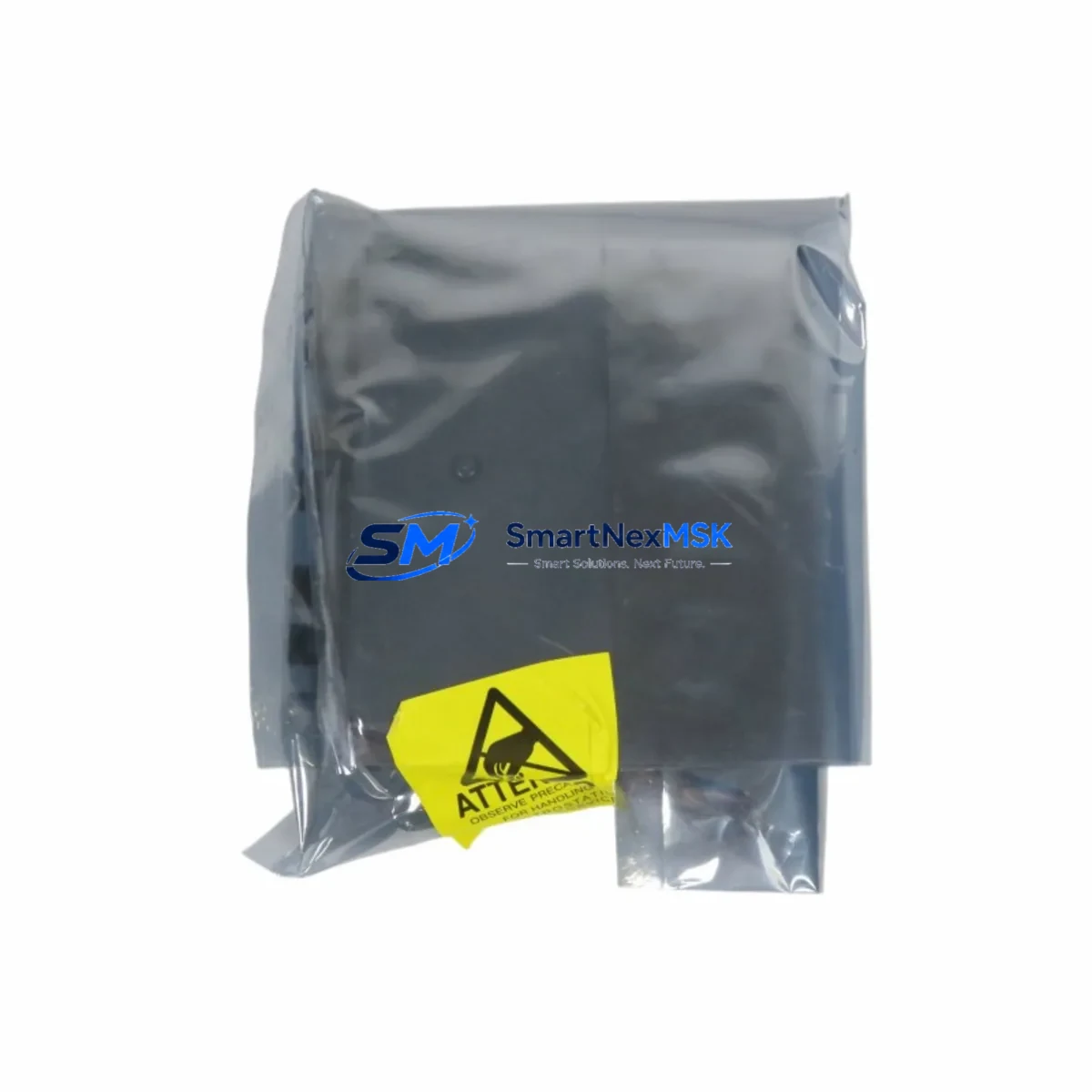

The Honeywell 51201557-350 is a high-reliability I/O Link Module engineered for the Experion PKS distributed control system platform. As legacy DCS installations age and OEM support windows close, this module serves as the definitive retrofit-ready replacement for facilities operating C200 and C300 controller-based architectures. Whether you are recovering from an unplanned failure, executing a planned control cabinet upgrade, or migrating from an older TDC 3000 or PlantScape system, the 51201557-350 provides a verified drop-in solution that preserves existing I/O wiring, backplane addressing, and program logic without requiring a full system redesign.

Sourced from authorized distribution channels and subject to full functional testing prior to shipment, each unit is backed by a 12-month warranty covering hardware defects and operational failures under normal industrial service conditions. Stock is maintained on-hand to support urgent replacement requirements with same-day or next-business-day dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 51201557-350 into an existing Experion PKS installation begins well before the module arrives on-site. Retrofit planning must account for the full scope of the control architecture — from the C300 process controller and its associated I/O chassis, through the FTE network switch infrastructure, to the Experion server and connected Honeywell HMIWeb Display Builder stations.

Start by auditing the target chassis slot. Confirm that the existing Experion PKS I/O chassis (such as the 8-slot or 16-slot variants) has an available or recoverable slot position. If the failed module occupied a specific node address, that address must be reserved in Control Builder before the replacement is inserted to prevent address conflicts with adjacent modules. In mixed I/O environments, the chassis may also house Honeywell 51304516-150 AI modules, 51304485-150 AO modules, or 51305890-175 DI modules — all of which share the same backplane bus and must remain undisturbed during the swap.

Terminal wiring at the field termination assembly (FTA) should be documented before any module removal. The 51201557-350 connects to the FTA via the standard I/O Link cable; verify cable continuity and connector seating after installation. If the site uses Honeywell 51201420-010 I/O Link cables or equivalent, inspect for insulation wear common in high-temperature cabinet environments.

Power budget verification is critical in dense chassis configurations. Calculate the total draw of all installed modules against the rated output of the installed Honeywell 51204172-175 power supply module or its equivalent. Adding a replacement I/O Link module to a chassis already near its power ceiling can cause intermittent resets across the entire node — a failure mode that is frequently misdiagnosed as a network or controller fault.

For sites migrating from older Honeywell PlantScape or TDC 3000 architectures to Experion PKS, the 51201557-350 is a key enabler of phased migration strategies. Rather than replacing the entire control system in a single outage window, engineers can migrate individual process units by installing new Experion I/O nodes — including this I/O Link module — while the legacy system remains in service on adjacent units. The Honeywell ControlEdge HC900 hybrid controller is sometimes deployed as an intermediate bridge in such migrations, allowing legacy analog I/O to coexist with modern FTE-networked Experion nodes during the transition period.

HMI continuity is another planning priority. Experion PKS operator stations running HMIWeb Display Builder reference specific controller and module tag paths. After replacing the 51201557-350, verify that all associated display faceplates, trend groups, and alarm configurations resolve correctly against the new module’s tag database. In most like-for-like replacements, no HMI reconfiguration is required — but this must be confirmed during commissioning, not assumed.

For sites that use Honeywell 51309288-225 communication modules or HART pass-through configurations on adjacent I/O modules, confirm that the HART multiplexer polling schedule is not disrupted by the module swap. HART device descriptors cached in the Experion server may require a manual refresh after the replacement module comes online.

Downtime Control During System Migration

Minimizing process downtime during an I/O Link module replacement requires a structured approach that protects both the running process and the integrity of the control program. The following sequence is recommended for live-system replacements where a controlled shutdown is not feasible:

Step 1 — Pre-swap backup: Export the full Control Builder project from the Experion server before any hardware is touched. This preserves the current module configuration, I/O assignments, and controller download state. Store the backup on a separate engineering workstation, not only on the Experion server itself.

Step 2 — Place affected loops in manual: Transfer all process loops associated with the I/O Link node to manual control at the operator station. Coordinate with the process team to confirm that manual operation is safe for the duration of the swap — typically 15 to 45 minutes for a straightforward module replacement.

Step 3 — Module removal and insertion: The Experion PKS I/O chassis supports hot-swap on most module types, but confirm this for the specific chassis revision in use. Insert the 51201557-350 into the correct slot, ensuring the module latch engages fully. The Experion server will detect the new module within seconds and begin the automatic download sequence if the node address matches the configured assignment.

Step 4 — Commissioning verification: Monitor the module status LEDs and the Experion Station alarm banner simultaneously. Confirm that all I/O points associated with the node return to normal scan status. Check the Control Builder hardware tree for any unresolved faults on adjacent modules — a common indicator of a power budget issue introduced by the replacement.

Step 5 — Return to automatic: Once all I/O points are confirmed healthy and process values are tracking correctly, return loops to automatic control in a staged sequence, starting with the least critical loops. Document the completion time and module serial number in the site maintenance log.

This sequence typically achieves a complete module replacement with fewer than 60 minutes of manual-mode operation, preserving process continuity and eliminating the need for a full unit shutdown in most applications.

Retrofit Support FAQ

Q1: Is the 51201557-350 a direct drop-in replacement for earlier 51201557-xxx revisions?
In the majority of Experion PKS installations, yes. The -350 revision maintains backward compatibility with the standard I/O Link backplane interface and FTA cabling used across the Experion PKS product family. However, sites running firmware earlier than Experion R210 should verify compatibility with their system integrator before installation, as certain early firmware builds have known limitations with later module hardware revisions.

Q2: What pre-shipment testing is performed on each unit?
Every 51201557-350 unit undergoes full functional testing prior to dispatch, including backplane communication verification, power rail integrity checks, and I/O Link bus response testing. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this module be installed without downloading a new controller program?
In a like-for-like replacement scenario — same slot, same node address, same module type — the Experion PKS controller will automatically recognize the replacement module and resume normal I/O scanning without requiring a new controller download. If the node address or slot position has changed, a partial download targeting the affected I/O node will be required from Control Builder.

Q4: What wiring changes are required at the field termination assembly?
No field wiring changes are required for a direct replacement. The 51201557-350 connects to the existing FTA via the standard I/O Link cable. Inspect the cable connector and FTA terminal block for corrosion or mechanical damage before reinstalling. If the FTA itself is damaged, a replacement FTA must be sourced separately — the module and FTA are independent components.
