Honeywell 51202329-112 Maintenance-Ready Spare for Experion PKS Automation

Honeywell 51202329-112 Maintenance-Ready Spare for Experion PKS Automation

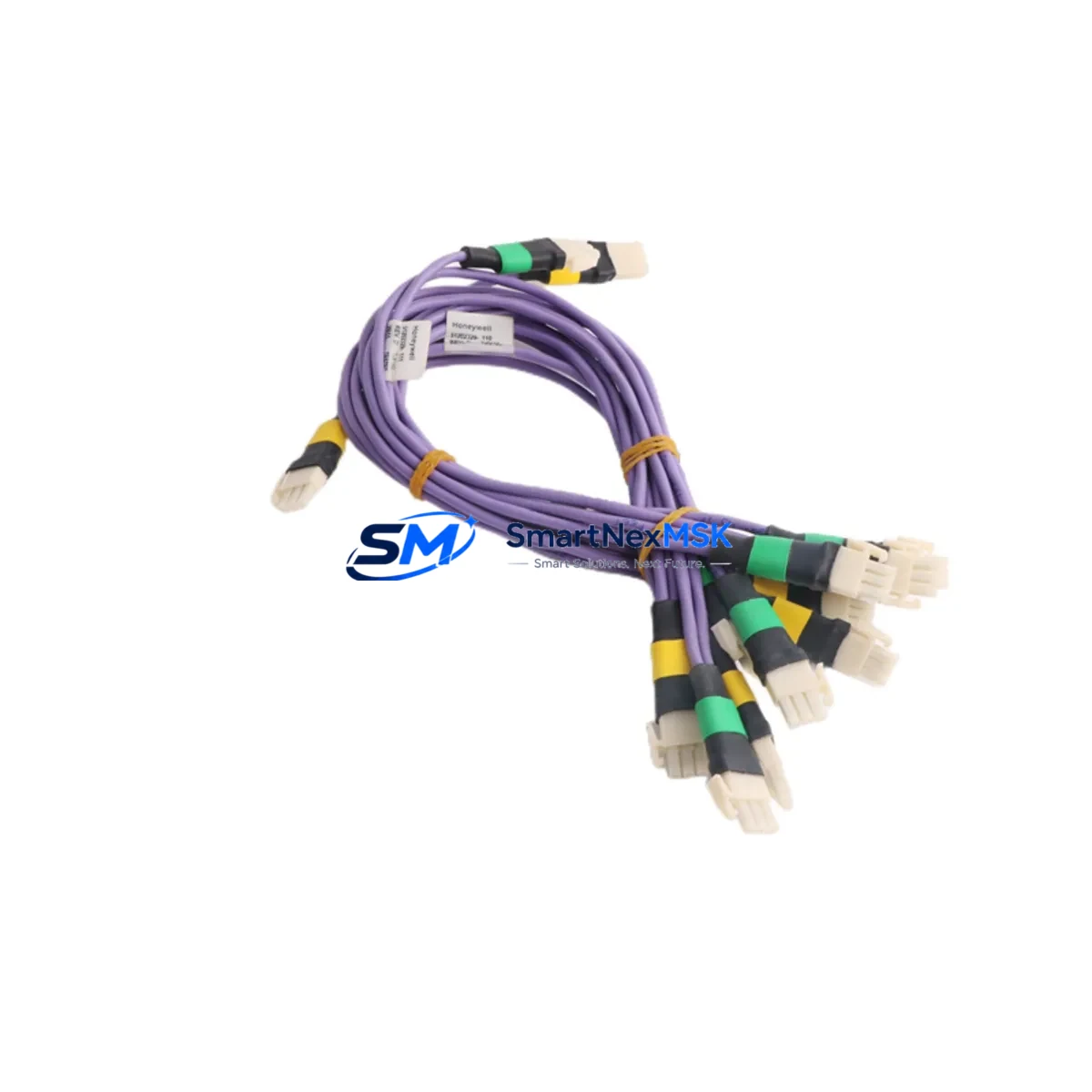

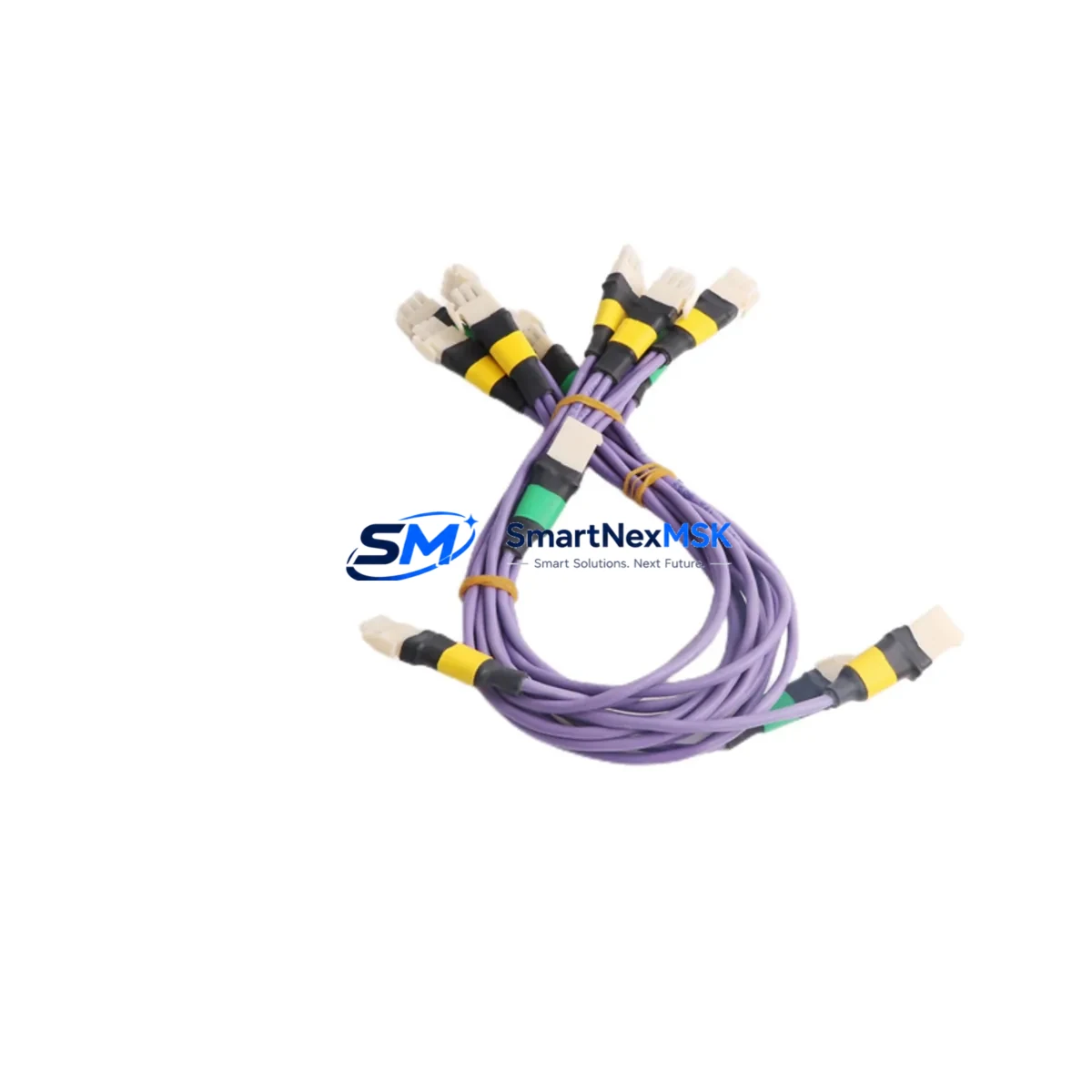

The Honeywell 51202329-112 is an original I/O Link Cable Assembly engineered for the Experion PKS and TDC 3000 distributed control system platforms. In industrial facilities where continuous process control is non-negotiable, this cable serves as the critical communication backbone between I/O Link modules and field termination assemblies. Unplanned failure of this component can cascade into full loop outages, forcing emergency shutdowns that cost far more than a well-managed spare parts inventory. Sourcing a verified, original 51202329-112 before failure occurs is the single most effective step a maintenance team can take to protect uptime.

This unit is supplied as an original Honeywell spare, not an aftermarket substitute. Each cable assembly undergoes pre-shipment continuity and insulation testing to confirm signal integrity across all conductors. The 12-month warranty covers manufacturing defects and ensures your procurement team has documented coverage for audit and compliance purposes. Delivery is coordinated to minimize lead time, with most units dispatched within 1–3 business days of order confirmation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules a planned inspection or responds to an I/O Link fault alarm on the Experion PKS console, the 51202329-112 cable is rarely the only component that warrants attention. A disciplined inspection of the surrounding control cabinet should include the I/O Link Module (ILM) itself — typically a 51304485-100 or equivalent — since cable wear and connector stress often correlate with module port degradation. The Field Termination Assembly (FTA) connected at the other end of this cable should be checked for terminal corrosion, loose screw terminations, and correct grounding continuity.

Power distribution within the cabinet is equally important. The 24 VDC power supply feeding the I/O subsystem — often a Honeywell CC-PWR01 or equivalent redundant power module — should be load-tested and its output voltage verified under operating conditions. Fuse holders and blade fuses on the power rail adjacent to the I/O Link segment should be inspected for heat discoloration, which indicates intermittent overcurrent events that can stress cable insulation over time.

For TDC 3000 legacy installations, the Highway Interface Module (HIM) and associated coaxial data highway cables are common co-failure items when I/O Link faults appear. Maintenance teams should also verify the integrity of the Local Control Network (LCN) node connections and any associated 51401288-100 series termination panels. Signal isolators installed between the DCS I/O and field instruments — particularly loop-powered 4–20 mA isolators from the same control loop — should be tested for drift, as a degraded isolator can produce erratic readings that are misdiagnosed as cable faults.

In cabinets running mixed I/O types, the analog input modules (AI), digital output modules (DO), and their associated FTAs should be included in the same inspection cycle. Relay output modules and their socket bases are mechanical wear items that often reach end-of-life on the same timeline as interconnecting cables. Communication modules handling HART pass-through or Modbus gateway functions should have their firmware versions logged and compared against current Honeywell security advisories.

For facilities managing aging Experion PKS or TDC 3000 systems beyond their original design life, a structured spare parts list that includes the 51202329-112 alongside redundant I/O Link modules, FTA assemblies, and power supply modules is the foundation of an effective life-extension strategy. Holding at least one spare cable assembly per critical I/O Link segment reduces mean time to repair (MTTR) from hours to minutes.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm the I/O Link fault on the Experion PKS operator station or Engineering Station. Navigate to the Control Builder cabinet view and identify the specific I/O Link segment reporting the fault. Document the node address and slot assignment before proceeding.

Step 2 — Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures for the affected cabinet section. For hot-standby redundant systems, confirm the redundant path is active and carrying load before isolating the faulted segment. Do not remove the cable under live I/O Link signal conditions unless the system architecture explicitly supports hot-swap on that segment.

Step 3 — Cable Removal and Inspection: Disconnect the 51202329-112 at both the ILM port and the FTA terminal block. Inspect both connectors for bent pins, corrosion, or cracked strain relief. Inspect the cable jacket along its full routed length for abrasion, pinch points, or heat damage from adjacent equipment.

Step 4 — Replacement Installation: Route the new 51202329-112 following the original cable path. Avoid sharp bends at connector exits. Seat both connectors fully and verify locking tabs or retention screws are engaged. Restore power and confirm the I/O Link segment returns to normal status on the Experion PKS console within the expected initialization time (typically under 60 seconds).

Step 5 — Functional Verification: Perform a loop check on at least three representative I/O points on the restored segment. Confirm analog values are within expected range and digital I/O states match field device status. Log the replacement in the site CMMS with the new part serial number and installation date to support warranty tracking and future maintenance scheduling.

Compatibility Note: The 51202329-112 is designed for Honeywell Experion PKS and TDC 3000 architectures. Before installation in a system that has undergone partial migration or hardware revision, confirm the ILM firmware version and FTA model number are compatible with this cable assembly. Contact our technical team with your system configuration details if verification is required prior to ordering.

Spare Parts Support FAQ

Q1: Is the 51202329-112 compatible with both Experion PKS and TDC 3000 systems?
Yes. The 51202329-112 I/O Link Cable Assembly is designed for use across Honeywell’s Experion PKS and TDC 3000 DCS platforms. If your installation has undergone a partial Experion migration from TDC 3000, the cable remains compatible provided the I/O Link Module and FTA models are unchanged. We recommend confirming your ILM part number before ordering if you are uncertain about your system revision level.

Q2: What does the 12-month warranty cover, and how is a claim initiated?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, electrical overstress, or physical abuse. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, installation date, and a description of the observed fault. Replacement units are dispatched after fault confirmation, minimizing your downtime exposure.

Q3: How should the 51202329-112 be stored as a long-term spare?
Store the cable assembly in its original anti-static packaging in a climate-controlled environment: temperature 10–35 °C, relative humidity below 70% non-condensing. Avoid coiling the cable tightly or placing heavy objects on top of it in storage. Inspect connector pins and jacket condition annually. Cables stored correctly under these conditions maintain full serviceability for 5+ years, making them suitable for long-term critical spare inventories.

Q4: Can you supply multiple units for a site-wide spare parts program?
Yes. We support bulk procurement for plant-wide spare parts programs, shutdown kits, and multi-site maintenance contracts. Volume pricing is available for orders of 3 or more units. Contact sales@smartnexmsk.com or call +86 18259474341 to discuss your site’s requirements, preferred delivery schedule, and documentation needs including test reports and certificates of conformance.
