Honeywell 51202329-200 Spare for Experion PKS Automation: Spare Replacement & Industrial Downtime Risk Control

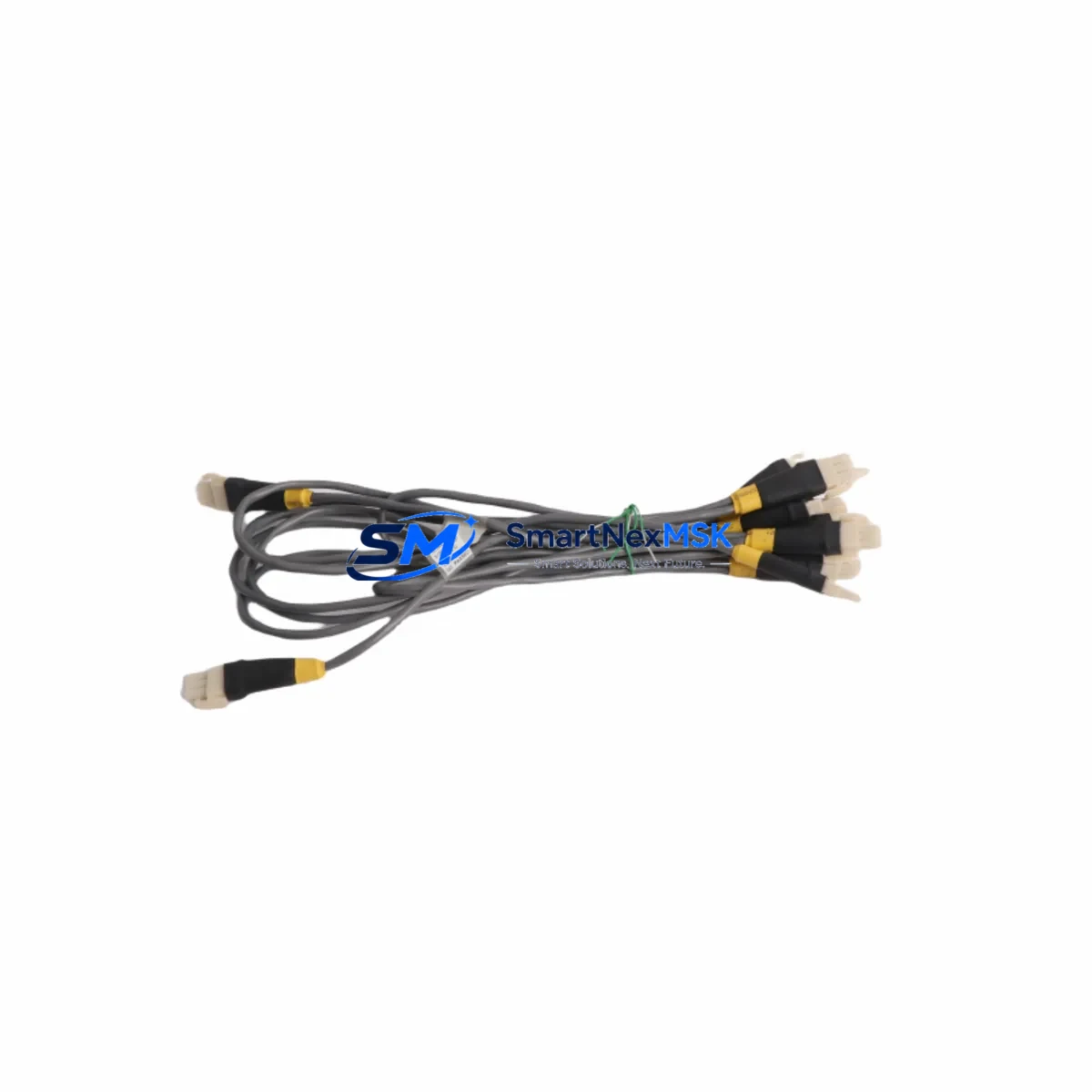

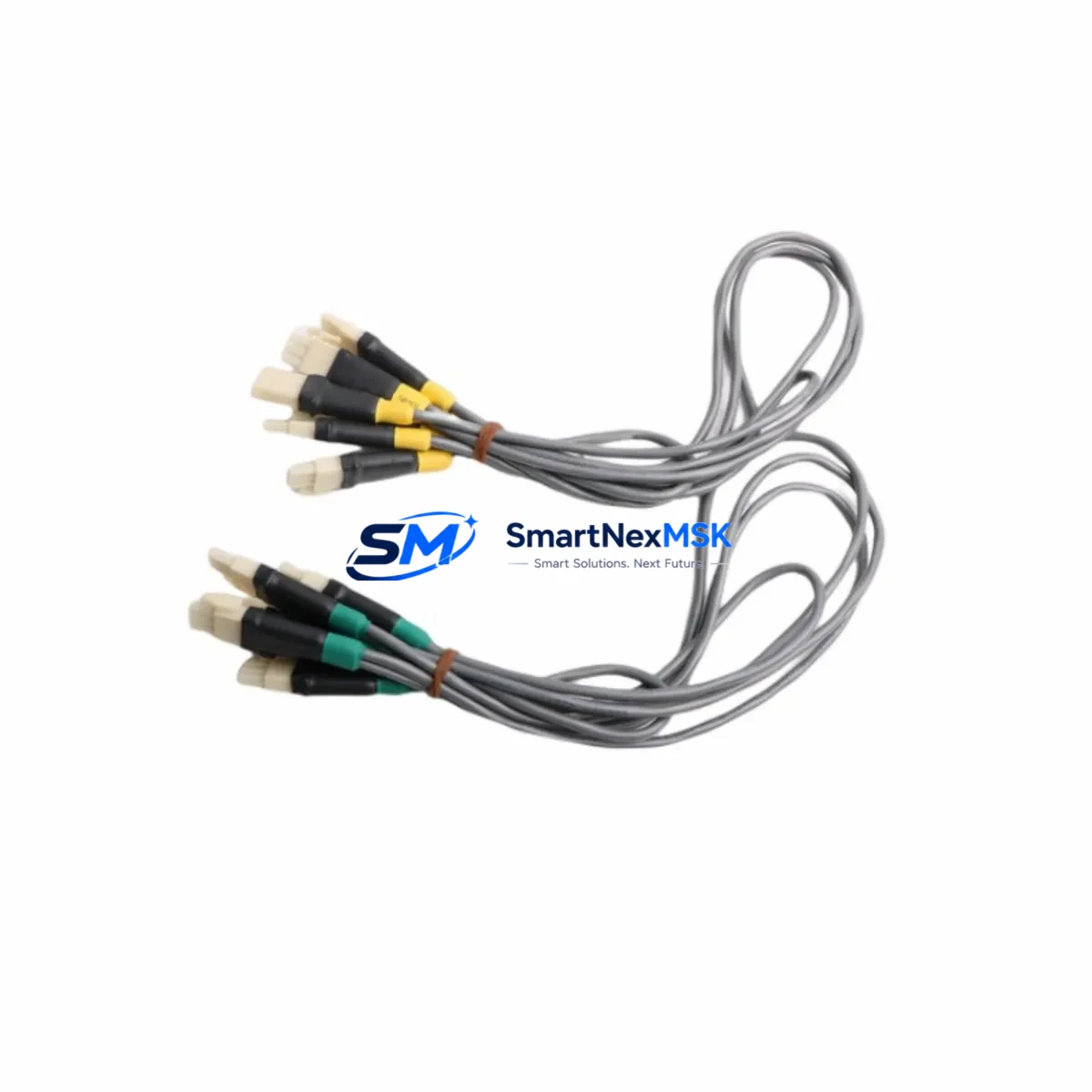

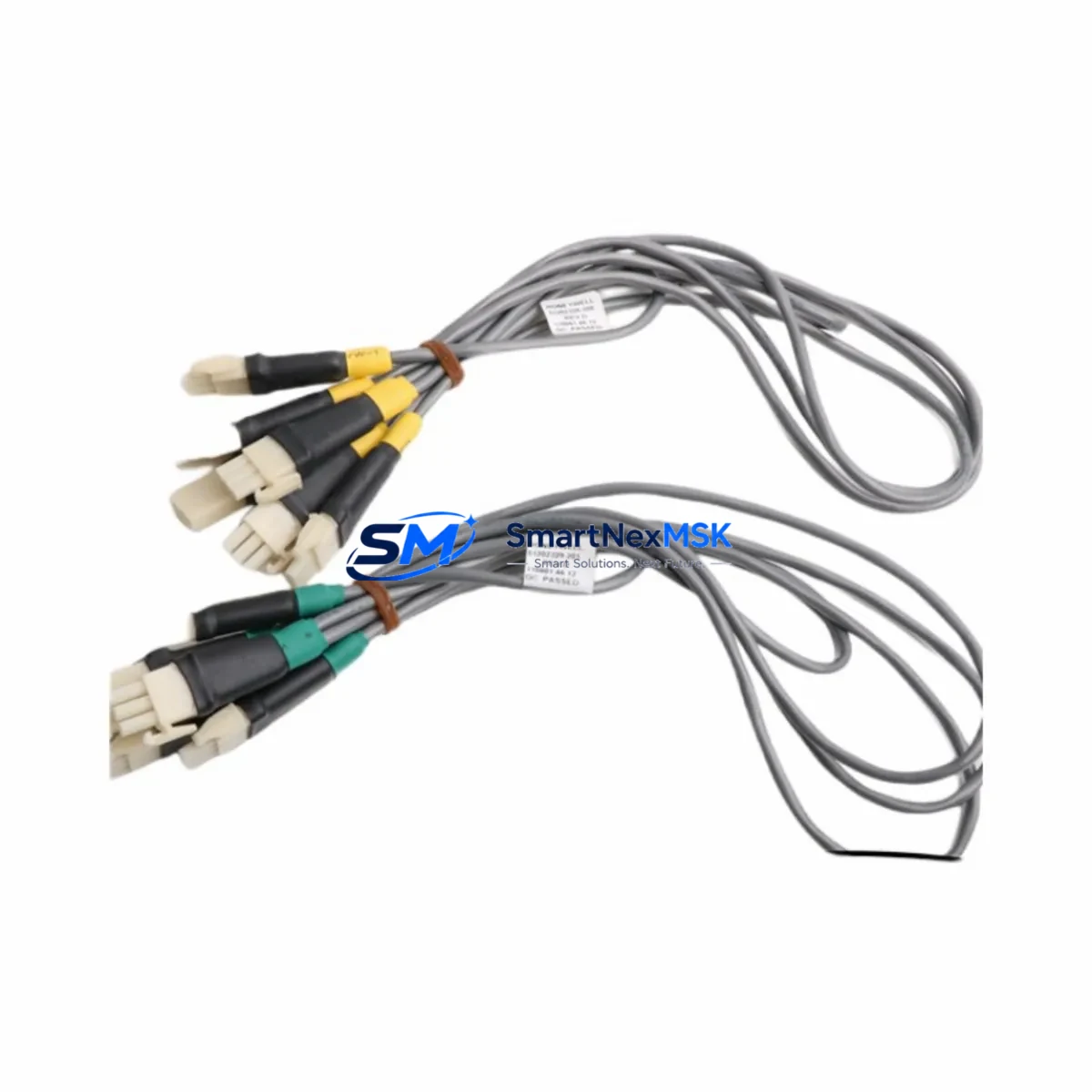

The Honeywell 51202329-200 is an original OEM I/O Link Cable Assembly engineered for the Experion PKS distributed control system platform, specifically supporting C200 and C300 controller architectures. In industrial facilities where continuous process control is non-negotiable, this cable assembly serves as a critical communication backbone between I/O modules and the controller chassis. Its failure — or the failure of an aging equivalent — can trigger unplanned shutdowns, process deviations, and costly production losses. Stocking a verified, pre-tested replacement unit is the most effective single action a maintenance team can take to protect uptime.

For maintenance engineers managing Experion PKS installations, the 51202329-200 is not an isolated component. It operates within a tightly integrated electrical and communication environment. When planning a replacement or conducting a scheduled inspection, the surrounding system must be evaluated holistically. A cable swap that ignores the condition of adjacent components risks repeat failures within weeks of restoration.

This listing provides an original Honeywell spare — not a third-party substitute — with full compatibility verification for the Experion PKS platform, 12-month warranty coverage, and pre-shipment electrical testing to confirm signal integrity before the unit leaves our facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for any Experion PKS installation must account for the interdependencies between the 51202329-200 I/O Link Cable and the broader control system architecture. When a maintenance or procurement engineer schedules replacement of this cable assembly, the following components in the same control loop or cabinet should be simultaneously inspected or staged as contingency spares.

The Honeywell C300 Controller Module (51309276-175 or equivalent) is the primary processing unit that the I/O Link Cable connects to. If the cable has experienced repeated signal faults, the controller’s I/O link port should be inspected for pin damage or firmware-level communication errors before the new cable is installed. Similarly, the Honeywell IOTA (I/O Termination Assembly) boards — such as the 51304485-150 series — serve as the physical termination points for field wiring and should be checked for loose terminals or oxidized contacts during the same maintenance window.

Power distribution within the cabinet is equally critical. The Honeywell 51204172-175 Power Supply Module provides regulated DC power to the I/O subsystem; a marginal power supply can cause intermittent cable communication errors that are misdiagnosed as cable faults. Maintenance teams should verify output voltage stability under load before concluding that the cable assembly alone is responsible for any communication anomaly.

For facilities running mixed I/O configurations, the Honeywell 51305890-175 Analog Input Module and 51305896-175 Digital Output Module are common rack neighbors of the I/O Link Cable’s termination points. These modules should be visually inspected for indicator fault LEDs and tested for channel-level response during any planned outage that involves cable replacement.

Communication integrity beyond the local rack should also be assessed. The Honeywell FTE (Fault Tolerant Ethernet) Switch modules — part of the Experion PKS network backbone — can introduce latency or packet loss that mimics I/O link cable degradation. Confirming FTE switch health before and after cable replacement prevents misattribution of network faults to the physical cable layer.

Finally, terminal blocks and DIN rail-mounted Phoenix Contact or Weidmüller terminal strip assemblies within the same cabinet should be torque-checked during the replacement procedure. Loose field wiring terminations are a leading cause of signal noise that accelerates cable wear. Pairing the 51202329-200 replacement with a full terminal inspection is a best-practice step that significantly reduces callback risk.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the existing 51202329-200, document the current I/O link status in the Experion PKS Station display. Capture any active alarms or communication fault codes. Confirm the replacement unit’s part number and revision match the installed cable assembly. Do not substitute with a different cable length or connector variant without consulting the Experion PKS hardware configuration guide.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure for the affected I/O chassis. The Experion PKS C200/C300 platform supports redundant controller configurations; if redundancy is active, confirm the standby controller has assumed control before isolating the primary I/O link. This step alone can reduce effective downtime to near zero in redundant installations.

Step 3 — Physical Replacement: Disconnect the cable assembly at both the controller chassis and the I/O module termination point. Inspect both connector housings for bent pins, corrosion, or debris. Install the new 51202329-200, ensuring connectors are fully seated and locking tabs are engaged. Do not route the cable near high-voltage conductors or sharp cabinet edges.

Step 4 — System Restoration and Verification: Re-energize the I/O chassis and monitor the Experion PKS Station for I/O link status recovery. All previously configured I/O points should return to normal scan within the system’s defined recovery window. If any channel remains in fault, isolate to the specific I/O module rather than the cable before escalating.

Step 5 — Documentation: Record the replacement date, technician ID, and new cable serial number in your CMMS (Computerized Maintenance Management System). Update the spare parts inventory to trigger reorder of a replacement unit, maintaining a minimum one-unit buffer for this critical cable assembly.

Spare Parts Support FAQ

Q1: Is the 51202329-200 compatible with both C200 and C300 Experion PKS controllers?
The 51202329-200 I/O Link Cable Assembly is designed for the Experion PKS I/O subsystem and is compatible with C200 and C300 controller architectures. However, cable length variants exist within the 51202329 family (e.g., -100, -200, -300 suffixes may indicate different lengths or connector configurations). Always verify the exact suffix against your installed hardware revision and the Experion PKS hardware planning guide before ordering.

Q2: What pre-shipment testing is performed on this spare?
Every 51202329-200 unit shipped from our inventory undergoes electrical continuity testing across all conductors and connector pin verification to confirm signal integrity. Units that fail any test parameter are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: How should this spare be stored if not immediately installed?
Store the 51202329-200 in its original anti-static packaging in a dry, temperature-controlled environment (10°C–35°C, <70% RH non-condensing). Avoid coiling the cable tightly or placing heavy objects on the connector housings. Inspect the unit annually if held in long-term storage, and replace the storage unit if the outer sheath shows cracking or the connectors show oxidation.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and electrical failures under normal operating conditions as specified for the Experion PKS platform. It does not cover damage resulting from incorrect installation, overvoltage events, physical abuse, or use outside the specified environmental range. Warranty claims are processed with proof of purchase and a fault description; replacement units are dispatched upon claim approval.
