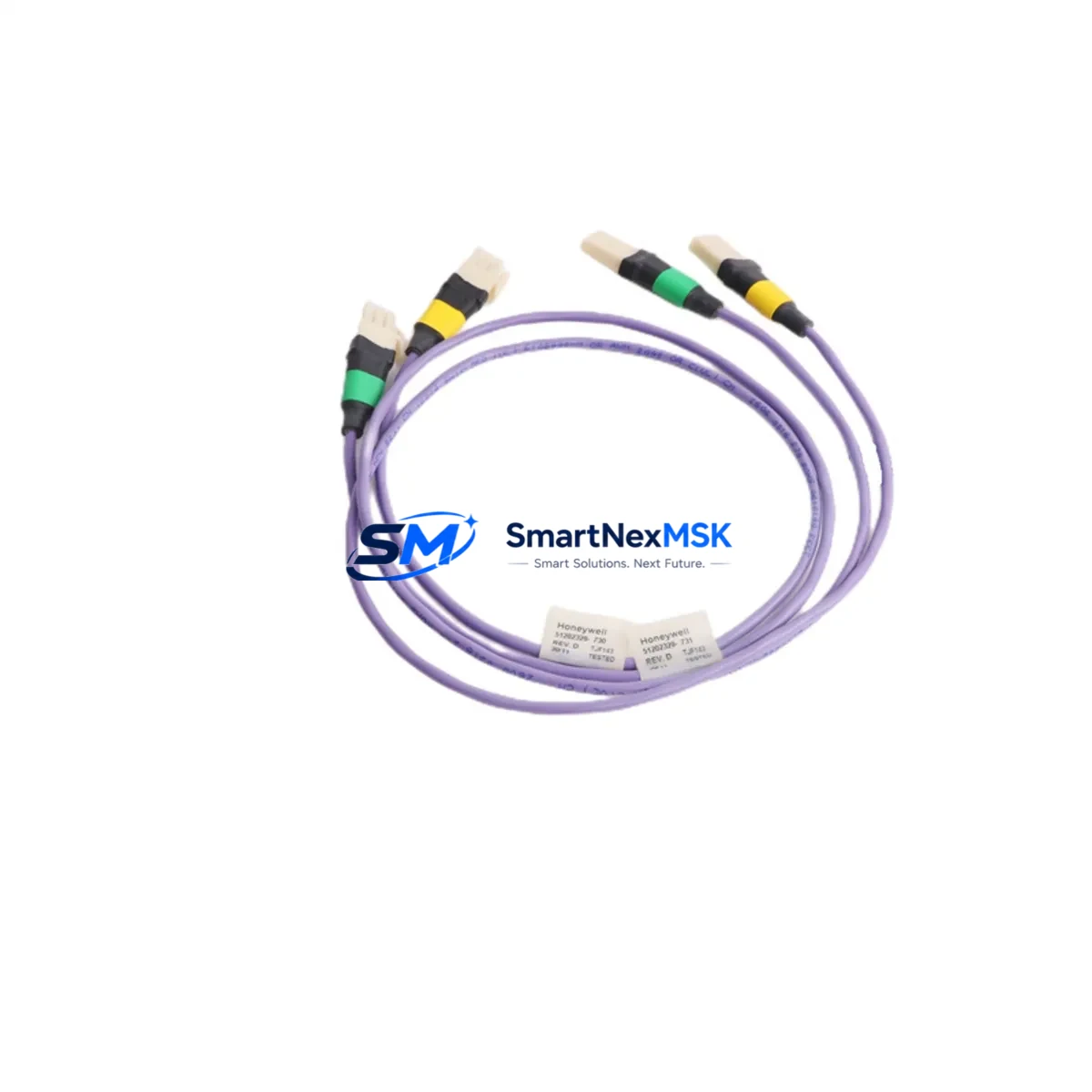

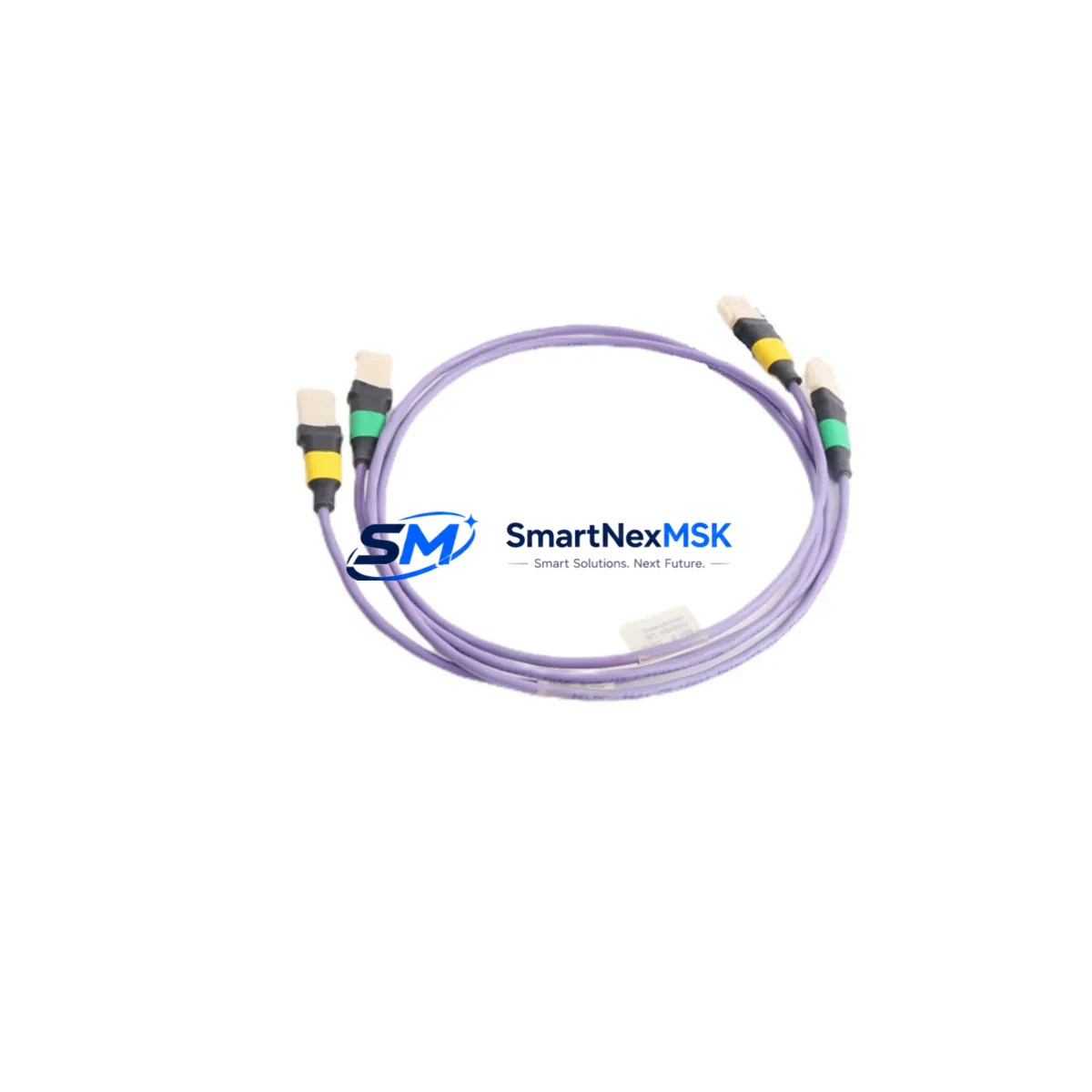

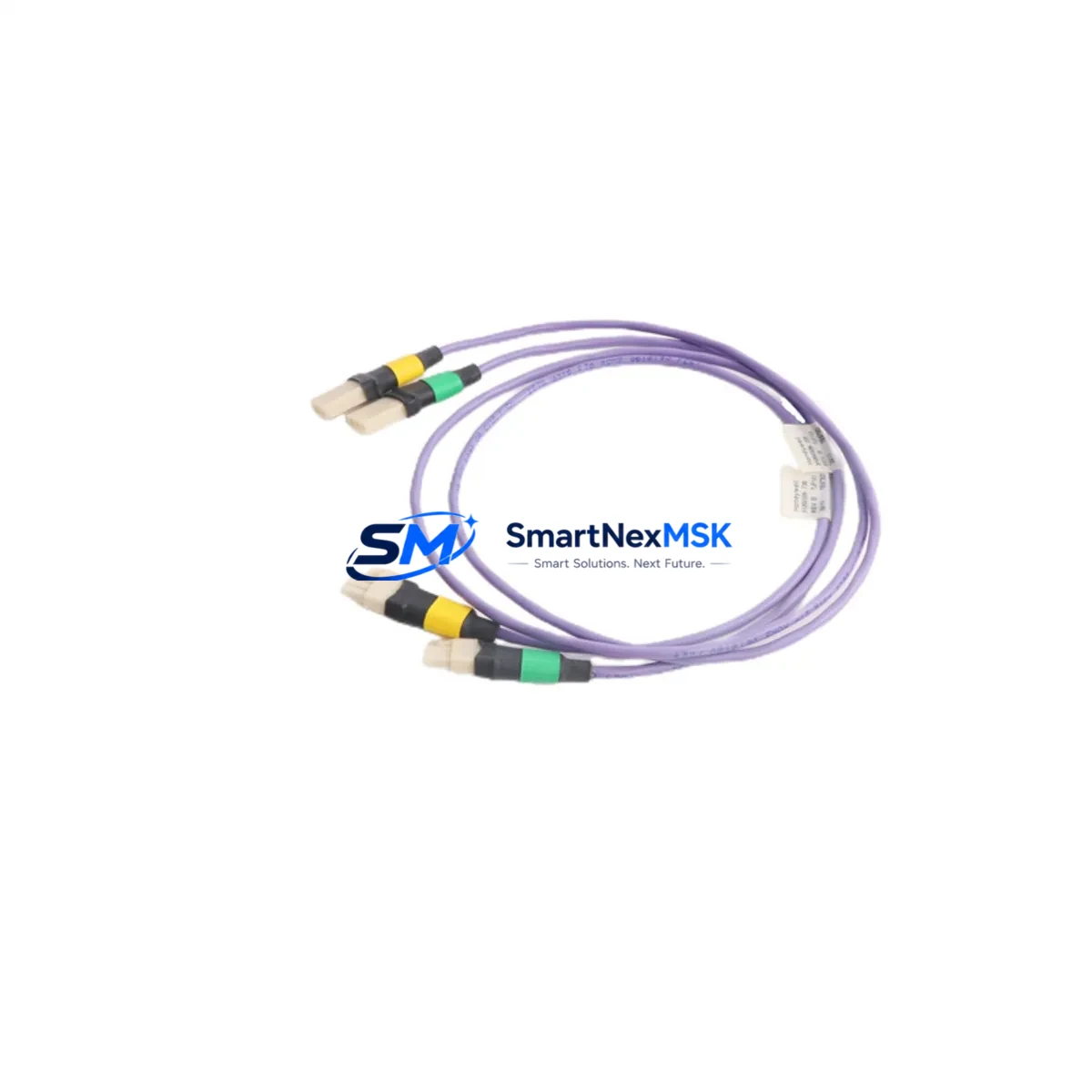

The Honeywell 51202329-732 is a factory-original DCS extension cable engineered for the Experion PKS and TDC 3000 distributed control system platforms. In industrial facilities where continuous process uptime is non-negotiable, this cable assembly serves as a critical interconnect between controller modules, I/O termination assemblies, and backplane infrastructure. Sourced directly from authorized supply channels, each unit is inspected and function-tested prior to dispatch, ensuring drop-in compatibility with existing Honeywell control cabinets without the need for re-engineering or custom adaptation.

Maintenance engineers managing aging TDC 3000 or Experion PKS installations understand that cable-related failures — caused by insulation fatigue, connector oxidation, or mechanical stress from repeated access — are among the most common yet underestimated causes of unplanned shutdowns. Stocking the 51202329-732 as a ready-to-deploy spare eliminates the lead-time risk associated with emergency procurement and allows maintenance teams to execute planned replacements during scheduled outages rather than reactive repairs during production losses.

From a procurement engineering perspective, the 51202329-732 integrates seamlessly into existing Honeywell spare parts lists alongside complementary components such as the C200 Controller Module, the IOTA termination assemblies, PM I/O Link modules, and the Series C FTA (Field Termination Assembly) boards. When replacing this cable during a control cabinet inspection, it is best practice to simultaneously verify the condition of adjacent power supply modules (e.g., Honeywell 51195156-100 or equivalent 24 VDC rail supplies), I/O bus interface cards, and communication gateway modules that share the same backplane segment. Signal integrity issues in DCS environments are frequently systemic — a degraded cable may mask underlying problems in connected relay output modules, analog input cards, or HART multiplexers.

For facilities running hybrid architectures that combine Experion PKS with legacy TDC 3000 nodes, the 51202329-732 supports continuity across both generations, reducing the need to maintain separate cable inventories for each platform revision. This cross-compatibility is particularly valuable during phased migration projects where older UCN (Universal Control Network) nodes are being progressively replaced with newer C300 or ACE (Application Control Environment) nodes while maintaining live process control.

All units are shipped with full traceability documentation, pre-shipment electrical continuity verification, and a 12-month warranty covering manufacturing defects and functional performance. Long-term supply availability is maintained to support customers with multi-year maintenance contracts and annual shutdown planning cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for Experion PKS and TDC 3000 systems requires a holistic view of the control cabinet ecosystem. When scheduling replacement of the 51202329-732 extension cable, maintenance engineers should treat the intervention as an opportunity to inspect and, where necessary, pre-stage replacements for the following associated components:

• C200 / C300 Controller Modules — verify firmware revision compatibility and check for capacitor aging indicators on the controller board.
• PM I/O Link Modules — inspect link status LEDs and confirm error-free communication logs before and after cable replacement.
• 24 VDC Backplane Power Supply Modules (e.g., Honeywell 51195156-100 series) — measure output voltage under load; degraded supplies accelerate cable connector wear.
• FTA (Field Termination Assembly) Boards — check terminal block torque and inspect for corrosion on signal wiring terminations adjacent to the cable path.
• Analog Input / Output Cards — run a channel-by-channel diagnostic after cable reseating to confirm signal fidelity is restored.
• Relay Output Modules — verify coil continuity and contact resistance; relay modules in the same I/O rack are often stressed by the same power quality events that degrade cables.
• HART Multiplexer Modules — confirm HART pass-through integrity post-replacement, particularly for loops sharing the same marshalling panel.
• UCN / FTE Network Interface Cards — check for communication fault logs that may have been masked by the cable fault condition.
• Cabinet Fuse Blocks and Terminal Strips — inspect fuse ratings and terminal torque values; loose terminals are a leading cause of intermittent cable-related alarms.
• HMI Operator Stations — after restoration, confirm all process displays and alarm summaries reflect correct I/O status before returning the loop to automatic control.

Site Replacement Workflow

Replacing the Honeywell 51202329-732 in a live Experion PKS or TDC 3000 environment follows a structured sequence designed to minimize downtime and eliminate re-work:

1. Pre-Replacement Verification: Confirm the replacement cable part number matches the installed revision. Cross-reference the cabinet wiring diagram and the Honeywell hardware manual for the specific I/O chassis generation in use.
2. Loop Isolation: Place affected I/O channels in manual or fallback mode via the Experion PKS operator station. Document current process values for post-restoration comparison.
3. Cable Removal: Disconnect the 51202329-732 from both the controller module and the I/O termination point. Inspect the vacated connectors for pin damage, oxidation, or debris before installing the replacement.
4. Installation and Seating: Insert the new cable assembly, ensuring full connector engagement and locking. Avoid excessive bend radius — maintain the cable routing as per the original cabinet layout.
5. Functional Test: Power the I/O segment and confirm green status on the PM I/O Link module. Run a channel scan from the Experion PKS engineering station to verify all I/O points report correctly.
6. Return to Service: Release affected loops from manual mode, monitor for 15–30 minutes, and update the maintenance log with the replacement date, technician ID, and new cable serial number.

This workflow supports legacy TDC 3000 systems undergoing life-extension programs as well as active Experion PKS installations, ensuring that a single cable replacement does not introduce new system instability.

Spare Parts Support FAQ

Q1: Is the 51202329-732 compatible with both TDC 3000 and Experion PKS systems?
Yes. The 51202329-732 is an OEM Honeywell cable assembly designed to serve as a direct replacement across TDC 3000 Series C and Experion PKS hardware generations. No adapter or modification is required for standard cabinet configurations. If your installation uses a non-standard chassis revision, please provide your cabinet model number for compatibility confirmation before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 51202329-732 unit undergoes electrical continuity verification and pin-out inspection prior to dispatch. Units that do not pass functional testing are not shipped. A test record is available upon request for customers with quality management system (QMS) documentation requirements.

Q3: How should I manage 51202329-732 inventory for a multi-unit DCS installation?
For facilities operating more than four Experion PKS or TDC 3000 controller nodes, we recommend maintaining a minimum of two 51202329-732 units in the on-site spare parts store. Cable assemblies in high-vibration or high-humidity environments should be inspected annually and replaced on a 5–7 year preventive maintenance cycle regardless of visible condition.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, over-voltage events, or physical mishandling. Warranty claims are processed with a replacement-first policy — a replacement unit is dispatched upon receipt of the defective item and confirmation of the fault condition.
