Honeywell 51304544-100 Maintenance-Ready Spare for FSC Automation

Honeywell 51304544-100 Maintenance-Ready Spare for FSC Automation

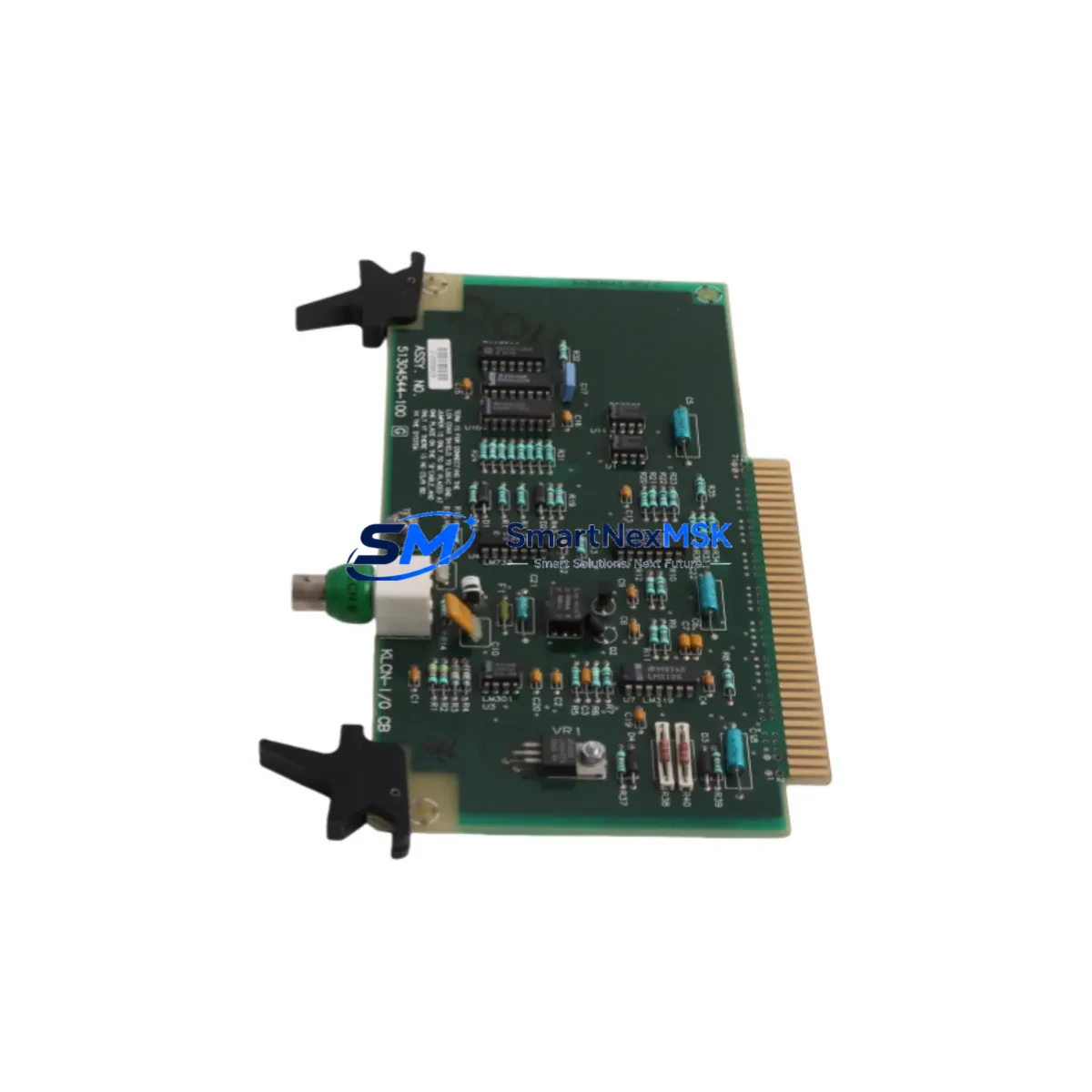

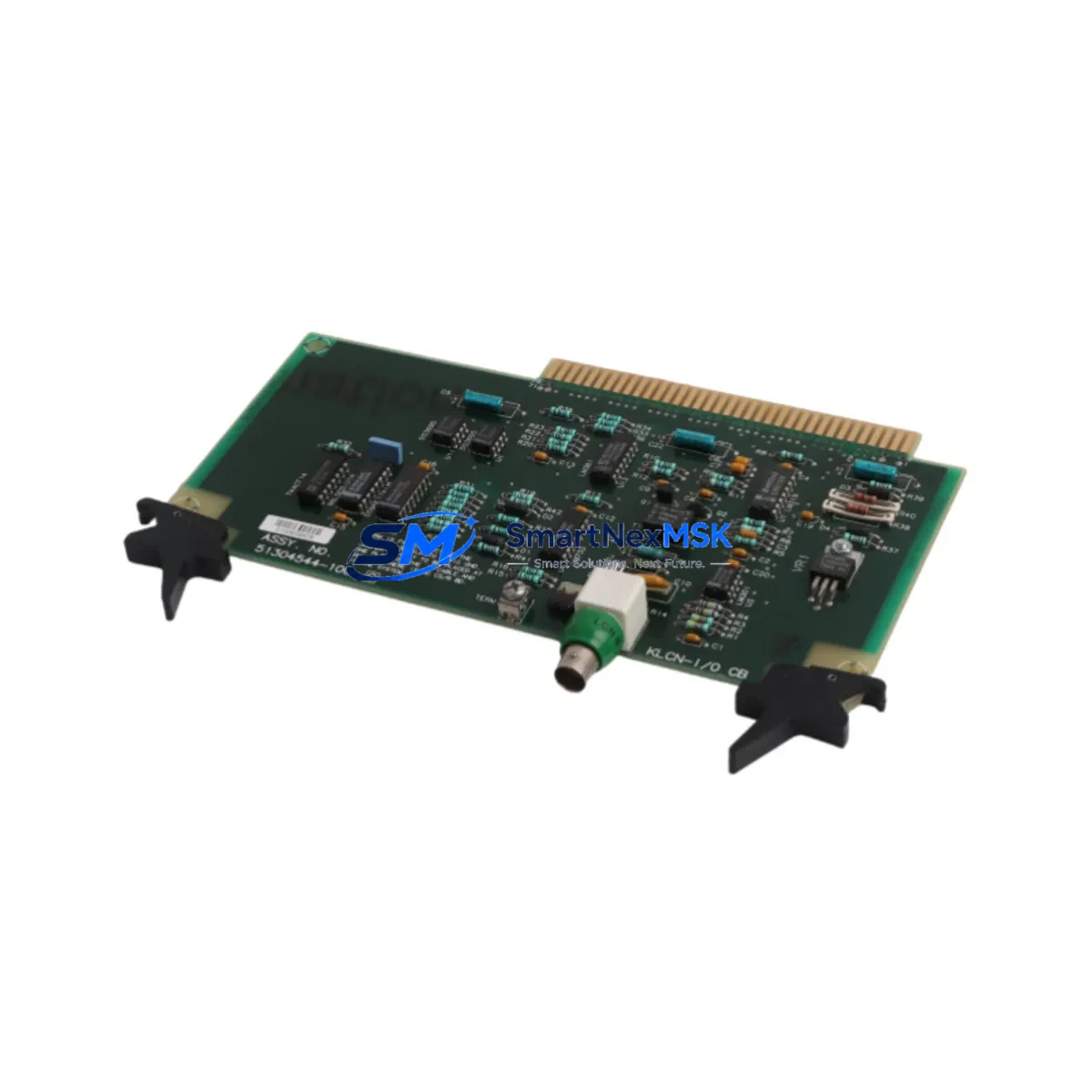

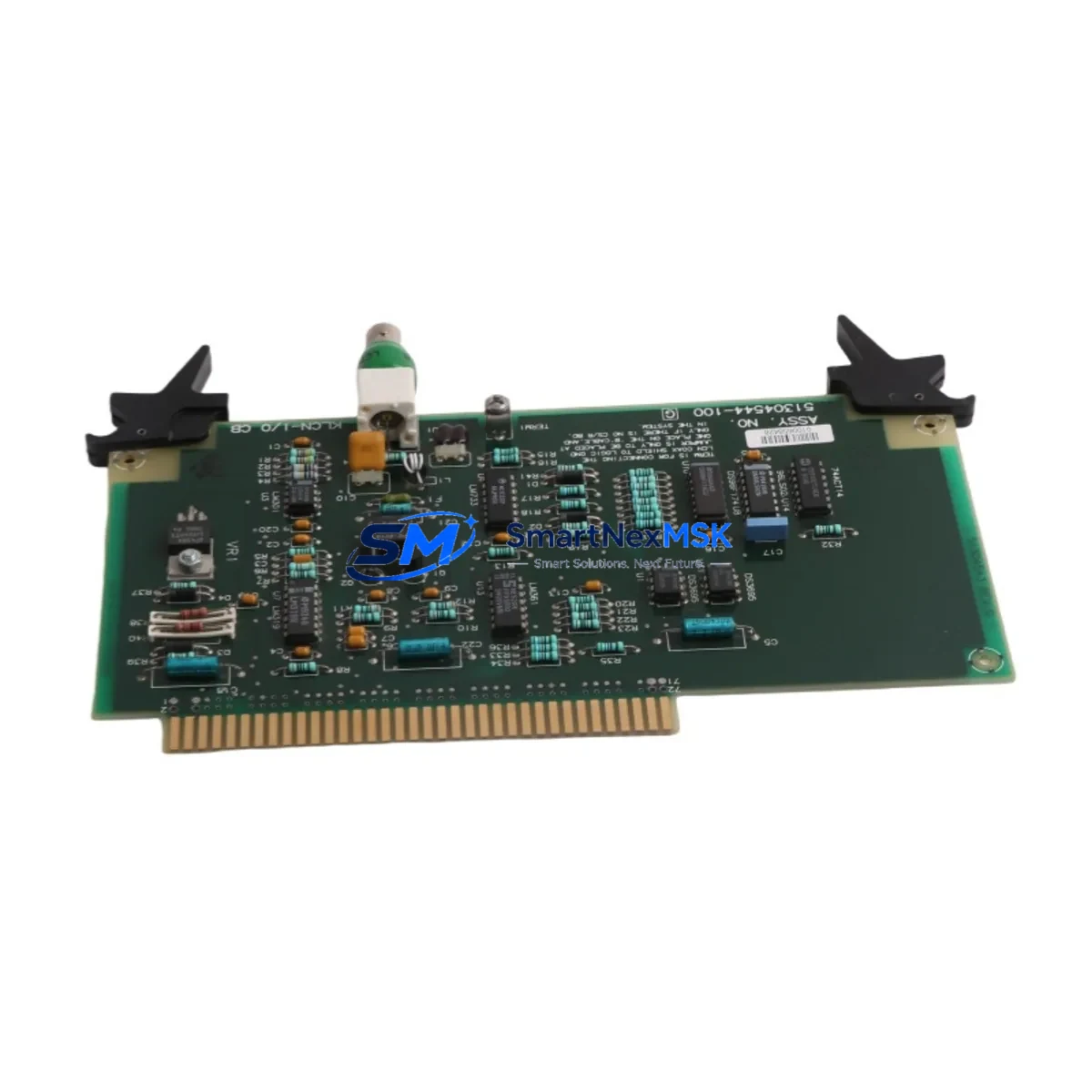

The Honeywell 51304544-100 is an original KLCN I/O Control Bus Card designed for the Honeywell FSC (Fail-Safe Controller) safety automation platform. In safety-critical environments — including oil & gas processing, chemical plants, power generation, and offshore installations — this bus card serves as the communication backbone between the FSC processor and its distributed I/O modules. When this card fails or degrades, the entire safety loop is at risk. Maintaining a verified spare on the shelf is not optional; it is a fundamental requirement of any responsible maintenance strategy.

For maintenance engineers managing FSC-based safety instrumented systems (SIS), the 51304544-100 is a high-priority line item on every annual spare parts review. Its role in the KLCN bus architecture means that any degradation — intermittent communication faults, CRC errors, or bus timeout alarms — can cascade into spurious trips or, worse, a failure to respond to a genuine process hazard. Procurement engineers sourcing this card should verify the firmware revision compatibility with the installed FSC processor module (such as the 51304453-150 or 51304453-175 CPU cards) before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare parts strategy for FSC-based safety systems must account for the interdependencies between the 51304544-100 KLCN bus card and the surrounding hardware. When a maintenance team responds to a bus communication alarm or schedules a planned outage for card replacement, the following components should be inspected or staged as concurrent spares:

The FSC processor module (e.g., 51304453-150 CPU card) should be checked for firmware version alignment with the replacement bus card. Mismatched firmware between the CPU and the KLCN bus card is a common source of post-replacement communication faults. Alongside the processor, the FSC power supply module (such as the 51304516-100 or equivalent) should be load-tested during the same maintenance window — a marginal power supply is frequently the root cause of intermittent bus card errors that are misdiagnosed as card failure.

The FSC backplane itself warrants visual inspection for oxidized or bent connector pins, particularly in high-humidity or coastal environments. Backplane connector damage can destroy a replacement card within weeks if not addressed. Maintenance teams should also verify the condition of the KLCN bus termination resistors and bus cables connecting the FSC chassis to remote I/O racks — degraded termination is a leading cause of bus instability in aging FSC installations.

On the I/O side, the FSC digital input modules (DI cards) and digital output modules (DO cards) connected via the KLCN bus should be functionally tested after bus card replacement to confirm that all I/O channels are reporting correctly. Any signal isolators or galvanic isolators in the field wiring loops should be checked for drift, especially on 4–20 mA SIL-rated loops feeding the FSC inputs. For systems with integrated fire and gas detection, the FSC F&G input modules and their associated detector loop wiring should be verified for continuity and correct impedance.

Finally, the FSC engineering workstation connection and the Honeywell Safety Manager or legacy FSC configuration software should be used to perform a full I/O scan and diagnostic read after card replacement, confirming that all module addresses are recognized and no latent faults are masked. Keeping a documented spare parts list that includes the 51304544-100 alongside these associated components ensures that a single-card failure does not extend into a multi-day outage.

Site Replacement Workflow

Replacing the Honeywell 51304544-100 in a live FSC system requires careful coordination with the site safety management of change (MOC) process. The following workflow is recommended for maintenance and reliability engineers:

1. Pre-Replacement Verification: Confirm the replacement card part number (51304544-100) and revision level match the installed card. Cross-reference with the FSC system bill of materials and the site’s approved spare parts register. Verify that the FSC system is in a safe state or that a bypass is authorized per the site’s SIS bypass procedure.

2. Controlled Shutdown & Card Extraction: Follow the FSC hardware manual for card extraction sequence. The KLCN bus card must be removed with the FSC chassis powered down or with the affected bus segment isolated, depending on the system’s redundancy configuration. Document the slot position and any DIP switch or jumper settings on the outgoing card before removal.

3. Installation & Configuration: Insert the 51304544-100 into the correct backplane slot. Verify that any configuration switches match the documented settings. Power up the chassis and observe the card’s LED status indicators — a solid green RUN LED confirms successful bus initialization. If the card enters a fault state, check backplane seating and bus termination before assuming card defect.

4. Functional Test & Return to Service: Use the FSC diagnostic software to perform a full I/O scan. Confirm all downstream I/O modules are communicating correctly. Remove any bypasses in the correct sequence per the site bypass management procedure. Document the replacement in the site maintenance management system (CMMS) and update the spare parts inventory to trigger reorder of the consumed spare.

This workflow minimizes downtime, maintains system compatibility, and ensures the FSC safety function is fully restored before the system is returned to automatic operation.

Spare Parts Support FAQ

Q1: What is the expected service life of the Honeywell 51304544-100, and when should it be replaced proactively?
The 51304544-100 KLCN bus card is a long-life industrial component, but in FSC systems operating beyond 10–15 years, proactive replacement during planned shutdowns is recommended. Electrolytic capacitor aging and connector wear are the primary failure modes. Sites with high ambient temperature or humidity should inspect the card annually and replace at the first sign of intermittent bus faults.

Q2: How do I verify compatibility between the 51304544-100 and my installed FSC processor version?
Compatibility is determined by the FSC system hardware revision and the firmware version loaded on the processor module. Consult the Honeywell FSC Hardware Manual (document EP-FSC-HW) and cross-reference the bus card revision with the processor firmware compatibility matrix. Our technical team can assist with compatibility verification before shipment upon request.

Q3: Is the 51304544-100 tested before shipment, and what does the 12-month warranty cover?
Yes — every unit is functionally tested prior to dispatch. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or use outside the specified environmental parameters. Warranty claims are supported with a full replacement or repair at no additional cost.

Q4: Can the 51304544-100 be used as a direct replacement for older KLCN bus card revisions in legacy FSC systems?
In most cases, yes — the 51304544-100 is backward compatible with earlier FSC chassis generations that use the KLCN bus architecture. However, sites running very early FSC hardware revisions should confirm backplane connector compatibility and DIP switch configuration before installation. Contact our sales team with your FSC system serial number for a pre-shipment compatibility check.
