Honeywell 51304584-100 Maintenance-Ready Spare for TDC 3000 Automation

Honeywell 51304584-100 Maintenance-Ready Spare for TDC 3000 Automation

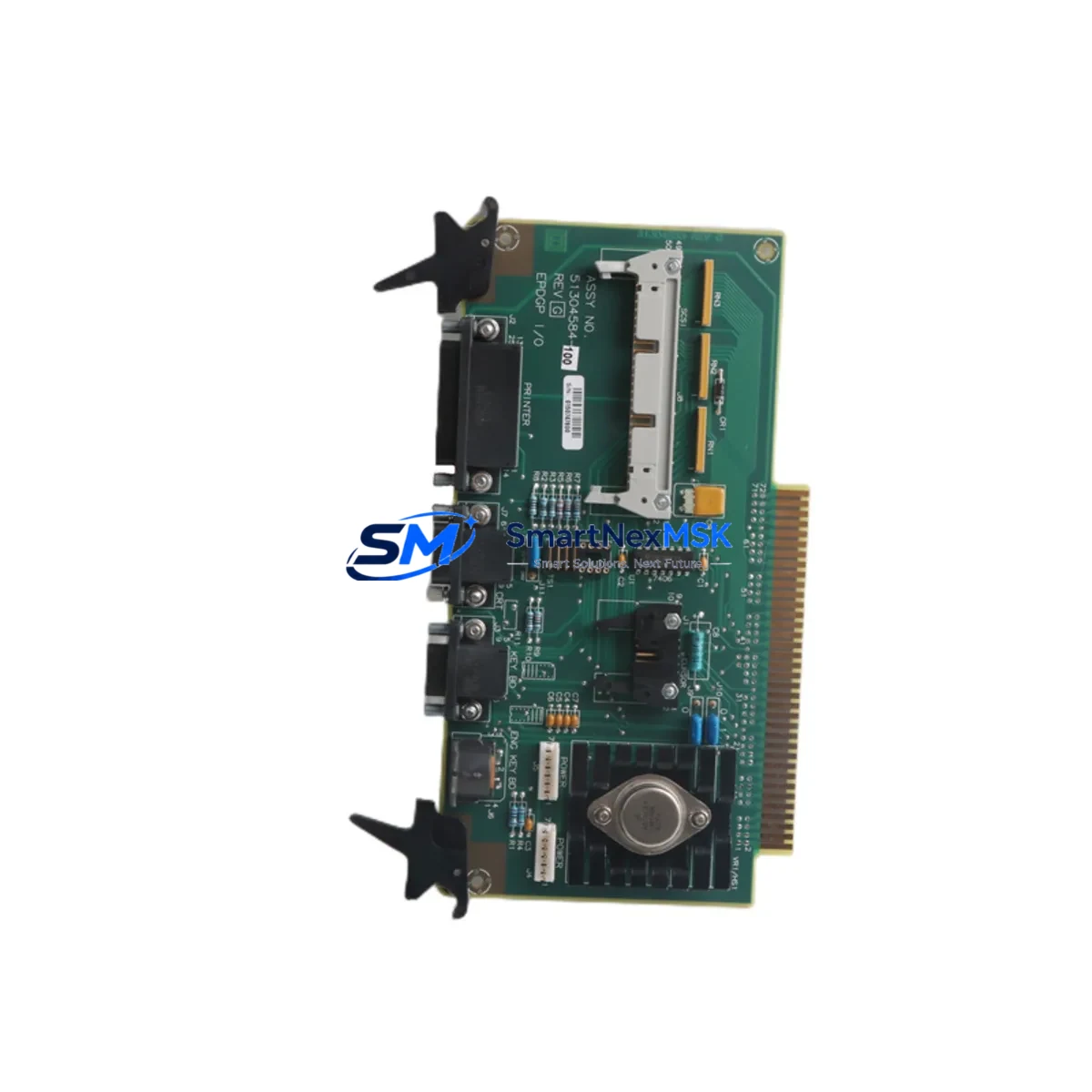

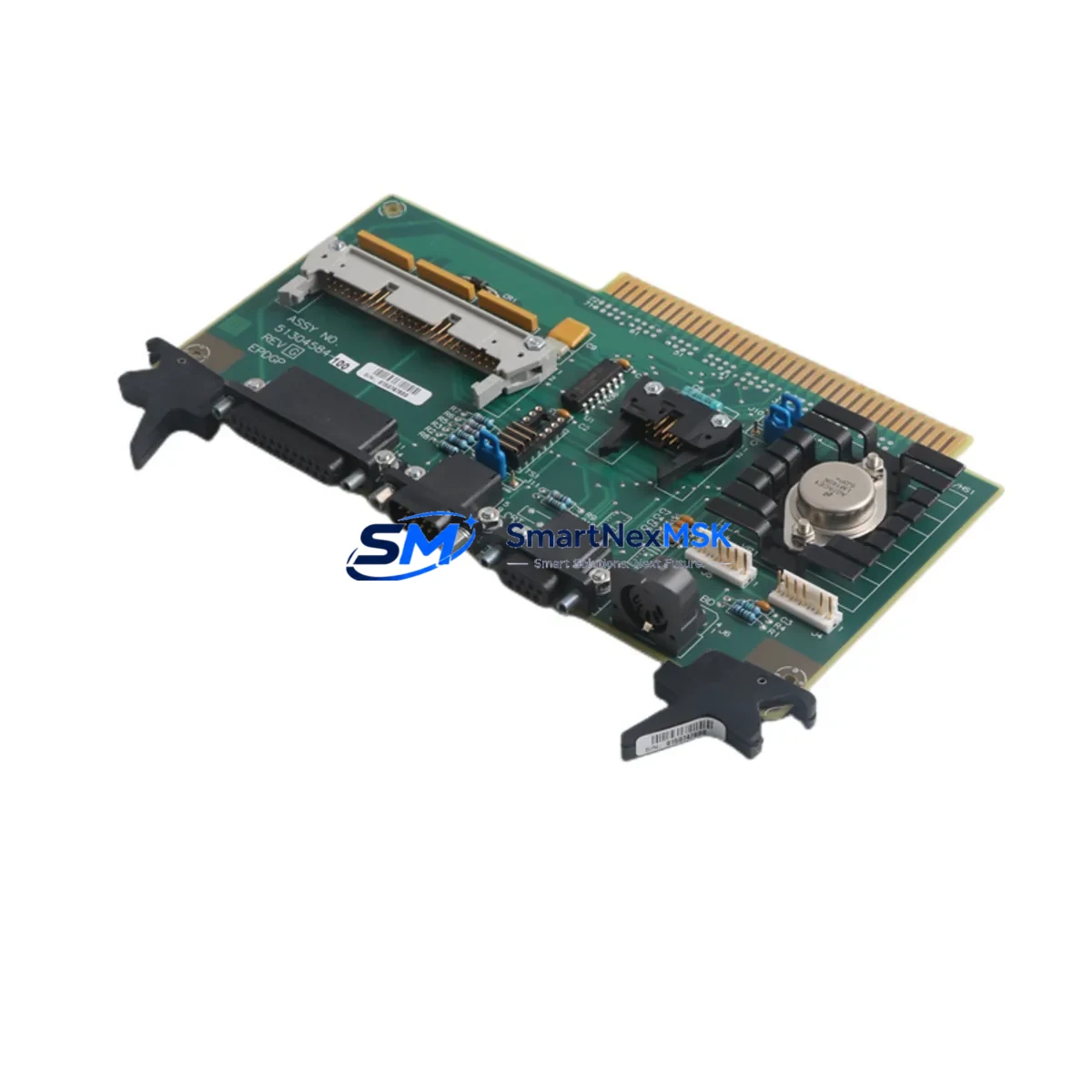

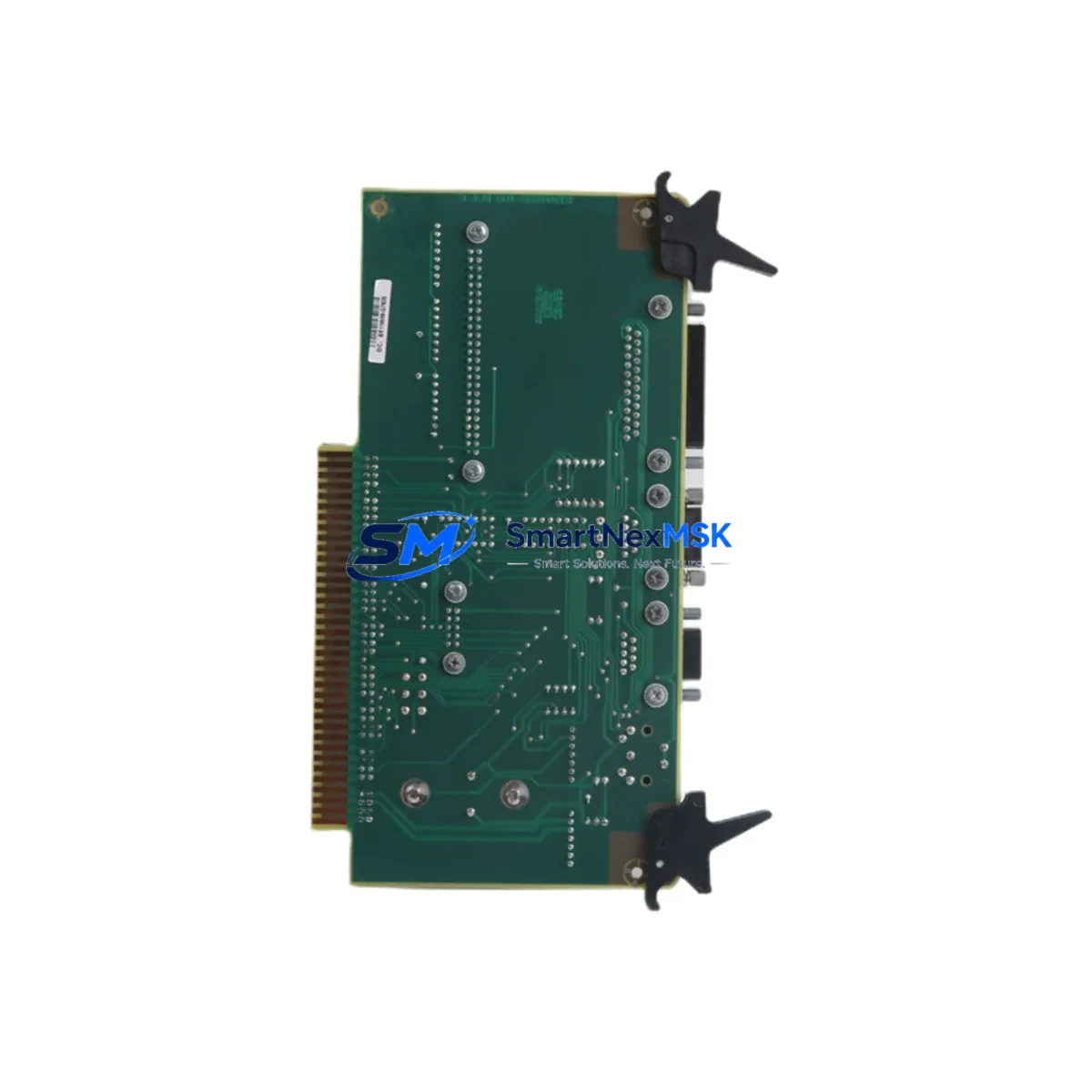

The Honeywell 51304584-100 is an original DCS I/O module engineered for continuous-duty industrial environments operating within the TDC 3000 and Experion PKS distributed control architectures. For maintenance engineers managing aging DCS infrastructure, this module represents a critical spare that directly impacts uptime, process continuity, and shutdown risk. Sourced as an original Honeywell component, the 51304584-100 is pre-tested prior to dispatch and backed by a 12-month warranty, making it a reliable choice for both planned maintenance cycles and emergency replacement scenarios.

In process industries — including refining, petrochemical, power generation, and specialty chemicals — unplanned I/O module failures can trigger costly process shutdowns lasting hours or days. Maintaining a verified spare of the 51304584-100 in your on-site inventory eliminates the lead-time risk associated with sourcing obsolete or long-delivery DCS components. Procurement engineers working with legacy TDC 3000 systems understand that Honeywell’s original hardware is no longer in active production for many sub-assemblies, making secondary-market sourcing from verified suppliers an essential part of lifecycle management strategy.

This module is compatible with the TDC 3000 High-Performance Process Manager (HPM) and Local Control Network (LCN) architecture, as well as select Experion PKS migration configurations. It is designed to slot into existing backplane assemblies without requiring firmware reconfiguration in most standard replacement scenarios, significantly reducing mean time to repair (MTTR) during fault isolation events.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 51304584-100 in a TDC 3000 system, a thorough maintenance engineer will not stop at the module itself. A structured inspection of the surrounding control cabinet and electrical circuit is essential to prevent repeat failures and ensure the replacement module operates within its rated parameters from day one.

Begin by inspecting the backplane assembly into which the 51304584-100 seats — worn connector pins or oxidized contacts on the backplane can cause intermittent faults that mimic module failure. Verify the 24VDC or 5VDC power supply module (such as the Honeywell 51195156-100 or equivalent HPM power supply) is within voltage tolerance, as under-voltage conditions are a leading cause of premature I/O module degradation. Check the field termination assembly (FTA) wiring for loose terminals, corroded screw connections, or damaged cable shields — particularly on analog input channels where signal integrity is critical.

For systems with mixed I/O, also inspect adjacent analog output modules and digital input/output cards in the same HPM chassis. A fault in one slot can propagate electrical noise or ground loops that affect neighboring modules. Review the communication interface module connecting the HPM to the LCN highway — modules such as the Honeywell 51401288-100 or similar LCN interface cards should be checked for firmware version compatibility and communication error logs.

During cabinet inspection, examine terminal blocks and marshalling panels for signs of heat stress or insulation breakdown. Verify that signal isolators on 4–20 mA loops are functioning correctly, as a failed isolator can send erroneous signals that trigger false alarms or mask real process deviations. Check fuse holders and circuit protection on field wiring circuits — blown fuses are often the first indicator of a field-side wiring fault that caused the original module failure. If the system includes HART-enabled field devices, confirm that the HART multiplexer or modem connected to this I/O channel is operational and that device descriptors are current.

For facilities running extended TDC 3000 lifecycles, consider scheduling a parallel inspection of the Honeywell Universal Control Network (UCN) interface and any Data Hiway couplers in the same control loop. These components age in tandem with I/O modules and are frequently overlooked during reactive maintenance events. Proactive replacement of aging battery backup modules for memory retention and HMI operator station interface cards should also be included in the same planned maintenance window to maximize the value of each scheduled outage.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the TDC 3000 system console or Experion Station to identify the faulted module slot. Confirm the fault code corresponds to the 51304584-100 and is not a field wiring or FTA issue before proceeding with module replacement.

Step 2 — Safety Isolation: Follow your site’s Management of Change (MOC) and Permit to Work (PTW) procedures. Place the affected control loop in manual mode at the DCS console. Notify the control room operator before removing any module from a live HPM chassis.

Step 3 — Module Removal: Disengage the module locking mechanism and carefully extract the 51304584-100 from its backplane slot. Inspect the ejected module’s connector for physical damage, burn marks, or contamination that may indicate the root cause of failure.

Step 4 — Spare Installation: Insert the replacement 51304584-100 into the same slot. The module should seat firmly with an audible click. Confirm the system console recognizes the new module and that no additional configuration download is required for a like-for-like replacement.

Step 5 — Loop Verification: Return the control loop to automatic mode and verify all I/O channels are reading correctly. Compare live process values against historian data to confirm signal integrity. Document the replacement in your CMMS with the module serial number, date, and technician ID.

Step 6 — Spare Replenishment: Immediately initiate a purchase order for a replacement spare to restore your on-hand inventory. For critical process units, a minimum of one spare per HPM chassis is recommended as a baseline inventory policy.

Spare Parts Support FAQ

Q: Is the 51304584-100 still available as a new original Honeywell part?
A: The TDC 3000 platform has reached end-of-active-production for many sub-assemblies. The 51304584-100 is available through authorized surplus and secondary-market channels as original surplus-new or professionally refurbished units. All units are tested prior to shipment and covered by a 12-month warranty. Contact us to confirm current stock condition and availability.

Q: How do I verify compatibility before installation?
A: Confirm your HPM chassis slot assignment and the module’s hardware revision against your TDC 3000 system documentation or Honeywell’s PM/APM configuration records. If you require compatibility verification support, provide your system’s HPM model number and firmware revision when contacting our technical team.

Q: What testing is performed before the module ships?
A: Each 51304584-100 unit undergoes functional power-on testing and I/O channel verification prior to dispatch. Units that fail any test parameter are quarantined and not offered for sale. A test report is available upon request for critical applications.

Q: What is your inventory and long-term supply policy for this part?
A: We maintain rolling stock of key TDC 3000 spare modules to support both emergency and planned maintenance requirements. Blanket purchase orders and consignment stock arrangements are available for facilities with high-volume or multi-site DCS maintenance programs. All orders are backed by a 12-month warranty from the date of shipment.
