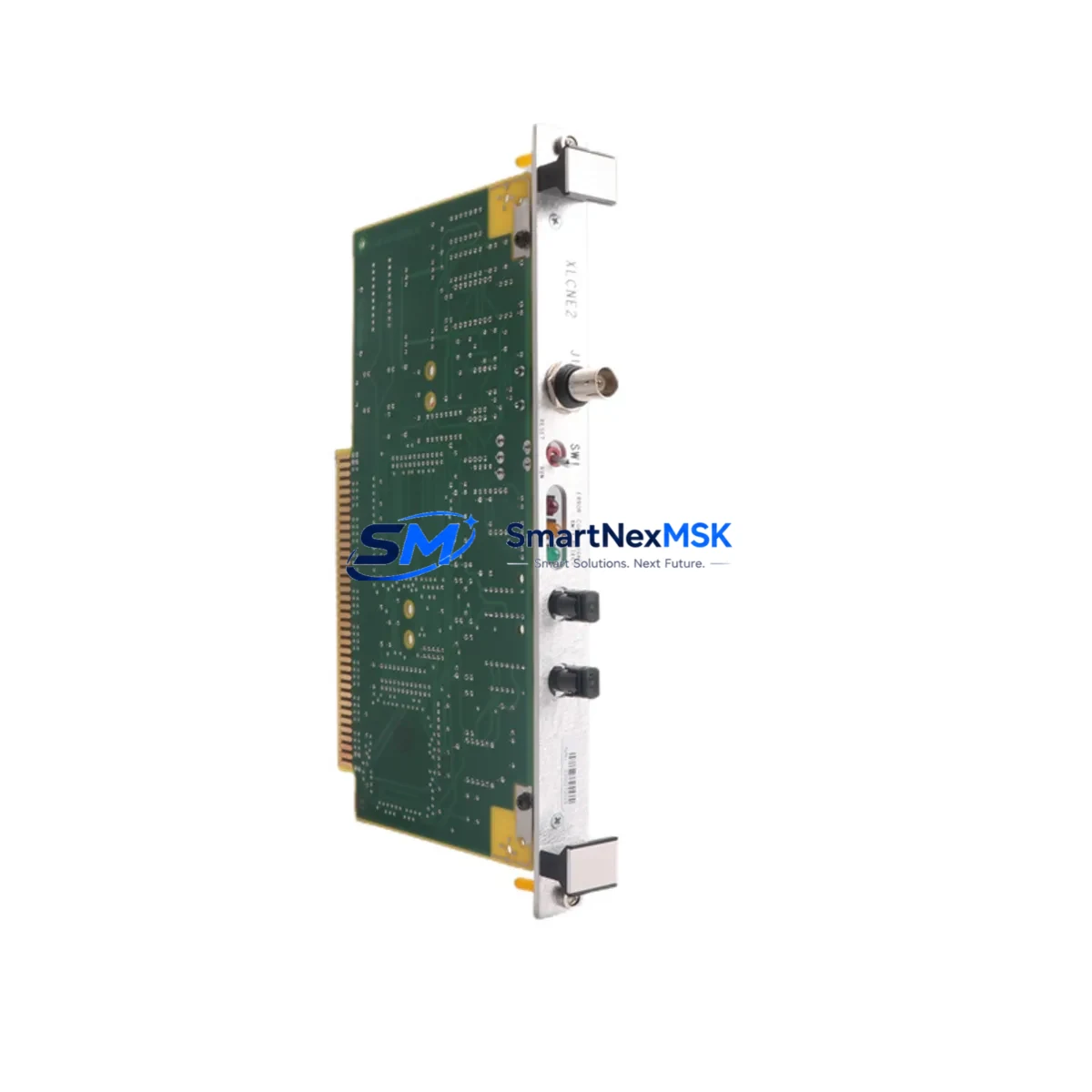

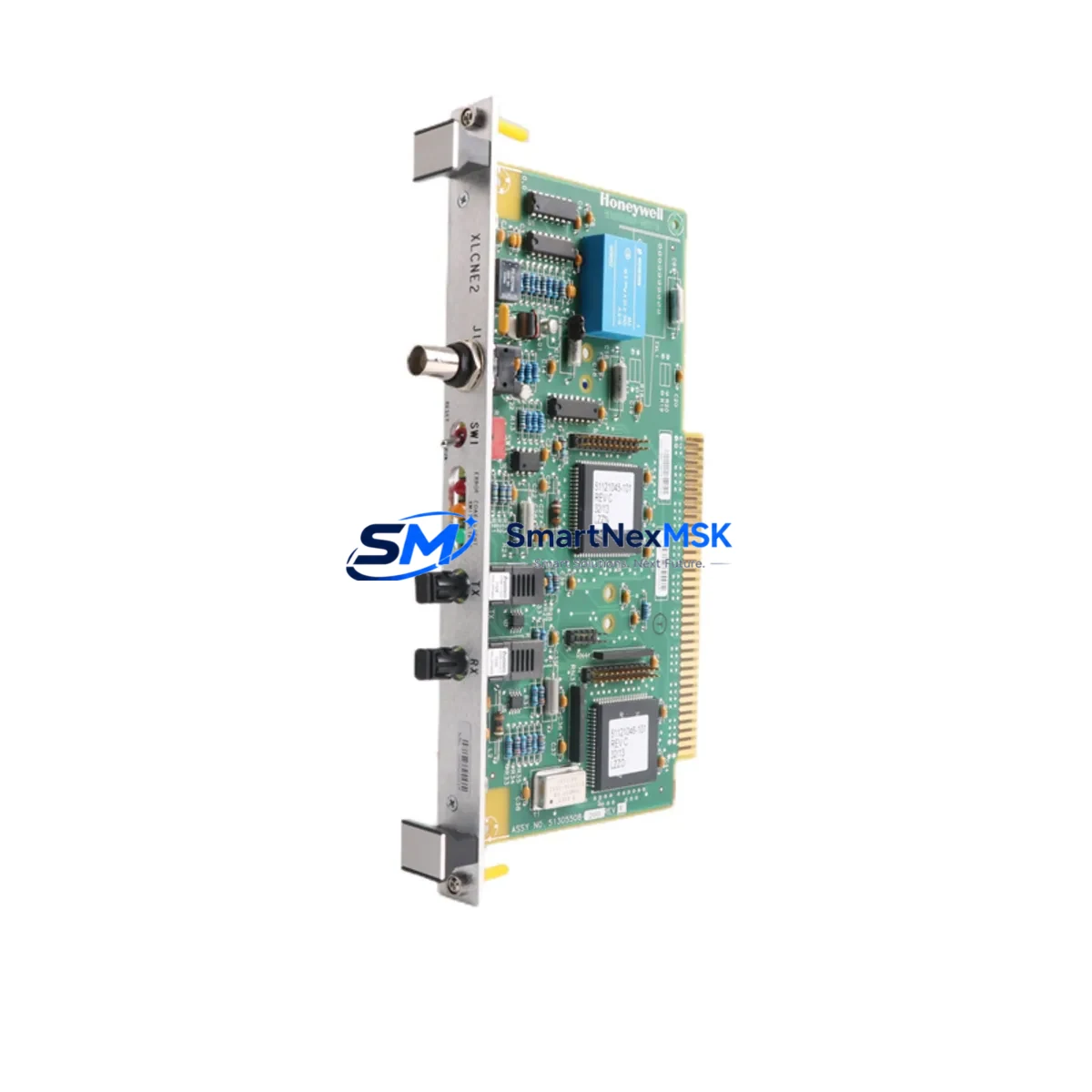

Honeywell 51305508-200 XLCNE2 Retrofit-Ready Fiber Network Module

Honeywell 51305508-200 XLCNE2 Retrofit-Ready Fiber Network Module for Experion PKS Control Systems

The Honeywell 51305508-200 (XLCNE2) is a fiber optic network communication module engineered for the Experion PKS distributed control system platform. As legacy DCS installations age and original spare parts become increasingly scarce, the 51305508-200 serves as a verified drop-in replacement for facilities managing long-lifecycle process control infrastructure. Whether you are executing a planned control cabinet upgrade, recovering from an unplanned module failure, or migrating from an earlier Honeywell TDC 3000 or PlantScape architecture toward a modern Experion PKS backbone, this module provides the communication continuity your system demands.

The XLCNE2 module interfaces directly with the Experion PKS server chassis and C300 controller environment, maintaining fiber-based FTE (Fault Tolerant Ethernet) network integrity across redundant control paths. Its dual-fiber port design supports ring and star topology configurations, making it compatible with existing plant cabling infrastructure without requiring rewiring. Engineers replacing a failed 51305508-100 or earlier XLCNE revision should verify backplane slot assignment and firmware revision compatibility before installation, as minor hardware revisions may affect address mapping within the Experion configuration database.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the 51305508-200 typically begins with a full audit of the existing Experion PKS network topology. Before pulling the failed or end-of-life module, engineers should document the current FTE switch configuration, fiber patch assignments, and the module’s logical address as registered in the Experion Configuration Studio. In multi-server Experion environments, the XLCNE2 may be paired with a C300 Controller module and an IOLINK communication card, both of which must remain online during the swap to avoid cascading process alarms.

For facilities transitioning from TDC 3000 or PlantScape legacy systems, the migration path often involves replacing the older Highway Gateway (HG) and Application Module (AM) hardware with Experion-native components. In these scenarios, the 51305508-200 is typically installed alongside updated FTE network switches, new server chassis backplanes, and revised I/O termination assemblies. Engineers should also account for the SCADA HMI display reconfiguration — Experion Station operator displays may require point database updates to reflect new module addresses after the XLCNE2 is registered in the system.

Power supply capacity is a critical checkpoint during any DCS cabinet retrofit. The Experion PKS chassis power supply — commonly the Honeywell 51190076-100 or equivalent — must be verified to support the combined load of the XLCNE2 alongside co-installed modules such as the C200 or C300 controller, redundant power modules, and any Series C I/O Link modules. Terminal block wiring for fiber patch panels should be inspected and re-labeled to match updated as-built drawings before commissioning.

Communication protocol migration is another key consideration. Sites moving from Modbus RTU or PROFIBUS DP field networks to FTE-based architectures will need to install appropriate protocol gateway modules or update field device configurations. The XLCNE2 supports the FTE backbone but does not natively bridge legacy serial protocols — a separate communication interface module may be required for mixed-protocol environments. Rack and chassis assignments should be finalized in the Experion Configuration Studio before the new module is powered on to prevent address conflicts.

Downtime Control During System Migration

Minimizing process downtime during a DCS module replacement requires a structured pre-swap checklist. Before removing the existing XLCNE or 51305508-100, the control system should be placed in manual mode at the regulatory control level, with all critical loops confirmed stable and operators briefed on manual override procedures. A full backup of the Experion PKS server database — including control strategies, point configurations, and alarm setpoints — must be completed and verified before any hardware is disturbed.

The 51305508-200 is designed for hot-swap capability within the Experion PKS chassis, but field experience indicates that a controlled, planned outage window of 15–30 minutes is advisable for first-time replacements in live production environments. During this window, the fiber connections should be transferred one port at a time to maintain partial FTE ring continuity where topology permits. After the new XLCNE2 is seated and powered, the Experion server will automatically attempt to re-bind the module to its registered configuration — engineers should monitor the System Status Display for successful module recognition before returning loops to automatic control.

Post-installation verification should include a full FTE network health check, confirmation of redundant fiber path integrity, and a review of any suppressed alarms that may have triggered during the swap. Original program logic and control strategies are preserved in the Experion server database and do not require re-entry after a like-for-like module replacement, significantly reducing commissioning time and the risk of configuration errors.

Retrofit Support FAQ

Q1: Is the 51305508-200 a direct drop-in replacement for the 51305508-100 (XLCNE)?
A: In most Experion PKS installations, yes. The XLCNE2 (51305508-200) is the designated upgrade revision for the XLCNE (51305508-100). However, you should verify the Experion PKS server firmware version and backplane hardware revision to confirm full compatibility before installation. Our technical team can assist with pre-shipment compatibility checks upon request.

Q2: What wiring or termination changes are required during installation?
A: The 51305508-200 uses the same dual fiber optic interface as its predecessor. No terminal block rewiring is required for like-for-like replacements. Fiber patch cables should be inspected for cleanliness and continuity before reconnection. If the chassis backplane has been upgraded, verify that the slot pinout is consistent with the XLCNE2 hardware specification.

Q3: How is the module tested before shipment?
A: Every 51305508-200 unit undergoes functional power-on testing and visual inspection prior to dispatch. Units sourced from our Xiamen warehouse are checked against original Honeywell hardware specifications. A test report is available upon request for critical replacement orders.

Q4: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions consistent with Honeywell’s published environmental specifications for the Experion PKS platform. Warranty claims are processed directly through SMARTNEXMSK. Replacement or repair is arranged within the warranty period at no additional cost to the buyer.
