Honeywell 51403988-150 Retrofit-Ready HPPM for TDC 3000

Honeywell 51403988-150 Retrofit-Ready HPPM Controller for TDC 3000 Control Systems

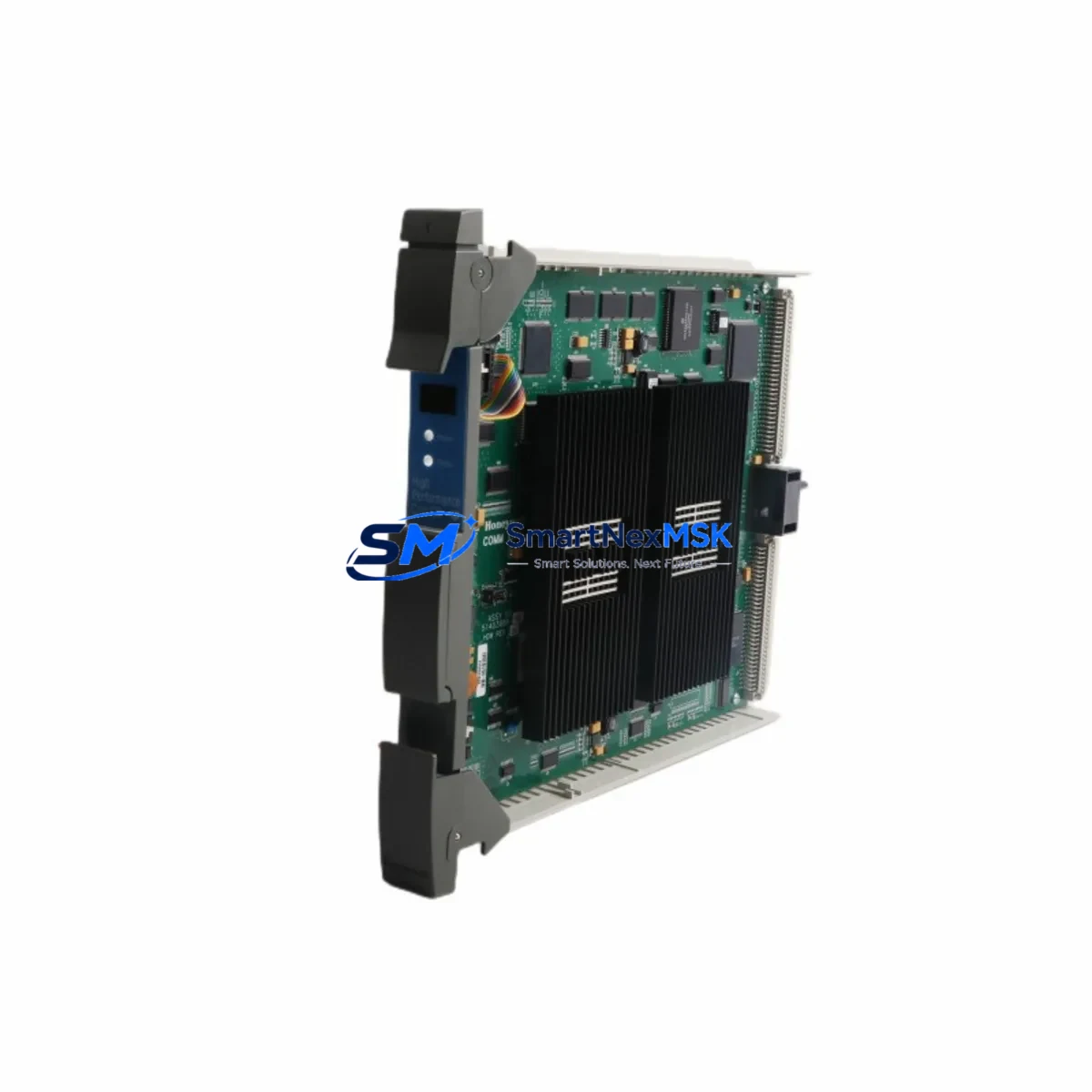

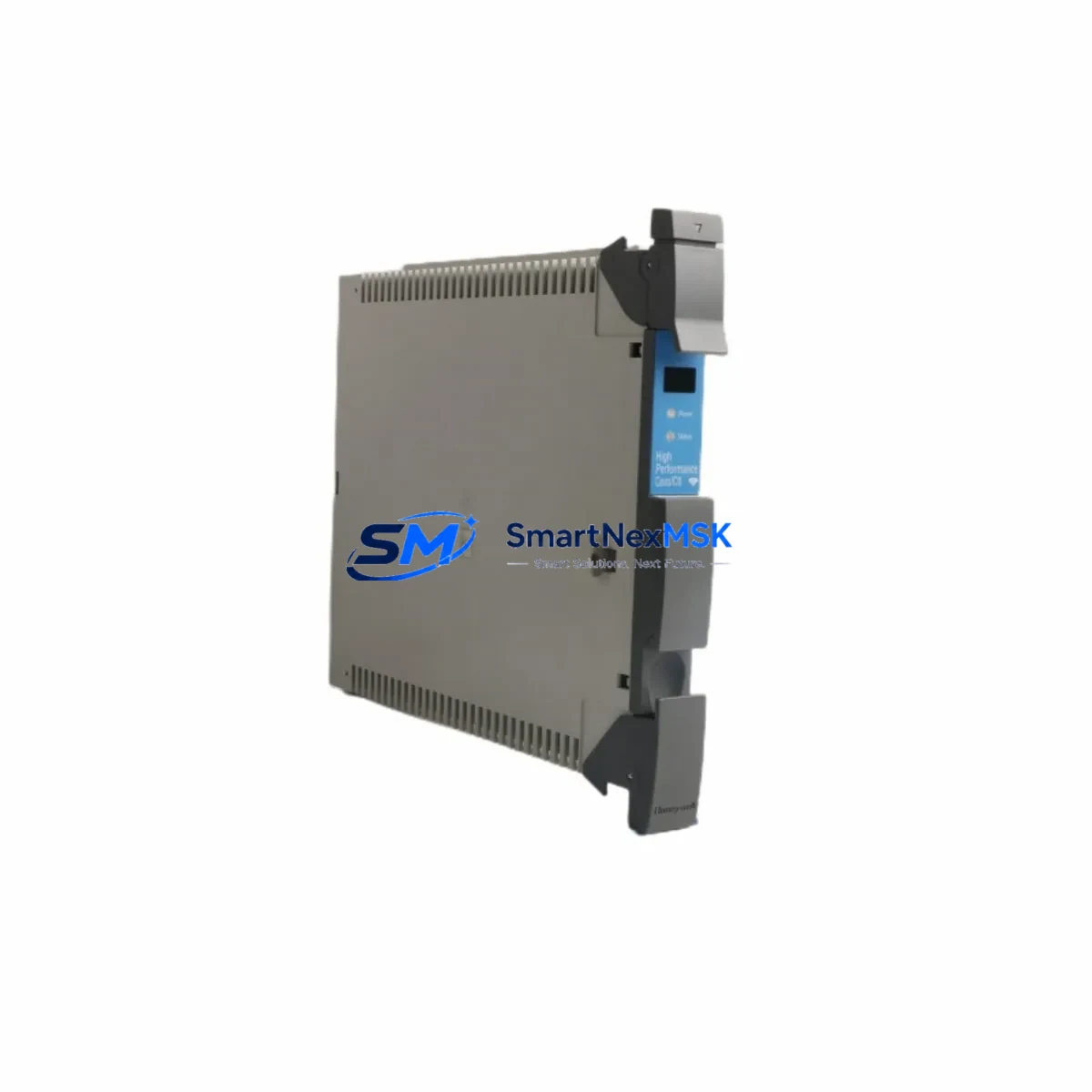

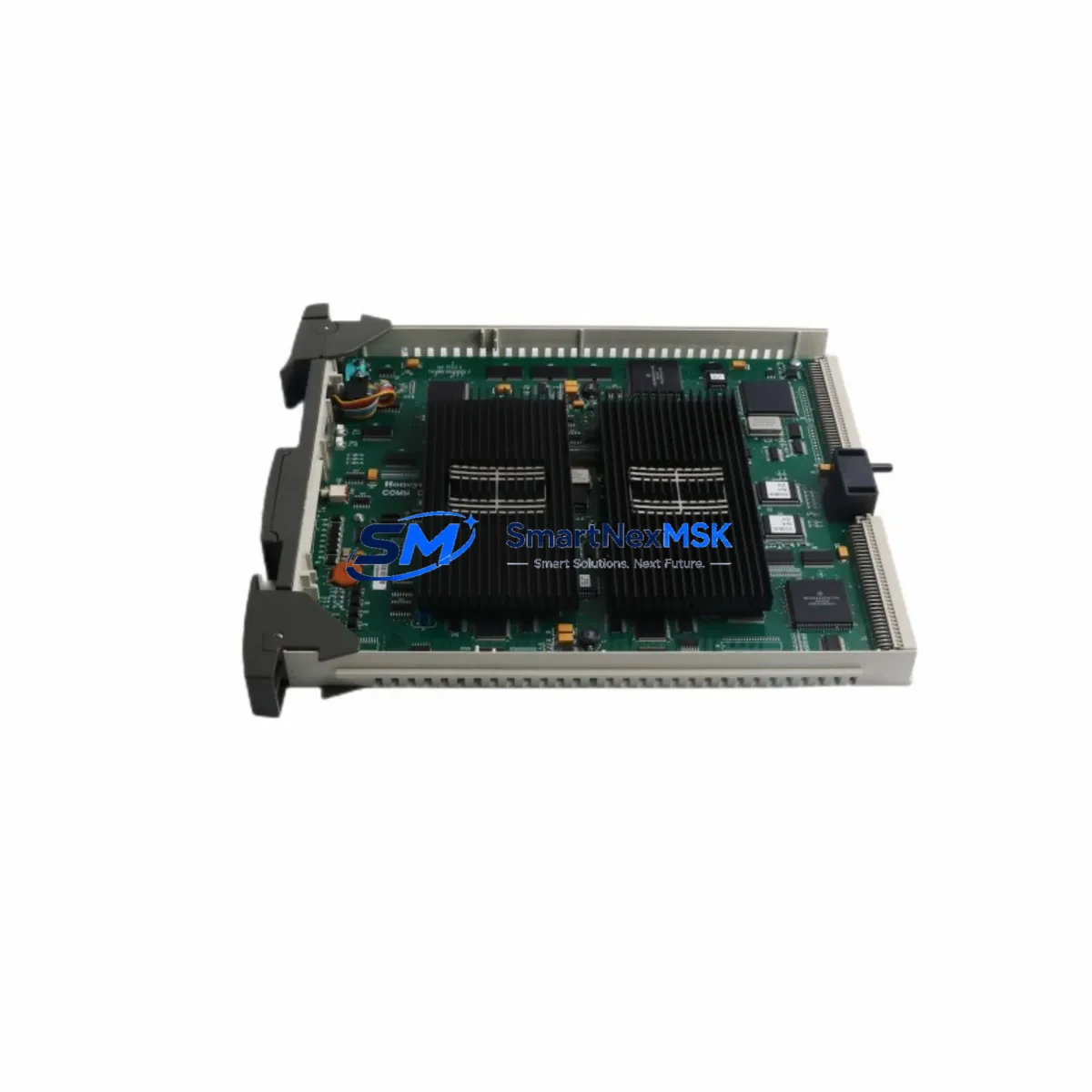

The Honeywell 51403988-150 is a High-Performance Process Manager (HPPM) Communication Controller engineered for seamless integration into legacy TDC 3000 and Experion PKS distributed control system architectures. As original Honeywell TDC 3000 hardware reaches end-of-life and spare parts become increasingly scarce, the 51403988-150 serves as a verified drop-in replacement that preserves existing control logic, I/O wiring, and operator interface configurations without requiring a full platform migration. For facilities managing aging process control infrastructure in refining, petrochemical, power generation, or continuous manufacturing environments, this module delivers a cost-effective path to system continuity and operational reliability.

When planning a retrofit around the 51403988-150, engineers must first audit the existing UCN (Universal Control Network) topology and confirm that the replacement module’s firmware revision is compatible with the resident LCN (Local Control Network) nodes. The HPPM communicates over the UCN at 5 Mbps and interfaces directly with the Honeywell 51401642-100 UCN Interface Module and the 51304485-100 Network Interface Module. Verifying that these upstream components are at compatible revision levels is a prerequisite before powering the replacement module into the backplane slot.

Power supply capacity is a critical checkpoint during any TDC 3000 retrofit. The 51403988-150 draws regulated +5 VDC and ±15 VDC from the card file power supply — typically a 51109684-100 or equivalent redundant power module. Before insertion, confirm that the existing power supply has sufficient headroom to support the replacement controller alongside co-resident I/O modules such as the 51304516-100 Analog Input Module and 51304518-100 Analog Output Module. Overloaded power rails are a leading cause of intermittent faults during post-retrofit commissioning and can corrupt module address tables stored in non-volatile memory.

Terminal wiring and backplane connector integrity must be inspected before the 51403988-150 is seated. The module uses a standard TDC 3000 card file edge connector; however, oxidized or mechanically stressed backplane contacts can introduce communication errors on the UCN segment. Clean and inspect the card file slot, verify that the module address DIP switches or jumper settings match the original controller’s node address, and document the existing configuration before removal. This address assignment is referenced by the Honeywell Engineering Workstation (EWS) and must remain consistent to avoid database mismatches in the control strategy.

Program compatibility is a primary concern when replacing HPPM controllers in active TDC 3000 systems. The control database — including regulatory control blocks, sequence logic, and alarm setpoints — resides on the History Module (HM) and is downloaded to the replacement HPPM during initialization. Confirm that a current, verified backup of the control database exists on the History Module or on an offline EWS archive before proceeding. If the facility has migrated portions of the control strategy to an Experion PKS C300 Controller, verify that peer-to-peer data links between the legacy HPPM and the C300 are re-established after the swap, as these links carry critical process variable handshakes across the hybrid architecture.

HMI screen integrity should be validated after the replacement module comes online. Operator displays built in the Honeywell GUS (Global User Station) or migrated to an Experion PKS Flex Station reference specific UCN node addresses and point names. A node address mismatch between the replacement 51403988-150 and the original controller will cause display faceplates to show bad-quality indicators, requiring a targeted point rebuild rather than a full display reconfiguration. Coordinate with the DCS engineer to perform a point-by-point quality check across all HMI faceplates referencing this controller before returning the unit to automatic control.

Communication link verification extends beyond the UCN to any serial or Modbus RTU bridges connected to third-party field devices. If the original HPPM hosted a 51401584-100 Modbus Interface or a 51304453-100 Serial Interface Module in an adjacent card file slot, confirm that these modules are re-addressed and re-initialized after the HPPM replacement. Failure to re-initialize serial interface modules is a common source of communication timeouts that appear as process variable dropouts in the historian and alarm management system.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 51403988-150 requires a structured bill-of-materials review across the entire card file assembly. Beyond the HPPM controller itself, the retrofit scope typically encompasses the 51401642-100 UCN Interface Module, the 51304485-100 Network Interface Module, and co-resident I/O modules including the 51304516-100 Analog Input Module and 51304518-100 Analog Output Module. If the card file also hosts a 51304453-100 Serial Interface Module for legacy field device communication, its firmware and address configuration must be documented before the HPPM is removed.

Power infrastructure is equally important. The 51109684-100 Power Supply Module should be load-tested prior to the retrofit window to confirm it can sustain the full card file complement without voltage droop. In redundant HPPM configurations, the secondary controller’s UCN participation must be suspended during the primary swap to prevent split-brain conditions on the network segment. After the replacement 51403988-150 is seated and powered, the redundancy pair should be re-established and tested under simulated load before the unit is returned to service.

For facilities that have partially migrated to Experion PKS, the retrofit plan must account for the C300 Controller peer data links and any SCADA Modbus bridges that reference the legacy HPPM’s UCN node address. Updating the Experion PKS server’s hardware tree to reflect the replacement module’s serial number and firmware revision ensures that asset management and predictive maintenance records remain accurate after the swap.

Downtime Control During System Migration

Minimizing unplanned downtime during an HPPM replacement requires pre-staging the 51403988-150 with the correct node address configuration and a verified firmware load before the maintenance window opens. The replacement module should be bench-tested against a known-good UCN segment simulator or a spare card file to confirm UCN participation and database download capability before it enters the plant.

During the swap, the recommended sequence is: (1) place the process unit in manual control at the operator station, (2) suspend UCN redundancy on the affected node, (3) remove the failed HPPM and insert the 51403988-150, (4) allow the module to complete its self-test and database download from the History Module, (5) verify point quality on all HMI faceplates, (6) re-establish UCN redundancy, and (7) return the process unit to automatic control. This sequence, when executed by a qualified DCS engineer, typically achieves a controlled switchover in under 60 minutes, preserving original program logic and alarm configurations without modification.

Maintaining a pre-configured spare 51403988-150 in the plant’s critical spare inventory is the most effective strategy for reducing mean time to repair (MTTR) on TDC 3000 systems. Given the discontinued status of many TDC 3000 components, securing verified, tested stock with a 12-month warranty provides the operational insurance that aging DCS infrastructure demands.

Retrofit Support FAQ

Q: Is the 51403988-150 a direct replacement for the original Honeywell HPPM controller in TDC 3000 systems?
A: Yes. The 51403988-150 is a direct drop-in replacement for the HPPM Communication Controller in TDC 3000 card file assemblies. The module uses the same backplane connector, UCN protocol, and node address scheme as the original. No wiring changes are required; only the node address DIP switch or jumper configuration must be verified to match the original controller before installation.

Q: Will the existing control database and program logic be preserved after the replacement?
A: Yes, provided a current control database backup exists on the History Module or an offline EWS archive. The replacement 51403988-150 downloads its control strategy from the History Module during initialization. The original regulatory control blocks, sequence logic, and alarm setpoints are restored automatically. No manual reprogramming is required under normal replacement conditions.

Q: How is the 51403988-150 tested before shipment?
A: Each unit undergoes functional power-on testing, UCN communication verification, and a full self-diagnostic cycle before shipment. Units are supplied with a 12-month warranty covering manufacturing defects and functional failures. Test records are available upon request for quality-critical applications.

Q: What should be checked if communication errors appear after installing the 51403988-150?
A: The most common post-installation issues are node address mismatch, serial interface module re-initialization failure, and power supply voltage droop under full card file load. Verify the node address DIP switch setting against the original configuration, re-initialize any co-resident Serial Interface Modules (e.g., 51304453-100), and measure the +5 VDC and ±15 VDC rails under load. If UCN participation errors persist, confirm that the upstream UCN Interface Module (51401642-100) is at a compatible firmware revision.
