Honeywell 621-3560RC Retrofit-Ready DCS Input for 621 Series

Honeywell 621-3560RC Retrofit-Ready DCS Input Module for 621 Series Control Systems

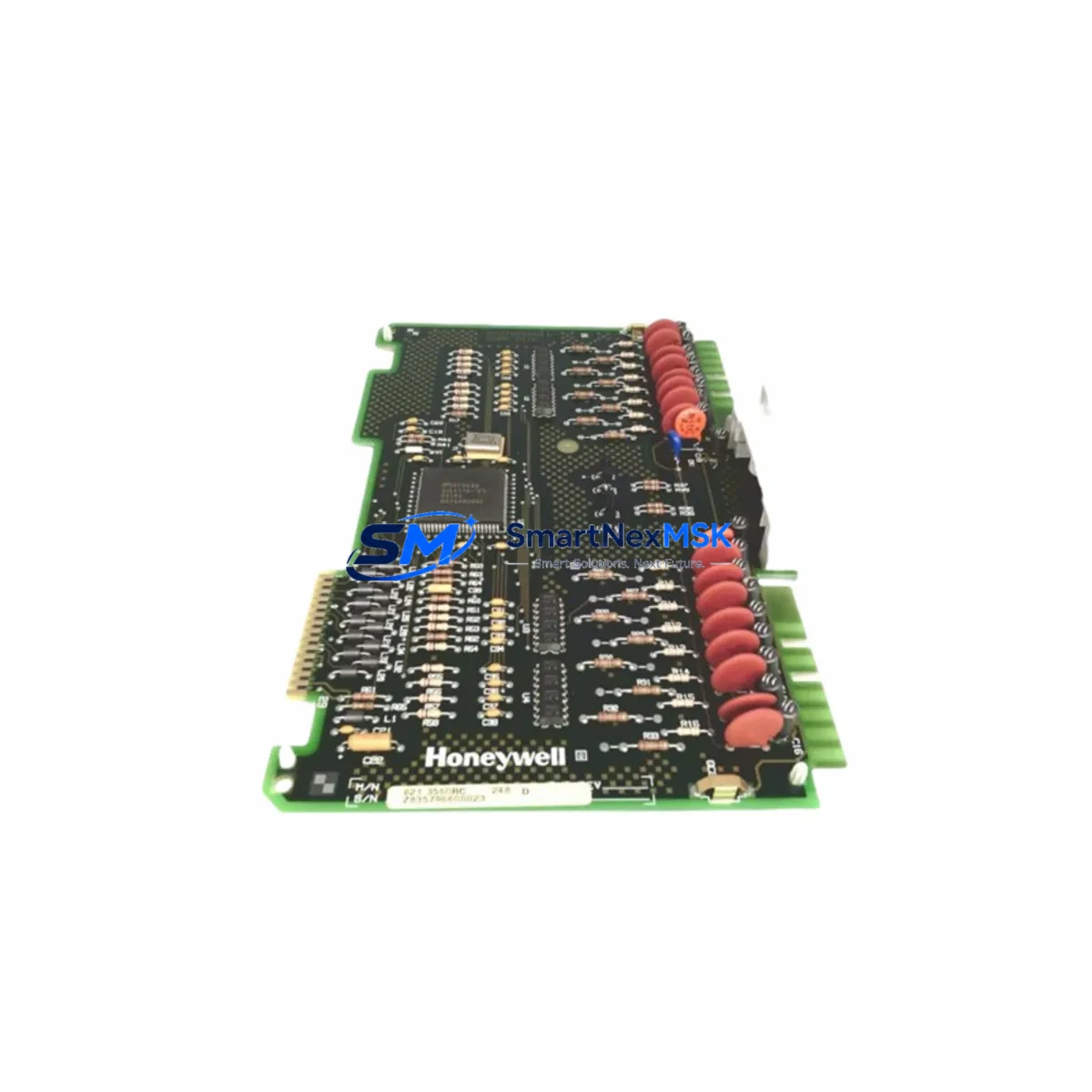

The Honeywell 621-3560RC is a rack-mounted analog input module designed for the Honeywell 621 Series Distributed Control System (DCS) platform. As legacy 621 Series installations approach end-of-life and original spare parts become increasingly scarce, the 621-3560RC has emerged as a critical retrofit component for facilities seeking to extend the operational life of their existing control infrastructure without committing to a full platform migration. Whether you are replacing a failed card in a running process line, upgrading a control cabinet to improve signal accuracy, or preparing a phased migration toward a modern DCS backbone, the 621-3560RC provides a verified, drop-in compatible solution that minimizes engineering rework and reduces unplanned downtime.

This module is engineered to slot directly into the Honeywell 621 Series rack backplane, maintaining full electrical and logical compatibility with the existing I/O bus architecture. Engineers undertaking a retrofit must confirm the rack’s available power budget before installation — the 621 Series power supply modules, such as the 621-0020 or 621-0022, must be verified to support the additional load introduced by the replacement card. Terminal wiring assignments on the field termination assembly should be cross-referenced against the original loop drawings to ensure signal polarity and shielding continuity are preserved. Where the original module used a specific channel-to-address mapping defined in the controller configuration, the replacement 621-3560RC must be assigned the same module address within the 621 controller’s I/O configuration table to avoid program faults on restart.

For sites running Honeywell’s TDC 3000 or Experion PKS supervisory layer above the 621 Series rack I/O, the communication link between the 621 controller and the higher-level system — typically via the Data Hiway or Local Control Network (LCN) — must remain uninterrupted during the card swap. Pre-staging the replacement module offline and verifying its firmware revision against the installed controller version is strongly recommended. In cases where the 621 Series rack also houses communication interface modules such as the 621-9940 or 621-9941 Highway Gateway Module, the I/O scan cycle and update rate settings should be reviewed post-installation to confirm that the new input module’s response time is within the expected process control window.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 621-3560RC retrofit begins well before the module arrives on site. The engineering team should pull the existing rack layout drawing to identify which slot the failed or aging module occupies, and confirm that the adjacent modules — which may include the 621-3580 analog output module, 621-3940 digital input module, or 621-3960 digital output module — are not affected by the card removal. In multi-rack configurations, the 621-1010 or 621-1020 rack extender cables must be inspected for continuity, as a degraded backplane connection can cause intermittent faults that are incorrectly attributed to the input module itself.

The field termination assembly connected to the 621-3560RC typically carries 4–20 mA or voltage signals from transmitters in the field. Before disconnecting the wiring, technicians should document the as-found signal levels for each channel using a calibrated loop calibrator, and verify that the field instruments — pressure transmitters, temperature elements, or flow meters — are in a safe state or bypassed in the DCS logic. If the site uses a Honeywell 621 Series programming terminal or a PC-based configuration tool connected via the 621-9900 programmer interface, the current module configuration file should be backed up before the swap to preserve channel scaling, alarm limits, and engineering unit assignments.

For facilities that are simultaneously planning a broader migration from the 621 Series platform toward a modern Honeywell Experion C300 or third-party DCS, the 621-3560RC can serve as a bridge component — keeping the legacy rack operational while the new control system is engineered, factory acceptance tested, and staged for cutover. During this transition period, the HMI graphics associated with the 621 Series I/O points should be reviewed to confirm that tag names and display formats will carry over correctly to the new supervisory layer, avoiding operator confusion during the parallel-run phase.

Downtime Control During System Migration

Minimizing process downtime during a 621-3560RC replacement requires a structured hot-swap or planned-outage procedure depending on the process criticality. For non-critical loops, a live card swap may be feasible if the 621 Series rack supports online module replacement — however, this must be confirmed against the specific firmware version of the installed 621 controller, as earlier revisions may require a rack power cycle to recognize the new module. For critical control loops, the preferred approach is to place the affected loop in manual mode at the DCS operator station, notify field operators, and execute the swap during a scheduled maintenance window.

Once the 621-3560RC is seated in the rack, the controller should be monitored for I/O fault alarms. If the module address was correctly preserved and the terminal wiring reconnected per the loop drawing, the controller will typically resume scanning the new module within one to two scan cycles without requiring a program download. The original ladder logic or function block program stored in the 621 controller’s memory does not need to be modified, provided the replacement module is of the same type and address. A post-installation loop check — verifying live signal values at the DCS operator station against a known field reference — confirms that the retrofit is complete and the process can be returned to automatic control.

Retrofit Support FAQ

Q: Is the 621-3560RC a direct replacement for the original Honeywell module of the same part number?
A: Yes. The 621-3560RC supplied by SMARTNEXMSK is sourced to match the original Honeywell specification. Each unit undergoes a functional test prior to shipment, and a test report is available on request. The module is designed for direct slot replacement in the 621 Series rack without hardware modification.

Q: What wiring checks are required before installing the replacement module?
A: Technicians should verify terminal tightness, shield grounding continuity, and signal polarity on the field termination assembly. Channel-by-channel signal verification using a loop calibrator is recommended before returning the loop to automatic mode. Any discrepancies between the as-found and as-left signal levels should be investigated before closing out the work order.

Q: How do I confirm communication compatibility after installation?
A: After seating the module and reconnecting field wiring, monitor the 621 controller’s diagnostic display or the DCS operator station for I/O fault status. The module should appear as healthy within one to two scan cycles. If faults persist, verify the module address assignment in the controller configuration and confirm that the rack backplane connectors are fully engaged.

Q: What warranty coverage is provided?
A: All 621-3560RC units supplied by SMARTNEXMSK carry a 12-month warranty covering functional defects under normal operating conditions. Warranty claims are supported by the pre-shipment functional test report. Contact our technical team for RMA procedures and expedited replacement support.
