Honeywell 621-9928R Maintenance-Ready Spare for 620 Series Automation

Honeywell 621-9928R Maintenance-Ready Spare for 620 Series Automation

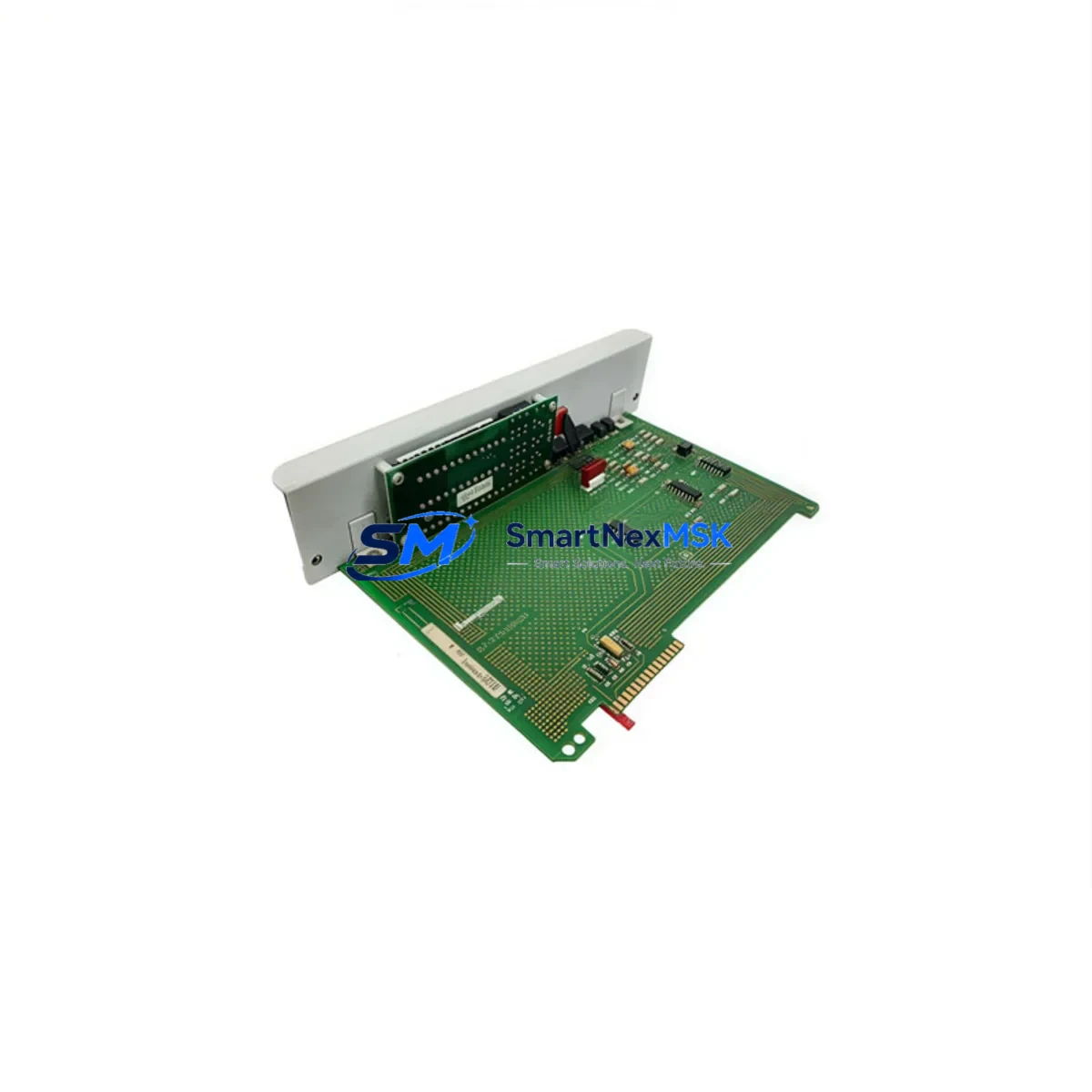

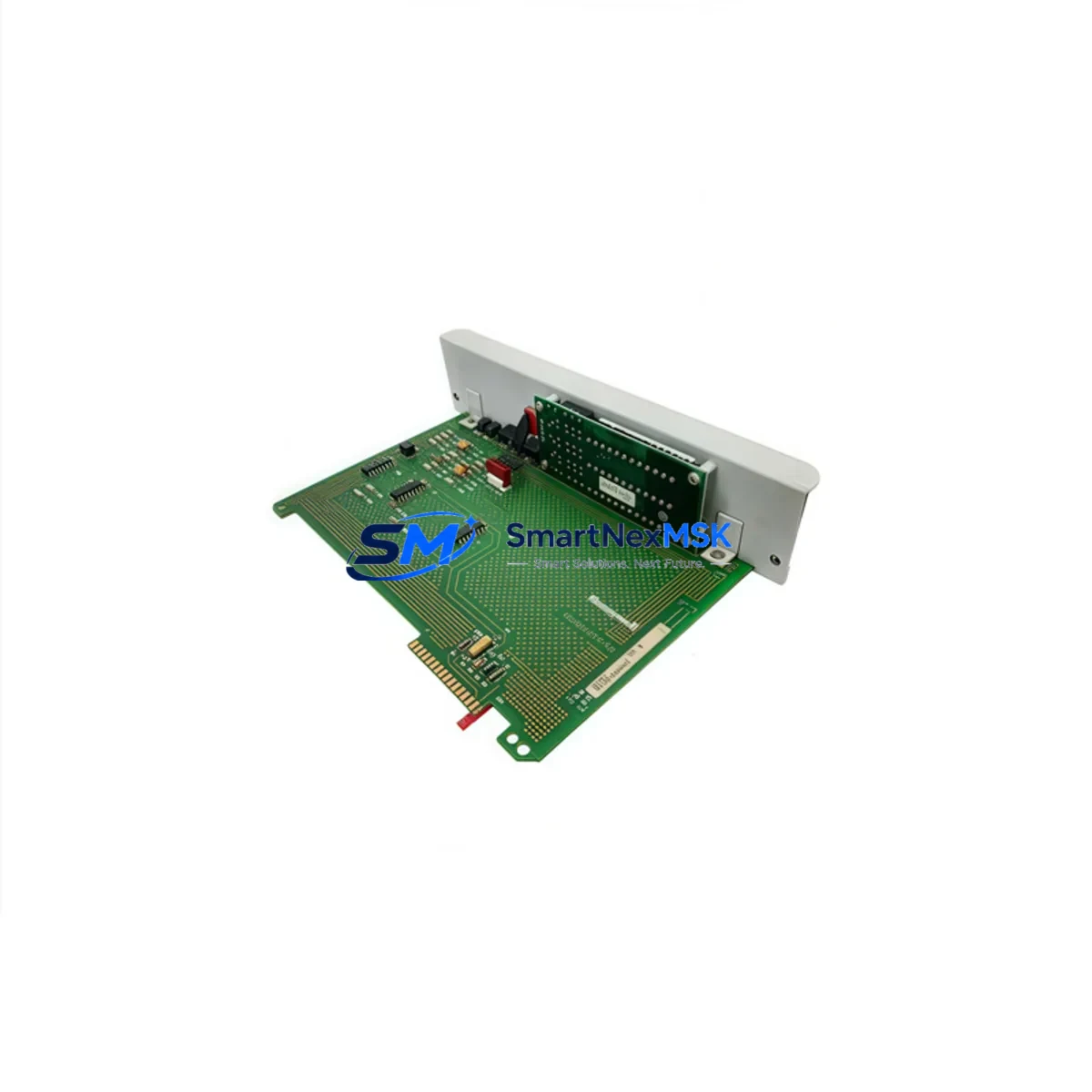

The Honeywell 621-9928R Serial Link Selector is a critical communication component within the Honeywell 620 Series programmable controller platform. Designed for industrial environments where continuous operation is non-negotiable, this module enables reliable serial data routing between the PLC processor and connected field devices, operator interfaces, and supervisory systems. For maintenance engineers managing aging 620 Series control cabinets, holding a verified spare of the 621-9928R is a fundamental element of any downtime-reduction strategy.

At SMARTNEXMSK, every 621-9928R unit is sourced, inspected, and dispatched with full functional verification. We supply original-grade industrial spare parts to maintenance teams, MRO procurement departments, and system integrators who cannot afford unplanned outages. With a 12-month warranty and documented compatibility with the Honeywell 620 Series architecture, this spare is ready for immediate deployment upon receipt.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 621-9928R Serial Link Selector fails or shows intermittent communication errors, the fault rarely exists in isolation. A structured maintenance response requires inspecting the broader communication and power ecosystem within the 620 Series control cabinet. Maintenance engineers should simultaneously evaluate the 621-9928 (non-R variant, if installed in parallel racks) and the associated 620 Series processor module for firmware integrity and backplane connector wear.

Power quality is a frequent root cause of serial link instability. Before completing the 621-9928R swap, verify the output voltage and ripple of the 620 Series power supply module — typically a 621-series PSU — and confirm that the DC bus is within tolerance. A degraded power supply can cause repeated communication module failures even after replacement.

On the I/O side, inspect the 621-series digital input and output modules sharing the same backplane. Loose terminal connections, corroded I/O wiring, or failed field devices can generate noise that propagates through the serial link and triggers false fault conditions. Terminal blocks and DIN-rail mounted relay modules in the same cabinet should be checked for contact resistance and insulation integrity.

For systems using the 621-9928R to interface with an HMI or SCADA workstation, verify the serial cable shielding, connector pinout, and baud rate configuration at both ends. A replacement module will not resolve a communication fault caused by a damaged RS-232 cable or a misconfigured serial port on the supervisory system. Signal isolators — particularly serial signal isolators used to protect the PLC from ground loops — should also be tested during this maintenance window.

In multi-drop serial networks, the network termination resistors and any inline RS-422 repeaters or converters should be confirmed operational. If the 620 Series system communicates upstream to a DCS or historian, check the gateway or protocol converter module for alarm logs that may indicate pre-existing communication degradation before the 621-9928R failure became apparent.

Finally, for older 620 Series installations approaching end-of-service life, this maintenance event is an appropriate trigger to audit the full spare parts inventory: processor backup batteries, EPROM or memory modules, analog I/O calibration records, and any remaining OEM-sourced communication cables. Proactive stocking of a second 621-9928R unit is strongly recommended for facilities running continuous processes where a 24-hour procurement delay is operationally unacceptable.

Site Replacement Workflow

Step 1 — Preparation: Download and review the Honeywell 620 Series hardware manual for the 621-9928R slot assignment and backplane wiring diagram. Confirm the replacement unit’s part number matches exactly: 621-9928R. Do not substitute with the non-R variant without engineering sign-off, as the R-suffix may denote a revised hardware revision with updated electrical characteristics.

Step 2 — Safe Isolation: Follow site lockout/tagout (LOTO) procedures. Power down the affected rack or, if hot-swap is supported per the 620 Series documentation, follow the controlled removal sequence. Note the current communication status and any active alarms before removal.

Step 3 — Physical Replacement: Remove the faulty 621-9928R by releasing the module latch and sliding it from the backplane slot. Inspect the backplane connector pins for damage or oxidation. Insert the replacement unit firmly until the latch engages. Reconnect any external serial cables, ensuring correct pinout and cable shielding continuity.

Step 4 — Configuration Verification: Power up the rack and confirm the 620 Series processor recognizes the new module. Verify serial link status via the PLC diagnostic interface or connected HMI. Confirm baud rate, parity, and stop-bit settings match the original configuration. Run a communication loop test before returning the system to automatic control.

Step 5 — Documentation: Record the replacement in the site maintenance log: date, technician, old module serial number, new module serial number, and post-replacement test results. Update the spare parts inventory to reflect consumption and initiate a reorder for the next 621-9928R unit.

Spare Parts Support FAQ

Q1: Is the 621-9928R still available as a new or original-grade spare?
Yes. SMARTNEXMSK maintains stock of the Honeywell 621-9928R as an original-grade industrial spare. Each unit undergoes pre-shipment inspection and functional verification. While Honeywell may have discontinued active production of certain 620 Series components, we source through verified industrial supply channels to ensure authenticity and reliability. Contact us to confirm current stock availability before placing a time-critical order.

Q2: How do I verify compatibility before installation?
Compatibility is confirmed by matching the part number (621-9928R), the 620 Series chassis model, and the backplane slot designation specified in your system’s hardware configuration documentation. If you are replacing a module from a different 620 Series variant or a third-party equivalent, provide your chassis model and existing module label details to our technical team at sales@smartnexmsk.com for pre-sale compatibility confirmation.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as defined by the Honeywell 620 Series environmental specifications. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the rated operating environment. Warranty claims are processed with a replacement-first policy to minimize your downtime. RMA procedures are initiated within one business day of a confirmed fault report.

Q4: What is the recommended spare parts stocking strategy for 620 Series systems?
For facilities operating continuous or semi-continuous processes, we recommend maintaining a minimum of one 621-9928R unit on-site at all times. For multi-rack or multi-line installations, a ratio of one spare per three installed units is a practical baseline. Pair this with stocked spares for the 620 Series power supply, processor module, and at least one digital I/O module per rack type. Annual spare parts audits aligned with planned shutdown windows are the most cost-effective approach to long-term 620 Series system reliability.
