Honeywell 80363972-150 Retrofit-Ready DI Module for TDC 3000

Honeywell 80363972-150 Retrofit-Ready Digital Input Module for TDC 3000 & Experion PKS Control Systems

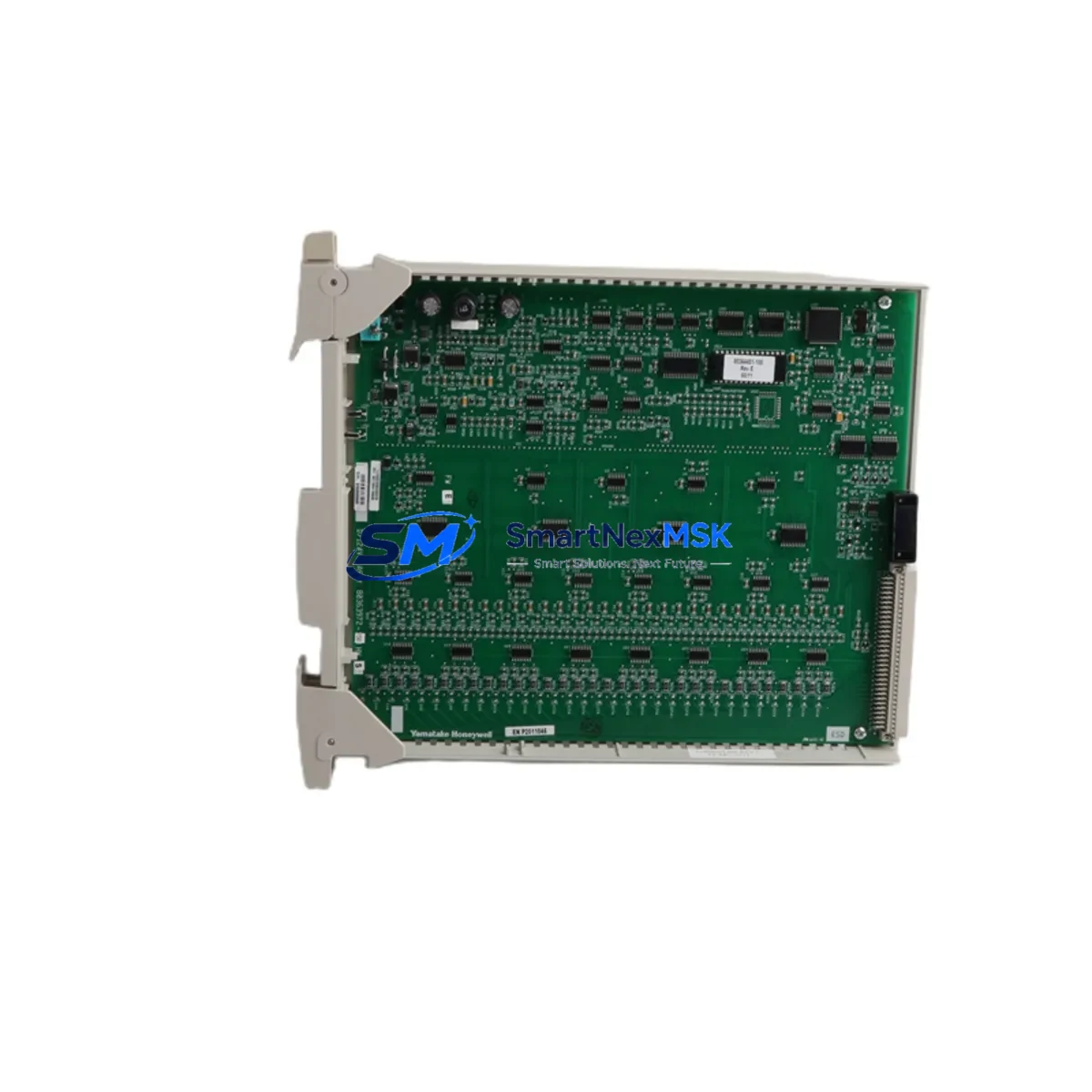

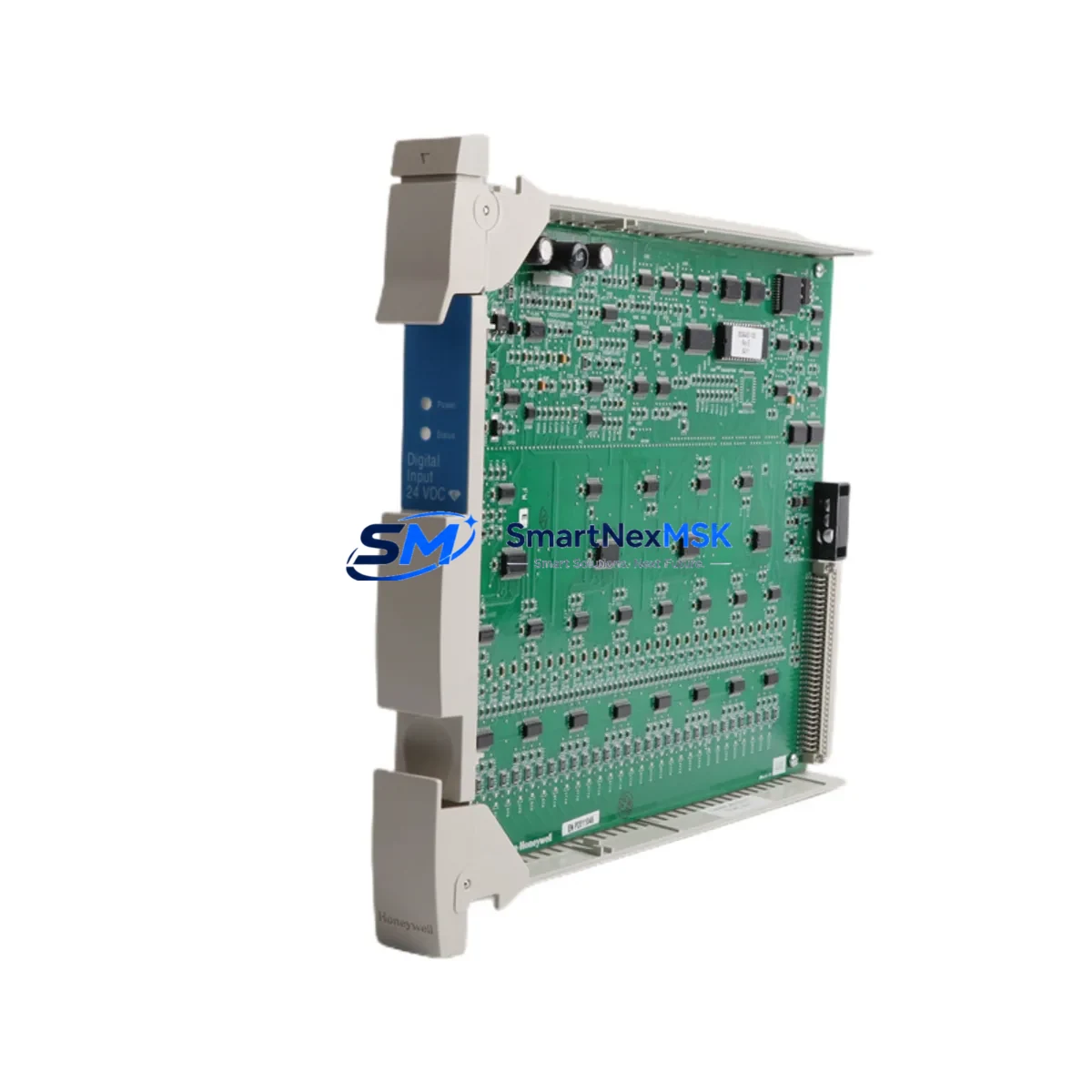

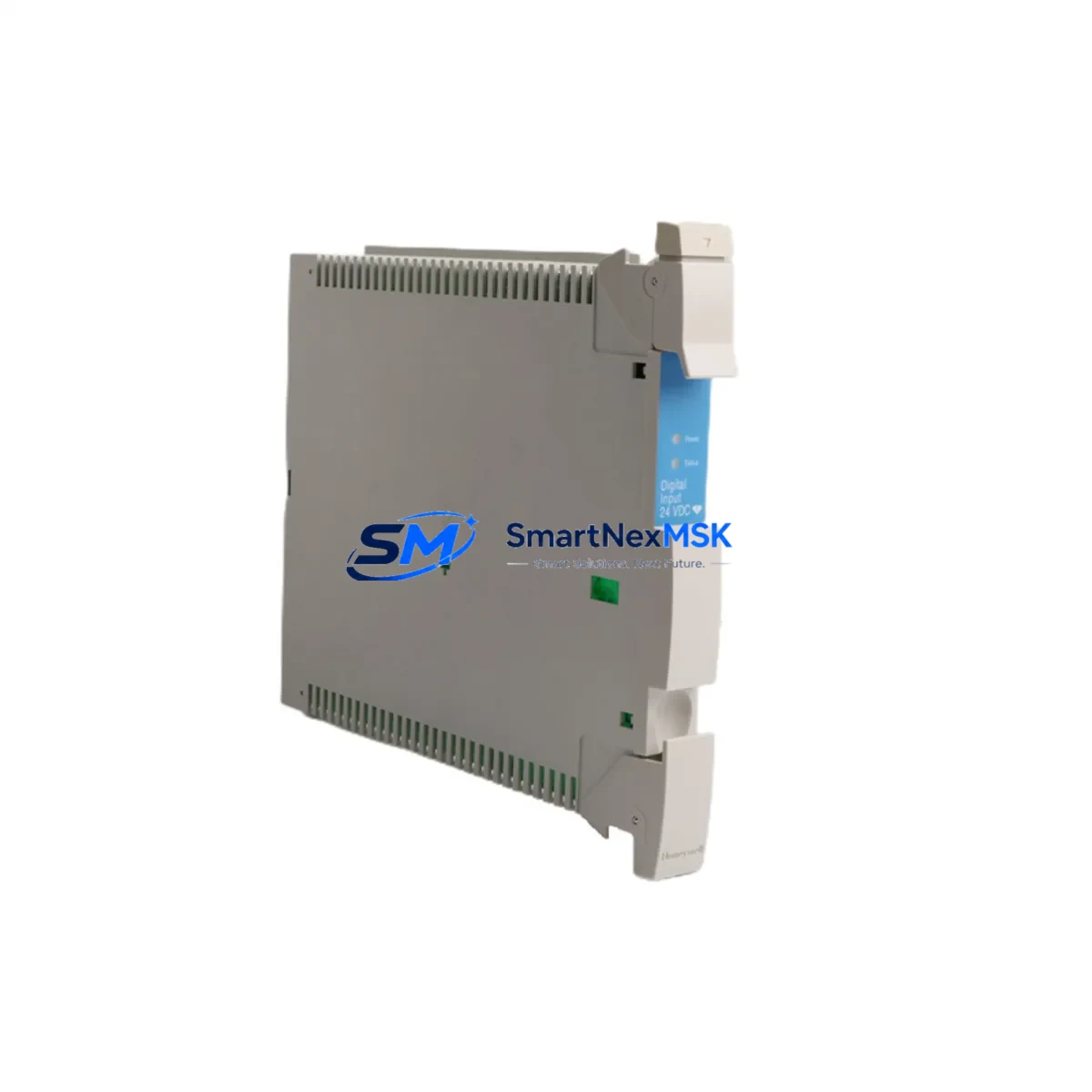

The Honeywell 80363972-150 is a 16-channel Digital Input (DI) module engineered for seamless integration into legacy TDC 3000 and Experion PKS distributed control system architectures. As Honeywell progressively phases out older TDC 3000 hardware, facilities running continuous process operations — refineries, chemical plants, power generation units, and pulp & paper mills — face increasing pressure to source verified replacement modules that maintain full backward compatibility without requiring controller reprogramming or I/O map restructuring. The 80363972-150 addresses this challenge directly, offering a drop-in retrofit solution that preserves existing wiring terminations, backplane slot assignments, and module addressing schemes.

Each unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including channel-by-channel digital input scan testing, backplane communication handshake confirmation, and LED status indicator validation. All modules are covered by a 12-month warranty from the date of shipment, with documented test records available upon request.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 80363972-150 within a live TDC 3000 or Experion PKS environment requires a structured approach that accounts for the interdependencies between the DI module and the broader control system architecture. Before initiating a swap, engineers should audit the existing termination assembly — typically a Honeywell 80363969-series field termination assembly (FTA) — to confirm that the wiring harness and terminal block layout are compatible with the replacement module’s pin-out. In most standard installations, the FTA remains in place and only the module card is exchanged, significantly reducing field wiring risk.

Power budget verification is a critical pre-swap step. The TDC 3000 I/O carrier or card file — such as the Honeywell 80363968-series carrier — supplies regulated DC power to each module slot. Confirm that the carrier’s power supply capacity, often provided by a dedicated Honeywell 80363971-series power supply module, can sustain the replacement DI module’s current draw without triggering under-voltage alarms on adjacent slots. In high-density I/O cabinets where Honeywell 80363975-series analog input modules and 80363976-series digital output modules share the same carrier, power margin calculations become especially important.

Module address configuration must be validated before insertion. The 80363972-150 uses DIP switches or jumper blocks to define its slot address on the I/O Link bus. These settings must exactly match the address previously assigned to the failed or retired module in the Honeywell TDC 3000 engineering database. Mismatched addresses will cause the controller — whether a Honeywell PM (Process Manager), HPM (High-Performance Process Manager), or APM (Advanced Process Manager) — to report a module fault and suspend scanning of the associated I/O points.

For sites migrating from TDC 3000 to Experion PKS, the 80363972-150 can be retained within the existing I/O subsystem when using Honeywell’s C300 Controller with legacy I/O Link interface cards. This migration path avoids the cost and risk of full I/O replacement, allowing the existing field wiring, FTAs, and DI modules to remain operational while the supervisory layer is upgraded. Communication continuity between the legacy I/O Link network and the new Experion PKS server is maintained through the Honeywell IOLIM (I/O Link Interface Module), which bridges the older I/O bus to the FTE (Fault Tolerant Ethernet) backbone used by Experion PKS.

HMI screen updates should be planned in parallel with the hardware swap. If the replacement module introduces any change in point naming, channel mapping, or alarm configuration, the corresponding Honeywell HMIWeb Display Builder or Station graphics must be revised to reflect the updated I/O database. Failure to synchronize HMI displays with the new module configuration can result in operators receiving misleading status indications during the post-commissioning period.

Downtime Control During System Migration

Minimizing unplanned downtime during a DI module replacement is achievable through disciplined pre-staging and a structured hot-swap or cold-swap protocol. For TDC 3000 systems that support redundant I/O configurations, the 80363972-150 can often be replaced while the redundant channel continues to scan field signals, eliminating process interruption entirely. In non-redundant configurations, the recommended approach is to schedule the swap during a planned maintenance window, pre-configure the replacement module’s address settings on the bench, and prepare a rollback plan using the original module if commissioning issues arise.

Before pulling the failed module, export a snapshot of the current I/O database from the Honeywell Engineering Console or Experion PKS Configuration Studio. This snapshot preserves all point definitions, alarm limits, engineering unit conversions, and filter time constants associated with the 16 DI channels. If the replacement module requires any firmware update — verifiable by comparing the module’s firmware revision label against the site’s approved firmware matrix — perform the update in a controlled bench environment before installation to avoid introducing firmware-related faults into the live system.

Post-installation, perform a channel-by-channel force test using the TDC 3000 Operator Console or Experion PKS Station to confirm that each of the 16 digital input channels correctly reflects the field device state. Verify that all associated interlock logic, sequence-of-events (SOE) recording, and alarm annunciation functions are operating as expected before releasing the system back to operations. Document the replacement in the site’s maintenance management system (MMS) with the module serial number, installation date, and test results to support future audits and warranty claims.

Retrofit Support FAQ

Q1: Is the 80363972-150 a direct drop-in replacement for other 80363972-series variants?
The 80363972-150 is the standard production variant within the 80363972 series. In most TDC 3000 installations, it is interchangeable with earlier suffix variants (-100, -125) provided the module address settings are matched and the associated FTA wiring is compatible. Always verify the suffix revision against your site’s approved spare parts list before installation.

Q2: Can this module be used in an Experion PKS system without modification?
Yes. When installed in a TDC 3000 I/O subsystem connected to an Experion PKS C300 Controller via an IOLIM interface card, the 80363972-150 operates transparently within the Experion PKS I/O database. No hardware modification is required. Confirm that the IOLIM firmware version supports the module type and that the I/O database point assignments are correctly mapped in Experion PKS Configuration Studio.

Q3: What wiring checks should be performed before swapping the module?
Inspect the field termination assembly (FTA) connector for corrosion, bent pins, or loose terminal screws. Verify that field device signal levels (typically 24 VDC for discrete inputs) are within the module’s specified input voltage range. Confirm that cable shields are properly grounded at the FTA and that no field wiring has been disturbed since the last maintenance cycle. Document the as-found wiring condition with photographs before removing the failed module.

Q4: What does the 12-month warranty cover?
All 80363972-150 modules supplied by SMARTNEXMSK are covered by a 12-month warranty from the shipment date. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is pre-tested prior to shipment, with test records available upon request. For warranty claims, contact sales@smartnexmsk.com with the module serial number, purchase order reference, and a description of the observed fault.
