Honeywell 8C-PAIH51 Retrofit-Ready HART AI Module for Experion PKS

Honeywell 8C-PAIH51 Retrofit-Ready HART AI Module for Experion PKS

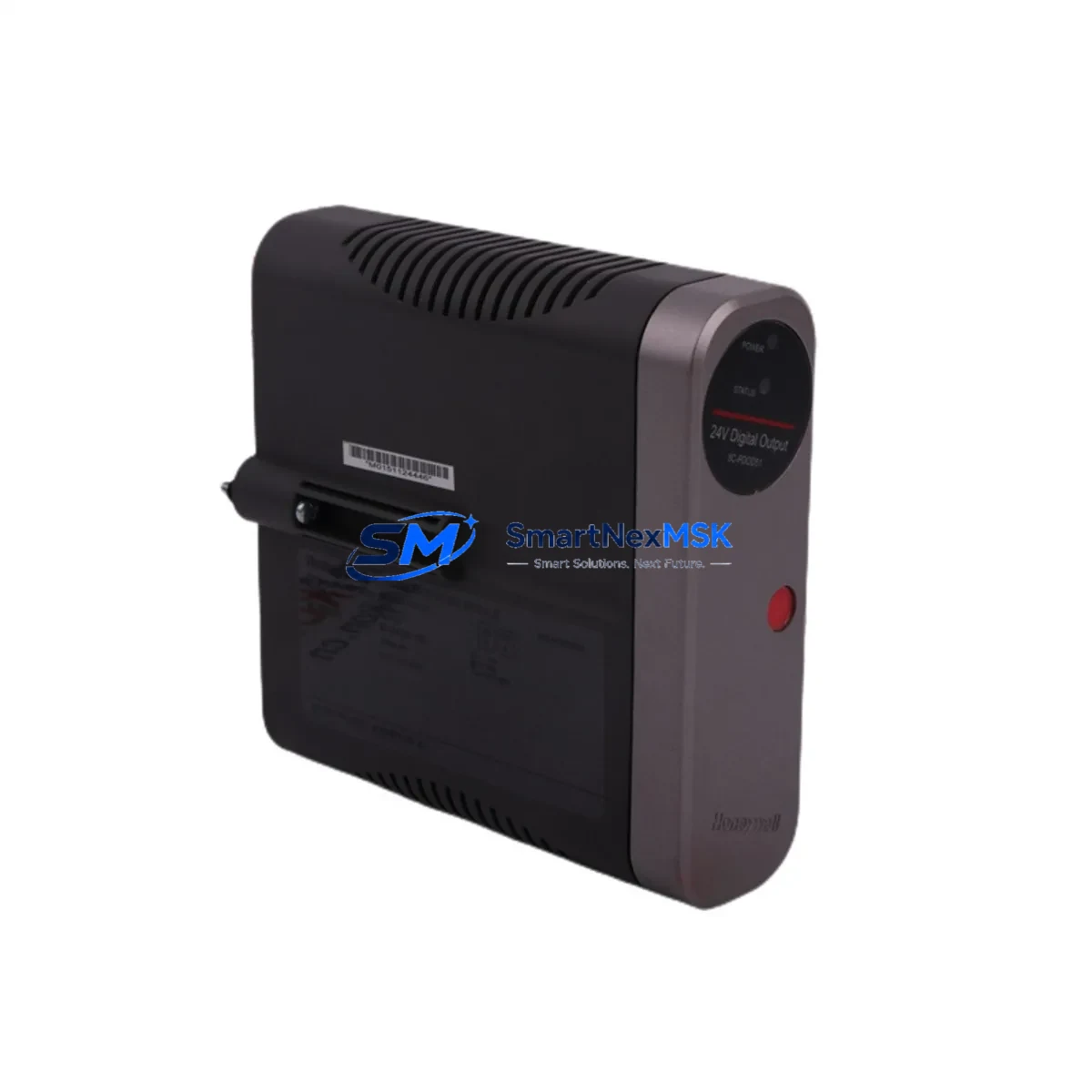

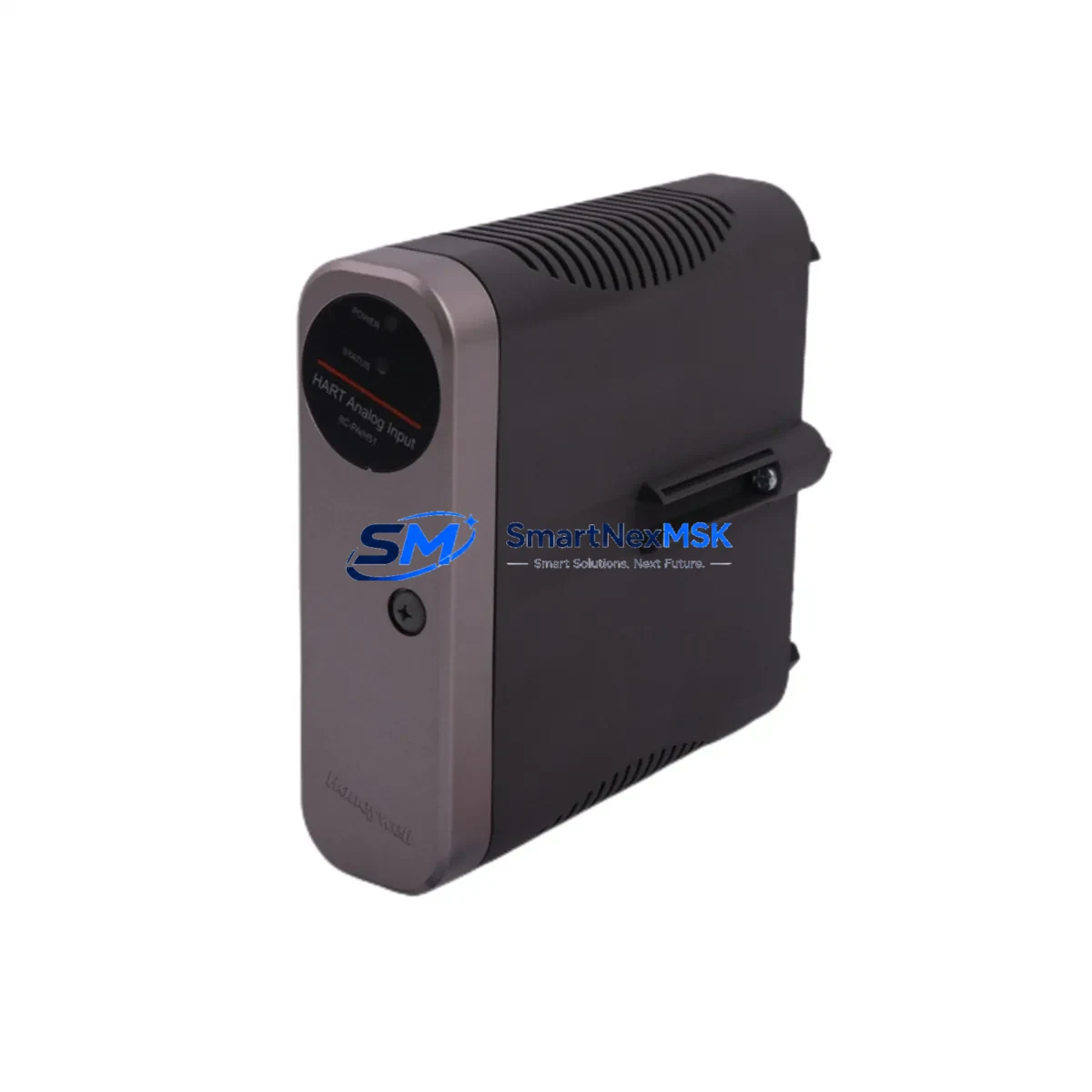

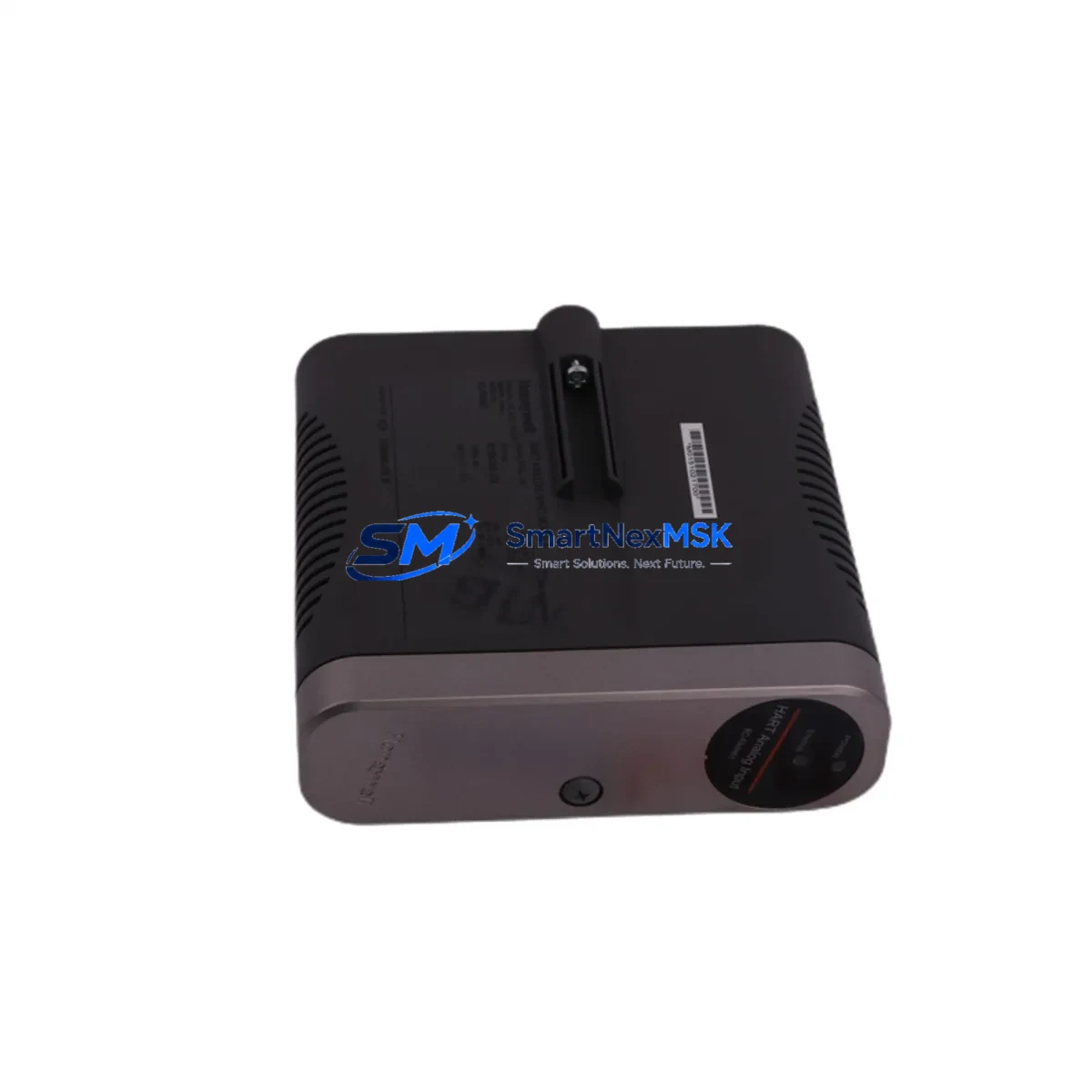

When a legacy Honeywell Experion PKS control system faces an aging or failed analog input module, every hour of unplanned downtime translates directly into production loss and safety risk. The Honeywell 8C-PAIH51 (part number 51454352-175) is a HART-enabled 8-channel analog input module purpose-built for the Experion PKS Series C platform, and it remains one of the most sought-after retrofit and replacement components for DCS modernization projects across petrochemical, power generation, water treatment, and continuous manufacturing facilities worldwide.

This module slots directly into the Series C I/O chassis without requiring backplane rewiring or firmware reconfiguration in most standard replacement scenarios. Its HART communication capability allows field instruments — pressure transmitters, flow meters, temperature sensors, and level gauges — to maintain their digital diagnostic channels alongside the 4–20 mA analog signal, preserving the full HART pass-through architecture that Experion PKS relies on for asset management and predictive maintenance workflows.

For engineers managing a retrofit or upgrade project, the 8C-PAIH51 is typically paired with the Honeywell 8C-TAIX51 terminal assembly, which provides the field-side screw terminal interface and signal conditioning path. Ensuring the correct terminal assembly revision is matched to the module revision is a critical pre-installation verification step that prevents signal offset errors and channel calibration drift after commissioning. The module communicates with the Experion PKS C300 controller via the Series C FIM (Field Interface Module) backplane bus, and the FIM firmware version should be confirmed compatible before hot-swap replacement is attempted on a live system.

During retrofit planning, engineers should also audit the power budget of the existing I/O chassis. The Series C chassis — whether a 4-slot, 8-slot, or 12-slot configuration — has a defined power rail capacity, and adding or replacing modules with different current draw profiles can affect overall chassis stability. The Honeywell CC-PWRR01 redundant power supply module is commonly deployed alongside analog input expansions to ensure uninterrupted rail voltage during module hot-swap events.

Communication architecture is another key consideration. In Experion PKS installations where the C300 controller communicates over a FTE (Fault Tolerant Ethernet) network, the network switch configuration and IP addressing scheme must be preserved during the module replacement to avoid disrupting the supervisory SCADA layer or the Experion Station HMI displays. Operators should verify that the HMI faceplates associated with the replaced module’s tag addresses remain correctly mapped after the swap, particularly for interlock and alarm-linked analog tags.

For sites migrating from older Honeywell TDC 3000 or PlantScape systems to Experion PKS, the 8C-PAIH51 is a standard component in the Series C I/O migration kit. The migration typically involves replacing legacy HPM (High-Performance Process Manager) I/O cards with Series C equivalents, and the 8C-PAIH51 serves as the direct functional replacement for HART-capable analog input channels previously handled by the Honeywell MC-PAIH03 or similar HPM analog input cards. Tag database migration, control module re-linking, and historian point re-mapping are all part of the commissioning checklist for this type of platform upgrade.

All units supplied by SMARTNEXMSK are sourced from verified industrial channels, individually powered-on tested, and shipped with a 12-month warranty covering functional defects. Stock is maintained to support urgent replacement orders, and expedited shipping is available for critical plant shutdowns.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 8C-PAIH51 begins well before the module arrives on site. The engineering team should pull the existing I/O assignment list from the Experion PKS Control Builder database and confirm which physical slot addresses are mapped to the module being replaced. Slot address conflicts — particularly in systems where modules have been relocated without updating the Control Builder configuration — are a common source of commissioning delays.

The field wiring connected to the 8C-TAIX51 terminal assembly should be documented and photographed before disconnection. Each of the eight channels carries a dedicated pair of field wires, and incorrect re-termination after module swap is a leading cause of signal inversion or open-circuit faults on first power-up. A wiring continuity check using a loop calibrator on each channel before re-energizing the module is strongly recommended.

For sites that also need to upgrade their I/O infrastructure beyond a single module, the Series C chassis supports mixed I/O configurations. Engineers frequently combine the 8C-PAIH51 with the Honeywell 8C-PDOB51 digital output module and the 8C-PDIL51 digital input module within the same chassis to consolidate control cabinet space during a broader panel upgrade. The Honeywell CC-IP0101 PROFIBUS interface module is also commonly added during these projects when field devices on a legacy PROFIBUS DP segment need to be integrated into the Experion PKS supervisory layer.

Programming compatibility is another area requiring careful verification. The Control Module (CM) logic in Control Builder that references the replaced module’s I/O points should be reviewed for any hardcoded channel offset parameters or scaling blocks that may need adjustment if the replacement module has a different firmware baseline. Backup the full Control Builder project — including all CM definitions, phase logic, and recipe parameters — before initiating any hardware swap.

HMI display verification is the final pre-commissioning step. Each analog tag associated with the 8C-PAIH51 channels should be confirmed live on the Experion Station operator display, with correct engineering unit scaling, alarm limits, and HART device status indicators visible before the system is returned to automatic control.

Downtime Control During System Migration

Minimizing control interruption during a module replacement on a live Experion PKS system requires a structured approach. Where the process permits, placing the affected control loops in manual mode at the Experion Station before initiating the physical swap allows operators to maintain setpoint control through manual output commands while the module is offline. For interlock-critical loops, a temporary bypass authorization — documented and time-limited per the site’s Management of Change procedure — should be in place before the module is removed.

The 8C-PAIH51 supports hot-swap replacement within the Series C chassis, meaning the module can be physically removed and reinserted without powering down the entire chassis. However, the FIM must complete its module re-discovery cycle — typically 30 to 90 seconds — before the new module’s channels are returned to scan. During this window, the associated control modules will see their input tags in a fault state, and any downstream logic that acts on input quality should be verified to handle the transient fault gracefully without triggering spurious outputs or safety shutdowns.

After the module is reseated and the FIM has completed re-discovery, a channel-by-channel live value comparison between the Experion Station display and a calibrated loop calibrator on each field terminal confirms signal integrity before loops are returned to automatic. This structured verification sequence — manual mode, swap, re-discovery wait, live value check, return to auto — is the industry-standard approach for minimizing both downtime and the risk of process upsets during DCS module replacement.

For planned maintenance windows, SMARTNEXMSK maintains ready stock of the 8C-PAIH51 to support same-day or next-day dispatch, reducing the lead time risk that is often the longest component of an unplanned outage recovery timeline.

Retrofit Support FAQ

Q1: Is the 8C-PAIH51 a direct drop-in replacement for the MC-PAIH03 used in legacy Honeywell HPM systems?
The 8C-PAIH51 is the Series C equivalent for HART analog input functionality, but it is not a physical plug-in replacement for the MC-PAIH03, which uses the HPM I/O bus architecture. Migration from HPM to Series C requires a chassis and backplane change, along with Control Builder re-configuration. SMARTNEXMSK can advise on the full bill of materials for this migration path.

Q2: What pre-shipment testing is performed on each unit?
Every 8C-PAIH51 unit is powered on and functionally tested before dispatch. The test verifies module initialization, channel scan response, and HART communication readiness. A test record is available upon request. All units are covered by a 12-month warranty against functional defects from the date of shipment.

Q3: Can the 8C-PAIH51 be used with HART revision 7 field devices?
Yes. The 8C-PAIH51 supports HART protocol revisions 5, 6, and 7, making it compatible with the full range of current-generation HART-enabled transmitters and field instruments. HART device configuration and diagnostics are accessible through the Experion PKS Asset Management software layer.

Q4: What is the lead time for urgent replacement orders?
SMARTNEXMSK maintains in-stock inventory of the 8C-PAIH51 to support urgent plant requirements. Same-day dispatch is available for orders confirmed before the daily cut-off. Express international freight options are available for critical shutdown recovery scenarios. Contact our team directly for expedited order processing.
