Honeywell 8C-PDOD51 Retrofit-Ready Digital Output for C300 Systems

Honeywell 8C-PDOD51 Retrofit-Ready Digital Output for C300 Systems: Compatible Modernization & Smooth Legacy Upgrade

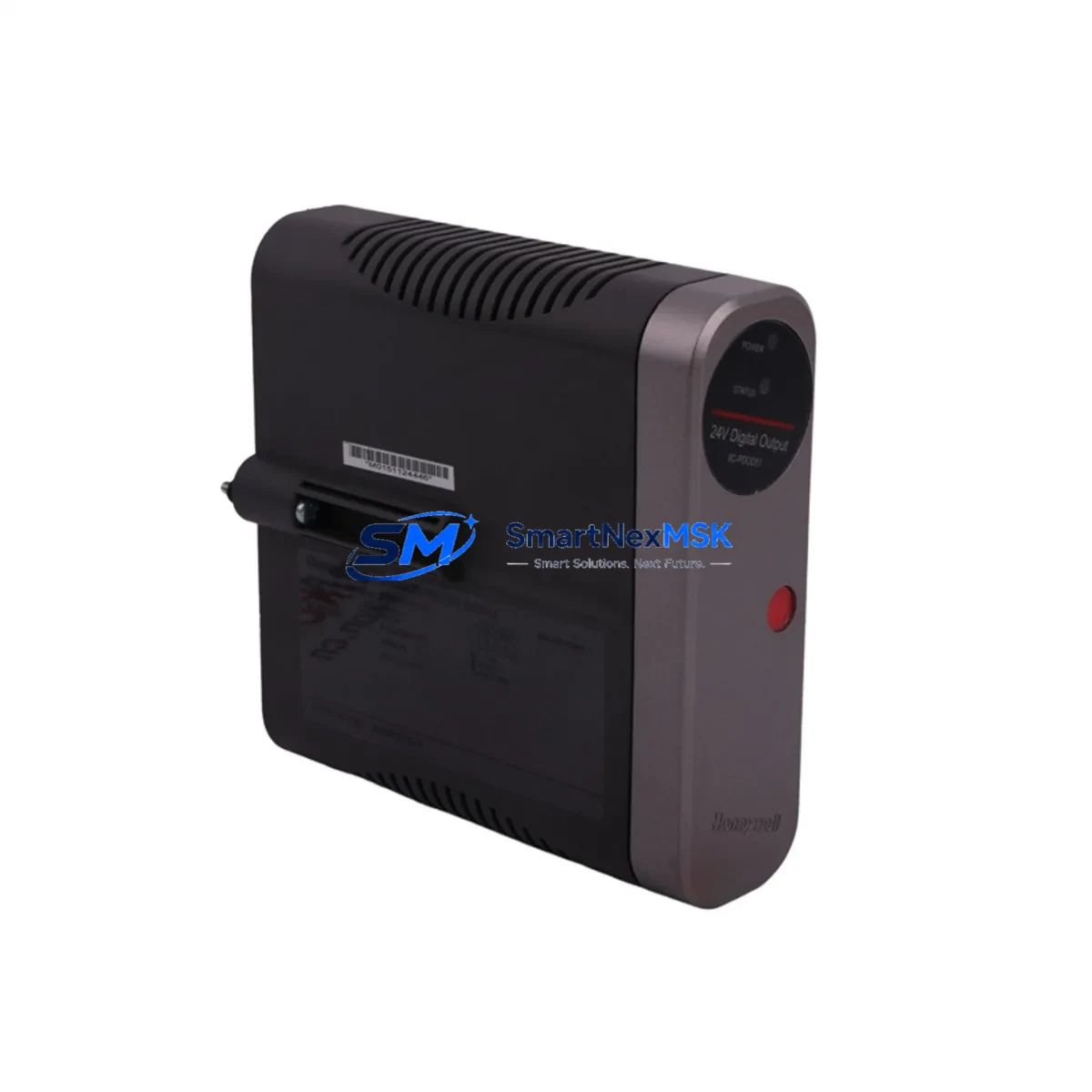

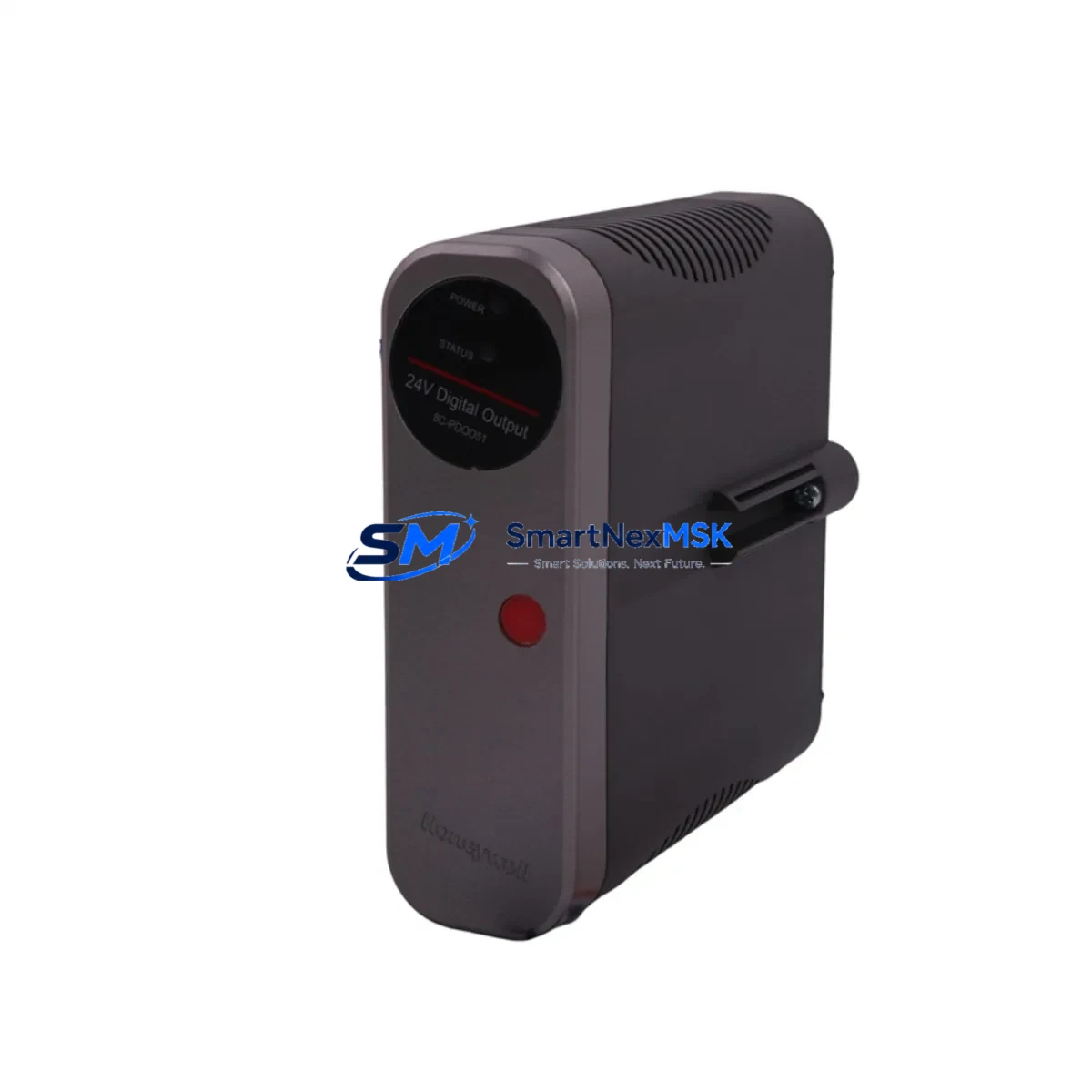

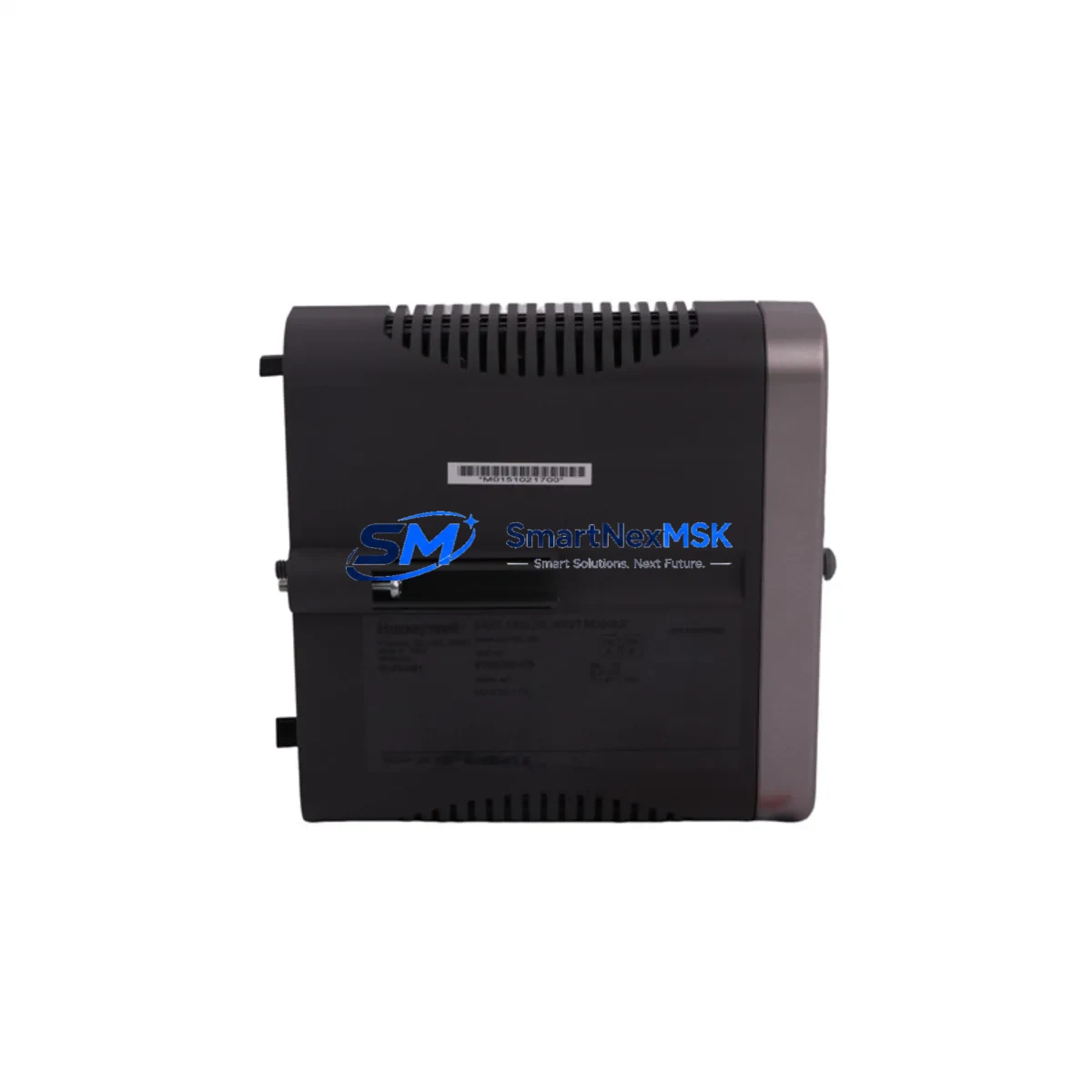

The Honeywell 8C-PDOD51 (Part No. 51454361-175) is a 24 VDC Digital Output Module engineered for the Experion PKS C300 Controller platform. As legacy DCS installations age and original spare parts become increasingly scarce, the 8C-PDOD51 serves as a verified retrofit-ready replacement for discontinued or end-of-life DO modules within the C300 I/O subsystem. Whether you are restoring a failed output channel, expanding an existing control cabinet, or executing a full-scale migration from an older Honeywell TDC 3000 or PlantScape system, this module delivers the signal integrity, backplane compatibility, and firmware alignment required for uninterrupted process control.

Sourced from authorized distribution channels and subject to full functional testing prior to shipment, each unit is backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions. Stock is maintained for immediate dispatch, minimizing procurement lead times for urgent maintenance scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 8C-PDOD51 into an existing control architecture requires a structured pre-installation review. Begin by auditing the C300 Controller firmware version using Experion Configuration Studio — the DO module’s firmware must be compatible with the controller revision to avoid I/O link faults. In systems where the original 8C-PDOD51 has been in service for more than a decade, the associated C300 I/O carrier (51454352-175) should be inspected for terminal oxidation and connector wear before the new module is seated.

Power budget verification is critical. The C300 chassis draws power from the Honeywell CC-PWR001 or CC-PWR002 power supply module, and adding or replacing DO modules affects the total load on the backplane bus. Confirm that the installed power supply has sufficient headroom — typically 5 W per occupied I/O slot — before proceeding. If the cabinet is running near capacity, a supplementary CC-PWR001 redundant power supply should be staged prior to the retrofit window.

Terminal wiring on the field side must be mapped against the original loop drawings. The 8C-PDOD51 uses a standard 24 VDC sourcing output configuration; verify that field devices — solenoid valves, motor starters, or relay coils — are rated for the module’s output current per channel. Where the original installation used a Honeywell 8C-TAIN81 terminal assembly, the wiring can be transferred directly without re-termination, significantly reducing retrofit labor time.

For sites migrating from older Honeywell TDC 3000 HPM (High-Performance Process Manager) or RM (Redundancy Module) architectures, the transition to Experion PKS C300 I/O involves re-engineering the control strategy in Control Builder. Function blocks previously configured in the HPM environment must be recreated as C300 CEE (Control Execution Environment) function blocks. During this phase, the Honeywell CC-LINK01 FTE network switch and associated CC-TCF901 fiber optic cable assemblies should be validated to ensure the FTE ring topology is intact before the new DO module is brought online.

HMI screen updates in Experion Station or Honeywell HMIWeb Display Builder should be completed in parallel with the hardware swap. Output point tags associated with the replaced module must be re-bound to the new module’s channel addresses. Failure to update HMI faceplates before commissioning can result in operator confusion during the first live test cycle. Where Honeywell Safety Manager interlocks reference the DO channels, the safety logic engineer must confirm that the interlock logic remains valid after the address reassignment.

Downtime Control During System Migration

Minimizing unplanned downtime during a DO module replacement on a live C300 system requires a disciplined change management approach. Where the process permits, schedule the module swap during a planned maintenance window and coordinate with the operations team to place affected output loops in manual mode at the Experion Operator Station before removing the faulty module. This preserves field device states and prevents spurious actuations during the changeover.

Before pulling the 8C-PDOD51 from the carrier, export the current C300 controller checkpoint from Experion Configuration Studio. This snapshot preserves the module configuration, channel assignments, and I/O link parameters, allowing rapid restoration if the replacement module encounters a firmware mismatch or hardware fault. The checkpoint file should be stored on a local engineering workstation — not solely on the Experion server — to ensure accessibility during network-isolated maintenance scenarios.

Hot-swap capability on the C300 I/O link allows the replacement module to be inserted without powering down the controller, provided the carrier remains energized and the controller is in a healthy state. After insertion, monitor the Experion System Display for module status alarms. The new 8C-PDOD51 should enumerate within 30–60 seconds and resume normal DO channel operation. Conduct a channel-by-channel output forcing test — with field devices in a safe state — to confirm all 8 channels are responding correctly before returning the loops to automatic control.

For multi-module retrofits spanning several cabinets, stage the work sequentially rather than in parallel to limit the number of open control loops at any one time. Maintain a live retrofit log documenting each module’s slot address, serial number, firmware revision, and test result. This log becomes part of the as-built documentation package and supports future maintenance audits.

Retrofit Support FAQ

Q1: Is the 8C-PDOD51 (51454361-175) a direct drop-in replacement for the original module?
Yes, the 8C-PDOD51 is a form-fit-function replacement for the original Honeywell DO module used in C300 I/O subsystems. No mechanical modifications to the carrier or cabinet are required. Confirm that the C300 controller firmware is at a revision level that supports the module’s hardware version — this information is available in the Honeywell Experion PKS Release Notes for your installed software version.

Q2: What pre-shipment testing is performed on each unit?
Each 8C-PDOD51 unit undergoes functional output testing across all 8 channels prior to dispatch. Power-on self-test (POST) results, channel isolation verification, and communication link enumeration are confirmed. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and in-service failures under normal operating conditions.

Q3: Can this module be used in a redundant C300 controller configuration?
The 8C-PDOD51 is a non-redundant I/O module. In redundant C300 controller configurations, I/O redundancy is achieved at the controller level via the C300 redundancy pair, not at the individual DO module level. The module operates normally in both simplex and redundant controller architectures. If output redundancy is required at the field device level, consult your system integrator regarding dual-coil solenoid or relay configurations.

Q4: What wiring and terminal compatibility should I verify before installation?
Confirm that the existing field wiring is compatible with 24 VDC sourcing output at the module’s rated current per channel. If the original installation used a Honeywell 8C-TAIN81 terminal assembly, the wiring can be transferred without re-termination. For sites using marshalling panels with intermediate terminal blocks, verify that the wiring schedule matches the new module’s channel-to-terminal mapping before energizing the outputs. Always disable output forcing in Experion Builder before inserting the module into a live carrier.
