Honeywell 8C-TAIDB1 Spare for TotalPlant DCS Automation

Honeywell 8C-TAIDB1 Spare for TotalPlant DCS Automation: Spare Replacement & Industrial Downtime Risk Control

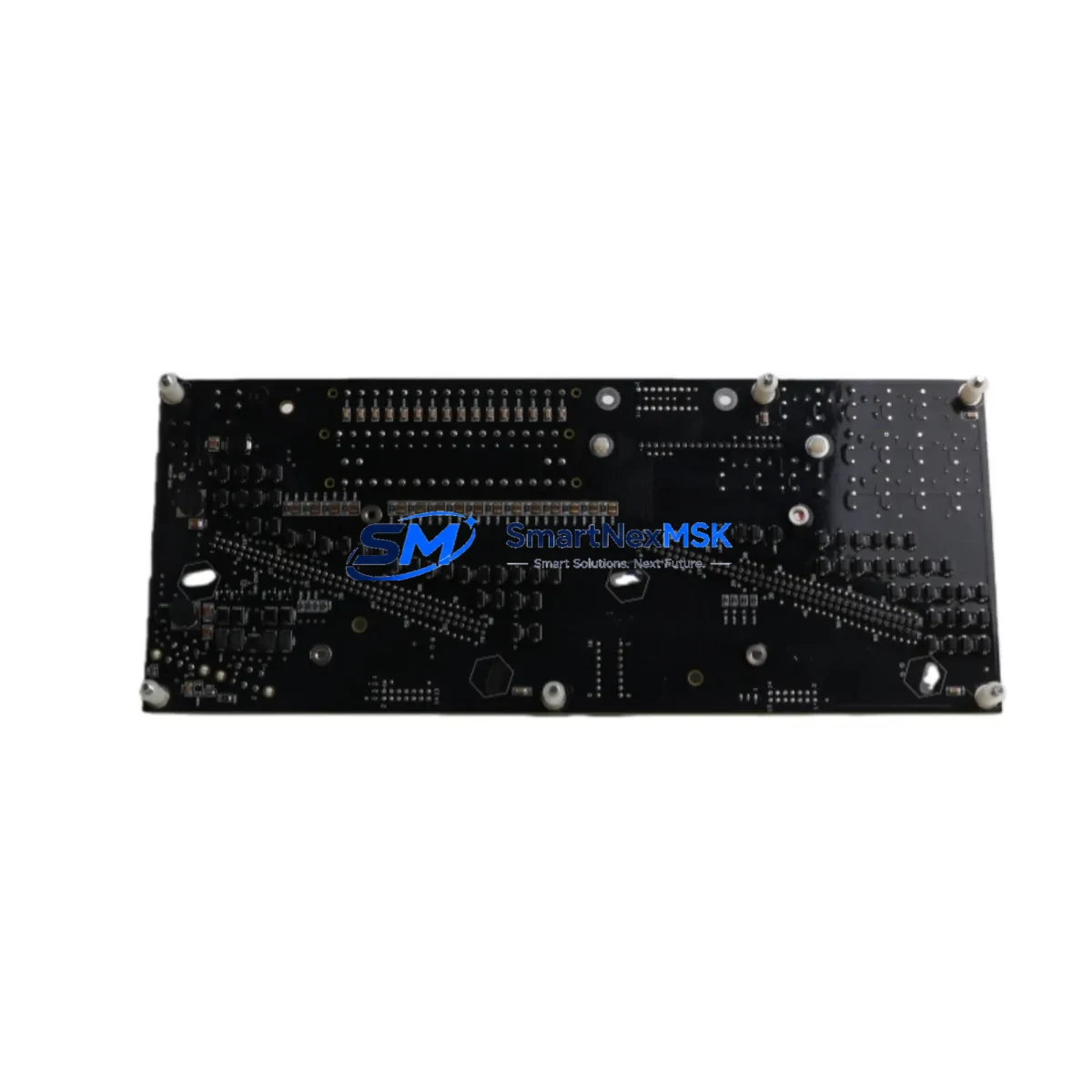

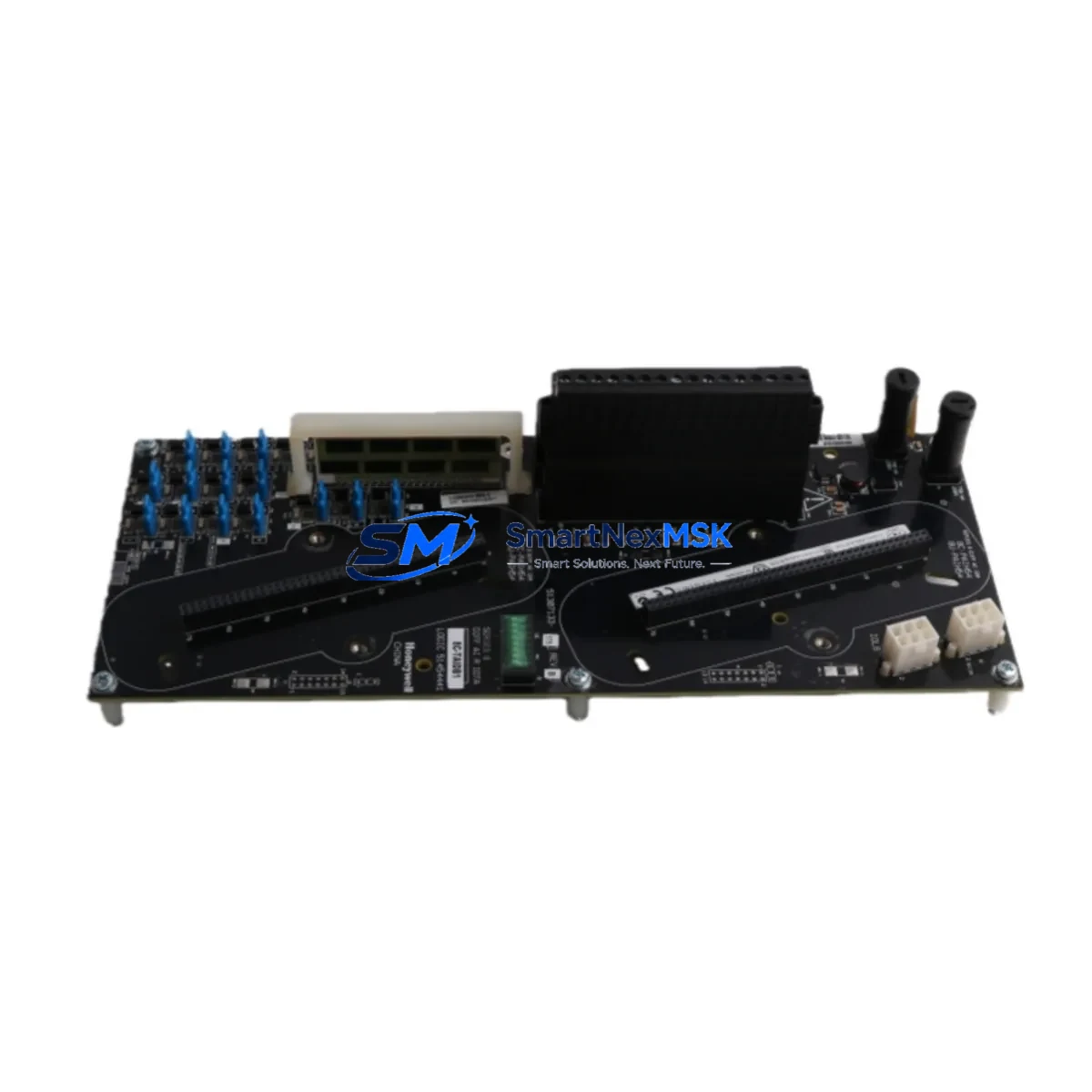

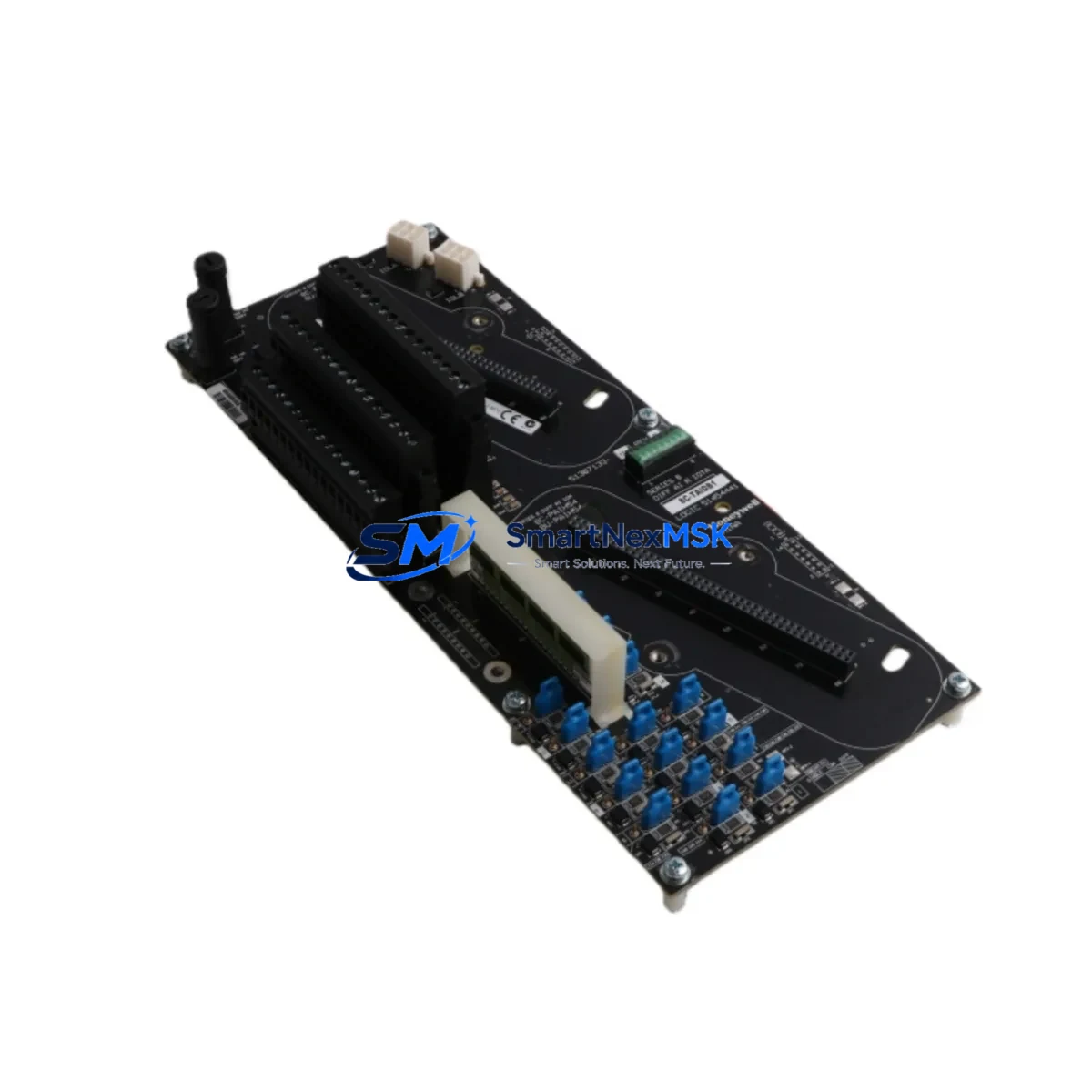

The Honeywell 8C-TAIDB1 is an original analog input DIN rail terminal assembly designed for the TotalPlant Solution (TPS) / TotalPlant Alcont DCS platform. As a critical field-wiring interface between process instrumentation and the DCS I/O subsystem, this terminal assembly plays a central role in signal integrity, loop continuity, and system availability. For maintenance engineers managing aging TPS installations, keeping a verified spare of the 8C-TAIDB1 on the shelf is a fundamental risk-reduction strategy — one that directly shortens mean time to repair (MTTR) when analog input channels fail or degrade.

At SMARTNEXMSK, every 8C-TAIDB1 unit is sourced from authorized supply chains, individually inspected, and shipped with a 12-month warranty. We support maintenance teams and procurement engineers across petrochemical, power generation, pulp & paper, and refinery environments where TotalPlant DCS systems remain the backbone of process control.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a TotalPlant DCS analog input channel becomes unreliable — showing signal drift, open-circuit faults, or intermittent readings — the root cause is often at the field-wiring termination layer rather than the I/O module itself. The 8C-TAIDB1 terminal assembly is the first component to inspect during fault isolation. However, experienced maintenance engineers know that replacing the terminal assembly in isolation rarely resolves systemic issues. A thorough cabinet inspection should accompany any 8C-TAIDB1 replacement.

During planned or corrective maintenance involving the 8C-TAIDB1, the following associated components should be checked or staged as co-spares:

• 8C-TAIM02 / 8C-TAIM12 Analog Input Modules — the I/O modules that mate with this terminal assembly; verify channel-by-channel calibration and check for internal relay or A/D converter faults.
• Honeywell 8C-PDOB1 / 8C-PDOB2 Power Distribution Boards — field power supply rails feeding the I/O subsystem; a degraded power board can cause false analog readings that mimic terminal assembly failure.
• 24 VDC Field Power Supply Units — inspect for output ripple and voltage sag under load; aging SMPS units in TPS cabinets are a common source of unexplained analog drift.
• Signal Isolators and Barriers — Zener barriers or galvanic isolators in the loop should be tested for leakage resistance and isolation integrity, especially in hazardous-area installations.
• Terminal Blocks and DIN Rail Connectors — Phoenix Contact or equivalent terminal blocks adjacent to the 8C-TAIDB1 should be inspected for loose screws, oxidized contacts, and insulation creep.
• Shielded Instrumentation Cable — verify shield continuity and grounding at the cabinet entry gland; a broken shield on a 4–20 mA loop can introduce noise that appears as terminal assembly failure.
• Fuse Holders and Loop Fuses — check 0.5 A or 1 A loop fuses for continuity; blown fuses are frequently overlooked during initial fault isolation.
• Honeywell UCN / LCN Communication Cables — if multiple analog channels fail simultaneously, inspect the Universal Control Network or Local Control Network cabling for physical damage or connector corrosion.
• HMI / Operator Station Connections — confirm that the TPS operator station is receiving updated process values after terminal assembly replacement; stale data may indicate a communication or historian issue rather than a hardware fault.
• Honeywell 8C-GAIM01 / 8C-GAIM02 Gateway Modules — in hybrid TPS/Experion migration environments, verify gateway module health and I/O mapping after any terminal assembly swap.

Staging these components as part of a pre-planned spare parts kit — rather than sourcing them reactively during an outage — is the single most effective way to compress unplanned downtime from hours to minutes.

Site Replacement Workflow

The 8C-TAIDB1 is a field-replaceable unit that does not require firmware loading or DCS configuration changes, making it one of the faster hardware swaps in a TPS cabinet. The following workflow is recommended for site replacement:

1. Pre-Shutdown Verification: Confirm the affected analog input channel in the DCS historian and operator display. Document the last known good engineering-unit value and loop current reading.
2. Loop Isolation: Place the affected control loop in manual mode at the operator station. Notify process operations of the planned maintenance window.
3. Field Wiring Labeling: Before disconnecting any wires, photograph and label all field terminations on the existing 8C-TAIDB1. Use the as-built wiring diagram to verify wire assignments.
4. Terminal Assembly Removal: Loosen terminal screws, disconnect field wiring, and release the DIN rail snap-fit. Remove the old 8C-TAIDB1 from the rail.
5. New Unit Installation: Snap the replacement 8C-TAIDB1 onto the DIN rail. Reconnect field wiring per the labeled diagram, torquing terminal screws to the manufacturer’s specification (typically 0.5–0.6 N·m).
6. Loop Verification: Apply field power and verify 4–20 mA loop current at the DCS I/O module. Confirm engineering-unit readback at the operator station matches the transmitter output.
7. Return to Automatic: Return the control loop to automatic mode. Monitor for 15–30 minutes to confirm stable signal and no alarm recurrence.
8. Documentation: Update the maintenance management system (CMMS) with the replacement date, new unit serial number, and post-replacement loop test results.

This workflow is compatible with both hot-standby and simplex TPS configurations. For redundant I/O subsystems, coordinate with the DCS engineer to ensure the standby channel remains active during the swap.

Spare Parts Support FAQ

Q1: Is the 8C-TAIDB1 still available as a new original part, or only as refurbished?
Both new original and refurbished-to-specification units are available. Refurbished units undergo full electrical testing, connector inspection, and cleaning to meet original performance specifications. All units — new or refurbished — are covered by our 12-month warranty and ship with a test report on request.

Q2: How do I verify compatibility between the 8C-TAIDB1 and my existing TPS I/O modules?
The 8C-TAIDB1 is designed to mate with Honeywell TPS analog input modules including the 8C-TAIM02 and 8C-TAIM12. Compatibility is determined by the I/O module part number and the cabinet backplane revision. Share your existing module part numbers and cabinet configuration with our technical team at sales@smartnexmsk.com and we will confirm compatibility before shipment.

Q3: What is your recommended inventory strategy for 8C-TAIDB1 in a large TPS installation?
For installations with 20 or more analog input channels using this terminal assembly type, we recommend maintaining a minimum of 2–3 spare units on-site. For critical process units (reactors, compressors, fired heaters), consider a 5–10% spare ratio relative to installed count. Long-term supply agreements are available for customers requiring guaranteed stock allocation and priority shipment.

Q4: What pre-shipment testing is performed on each 8C-TAIDB1 unit?
Each unit undergoes visual inspection for physical damage, terminal block integrity check, connector pin verification, and insulation resistance testing before packaging. Units are shipped in anti-static packaging with desiccant. A certificate of conformance is available upon request. Our 12-month warranty covers defects in materials and workmanship from the date of shipment.
