Honeywell 8C-TAIX61 Retrofit-Ready Analog Input for Experion PKS

Honeywell 8C-TAIX61 Retrofit-Ready Analog Input for Experion PKS Control Systems

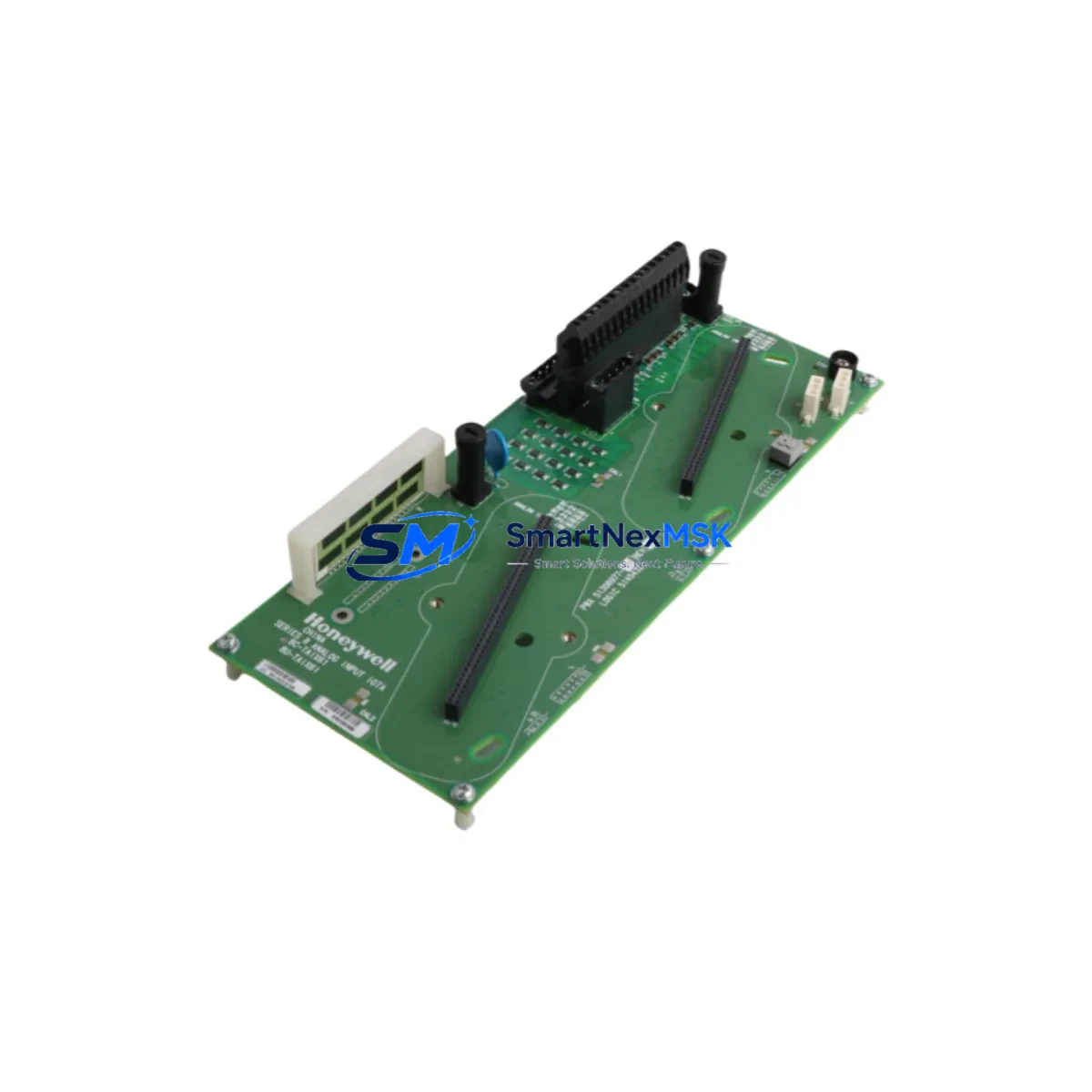

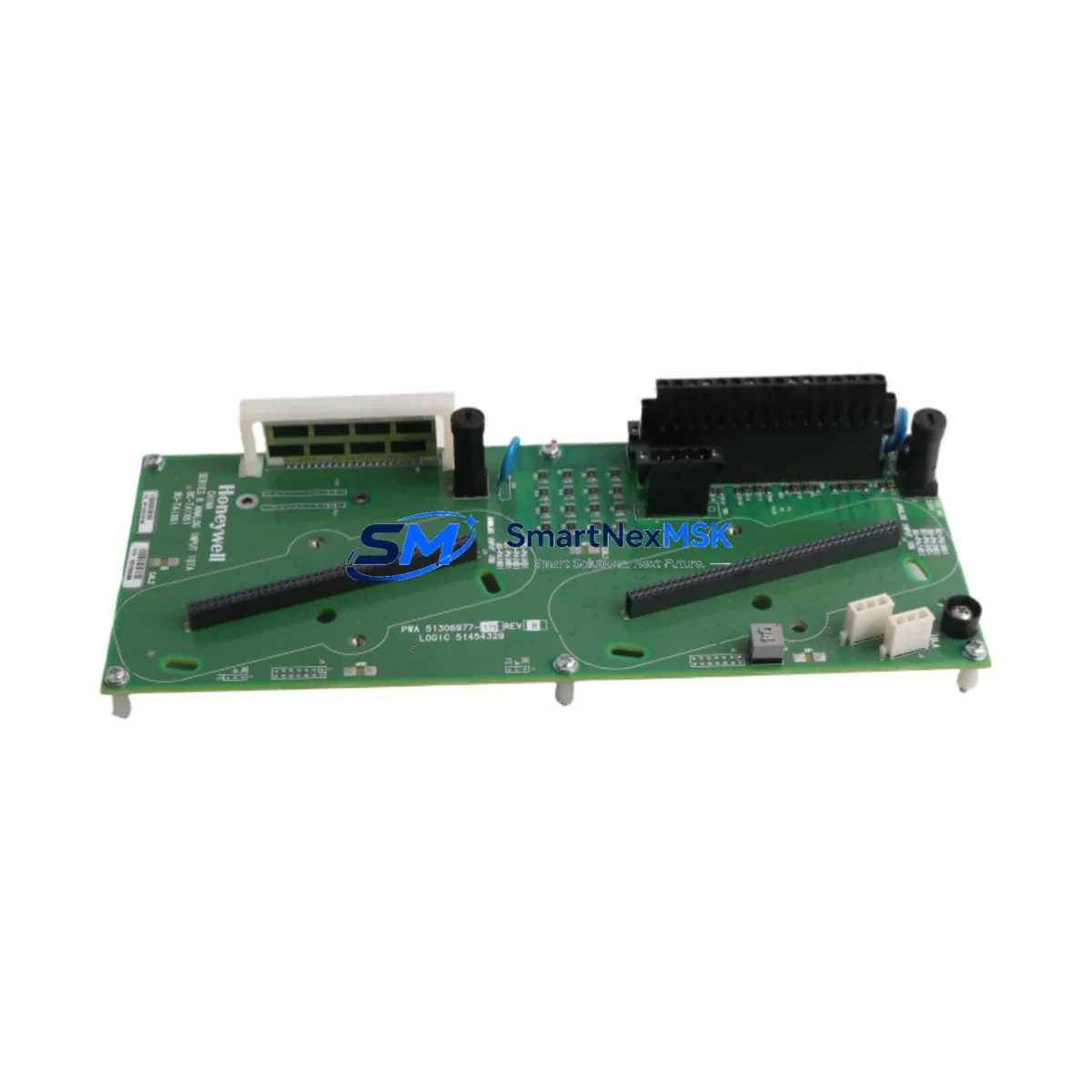

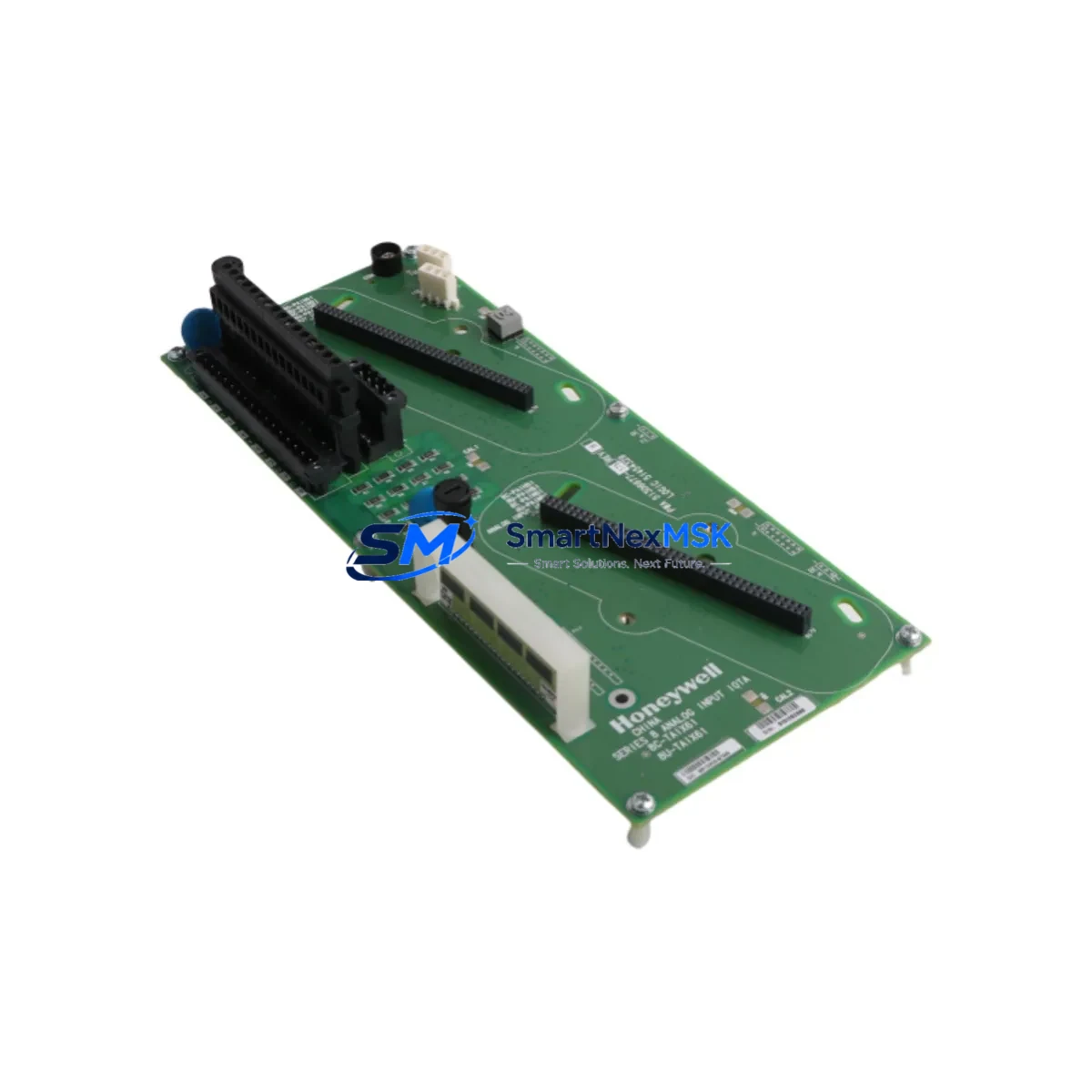

The Honeywell 8C-TAIX61 is a high-density analog input module engineered for the Experion PKS distributed control system platform. As legacy Honeywell TDC 3000 and PlantScape systems reach end-of-life, the 8C-TAIX61 — also catalogued as 8U-TAIX61 and 51306977-175 — has become the preferred retrofit solution for facilities upgrading their process control infrastructure without a full rip-and-replace. This module accepts standard 4–20 mA and 1–5 V analog field signals, providing eight isolated input channels per card, and slots directly into the Series C I/O Link chassis used across Experion PKS C300 controller architectures.

For engineers managing a brownfield upgrade, the 8C-TAIX61 offers a critical advantage: it preserves the existing field wiring termination scheme when paired with the FTA (Field Termination Assembly) already installed in the marshalling cabinet. This means the 51202329-100 or compatible FTA can remain in place, eliminating the need to re-pull field cables — one of the most time-consuming and costly elements of any I/O migration project. The module communicates over the C-Link I/O bus, and its configuration is managed through Honeywell’s Control Builder engineering environment, allowing engineers to import existing tag databases and signal assignments with minimal rework.

When planning a retrofit around the 8C-TAIX61, the following verification steps are essential before installation. First, confirm the backplane slot assignment and I/O Link address within the C300 controller’s I/O configuration. Second, verify that the power budget of the existing IOTA (I/O Termination Assembly) and the associated 51305349-175 power supply module can support the additional card load. Third, review the FTA wiring diagram against the new module’s channel-to-terminal mapping to confirm signal polarity and shielding continuity. Fourth, validate that the Control Builder project file references the correct module type — substituting 8U-TAIX61 for 8C-TAIX61 in the hardware tree may require a module type update and a full download to the C300 controller.

In multi-controller Experion PKS architectures, the 8C-TAIX61 is commonly deployed alongside the 8C-PAIH01 analog input module for high-accuracy pressure and temperature loops, and the 8C-TAOX01 analog output module for valve positioner control. Where legacy serial field devices remain in service, the 8C-PDIS01 PROFIBUS DP interface module or the 8C-PCNT01 pulse counter module may also be present in the same chassis, sharing the C-Link bus. Engineers should confirm that the total I/O Link node count does not exceed the C300 controller’s supported maximum when adding replacement modules during a phased upgrade.

For facilities running hybrid architectures — where Experion PKS coexists with older TDC 3000 hardware — the migration path often involves retaining the existing UCN (Universal Control Network) infrastructure while gradually replacing HPM (High-Performance Manager) I/O cards with Series C equivalents. In this context, the 8C-TAIX61 serves as a direct functional replacement for the analogous HPM AI card, and the Experion PKS server’s OPC DA or OPC UA interface can be used to bridge data to third-party SCADA or historian systems without disrupting the HMI display hierarchy. Operators should verify that existing Experion Station displays and trend groups reference the correct tag names after any module swap, as tag renaming during migration is a common source of post-commissioning alarms.

Communication link integrity is another key consideration. The C-Link I/O bus connecting the 8C-TAIX61 to the C300 controller uses a dedicated coaxial or fiber segment depending on cabinet layout. Before hot-swapping a failed module, confirm that the redundant I/O Link path (if configured) is active and that the standby module — if a redundant pair is in use — has synchronized successfully. For non-redundant installations, plan the module swap during a scheduled maintenance window and coordinate with the control room to place affected loops in manual mode via the Experion Station operator interface.

All 8C-TAIX61 units supplied by SMARTNEXMSK are sourced from verified industrial channels, functionally tested against Honeywell factory acceptance criteria, and shipped with a 12-month warranty covering manufacturing defects and functional failures. Each unit undergoes pre-shipment bench testing including channel-by-channel signal injection, communication handshake verification with a C300 controller, and visual inspection of the backplane connector and front-panel LED indicators. Units are packaged in anti-static foam with humidity indicator cards to ensure safe transit to any global destination.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 8C-TAIX61 requires a structured bill-of-materials review across the entire control cabinet. Beyond the analog input module itself, engineers typically need to account for the Series C IOTA backplane that hosts the card, the associated FTA mounted in the marshalling cabinet, and the C-Link coaxial cable segments connecting the IOTA to the C300 controller chassis. Where the existing marshalling infrastructure uses older Honeywell 51196893-100 or 51304453-100 terminal blocks, compatibility with the new FTA wiring scheme should be confirmed before ordering.

In the same upgrade scope, facilities often replace or add the 8C-TAOX01 analog output module for loop control, the 8C-PDIS01 for PROFIBUS DP field device integration, and the 8C-DIOL01 discrete I/O module for digital status and command signals. Where Modbus RTU legacy devices remain connected, the C300 controller’s built-in serial port or an external Modbus gateway may need to be reconfigured to maintain communication continuity. HMI panels running Experion Station should be reviewed to confirm that all faceplate and trend displays reference the updated tag structure after the module swap.

For larger upgrade projects involving multiple C300 controllers, the Experion PKS server’s redundant ELNK (Ethernet Link) network should be verified for bandwidth headroom before adding new I/O nodes. The 51309512-175 C300 controller module itself may also be a candidate for replacement if the existing unit is running firmware below the minimum version required for Series C I/O compatibility. Programming cables such as the Honeywell MC-KFTA03 are required for offline configuration and firmware updates during the commissioning phase.

Downtime Control During System Migration

Minimizing unplanned downtime during an 8C-TAIX61 swap requires a phased approach. Before any physical work begins, export the full Control Builder project and create a verified backup of the C300 controller’s loaded configuration. Place all affected analog input loops in manual mode at the Experion Station operator interface, and confirm with the control room that process units dependent on those signals are in a safe hold state.

If the installation uses redundant I/O Links, the module can be hot-swapped without a controller restart — the C300 will automatically re-establish communication with the new card once it is seated and powered. For non-redundant installations, a brief I/O Link interruption is unavoidable; coordinate the swap to coincide with a planned maintenance window and pre-stage the replacement module with its address configured to match the outgoing card. After insertion, monitor the C300 diagnostic display in Control Builder for module health status and confirm that all eight input channels return to normal scan within the expected initialization period. Restore loops to automatic mode only after verifying that all channel readings are within expected engineering unit ranges and that no spurious alarms have been generated in the Experion alarm summary.

Original program logic, PID tuning parameters, and interlock configurations stored in the C300 controller are preserved across a module swap as long as the replacement card is configured with the same I/O Link address and module type. No re-download of the controller application is required in a hot-swap scenario, which is a key advantage of the Series C I/O architecture for brownfield retrofit projects.

Retrofit Support FAQ

Q: Is the 8C-TAIX61 a direct drop-in replacement for the 8U-TAIX61?
A: Yes. The 8C-TAIX61 and 8U-TAIX61 are functionally equivalent and share the same part number family (51306977-175). Both fit the same Series C IOTA backplane slot and use the same FTA wiring termination. No changes to field wiring or Control Builder configuration are required when substituting one for the other.

Q: What commissioning steps are required after installing the replacement module?
A: After seating the module, verify that the C300 controller recognizes the card in the Control Builder I/O configuration tree. Confirm the I/O Link address matches the original assignment, check that all eight channels display valid engineering unit values, and clear any initialization alarms in the Experion alarm summary. For non-redundant installations, a brief manual-mode hold on affected loops is recommended during the swap.

Q: Can the existing FTA and field wiring be reused?
A: In most cases, yes. The 8C-TAIX61 is designed to work with standard Honeywell Series C FTAs. Verify the FTA part number against the module’s wiring diagram to confirm terminal-to-channel mapping. If the existing FTA is a 51202329-100 or equivalent, no rewiring is required. Inspect the FTA connector and cable for wear before reinstalling.

Q: What does the 12-month warranty cover, and how is it claimed?
A: The 12-month warranty covers functional failures and manufacturing defects under normal operating conditions. If a module fails within the warranty period, contact SMARTNEXMSK at sales@smartnexmsk.com or +86 18259474341 with the unit serial number and a description of the fault. A replacement or repair will be arranged with priority handling to minimize your system downtime.
