Honeywell 8C-TDOD51 Retrofit-Ready Digital Output for C300 Control Systems

Honeywell 8C-TDOD51 Retrofit-Ready Digital Output for C300 Control Systems

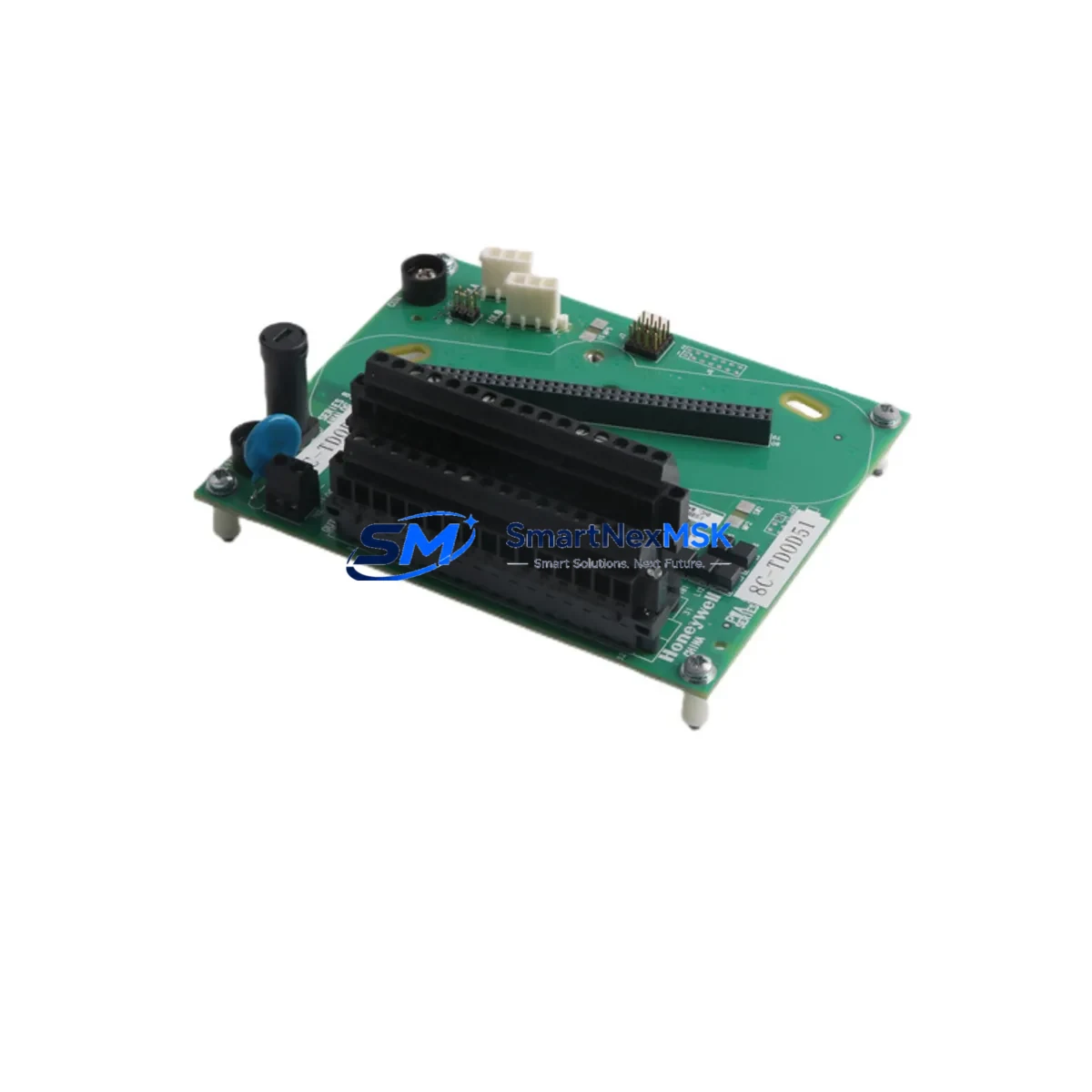

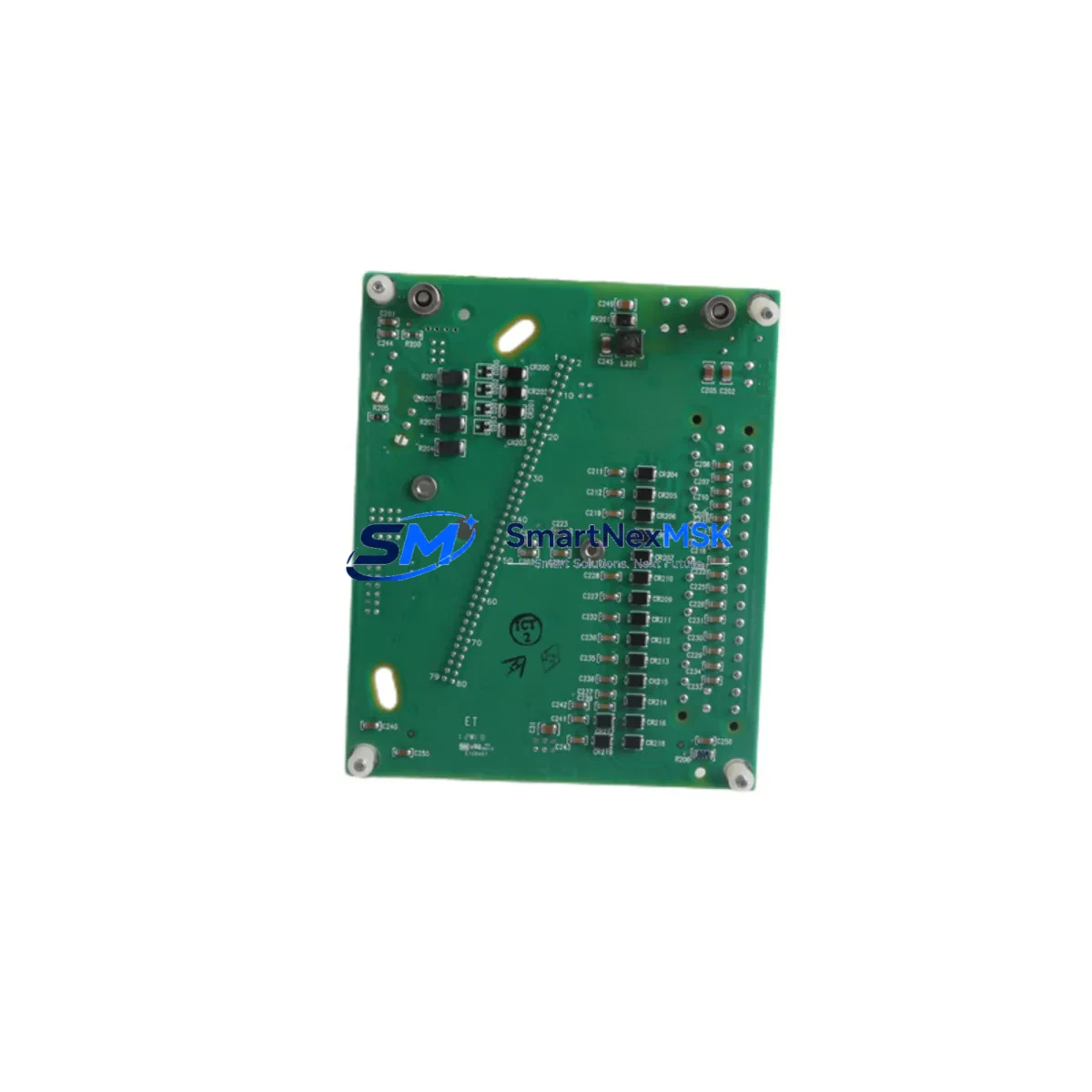

The Honeywell 8C-TDOD51 is an 8-channel digital output module engineered for the Honeywell C300 Controller platform within the Experion PKS distributed control system. As legacy DCS installations age and OEM support windows close, the 8C-TDOD51 has become one of the most sought-after retrofit components for facilities managing aging control cabinets, obsolete I/O racks, and discontinued spare-part inventories. Whether you are executing a full control system modernization or performing a targeted board-level swap to restore production continuity, the 8C-TDOD51 delivers verified compatibility with existing C300 backplane architectures without requiring firmware re-engineering or HMI screen rebuilds.

Each unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing against Honeywell’s published I/O specifications, covering channel isolation, output voltage range, load current capacity, and backplane communication handshake. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 8C-TDOD51 into an existing Experion PKS installation requires a structured pre-replacement audit. Begin by documenting the current I/O chassis layout, noting the slot position of the failed or obsolete module alongside adjacent components such as the 8C-TDID51 digital input module, 8C-TAOX11 analog output module, and any 8C-TAIX11 analog input modules sharing the same C300 I/O chassis. Confirm that the C300 Controller (CEEC300) firmware version is compatible with the replacement module’s hardware revision — this information is accessible through the Experion Station’s Control Builder asset tree.

Terminal wiring on the 8C-TDOD51 follows the standard Honeywell field termination assembly (FTA) pinout. If the existing installation uses a MC-TDOY22 or MC-TDOY23 FTA, verify that the termination block is undamaged and that field wiring labels match the channel assignments documented in the original loop drawings. Mislabeled or transposed wiring is the most common source of commissioning delays during DO module replacements. For installations where the FTA has been discontinued or is physically damaged, a compatible replacement FTA should be sourced alongside the 8C-TDOD51 to avoid secondary delays.

Power budget verification is essential before inserting any new I/O module into a populated C300 chassis. The CC-PWR024 or CC-PWR048 power supply module feeding the chassis must have sufficient headroom to support the 8C-TDOD51’s operating current draw. In high-density I/O cabinets where multiple analog and digital modules share a single power rail, a current audit of all installed modules should be completed before the replacement window opens. Overloaded power supplies are a leading cause of intermittent module faults that are frequently misdiagnosed as module failures.

For facilities migrating from older Honeywell TDC 3000 or PlantScape platforms toward Experion PKS, the 8C-TDOD51 plays a role in the I/O migration layer. During phased migrations, the Honeywell EPLCG Universal I/O Gateway or equivalent protocol bridge may be used to maintain communication continuity between legacy field devices and the new C300 controller while I/O modules are swapped rack by rack. HMI faceplates in Experion Station referencing the replaced DO channels should be validated post-swap to confirm that tag bindings, alarm limits, and manual override states have been preserved correctly.

Where the control system includes Profibus DP or HART-enabled field instruments connected through the DO channels, confirm that the output signal type (dry contact vs. sourcing) matches the field device requirements. The 8C-TDOD51 provides 24 VDC sourcing outputs; installations previously using relay-output modules may require an interposing relay panel to maintain field device compatibility without rewiring.

Downtime Control During System Migration

Minimizing unplanned downtime during a DO module replacement on a live Experion PKS system requires a disciplined sequence of pre-outage, outage, and post-outage steps. Before the maintenance window opens, use Experion Control Builder to place the affected DO channels into manual mode, locking output states at their last commanded values. This prevents process upsets caused by the controller detecting a missing module and defaulting outputs to a safe state that may conflict with current process conditions.

During the physical swap, the C300 controller supports hot-standby redundancy configurations. If the installation includes a redundant C300 controller pair, the primary/secondary switchover should be tested before the module replacement to confirm that the standby controller can assume control without interruption. The 8C-TDOD51 supports hot insertion into a powered C300 chassis — however, it is best practice to confirm with the site’s safety instrumented system (SIS) engineer whether any DO channels are part of a safety loop before performing a live swap.

After insertion, the module will undergo an automatic self-test sequence visible in the Experion Station system status display. Once the module reports a healthy status, return the affected channels from manual to automatic mode one channel at a time, verifying field device response at each step. Retain the original program logic backup and a pre-swap snapshot of the Control Builder configuration file to enable rapid rollback if unexpected behavior is observed during the post-swap validation period.

SMARTNEXMSK maintains in-stock inventory of the 8C-TDOD51 and related C300 I/O components to support emergency replacement scenarios with same-day or next-day dispatch. All units are pre-tested and shipped with documentation supporting traceability requirements for ISO-certified facilities.

Retrofit Support FAQ

Q1: Is the 8C-TDOD51 a direct drop-in replacement for a failed unit in an existing C300 chassis?
Yes. The 8C-TDOD51 is a direct slot-compatible replacement for existing C300 I/O chassis installations. No hardware adapters are required. After insertion, confirm the module address in Experion Control Builder and reload the channel configuration if the original module’s configuration was lost due to the failure.

Q2: What wiring changes are needed when replacing the 8C-TDOD51?
No field wiring changes are required if the existing FTA (field termination assembly) is intact and correctly labeled. Verify terminal assignments against the original loop drawings before powering the replacement module. If the FTA is damaged or missing, source a compatible Honeywell FTA alongside the module to avoid additional delays.

Q3: Has the unit been tested before shipment?
Yes. Every 8C-TDOD51 unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing covering channel output verification, backplane communication, and isolation checks. A test report is available upon request for facilities with incoming inspection requirements.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage, or physical mishandling. SMARTNEXMSK provides replacement or repair at no charge for covered warranty claims, with priority dispatch to minimize customer downtime.
