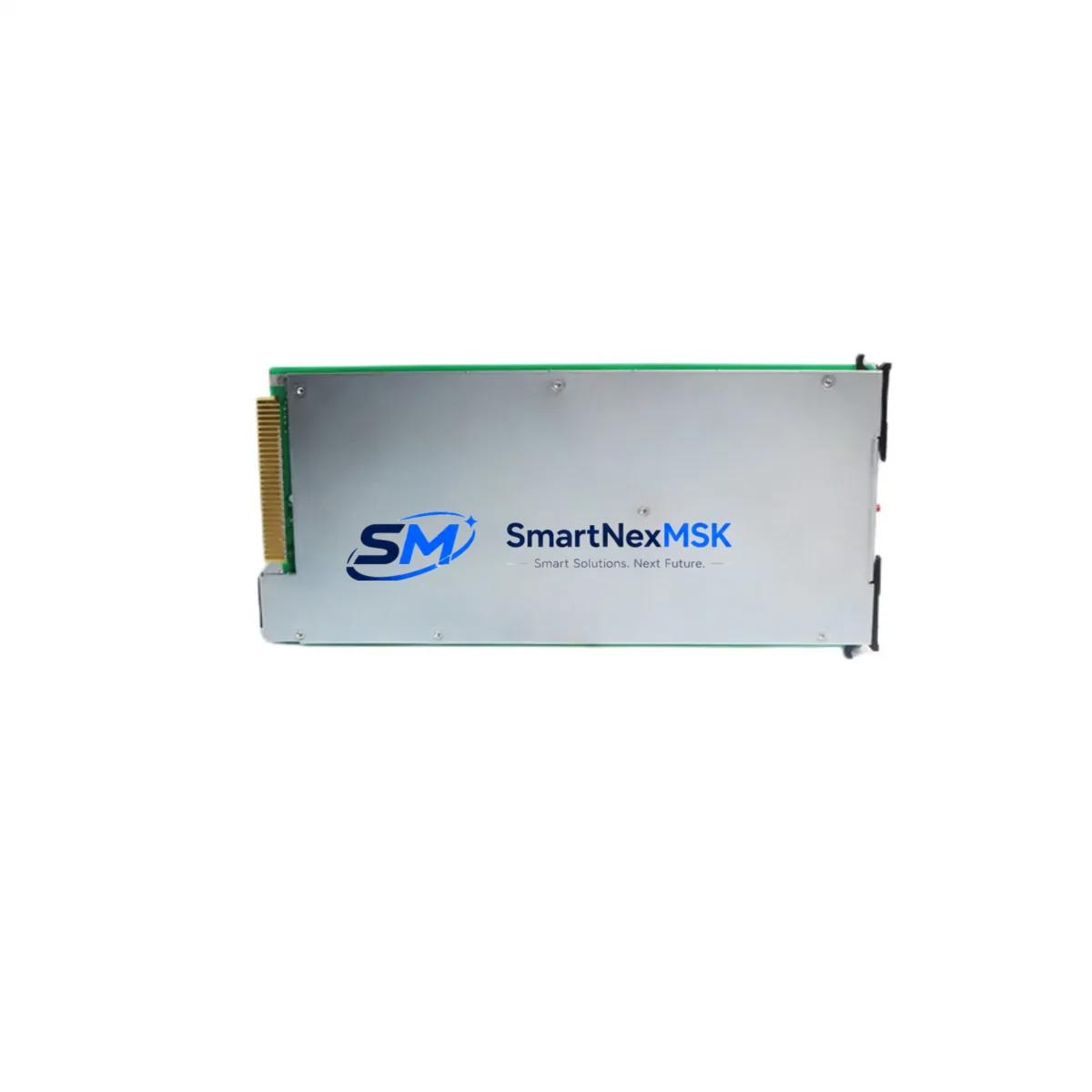

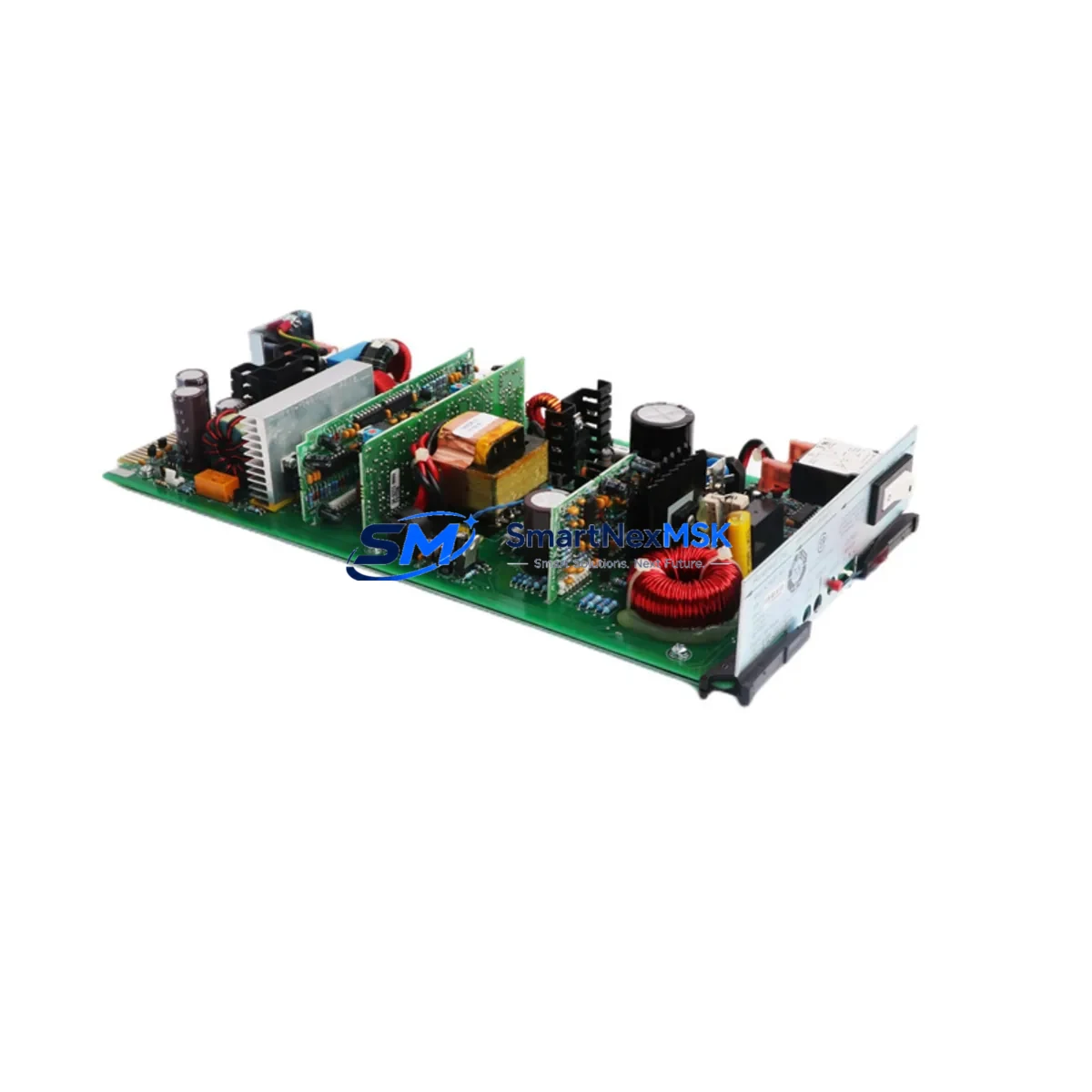

Honeywell ACX633 51196655-100 Retrofit-Ready Power Supply for Experion PKS Control Systems
The Honeywell ACX633 (Part No. 51196655-100) is a high-reliability DC power supply module engineered for the Experion PKS distributed control system platform. As legacy Experion PKS installations age and original ACX633 units reach end-of-life, this retrofit-ready replacement module provides a direct, drop-in upgrade path that preserves existing backplane wiring, rack mounting geometry, and firmware compatibility — minimizing engineering rework and unplanned downtime during system modernization projects.
SMARTNEXMSK maintains verified in-stock inventory of the ACX633 51196655-100, sourced from authorized channels and subject to full functional testing prior to dispatch. Each unit ships with a 12-month warranty covering manufacturing defects and operational failures under normal DCS operating conditions.
Upgrade Compatibility Table
| Parameter | ACX633 51196655-100 Details |
|---|---|
| Compatible Platform | Honeywell Experion PKS (C300 Controller Series) |
| Module Function | DCS Backplane Power Supply |
| Mounting Interface | Standard Experion PKS chassis backplane slot |
| Installation Requirement | Hot-swap capable; verify chassis power budget before insertion |
| Communication Compatibility | FTE (Fault Tolerant Ethernet) backbone compatible |
| Replacement Recommendation | Direct drop-in for failed or end-of-life ACX633 units |
| Commissioning Focus | Verify module address, confirm LED status, check power rail voltage |
| Warranty | 12 Months — covers manufacturing defects and operational failure |
Retrofit Planning for Existing Automation Systems
Replacing the ACX633 51196655-100 in an active Experion PKS installation requires careful pre-migration planning. Before removing the failed module, engineers should document the current chassis slot assignment, confirm the total power draw across all installed I/O modules, and verify that the replacement unit’s output ratings match the original specification. In a typical C300-based control cabinet, the ACX633 shares the power distribution rail with I/O link modules, redundant controller cards, and communication interface modules — all of which must remain energized during a hot-swap procedure to avoid process interruption.
During retrofit planning, it is common to audit adjacent modules in the same chassis. The Honeywell CC-PAIX01 analog input module and CC-PDOB01 digital output module are frequently found in the same rack as the ACX633 and should be inspected for wear or firmware currency as part of the same maintenance window. Similarly, the C300 controller module itself — often designated as CC-PCF901 — should be confirmed as compatible with the replacement power supply’s output profile before commissioning.
For sites migrating from older TDC 3000 or PlantScape architectures to Experion PKS, the ACX633 power supply is a foundational component in the new chassis build. In these migration projects, the power supply is typically installed alongside a new IOLIM (I/O Link Interface Module), updated FTE network switches, and revised HMI station configurations running Experion Station software. Technicians should also verify that the existing 24 VDC field wiring and terminal block assignments are compatible with the new chassis layout before energizing the system.
Communication protocol migration is another key consideration. Sites transitioning from legacy HDLC-based I/O links to FTE-based architectures will need to reconfigure the C300 controller’s network parameters and update the Control Builder engineering database to reflect the new module addresses. The ACX633 power supply itself does not require protocol configuration, but its installation is a prerequisite for bringing the new chassis online and completing the FTE segment commissioning.
For I/O expansion projects, the ACX633 is often installed in additional chassis to support new CC-PAIX01 analog input cards, CC-PDOB01 digital output cards, or HART-enabled field instrument interfaces. In these cases, the power budget calculation must account for the full complement of planned I/O modules, including any future expansion slots, to avoid overloading the supply rail.
Downtime Control During System Migration
Minimizing process downtime during an ACX633 replacement is achievable with proper preparation. The recommended approach is to pre-stage the replacement module in the control room, confirm its firmware version against the site’s approved hardware list, and coordinate the swap during a scheduled maintenance window or low-production period. If the chassis supports redundant power supply slots, the failed ACX633 can be replaced without de-energizing the chassis — provided the redundant supply is confirmed healthy before removal of the primary unit.
To protect existing program logic during the swap, the C300 controller should be placed in a controlled state using Control Builder’s online maintenance mode. This preserves the active control strategy in the controller’s non-volatile memory and prevents spurious output changes during the power supply transition. After the replacement ACX633 is seated and the chassis power rail stabilizes, the controller can be returned to normal scan mode and the HMI operator station should be monitored for alarm state changes that may indicate I/O module re-initialization.
Field instrument loops connected through the chassis I/O modules should be placed in manual control at the DCS faceplate before the swap begins. This prevents automatic control actions from responding to transient signal interruptions during module insertion. Once the replacement ACX633 is confirmed operational — indicated by steady green status LEDs and normal power rail voltage readings — field loops can be returned to automatic control sequentially, with each loop verified against its setpoint before proceeding to the next.
Retrofit Support FAQ
Q: Is the ACX633 51196655-100 a direct replacement for all ACX633 variants?
A: The 51196655-100 part number is the primary production variant for Experion PKS C300 chassis applications. Before ordering, confirm the part number on the failed module’s label matches 51196655-100. If your site uses an earlier revision suffix, contact our technical team to verify cross-compatibility prior to shipment.
Q: What commissioning steps are required after installing the replacement ACX633?
A: After seating the module, verify the chassis power rail voltage at the backplane test points, confirm all I/O module status LEDs return to normal, and check the C300 controller’s hardware configuration in Control Builder to ensure the new module is recognized at the correct slot address. No firmware upload is typically required for a like-for-like replacement.
Q: How is the ACX633 wired into the control cabinet?
A: The ACX633 receives AC mains input through the chassis power entry module and distributes regulated DC power to the backplane rail. Field wiring terminations are made at the I/O module terminal bases, not at the power supply itself. Ensure the upstream circuit breaker rating matches the chassis power budget before energizing.
Q: What does the 12-month warranty cover?
A: All ACX633 51196655-100 units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and operational failures under normal DCS operating conditions. Each unit undergoes functional testing before dispatch. Warranty claims are supported by our technical team via sales@smartnexmsk.com.
