Honeywell CC-PAOH01 51405039-176 Retrofit Analog Output C300

Honeywell CC-PAOH01 51405039-176 Retrofit Analog Output C300: Compatible Upgrade for Legacy DCS Systems

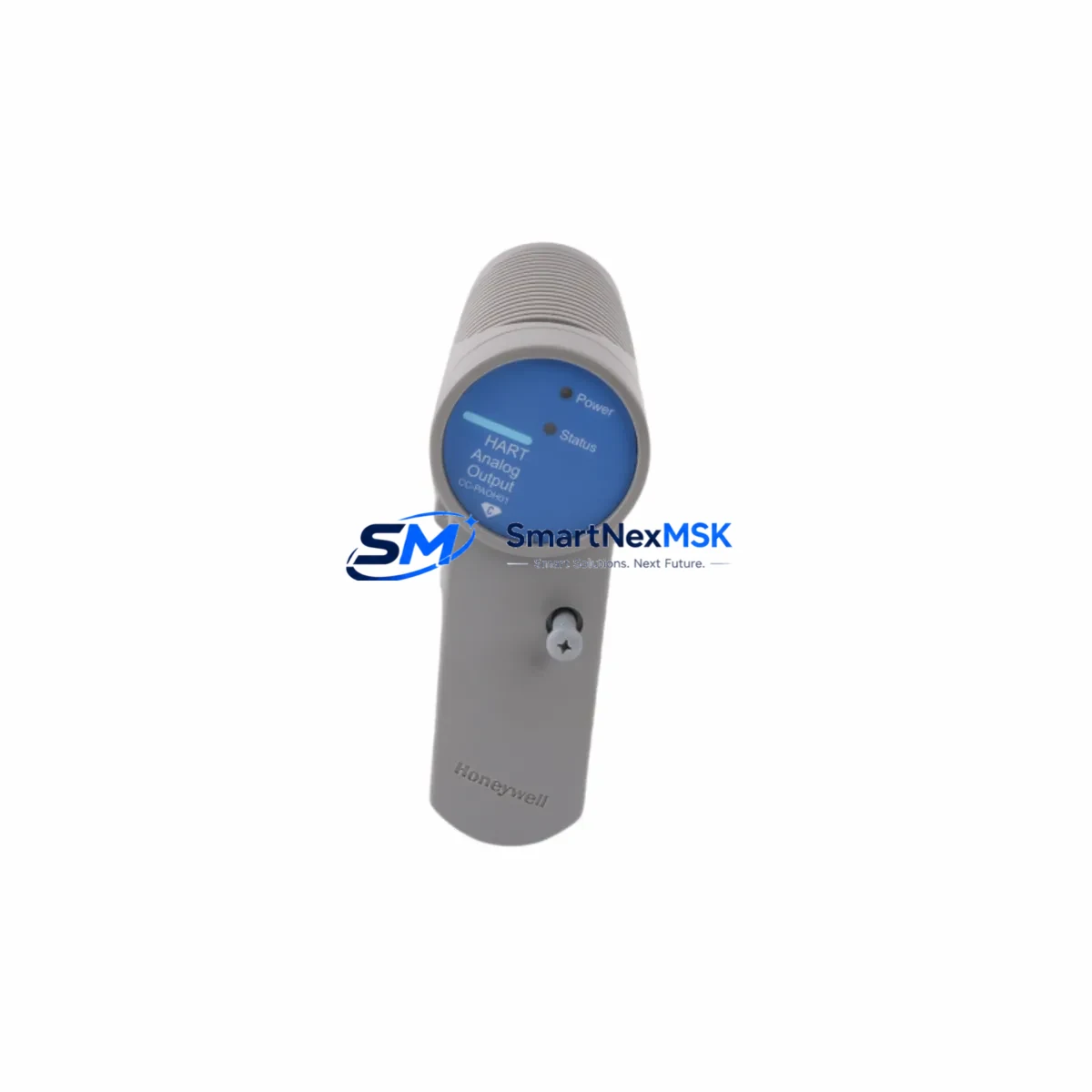

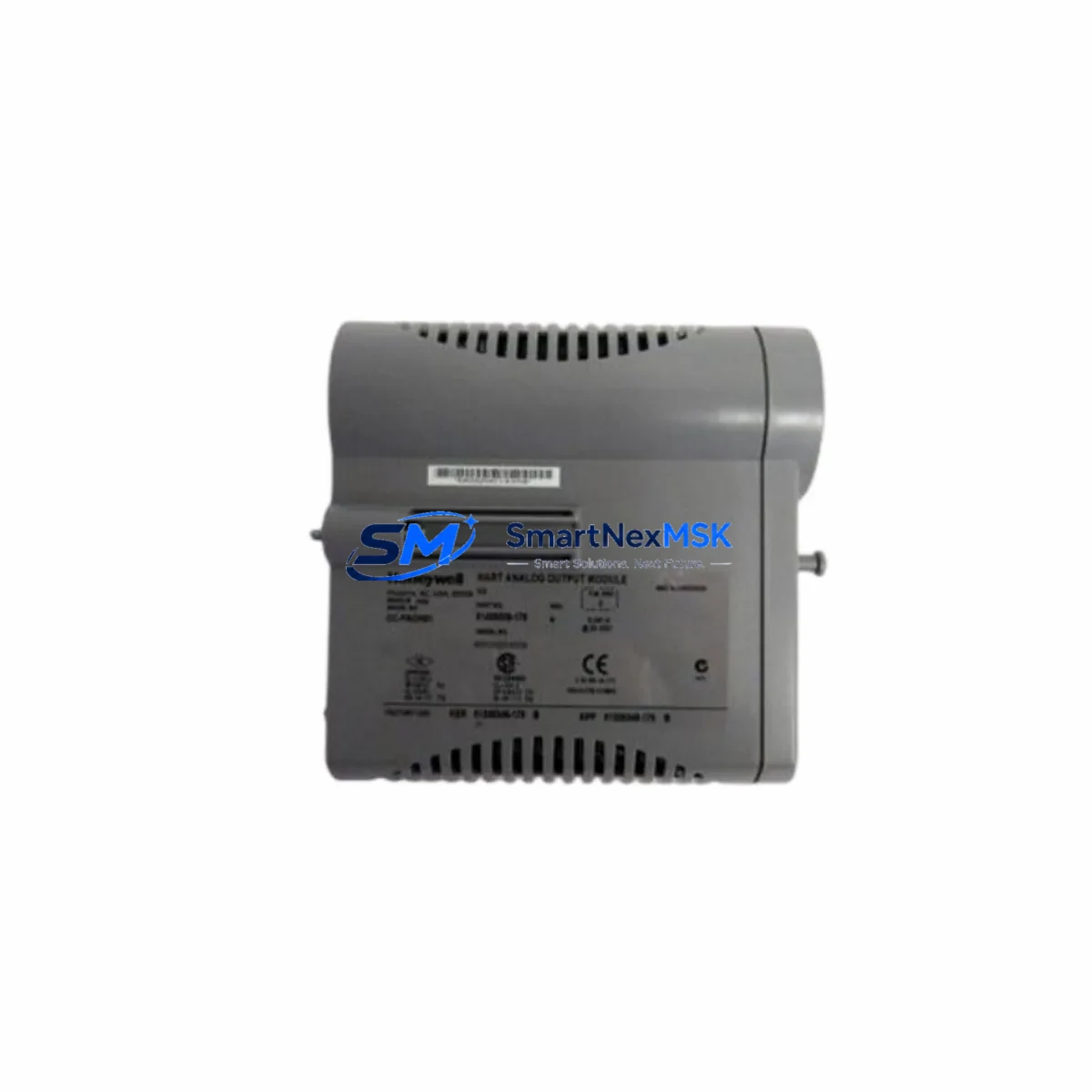

The Honeywell CC-PAOH01 (Part No. 51405039-176) is a high-density analog output module engineered for the Experion PKS C300 Controller platform. Designed for seamless integration into existing SCADA and DCS architectures, this module delivers eight channels of 4–20 mA analog output, making it a direct retrofit candidate for aging or discontinued output modules in C300-based control cabinets. Whether you are replacing a failed unit, upgrading a legacy system, or expanding I/O capacity on an existing backplane, the CC-PAOH01 provides a verified drop-in solution with no firmware re-flashing required in most standard configurations.

Industrial facilities running Honeywell’s Experion PKS platform frequently encounter the challenge of sourcing discontinued or end-of-life components. The CC-PAOH01 addresses this directly — it is fully compatible with the C300 Series Controller and integrates with the standard CC-TCNT01 FTA (Field Termination Assembly), preserving existing field wiring and terminal layouts. This eliminates the need for costly cabinet rewiring during module replacement, significantly reducing planned maintenance windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the CC-PAOH01 into an operating plant environment requires systematic pre-replacement verification. Engineers should begin by auditing the existing C300 I/O chassis configuration — confirming available slot positions, backplane power headroom, and the current firmware revision of the C300 Controller (CC-PCNT01). In multi-controller architectures, the module’s FTE address must be reserved in the Experion server’s hardware tree before physical installation to prevent address conflicts.

Field wiring connected to the CC-TCNT01 FTA should be documented and photographed prior to removal. Terminal assignments for each of the eight analog output channels must be verified against the existing loop drawings. In plants where the original FTA has been in service for more than ten years, it is advisable to inspect terminal blocks for corrosion and replace the CC-SCMB02 cable assembly connecting the FTA to the module slot — a common source of intermittent signal faults during post-replacement commissioning.

For facilities upgrading from older Honeywell TDC 3000 or PlantScape systems, the CC-PAOH01 retrofit typically occurs alongside a broader migration that includes replacing HPM (High-Performance Process Manager) I/O cards with C300-compatible modules. In these scenarios, the CC-PAIM01 Analog Input Module and CC-PDOB01 Digital Output Module are frequently upgraded in the same maintenance window to consolidate the I/O architecture. The CC-PWRR01 Redundant Power Supply should also be inspected to confirm it can support the expanded module count without exceeding its rated output current.

Communication continuity is critical during migration. The existing FTE Switch (FTEB-08) infrastructure should be verified for port availability before adding new C300 nodes. In plants running parallel HART communication over the analog loops, the CC-PAOH01’s HART pass-through capability allows field instruments to remain online during the transition, eliminating the need to temporarily disconnect transmitters or positioners. This is particularly valuable in continuous process industries where loop interruption triggers process alarms or safety interlocks.

HMI screens built on Experion Station or third-party SCADA platforms connected via OPC-DA/OPC-UA should be reviewed to confirm that analog output tag paths remain unchanged after module replacement. In most C300 configurations, tag paths are tied to the module’s logical address rather than its physical slot, so a like-for-like replacement preserves all HMI bindings without requiring display re-engineering. However, if the replacement involves a slot change, the Experion Control Builder must be used to reassign the module address and download the updated configuration to the C300 controller before the new module is brought online.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing analog output modules in a live DCS environment. The CC-PAOH01 supports hot-swap replacement in C300 chassis configurations where the controller is operating in redundant mode — provided the replacement procedure follows Honeywell’s documented live-swap protocol. Before initiating the swap, the control strategy should be placed in manual mode for all loops served by the module, and the current output values should be recorded to allow bumpless transfer back to automatic control after commissioning.

The original program logic stored in the C300 Controller does not need to be modified for a like-for-like module replacement. Control function blocks, PID parameters, scaling factors, and alarm limits are retained in the controller’s memory and are automatically re-associated with the replacement module once it is recognized by the Experion server. This eliminates the risk of accidental logic modification during hardware maintenance — a critical safeguard in safety-instrumented environments where the control program has been validated under IEC 61511 or ISA-84 requirements.

For facilities without redundant controllers, a cold-swap procedure is required. In this case, the maintenance window should be planned to include: controller shutdown, module replacement, power-up sequence, Experion server re-scan, module download, loop-by-loop output verification, and return to automatic control. A well-prepared team with pre-staged replacement hardware — including a tested CC-PAOH01 unit, a spare CC-SCMB02 cable, and a laptop loaded with the current Experion Control Builder project — can typically complete this sequence in under two hours for a single module replacement.

Pre-shipment functional testing is performed on every CC-PAOH01 unit before dispatch. Each module is powered, addressed, and verified for all eight output channels against calibrated reference loads. Test records are available upon request and accompany the unit’s 12-month warranty documentation.

Retrofit Support FAQ

Q1: Is the CC-PAOH01 (51405039-176) a direct drop-in replacement for all C300 analog output module variants?
A: Yes, the CC-PAOH01 is compatible across C300 hardware revisions A, B, and C. It installs into any standard C300 I/O chassis slot designated for analog output and uses the same CC-TCNT01 FTA wiring interface. No backplane modification or field rewiring is required for a like-for-like replacement. Customers replacing modules from older Experion PKS releases (R400 and above) should confirm the server’s hardware catalog is updated to recognize the current module revision.

Q2: What commissioning steps are required after installing the replacement module?
A: After physical installation, open Experion Control Builder and perform a hardware scan to confirm the module is recognized. Download the existing I/O configuration to the module, verify that all eight analog output channels report correct engineering unit values, and confirm loop feedback at the field instrument level. Place each loop back into automatic control one at a time, monitoring for output bumps. Full commissioning for a single CC-PAOH01 replacement typically takes 30–60 minutes with a prepared engineer.

Q3: Can the CC-PAOH01 be used in a system that also includes legacy Honeywell HPM or TDC 3000 hardware?
A: The CC-PAOH01 is a C300-native module and operates exclusively within the Experion PKS C300 architecture. It cannot be installed directly into HPM or TDC 3000 racks. However, in hybrid migration projects where HPM and C300 controllers coexist on the same FTE network, the CC-PAOH01 can serve the C300 portion of the system while HPM modules remain in service. Full migration to C300 I/O — including replacement of HPM analog output cards with CC-PAOH01 modules — is the recommended long-term path for system standardization.

Q4: What does the 12-month warranty cover, and is pre-shipment testing included?
A: Every CC-PAOH01 unit is functionally tested prior to shipment, covering power-up, channel output accuracy, and communication handshake with a C300 controller. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental exposure beyond the module’s rated specifications. Warranty claims are processed with return authorization; replacement units are dispatched within 5 business days of confirmed fault diagnosis.
