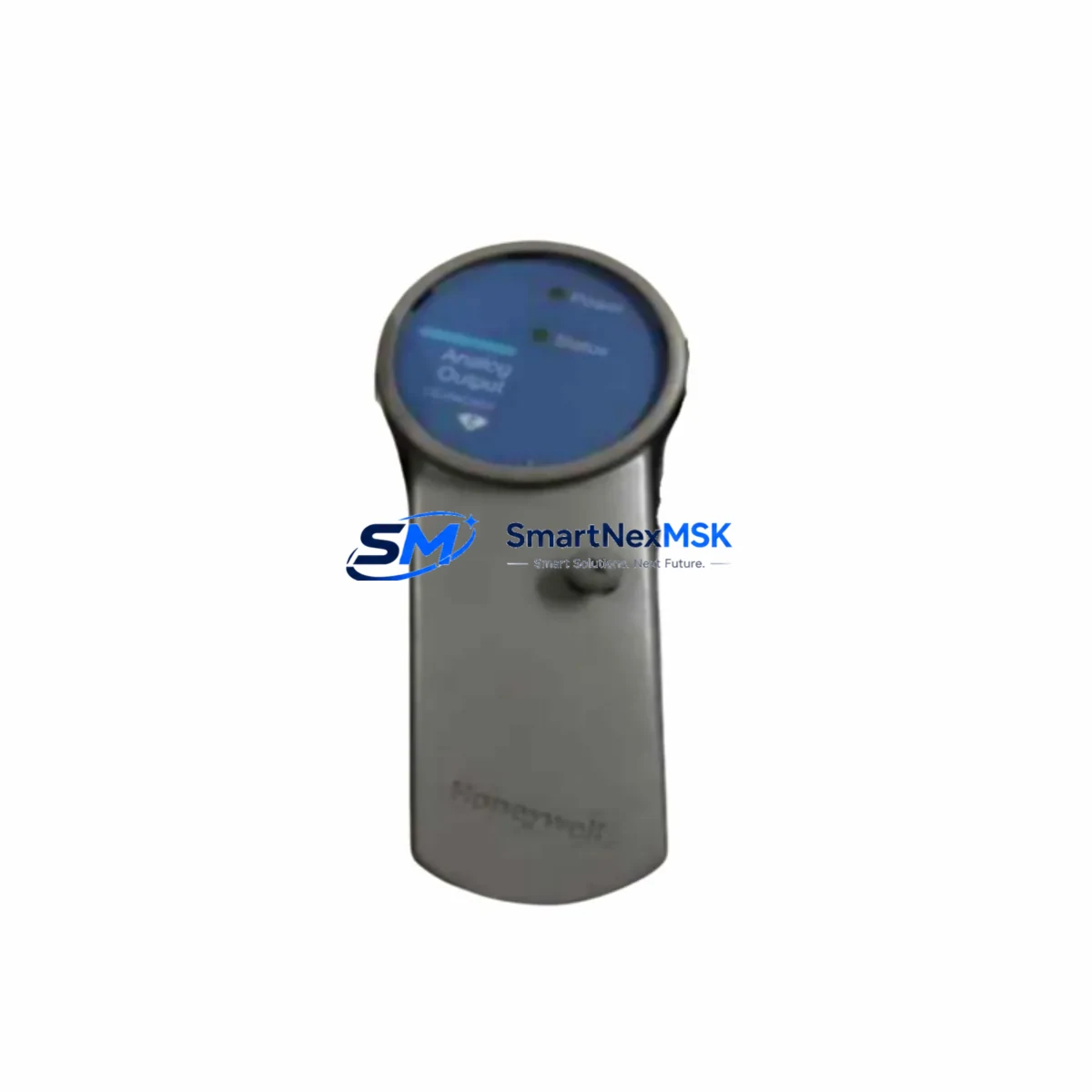

Honeywell CC-PAOX01 51405039-275 Retrofit Analog Output Module

Honeywell CC-PAOX01 51405039-275 Retrofit-Ready Analog Output Module for Experion PKS Control Systems

The Honeywell CC-PAOX01 (part number 51405039-275) is a high-density analog output module engineered for the Experion PKS distributed control system platform. As legacy Honeywell C200, C300, and EPKS R310/R400 installations reach end-of-support milestones, plant engineers and system integrators increasingly rely on verified replacement stock of the CC-PAOX01 to sustain production continuity without committing to a full platform migration. This module delivers 8-channel, 4–20 mA analog output capability with HART pass-through support, making it a direct functional replacement for aging or failed units in existing control cabinets.

Whether you are executing a planned turnaround, responding to an unplanned module failure, or phasing in a control system upgrade across multiple process units, the CC-PAOX01 51405039-275 slots into the existing C200/C300 chassis backplane without requiring changes to the controller firmware, FTE network topology, or Experion Station HMI graphics. Field wiring terminations remain compatible with the existing CC-TAOX01 termination assembly, eliminating rewiring labor and reducing the risk of commissioning errors during hot-cutover procedures.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CC-PAOX01 retrofit begins well before the module arrives on site. The first step is a power budget audit of the affected C200 or C300 chassis. Each CIOM chassis has a defined backplane power capacity shared across all installed I/O modules; adding or replacing a CC-PAOX01 requires confirming that the chassis power supply — typically a CC-PWR001 or CC-PWR002 — has sufficient headroom. If the existing power supply is already near its rated output, a parallel power supply or chassis expansion using an additional CC-SCMB02 backplane extension may be required before the replacement module can be safely installed.

Terminal wiring should be verified against the original loop drawings. The CC-TAOX01 termination assembly uses a standard 32-pin connector; each of the 8 output channels maps to a defined terminal pair. Before powering down the affected chassis slot, document the current 4–20 mA output values for all active channels using the Experion Station trend historian or a handheld HART communicator. This baseline allows rapid verification during post-installation loop checks.

Module address configuration is handled through Experion Control Builder. After physical installation, the replacement CC-PAOX01 must be assigned the same I/O Link address as the removed module. Failure to match the address will result in the controller reporting an I/O fault and the associated control loops falling to their configured fallback output values. In redundant controller configurations using a paired CC-PCF901 or CC-PCF902 controller module, the I/O Link address assignment must be consistent across both the primary and secondary controller databases.

For sites running Experion PKS R310 or earlier, confirm that the installed Experion Server software version supports the 51405039-275 revision of the CC-PAOX01. In most cases, no software patch is required, but sites on R210 or below should consult the Honeywell Field Device Manager release notes. HART device tag re-association is typically required after module swap; use the Experion HART Device Manager or a standalone FDT/DTM tool to re-link each field instrument — such as control valves, I/P converters, or smart positioners — to the new module’s channel database entries.

HMI faceplate and graphic displays in Experion Station do not require modification when the module address is preserved. However, if the replacement is part of a broader migration from a legacy TDC 3000 or PlantScape system to Experion PKS, the associated CM (Control Module) and SCM (Sequential Control Module) logic blocks will need to be re-imported and validated in Control Builder. In these migration scenarios, it is common to simultaneously replace the CC-PDOB01 digital output modules, CC-PAIN01 analog input modules, and CC-PDIL01 digital input modules within the same chassis to standardize the I/O inventory and reduce future spare-part complexity.

Communication link integrity should be verified using the Experion Network Manager tool after module replacement. The FTE network connecting the C300 controller to the Experion Server must show no packet loss on either the primary or secondary FTE paths. If the site uses a Modbus TCP or OPC DA gateway — such as a Honeywell HC900 bridge or a third-party protocol converter — confirm that the gateway’s tag database still correctly maps to the updated I/O channel addresses.

Downtime Control During System Migration

Minimizing unplanned downtime during a CC-PAOX01 replacement requires a structured hot-swap procedure. Begin by placing all affected control loops in manual mode at the Experion Station operator console. Record the current output demand values for each channel so that operators can manually hold the process at steady state during the module exchange window. In most Experion PKS installations, a single I/O module slot can be swapped in under 10 minutes once the chassis slot is de-energized and the termination assembly is disconnected.

To protect original program logic, export a full Control Builder database backup immediately before the maintenance window. This backup preserves all CM, SCM, and datapoint configurations and serves as the recovery baseline if the replacement module triggers unexpected controller faults. Do not rely solely on the Experion Server’s automatic checkpoint; a manual export to a local engineering workstation provides an additional recovery layer.

Field control continuity is maintained by pre-configuring the replacement CC-PAOX01 offline using a spare chassis and a laptop running Control Builder in simulation mode. This allows the engineering team to verify module address assignment, channel scaling parameters, and HART device associations before the live cutover. Once the replacement module is confirmed functional in simulation, the live swap can be completed within a single planned maintenance window — typically 30 to 60 minutes for a single chassis slot — without requiring a full controller restart or Experion Server reboot.

All units supplied by SMARTNEXMSK are subject to pre-shipment functional testing, including output channel verification across the full 4–20 mA range and HART communication handshake confirmation. Each module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Retrofit Support FAQ

Q1: Is the CC-PAOX01 51405039-275 a direct replacement for earlier 51405039-150 and 51405039-175 revisions?
Yes. The -275 revision is backward compatible with earlier -150 and -175 revisions in all standard C200 and C300 chassis configurations. No changes to the termination assembly, backplane slot, or Experion Builder database are required when replacing an earlier revision with the -275. Verify the module revision compatibility note in your site’s Experion PKS hardware compatibility matrix if your installation is running firmware below R400.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, assign the correct I/O Link address in Experion Control Builder, perform a channel-by-channel loop check against the original loop drawings, re-associate HART device tags using the Experion HART Device Manager, and return all affected control loops from manual to automatic mode. A full functional test of each output channel across the 4–20 mA range is recommended before returning the process unit to normal operation.

Q3: Can the CC-PAOX01 be used in a mixed chassis alongside CC-PAIN01 and CC-PDOB01 modules?
Yes. The CC-PAOX01 is fully compatible with mixed I/O chassis configurations that include CC-PAIN01 analog input modules, CC-PDOB01 digital output modules, CC-PDIL01 digital input modules, and CC-PPAO01 pulse output modules. The CIOM-A/B backplane supports mixed module types within the same chassis, subject to the chassis power budget constraints described above.

Q4: What does the 12-month warranty cover, and what is the shipment lead time?
The 12-month warranty covers all manufacturing defects and functional failures under normal industrial operating conditions from the date of shipment. Pre-shipment testing includes full output channel verification and HART communication confirmation. In-stock units typically ship within 2–3 business days. For urgent requirements, expedited shipment options are available — contact our sales team for availability confirmation.
