Honeywell CC-TFB412 Retrofit-Ready Interface for C300 Control Systems: Seamless Compatibility and Legacy System Upgrade

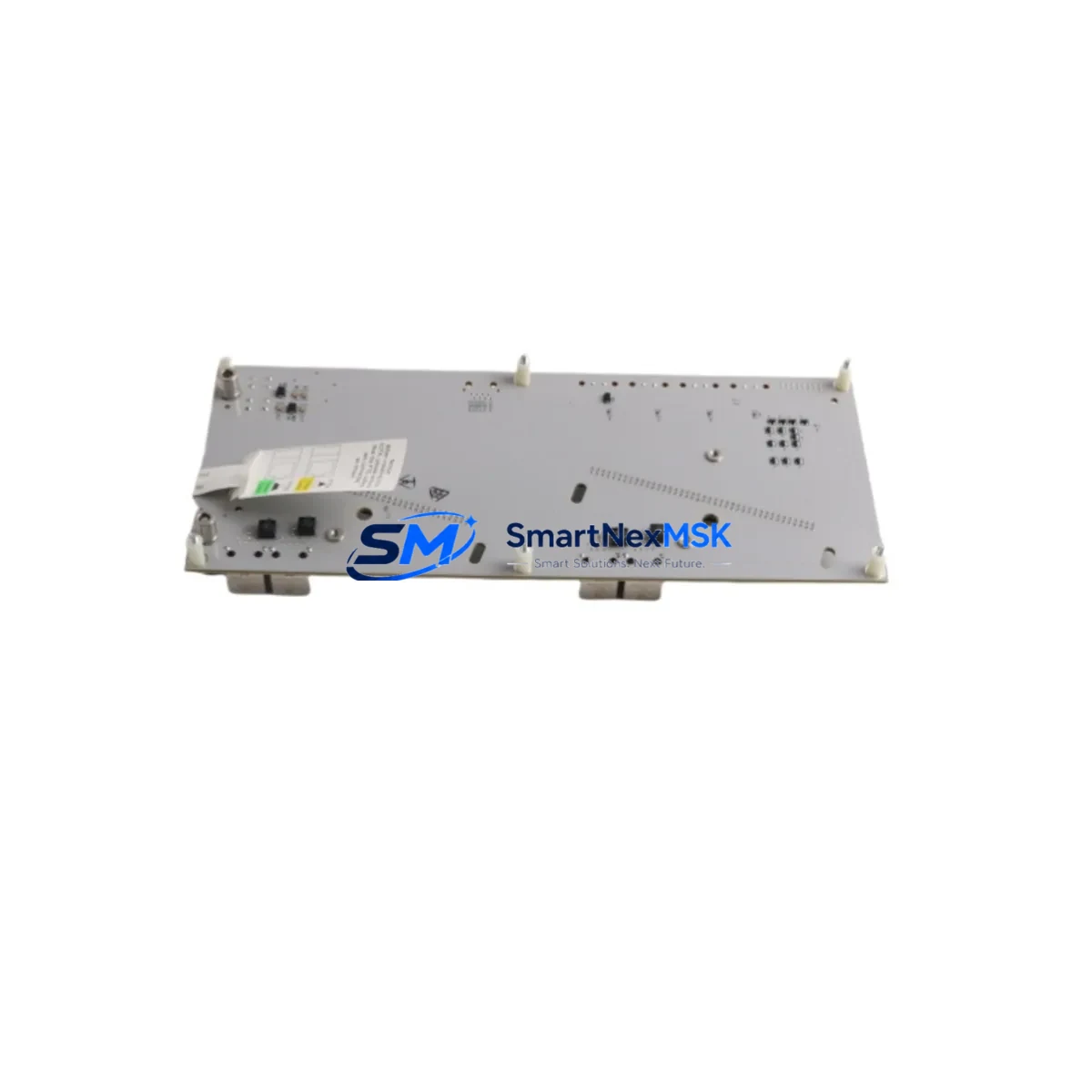

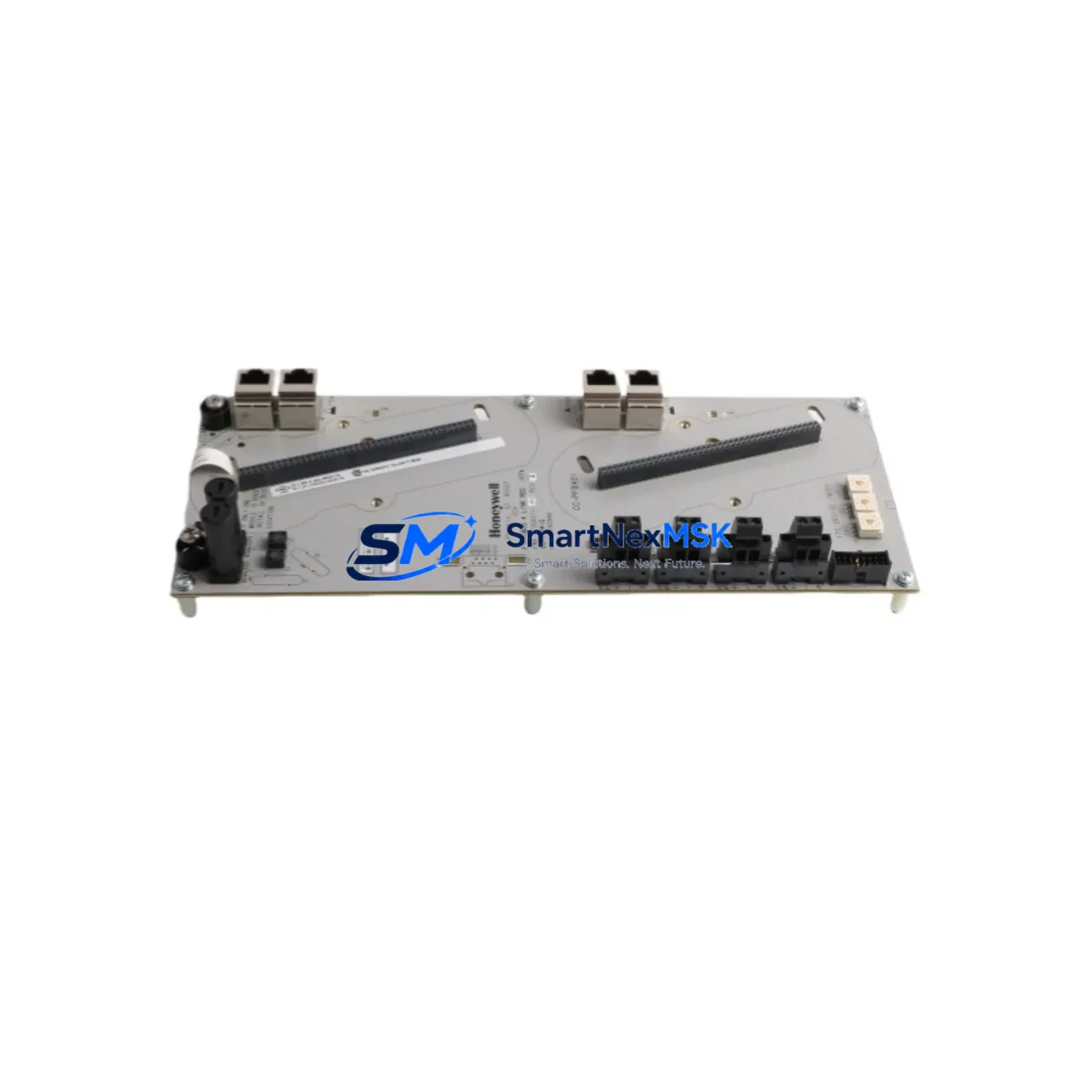

The Honeywell CC-TFB412 (part number 51308311-275) is a field-proven DCS interface module engineered for retrofit deployments within Honeywell Experion PKS environments. As legacy control architectures age and OEM support windows close, the CC-TFB412 provides a validated, drop-in upgrade path that preserves existing wiring infrastructure, backplane slot assignments, and controller logic — minimizing engineering rework and unplanned downtime during system modernization projects.
Designed for integration within the C300 Controller platform, this module serves as a critical bridge between field I/O termination assemblies and the Experion PKS process control network. Its compatibility with standard C300 chassis configurations means that engineers can replace failed or end-of-life units without reconfiguring module addressing, rewriting FBD or SFC control logic, or modifying HMI display bindings. The CC-TFB412 supports the same backplane communication protocol as its predecessor modules, ensuring that the C300 controller recognizes the replacement unit immediately upon power-up.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | CC-TFB412 / 51308311-275 |
| Compatible Platform | Honeywell Experion PKS — C300 Controller Series |
| Backplane Interface | Standard C300 chassis backplane slot (direct replacement) |
| Communication Protocol | FTE (Fault Tolerant Ethernet) compatible; aligns with existing C300 network topology |
| Installation Requirement | No additional mounting hardware; fits standard C300 I/O chassis |
| Replacement Recommendation | Direct swap for failed or obsolete CC-TFB412 units; verify firmware revision compatibility |
| Commissioning Focus | Module address confirmation, I/O channel mapping verification, HMI tag binding check |
| Warranty | 12-Month Warranty — covers manufacturing defects and functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the CC-TFB412 into an operating plant environment requires systematic pre-installation planning. Before removing the legacy module, engineers should document the existing terminal block wiring layout using the CC-TAIX11 or CC-TAOX11 termination assemblies connected to the I/O carrier. Confirm that the C300 Controller — typically housed alongside modules such as the CC-PCF901 process controller and CC-PWR001 power supply — is in a safe, non-critical control state before initiating the swap.
For sites running redundant C300 pairs, the CC-TFB412 replacement can often be performed on the standby controller first, allowing the primary controller to maintain process continuity. Once the standby unit is confirmed healthy, a bumpless switchover transfers control, and the formerly primary controller can then be serviced. This approach is particularly effective in continuous process industries where even brief interruptions to the CC-SCMB01 system cabinet bus or the FTE network segment can trigger downstream alarms.
I/O expansion scenarios — such as adding CC-TDIL01 digital input modules or CC-TDOL01 digital output modules to an existing chassis — should be planned in parallel with the CC-TFB412 replacement to consolidate maintenance windows. Similarly, if the retrofit scope includes communication protocol migration from legacy serial links to FTE, the CC-TCF001 FTE interface card and associated network switches should be staged and tested offline before the cutover window begins.
HMI integration is another critical checkpoint. Experion PKS Station displays referencing I/O tags routed through the CC-TFB412 must be validated post-replacement to confirm that all analog and digital channel assignments remain intact. Any changes to module slot position within the C300 chassis will require corresponding updates to the Experion configuration database and a full download to the C300 controller before returning the loop to automatic mode.
Downtime Control During System Migration
Minimizing mean time to restore (MTTR) during a CC-TFB412 replacement depends on pre-staging the replacement unit, pre-printing the terminal wiring diagram, and coordinating with the DCS engineer to place the affected I/O channels in manual or fallback mode before disconnection. The following sequence is recommended:
1. Place all process loops controlled through the affected CC-TFB412 in manual mode at the Experion PKS operator station. 2. Confirm that the C300 controller has acknowledged the manual transfer and that no interlock logic is dependent on the affected I/O channels. 3. Disconnect field wiring at the termination assembly — not at the module itself — to preserve wiring integrity. 4. Remove the legacy CC-TFB412 from the backplane slot and insert the replacement unit. 5. Power up and confirm module status LEDs indicate healthy backplane communication. 6. Restore field wiring connections and verify channel-by-channel signal integrity using the Experion Station live data display. 7. Return process loops to automatic mode in a controlled sequence, monitoring for alarm conditions during the first 15 minutes of operation.
With proper pre-staging, total downtime for a single CC-TFB412 replacement in a non-redundant configuration is typically under 45 minutes. Redundant C300 configurations can achieve near-zero process impact using the bumpless switchover method described above.
Retrofit Support FAQ
Q: Is the CC-TFB412 (51308311-275) a direct replacement for all CC-TFB412 variants?
A: The 51308311-275 revision is compatible with standard C300 chassis configurations. Always verify the firmware revision of the C300 controller against the module’s supported firmware matrix before installation. Minor revision differences are typically resolved via an Experion PKS software update.
Q: What pre-shipment testing is performed on this module?
A: Each CC-TFB412 unit undergoes functional power-on testing and backplane communication verification prior to dispatch. Units are shipped with a test report confirming operational status. The 12-month warranty covers any functional failure arising under normal operating conditions from the date of delivery.
Q: Can this module be used in a new C300 chassis expansion, or only as a replacement?
A: The CC-TFB412 is suitable for both direct replacement of failed units and new chassis expansion projects. When used in an expansion chassis, ensure that the new chassis is properly configured in the Experion PKS Control Builder and that FTE network addressing is assigned before the module is inserted.
Q: What wiring changes are required when replacing a failed CC-TFB412?
A: In most cases, no wiring changes are required. Field wiring connects to the termination assembly (e.g., CC-TAIX11), which remains in place during the module swap. Only the module itself is removed and replaced. Confirm terminal torque specifications after reconnection and perform a loop check on all affected channels before returning to automatic control.
