Honeywell FC-IOCHAS-0001R Spare for Experion PKS Automation

Honeywell FC-IOCHAS-0001R Spare for Experion PKS Automation: Spare Replacement & Industrial Downtime Risk Control

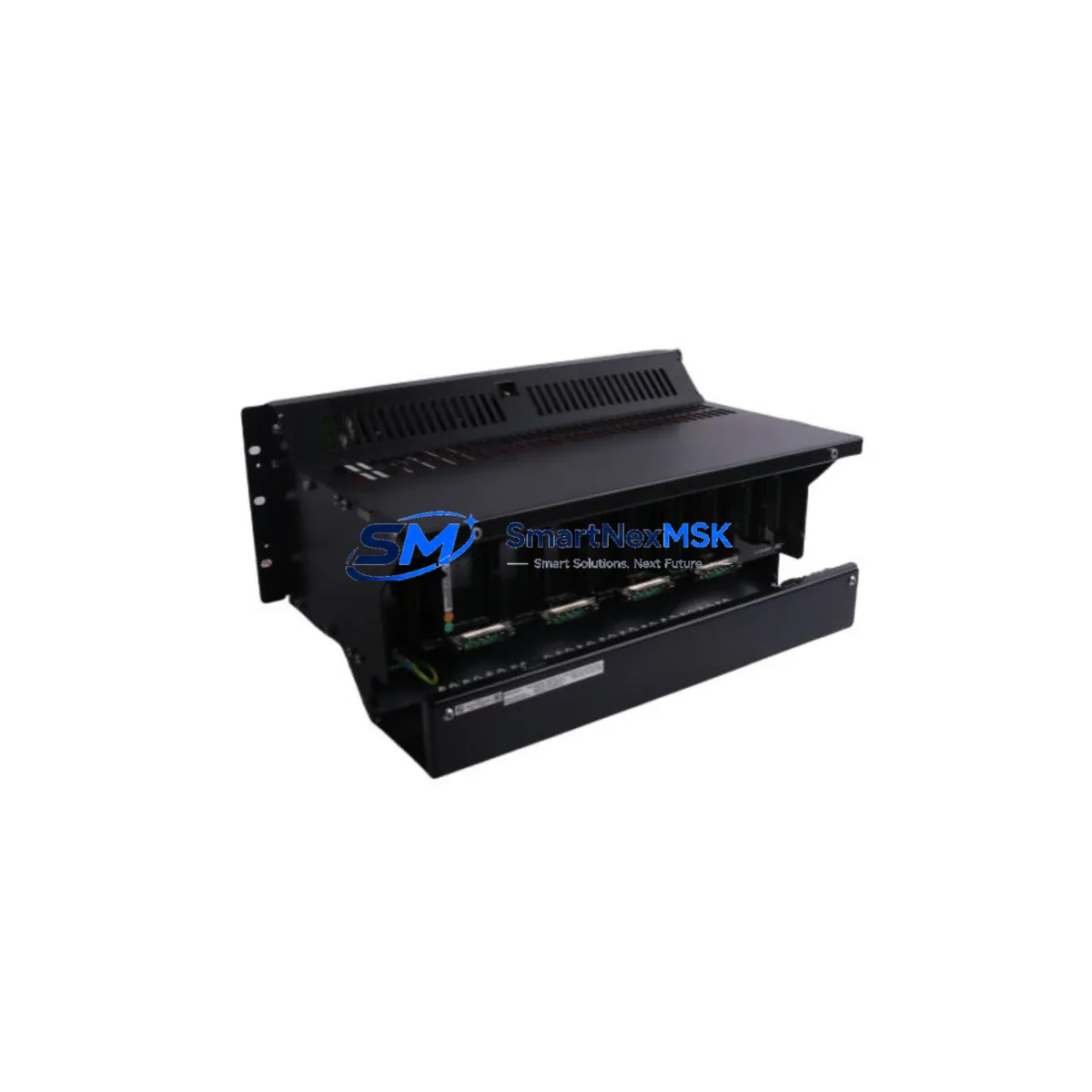

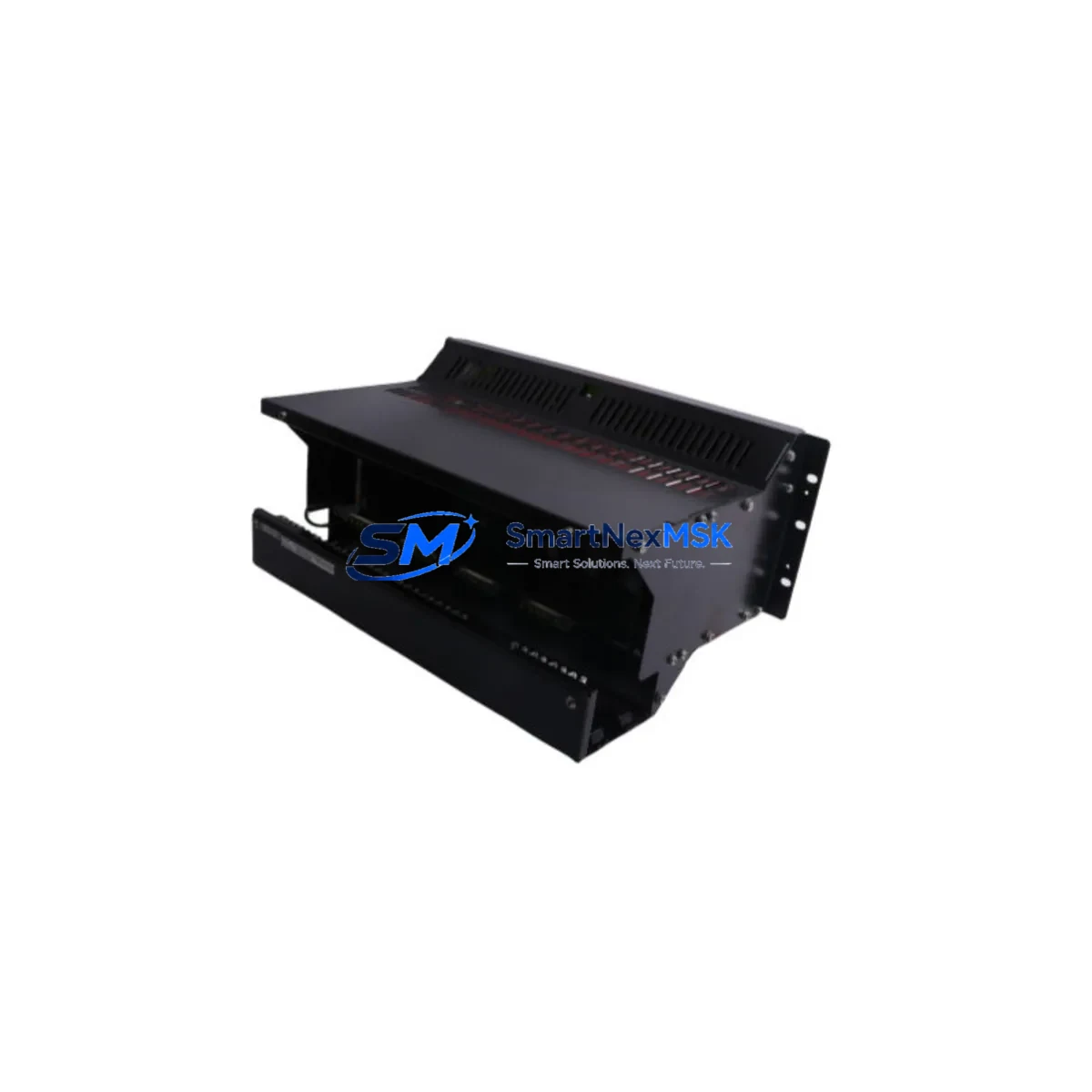

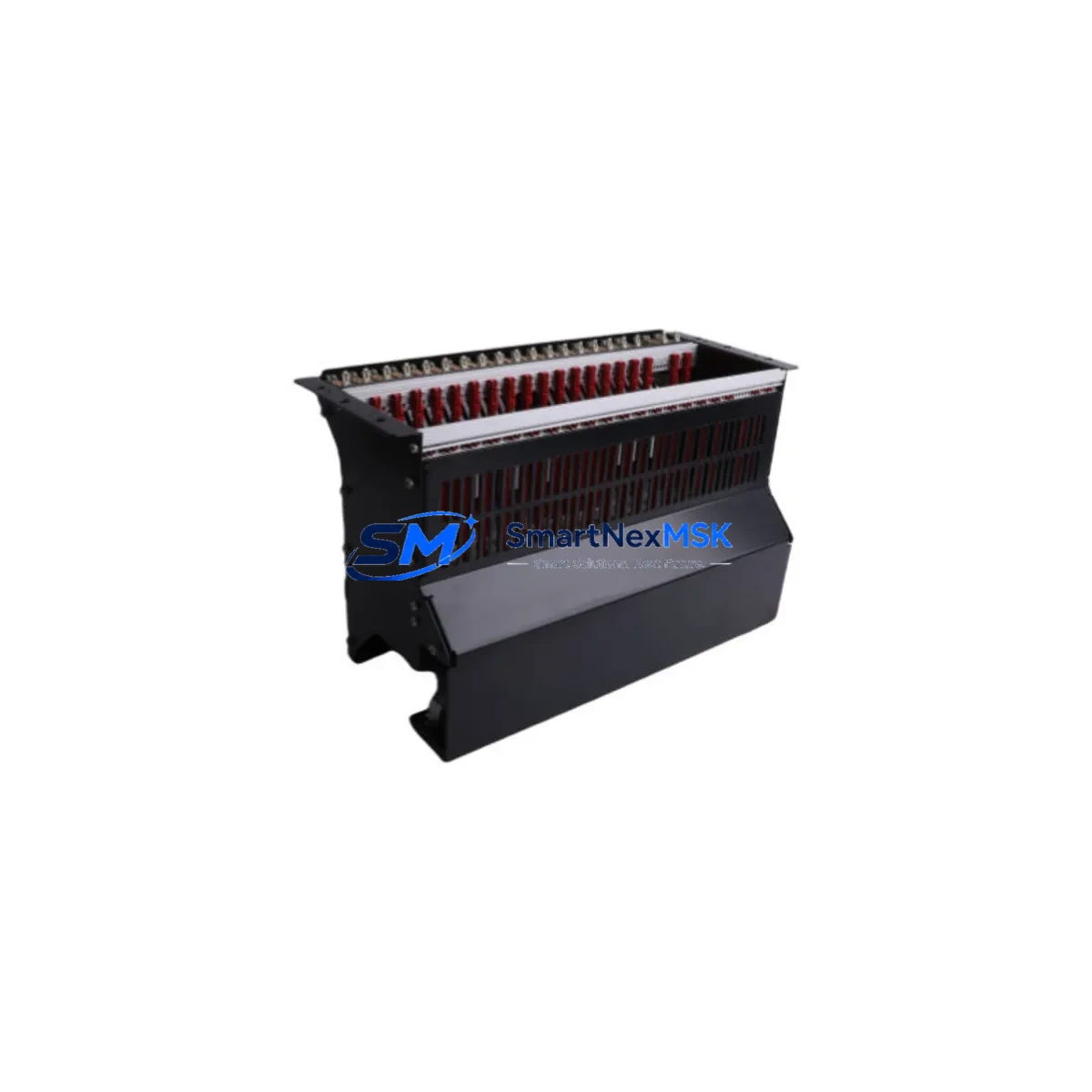

The Honeywell FC-IOCHAS-0001R is a redundant I/O chassis designed for use within the Experion PKS (Process Knowledge System) distributed control architecture. As a critical structural and electrical backbone for field I/O modules, this chassis directly supports the mounting, power distribution, and communication backplane for a wide range of C300 controller-connected I/O cards. When this component fails or reaches end-of-service life, the consequences extend beyond a single loop — an entire I/O node can go offline, triggering unplanned shutdowns across multiple process units.

For maintenance engineers managing aging Experion PKS installations, keeping a verified FC-IOCHAS-0001R in the spare parts inventory is not optional — it is a fundamental element of any credible downtime recovery plan. The chassis supports standard and redundant I/O module configurations, making it compatible with a broad range of Honeywell field termination assemblies and I/O link infrastructure. Its mechanical and electrical specifications are consistent with Honeywell’s FOUNDATION Fieldbus and HART-enabled I/O ecosystems, allowing it to serve as a direct replacement in both greenfield and brownfield DCS environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer evaluates the FC-IOCHAS-0001R for replacement, the chassis itself is rarely the only component requiring attention. A thorough inspection of the surrounding I/O node infrastructure is essential to prevent repeat failures and ensure the replacement chassis operates reliably from day one.

Begin with the I/O Link Interface Module (IOLIM), which manages communication between the C300 controller and the I/O chassis. A degraded IOLIM can cause intermittent I/O faults that are often misdiagnosed as chassis failures. Simultaneously, inspect the PS-IOCHAS chassis power supply — power rail degradation is a leading cause of premature chassis failure, and replacing the chassis without verifying the power supply introduces unnecessary risk.

Within the chassis itself, review each installed I/O module. High-density analog input modules such as the HLAI (High-Level Analog Input) and LLAI (Low-Level Analog Input) cards should be reseated and inspected for connector wear. Digital output modules (DO Series) and digital input modules (DI Series) should be tested for channel integrity before the chassis is returned to service. If the site uses HART-enabled field devices, verify that the LLMUX (Low-Level Multiplexer) modules are functioning correctly, as these are sensitive to backplane signal quality.

Field termination assemblies (FTAs) connected to the chassis via Honeywell MC-TAIH series cables should be inspected for insulation integrity and terminal block tightness. Loose terminations at the FTA level are a common source of spurious alarms following chassis replacement. If the node uses redundant I/O link cabling, inspect both the primary and secondary IOL cables for continuity and shielding integrity.

For sites running extended Experion PKS installations, it is also advisable to check the C300 Controller module firmware version to confirm compatibility with the replacement chassis hardware revision. Mismatched firmware can cause node initialization failures that delay restart. Finally, review the cabinet’s 24 VDC distribution fusing and terminal blocks — a blown fuse or loose terminal on the power feed is often discovered only after the chassis swap is complete, adding unnecessary downtime.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the failed chassis, document all I/O module slot assignments, FTA cable labels, and IOL link connections. Photograph the cabinet layout. Confirm the replacement FC-IOCHAS-0001R hardware revision matches or is backward-compatible with the installed Experion PKS release.

Step 2 — Safe Isolation: Place the affected I/O node in manual or bypass mode at the C300 controller level. Notify the control room. De-energize the chassis power supply using the dedicated breaker — do not rely solely on software shutdown. Verify zero voltage at the chassis power rail before proceeding.

Step 3 — Module Extraction and Transfer: Remove I/O modules in sequence, keeping them in order for reinstallation. Inspect each module’s backplane connector for bent pins or corrosion. Transfer modules to the replacement chassis in the same slot positions to preserve I/O addressing without requiring controller configuration changes.

Step 4 — Chassis Installation and Cable Reconnection: Mount the FC-IOCHAS-0001R in the cabinet, reconnect the IOL cables (primary and redundant), reconnect FTA cables in labeled order, and restore the chassis power supply. Verify grounding continuity between the chassis and cabinet earth bar.

Step 5 — Node Commissioning and Return to Service: Energize the chassis and observe the I/O link status LEDs. Confirm node recognition at the Experion PKS Station. Perform a channel-by-channel I/O verification against the process P&ID before releasing the node to automatic control. Log the replacement in the site CMMS with the new chassis serial number and installation date.

This structured workflow minimizes total downtime to under four hours for a standard node replacement, even in complex multi-chassis cabinets. Sites that maintain a pre-staged FC-IOCHAS-0001R spare — with modules pre-installed and IOL cables pre-labeled — routinely achieve sub-two-hour recovery times.

Spare Parts Support FAQ

Q1: Is the FC-IOCHAS-0001R compatible with all Experion PKS releases, or only specific versions?
The FC-IOCHAS-0001R is designed for the Experion PKS C300 I/O subsystem and is compatible with Experion PKS R310 and later releases. For sites running earlier releases (R210 or R300), compatibility should be verified against the Honeywell hardware compatibility matrix or confirmed with your system integrator before installation. We recommend providing your current Experion PKS release number when placing an order so our technical team can confirm hardware revision compatibility.

Q2: What pre-shipment testing is performed on the FC-IOCHAS-0001R before dispatch?
All units undergo functional verification prior to shipment, including backplane continuity testing, power rail voltage verification, and visual inspection of all module slot connectors and grounding points. Units supplied as tested refurbished are additionally subjected to a 48-hour burn-in cycle. A test report is available upon request. Each unit is shipped with anti-static packaging and is covered by a 12-month warranty from the date of delivery.

Q3: How should the FC-IOCHAS-0001R be stored as a long-term spare?
For long-term spare storage, the chassis should be kept in its original anti-static packaging in a climate-controlled environment (10°C to 40°C, relative humidity below 70%, non-condensing). Avoid storage near strong electromagnetic sources or in environments with airborne contaminants. Inspect the chassis annually for connector oxidation and replace desiccant packs in the storage container every 18 months. Proper storage conditions preserve the chassis in service-ready condition for up to 10 years.

Q4: Can the FC-IOCHAS-0001R replace older Honeywell I/O chassis models used in legacy Experion PKS installations?
In most cases, yes. The FC-IOCHAS-0001R is the current-generation redundant I/O chassis for the Experion PKS C300 platform and is designed to replace earlier chassis variants within the same mechanical and electrical footprint. However, FTA cable compatibility and IOL link wiring should be verified on a site-specific basis, as some legacy installations may use earlier-generation termination assemblies that require adapter cables. Our technical support team can assist with compatibility verification based on your site’s existing hardware inventory.
