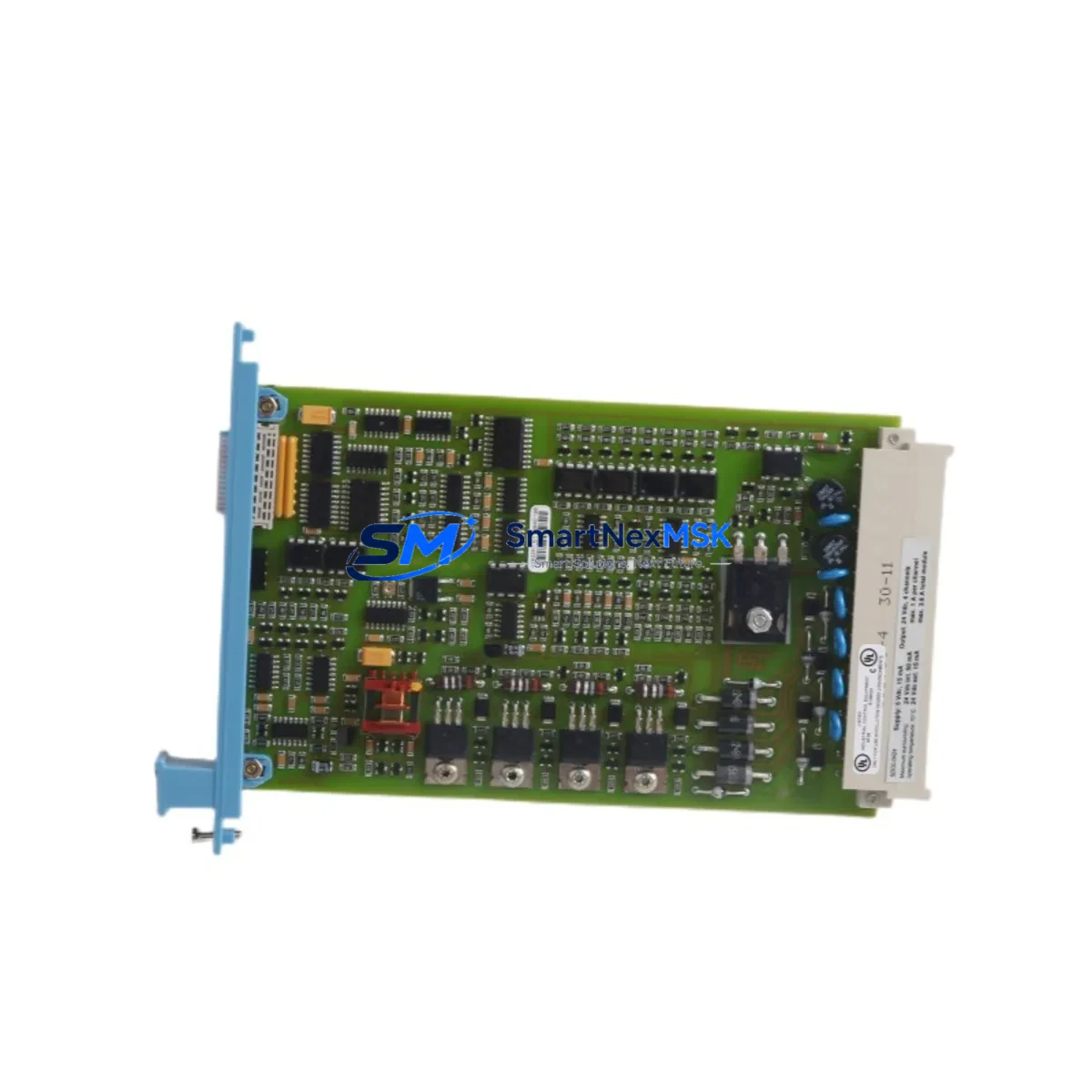

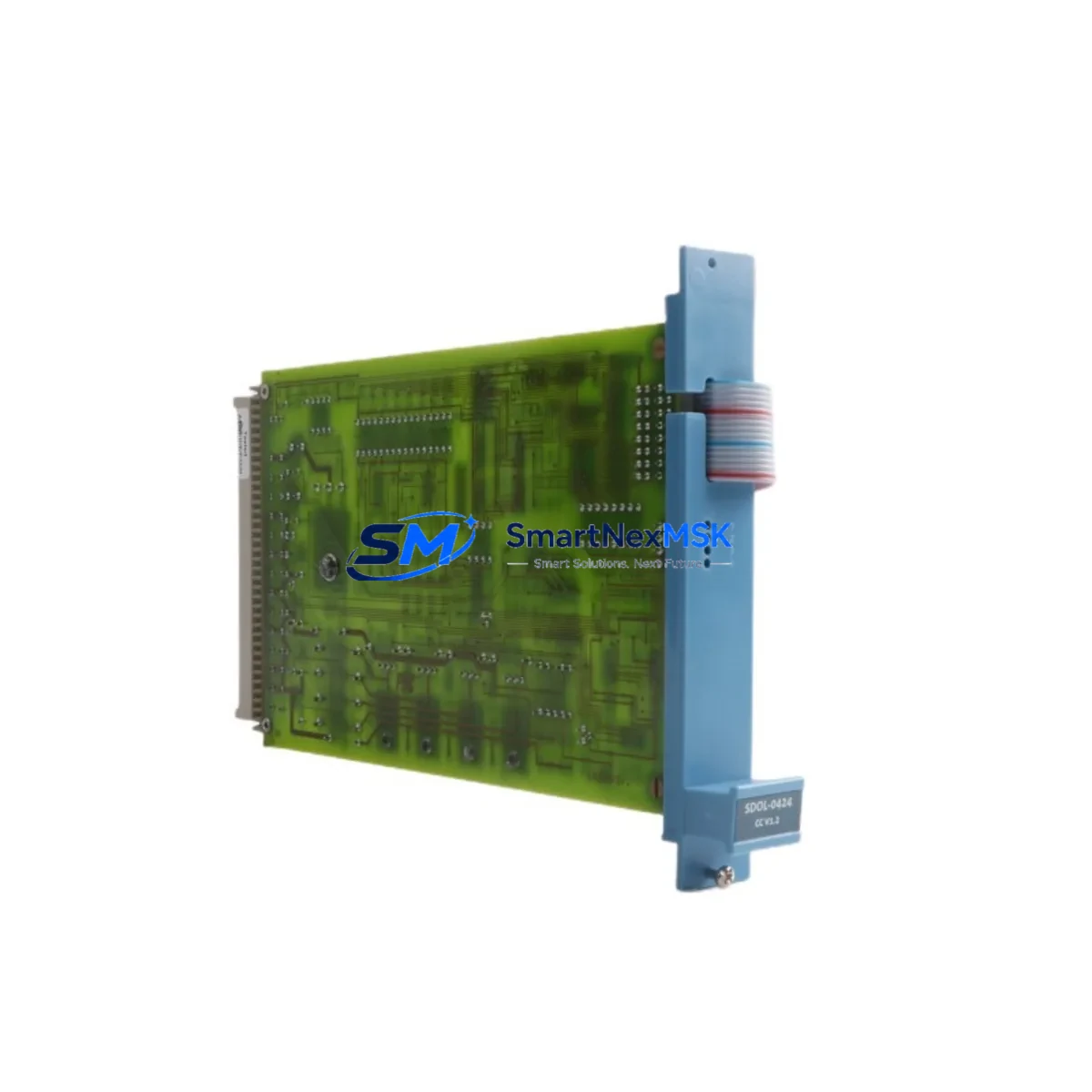

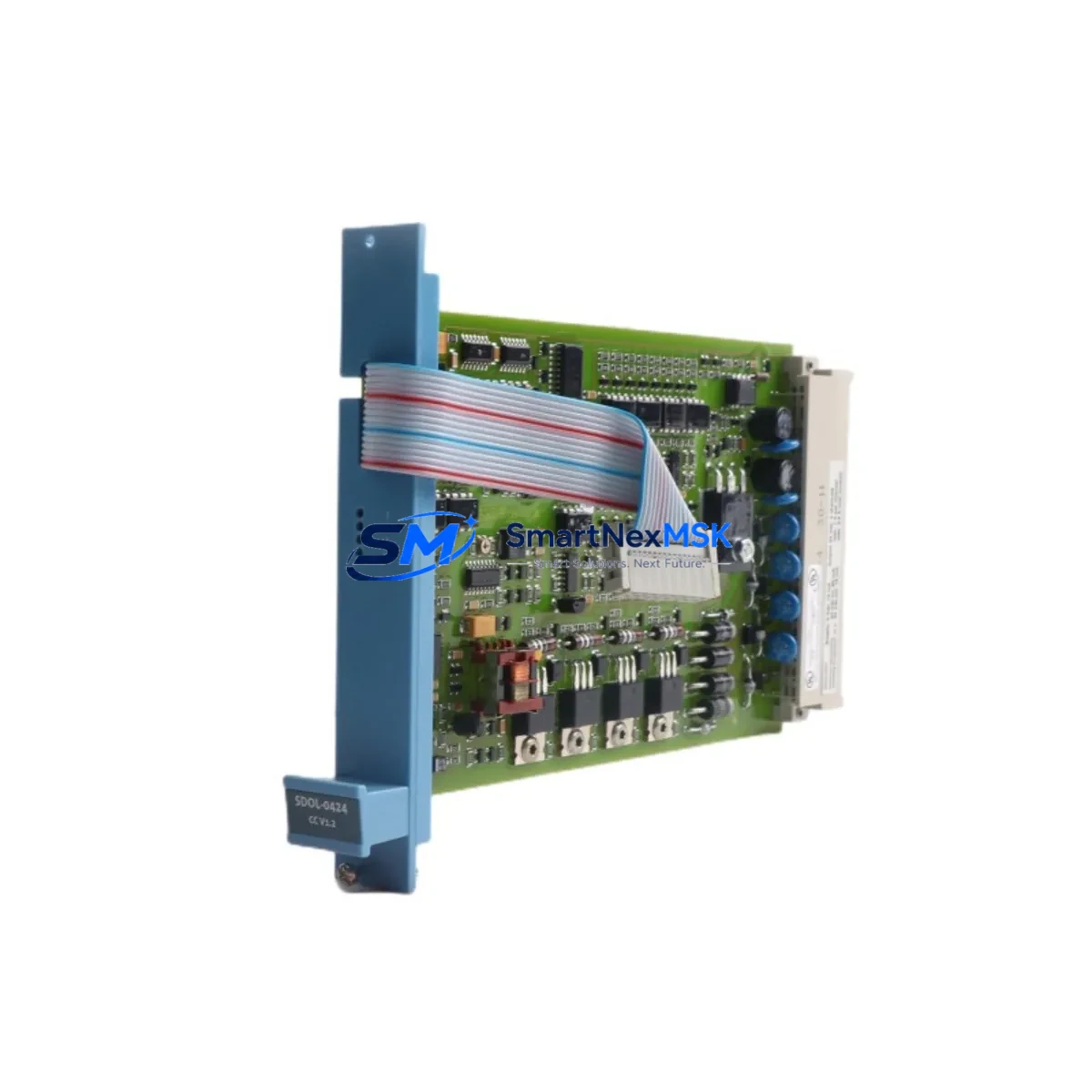

Honeywell FC-SDOL-0424 Retrofit-Ready Safety DO Module for Safety Manager Control Systems
The Honeywell FC-SDOL-0424 is a 24-channel, 24VDC Safety Digital Output Module designed for use within the Honeywell Safety Manager (SM) platform — one of the most widely deployed safety instrumented systems (SIS) in the process automation industry. As legacy Safety Manager installations approach end-of-life or require capacity expansion, the FC-SDOL-0424 serves as a direct retrofit solution, enabling engineers to restore SIL2/SIL3-rated output capability without redesigning the safety logic or replacing the entire control architecture.
Whether you are replacing a failed module in an operating plant, upgrading a brownfield system, or expanding I/O capacity in an existing safety cabinet, the FC-SDOL-0424 integrates seamlessly into the SM chassis. It occupies a standard slot in the Safety Manager I/O carrier and communicates over the internal safety bus, maintaining full compatibility with existing FC-SDIL-0824 safety digital input modules, FC-SAOL-0824 analog output modules, and FC-SAIH-0824 analog input modules already installed in the same rack. No firmware changes or logic rewrites are required when performing a like-for-like replacement.
For sites running the Safety Manager SC or Safety Manager MC variant, the FC-SDOL-0424 is equally applicable. The module’s 24-channel configuration supports a wide range of field device connections including solenoid valves, motor starters, shutdown actuators, and ESD trip relays — all critical elements in process safety loops across oil and gas, petrochemical, power generation, and chemical manufacturing environments.
Upgrade Compatibility Table
| Parameter | FC-SDOL-0424 Specification | Retrofit Notes |
|---|---|---|
| Output Channels | 24 channels, 24VDC | Direct replacement for same-channel-count legacy DO modules |
| Safety Integrity Level | SIL2 / SIL3 certified | Maintains existing SIL rating; no re-validation required for like-for-like swap |
| Installation Interface | Safety Manager I/O carrier / backplane slot | Plug-in compatible; verify slot address assignment in SM configuration tool |
| Communication | Internal SM safety bus | No additional communication module required; compatible with FC-SDIL, FC-SAOL, FC-SAIH modules |
| Power Supply Compatibility | 24VDC field power | Confirm existing FC-PSU power supply capacity before installation; add redundant PSU if margin is insufficient |
| Terminal Wiring | Standard SM I/O terminal block | Existing field wiring can be reused; verify terminal torque and insulation condition |
| Module Address | Configurable via SM Engineering Tool | Set module address to match original configuration; mismatch will cause fault on startup |
| Program Compatibility | Full compatibility with existing SM safety logic | No logic recompilation required for direct replacement; test all output channels post-installation |
| HMI Integration | Compatible with Experion PKS and third-party SCADA via OPC | HMI tag mapping remains unchanged; verify alarm and status displays after module swap |
| Warranty | 12-Month Warranty | Covered from date of shipment; includes functional testing certificate |
Retrofit Planning for Existing Automation Systems
A successful FC-SDOL-0424 retrofit begins well before the module arrives on site. The first step is a thorough review of the existing Safety Manager rack layout. In most installations, the SM chassis accommodates a mix of I/O modules — including FC-SDIL-0824 digital input modules, FC-SAOL-0824 analog output modules, and FC-SAIH-0824 analog input modules — alongside the FC-SDOL-0424 digital output modules. Identifying the exact slot position of the failed or obsolete module is critical, as the SM Engineering Tool assigns module addresses based on physical slot location.
Power budget verification is a mandatory pre-installation step. The FC-PSU power supply module feeding the I/O carrier must have sufficient headroom to support the FC-SDOL-0424’s field power draw across all 24 output channels at full load. If the existing PSU is operating near capacity — a common situation in aging systems where additional I/O has been added over the years — a redundant or higher-capacity FC-PSU should be installed before the DO module replacement proceeds.
Terminal block wiring should be documented and photographed before disconnection. The FC-SDOL-0424 uses the standard SM I/O terminal block format, meaning existing field cables can typically be reconnected without modification. However, insulation condition, terminal torque values, and cable labeling should all be verified during the retrofit window. For sites migrating from an older SM variant to a newer SM SC or SM MC platform, the FC-SDIL-0824 input modules and FC-SAOL-0824 analog output modules in the same rack may also require review to confirm cross-compatibility with the updated controller firmware.
Communication link integrity should be confirmed after module installation. The Safety Manager’s internal safety bus connects all I/O modules to the SM controller — typically an FC-SMMC or FC-SMSC controller module — and any bus fault will prevent the new DO module from being recognized. Use the SM Engineering Tool to perform a full I/O scan and confirm that the FC-SDOL-0424 appears at the correct address with no diagnostic faults. If the system also interfaces with an Experion PKS DCS or a third-party SCADA system via OPC, verify that the output channel tags are correctly mapped and that alarm states are being transmitted as expected.
For sites that also need to upgrade the programming interface, the SM Engineering Tool cable and associated workstation software should be confirmed compatible with the installed SM firmware version. Older installations may require a firmware update to the FC-SMMC controller before the new module can be fully commissioned.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern for any safety system retrofit. When replacing the FC-SDOL-0424 in a live plant environment, the recommended approach is to schedule the swap during a planned maintenance window and to prepare a detailed pre-work checklist covering power isolation, bypass authorization, and field device status confirmation.
Before removing the existing module, the safety logic associated with the affected output channels should be placed in bypass mode through the SM Engineering Tool, following the site’s Management of Change (MOC) procedure. This prevents spurious trips to connected field devices — such as ESD valves or motor starters — during the physical module swap. The bypass state should be documented and time-limited, with a clear reinstatement plan.
The FC-SDOL-0424 is a hot-swap-capable module within the Safety Manager architecture, meaning the physical replacement can be performed without powering down the entire SM chassis. However, the specific hot-swap procedure must be followed precisely: the module should be inserted into the correct slot, the SM Engineering Tool should confirm recognition at the correct address, and all 24 output channels should be individually tested before the bypass is lifted. Channel-by-channel output testing — using a loop calibrator or field device response confirmation — ensures that wiring continuity and terminal connections are intact before the system is returned to normal operation.
Original program logic stored in the SM controller is not affected by the module replacement. The FC-SDOL-0424 does not store any application logic locally; all safety functions reside in the FC-SMMC or FC-SMSC controller. This means that even in the event of a complete module failure, the safety program is preserved and will resume execution immediately upon installation of the replacement module. Post-installation, a partial proof test of the affected output channels is recommended to satisfy SIL maintenance requirements and to update the site’s safety case documentation.
Retrofit Support FAQ
Q1: Is the FC-SDOL-0424 a direct drop-in replacement for the same module in an existing Safety Manager rack?
Yes. The FC-SDOL-0424 is designed for direct slot-for-slot replacement within the Safety Manager I/O carrier. No changes to the safety logic, module address configuration, or field wiring are required for a like-for-like swap. After installation, use the SM Engineering Tool to confirm the module is recognized at the correct address and perform a channel-by-channel output test before returning the system to service.
Q2: What wiring and terminal checks are required before installation?
Before installing the FC-SDOL-0424, verify that all field cables are correctly labeled and that terminal torque values meet the SM installation specification. Inspect insulation condition on all 24 output channel wires. Confirm that the 24VDC field power supply — typically sourced from the FC-PSU module — is within the specified voltage range and has sufficient current capacity for all connected output devices at full load.
Q3: Will the existing HMI displays and SCADA tags remain valid after the module replacement?
Yes, in a like-for-like replacement scenario. The FC-SDOL-0424 occupies the same slot address as the original module, so all HMI tag mappings, alarm configurations, and OPC data points associated with the output channels remain valid. If the replacement is part of a broader platform migration — for example, moving from an older SM variant to SM SC or SM MC — HMI tag remapping may be required, and this should be planned as part of the project scope.
Q4: What does the 12-month warranty cover, and is a test certificate included?
All FC-SDOL-0424 modules supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. Each unit undergoes functional testing prior to dispatch, and a test certificate is included with the shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Expedited replacement support is available for critical plant applications where extended downtime is not acceptable.
