Honeywell FS-FANWR-24R Spare for TDC 3000 Automation

Honeywell FS-FANWR-24R Spare for TDC 3000 Automation: Spare Replacement & Industrial Downtime Risk Control

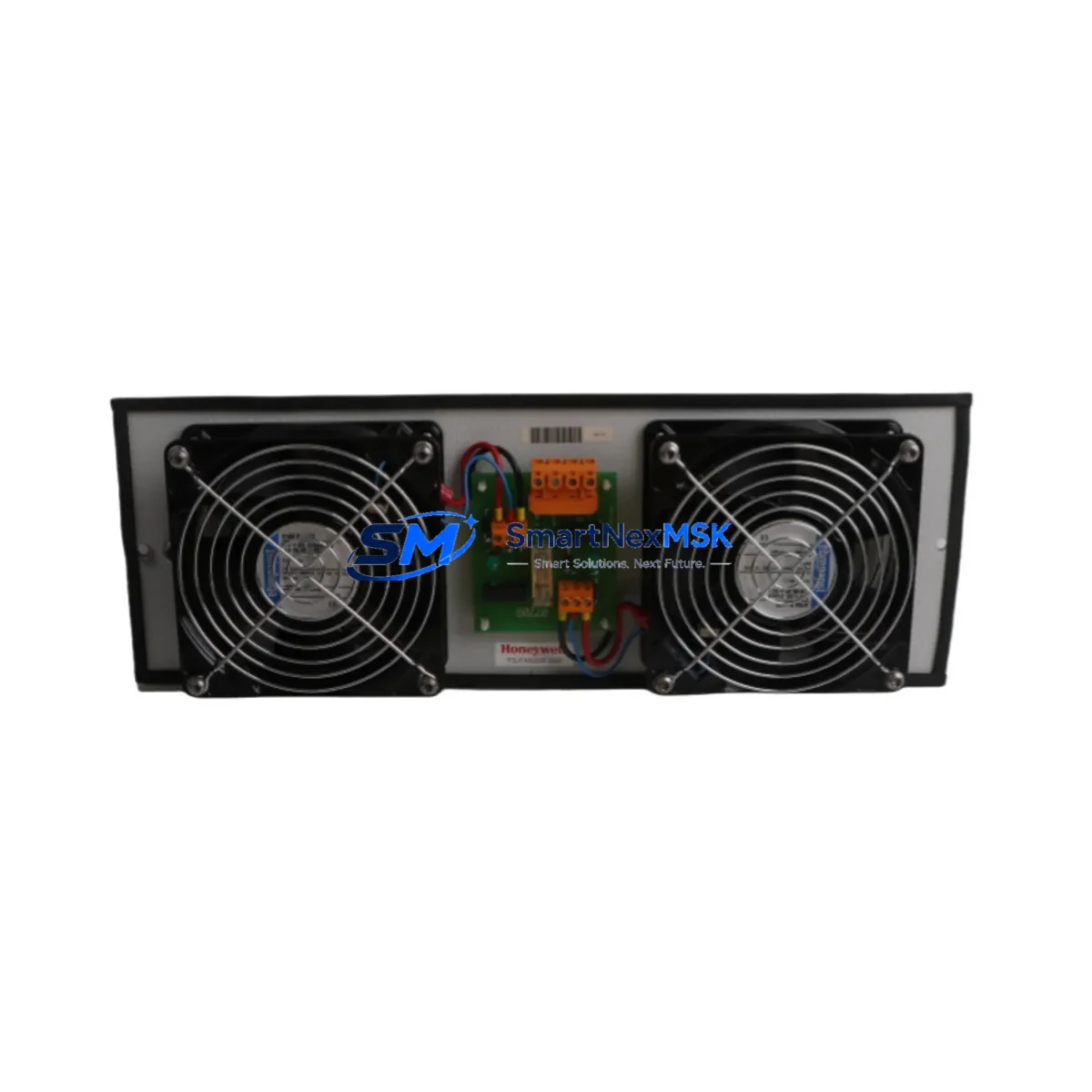

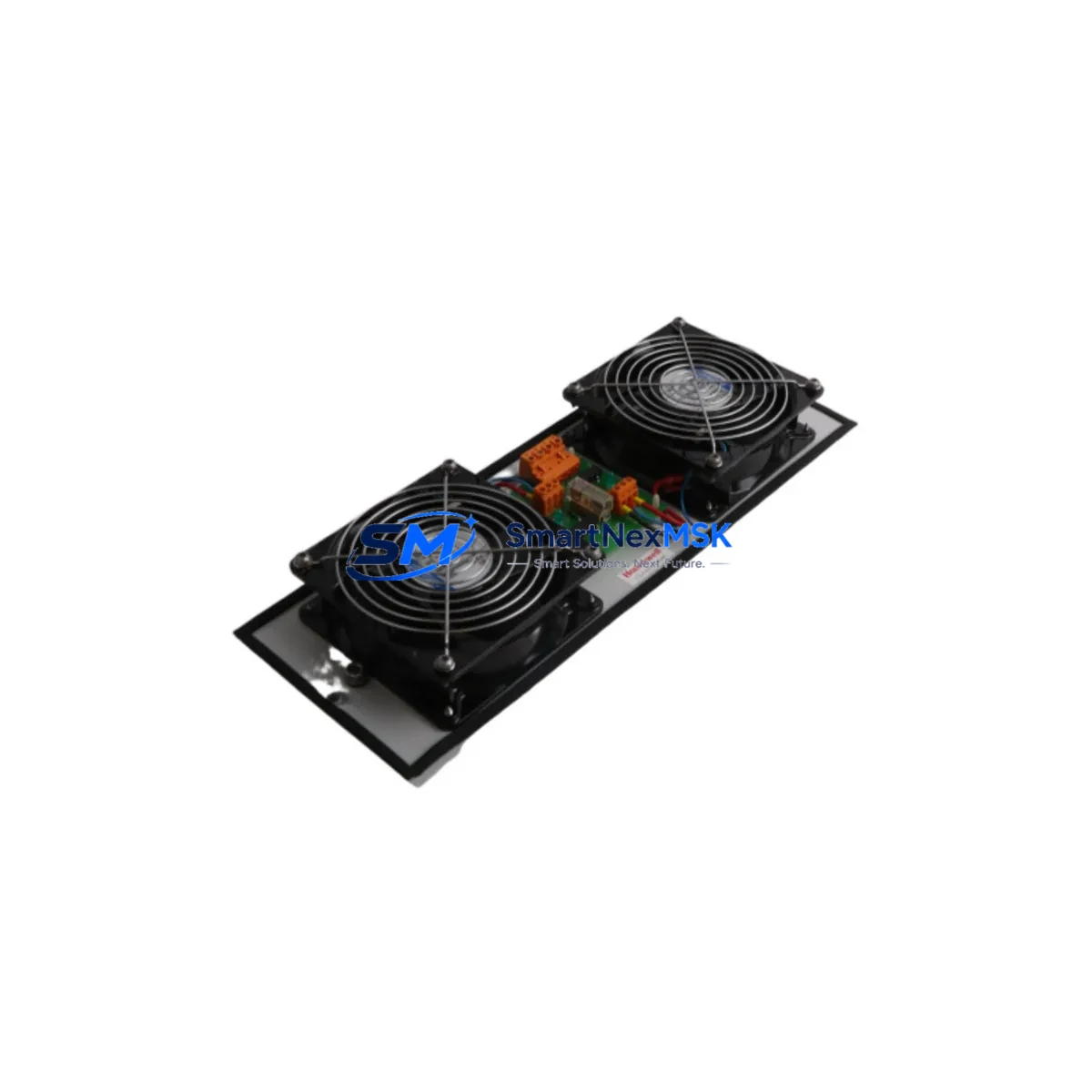

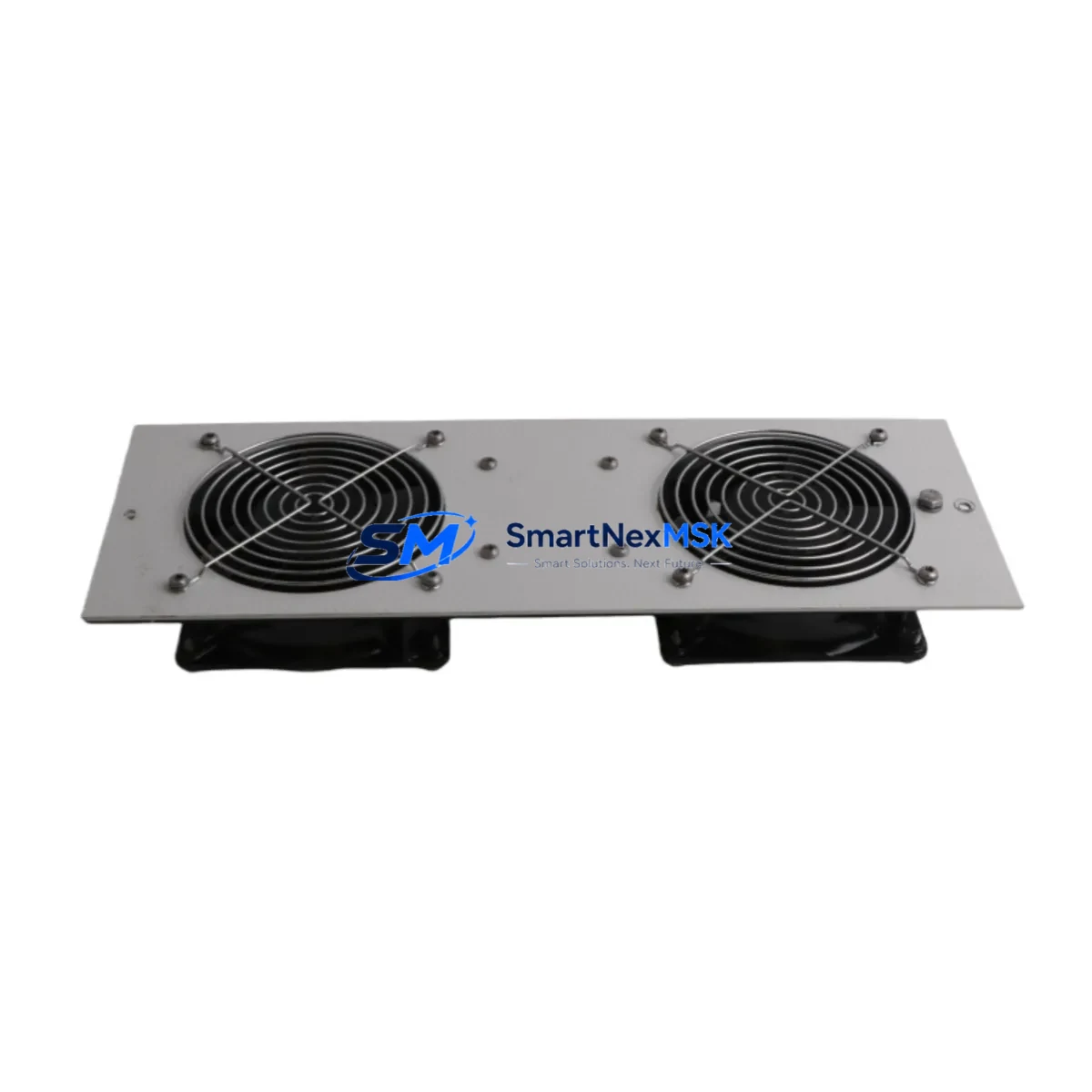

The Honeywell FS-FANWR-24R is a 24VDC redundant fan assembly engineered for continuous thermal management within Honeywell TDC 3000 Distributed Control System (DCS) cabinets. As a critical rotating component responsible for maintaining safe operating temperatures across processor modules, I/O cards, and power supply units, the FS-FANWR-24R is a high-priority spare for any facility running legacy TDC 3000 infrastructure. Unplanned fan failure in a DCS cabinet can trigger thermal shutdowns, corrupt active control loops, and cause unplanned process outages lasting hours or days. Maintaining a verified, tested replacement unit on-site is the most effective strategy for minimizing mean time to repair (MTTR) and protecting continuous operations.

At SMARTNEXMSK, every FS-FANWR-24R unit is sourced as an original Honeywell spare, individually inspected, and tested prior to shipment. We support maintenance engineers and procurement teams across petrochemical, power generation, pulp & paper, and pharmaceutical industries who depend on long-term availability of obsolete and hard-to-source DCS components. Our 12-month warranty covers all shipped units, and we maintain standing inventory to support both emergency replacement and planned maintenance schedules.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the FS-FANWR-24R, experienced maintenance engineers treat the fan swap as an opportunity for a broader cabinet health inspection. The TDC 3000 platform is a mature architecture, and many of its associated components share similar service life curves. During the same maintenance window, it is advisable to inspect the FS-PSD-24R power supply module, which provides the 24VDC rail feeding the fan assembly — a degraded power supply can cause intermittent fan speed fluctuations that mimic bearing wear. Verify the output voltage stability under load before reinstalling the new fan unit.

The HPM High-Performance Process Manager module housed in the same cabinet should be checked for thermal stress indicators: discoloration on the PCB, loose backplane connectors, or elevated junction temperatures reported via the system historian. Alongside the HPM, inspect the I/O Link interface cards and their associated field termination assemblies (FTAs) for corrosion on screw terminals, which is a common failure mode in humid or coastal plant environments.

Communication integrity should also be validated during this window. The LCN (Local Control Network) coaxial cable segments and their associated LCN tap units are susceptible to connector oxidation and should be cleaned and torque-checked. If the cabinet includes a UCN (Universal Control Network) interface, verify that the network redundancy is active and that both paths are reporting healthy status in the Honeywell console.

For cabinets with analog I/O, check the signal isolator modules on 4–20 mA loops connected to critical process variables. A failing isolator can introduce ground loops that corrupt sensor readings and trigger spurious alarms. Similarly, inspect relay output modules for contact wear — particularly on high-cycle interlock outputs — and verify that all fuse holders and fuse ratings on 24VDC distribution rails match the original design specification. Procurement teams should consider stocking the FS-FANWR-24R alongside the FS-PSD-24R and relevant I/O cards as a coordinated cabinet spare kit, reducing the risk of secondary failures following the initial fan replacement.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed unit’s part number against the cabinet documentation. The FS-FANWR-24R is a direct replacement for earlier Honeywell fan assemblies used in TDC 3000 enclosures. Cross-reference the cabinet wiring diagram to confirm the 24VDC supply connector pinout before disconnecting the old unit.

Step 2 — Safe Isolation: Where cabinet design permits hot-swap of the fan tray without interrupting control power, proceed accordingly. If the cabinet requires a controlled shutdown, coordinate with the control room operator to place affected loops in manual mode and confirm that all critical process variables are stable before proceeding.

Step 3 — Physical Replacement: Remove the failed FS-FANWR-24R by releasing the retention clips and disconnecting the power harness. Install the new unit, ensuring the connector is fully seated and the fan tray is locked. Restore power and confirm fan rotation and airflow direction are correct.

Step 4 — Post-Installation Verification: Monitor cabinet internal temperature via the DCS historian for a minimum of 30 minutes post-replacement. Confirm that all module status indicators return to normal and that no thermal alarms are active. Document the replacement in the plant maintenance management system (CMMS) with the new unit’s serial number and installation date to initiate the 12-month warranty period.

Step 5 — Spare Stock Replenishment: Immediately initiate a purchase order for a replacement FS-FANWR-24R to restore on-site spare inventory. For facilities with multiple TDC 3000 cabinets, a minimum stock level of two units per site is recommended to cover simultaneous or rapid-succession failures in aging systems.

Spare Parts Support FAQ

Q1: Is the FS-FANWR-24R a direct drop-in replacement for all TDC 3000 cabinet variants?
The FS-FANWR-24R is designed for Honeywell TDC 3000 DCS cabinets operating on a 24VDC fan power rail. It is compatible with HPM, AM, HG, and related module enclosures that use the standard Honeywell redundant fan tray form factor. If your cabinet uses a different voltage rail or a non-standard fan tray, please contact our technical team with your cabinet model number for compatibility confirmation before ordering.

Q2: How is each unit tested before shipment?
Every FS-FANWR-24R shipped by SMARTNEXMSK undergoes a functional run-test at rated voltage to verify motor operation, bearing condition, and airflow output. Units are visually inspected for connector integrity, blade condition, and housing damage. A test report is available upon request. All units are shipped with anti-static and moisture-barrier packaging to prevent transit damage.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers defects in materials and workmanship under normal operating conditions. If a unit fails within the warranty period, contact sales@smartnexmsk.com with the order number, installation date, and a description of the failure mode. We will arrange priority replacement shipment to minimize your downtime. Warranty does not cover damage resulting from incorrect installation, overvoltage, or physical impact.

Q4: Can SMARTNEXMSK support long-term or blanket supply agreements for the FS-FANWR-24R?
Yes. For facilities managing multiple TDC 3000 systems or operating under a planned obsolescence program, we offer blanket purchase order arrangements, consignment stock, and annual supply contracts. This ensures guaranteed availability of the FS-FANWR-24R and related TDC 3000 spare components — including power supply modules, I/O cards, and communication interface units — without requiring repeated spot procurement. Contact our team to discuss a customized spare parts support agreement.
