Honeywell MC-IOLX02 51304419-150 Retrofit-Ready I/O Link Extender for Experion PKS C300

Honeywell MC-IOLX02 51304419-150 Retrofit-Ready I/O Link Extender for Experion PKS C300 Control Systems

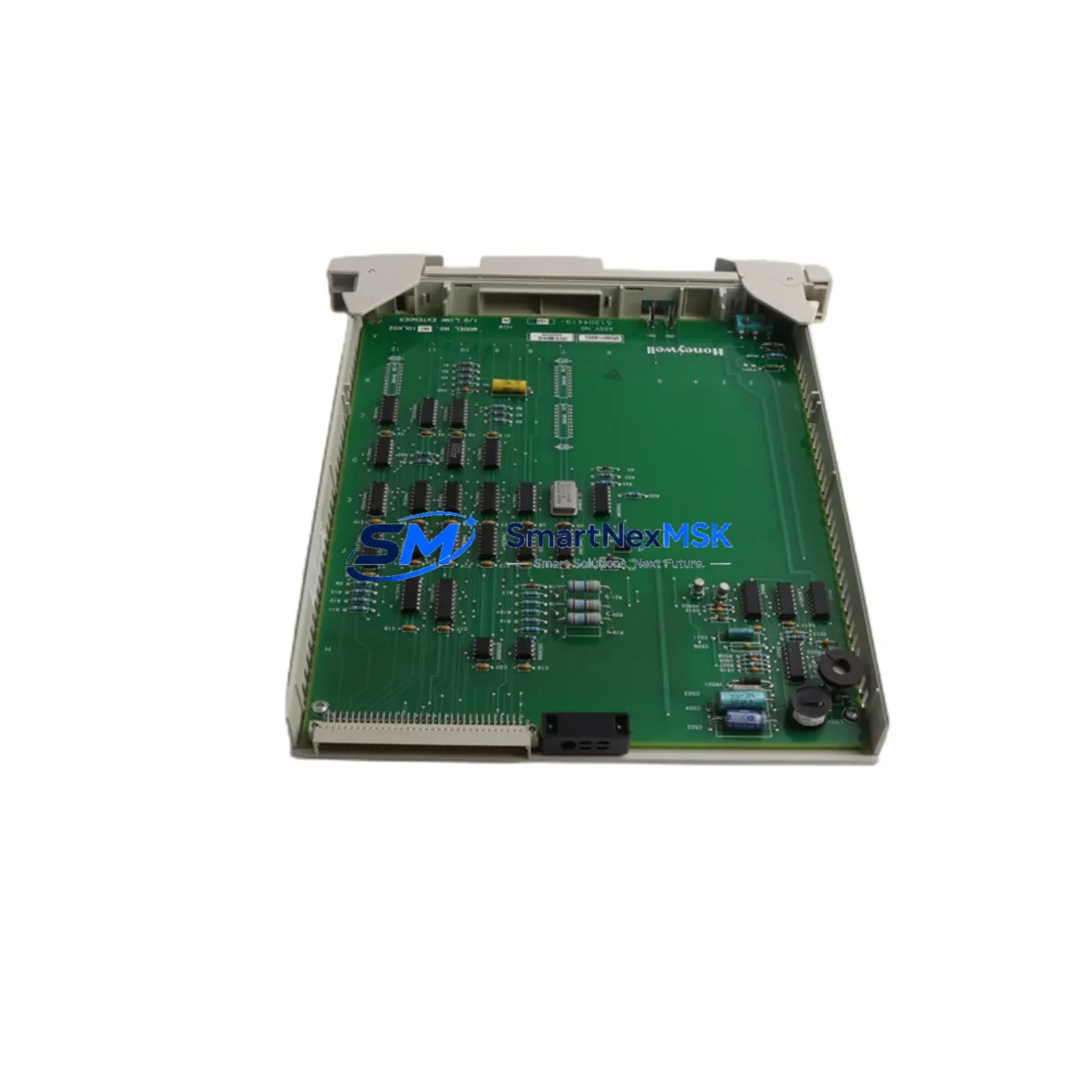

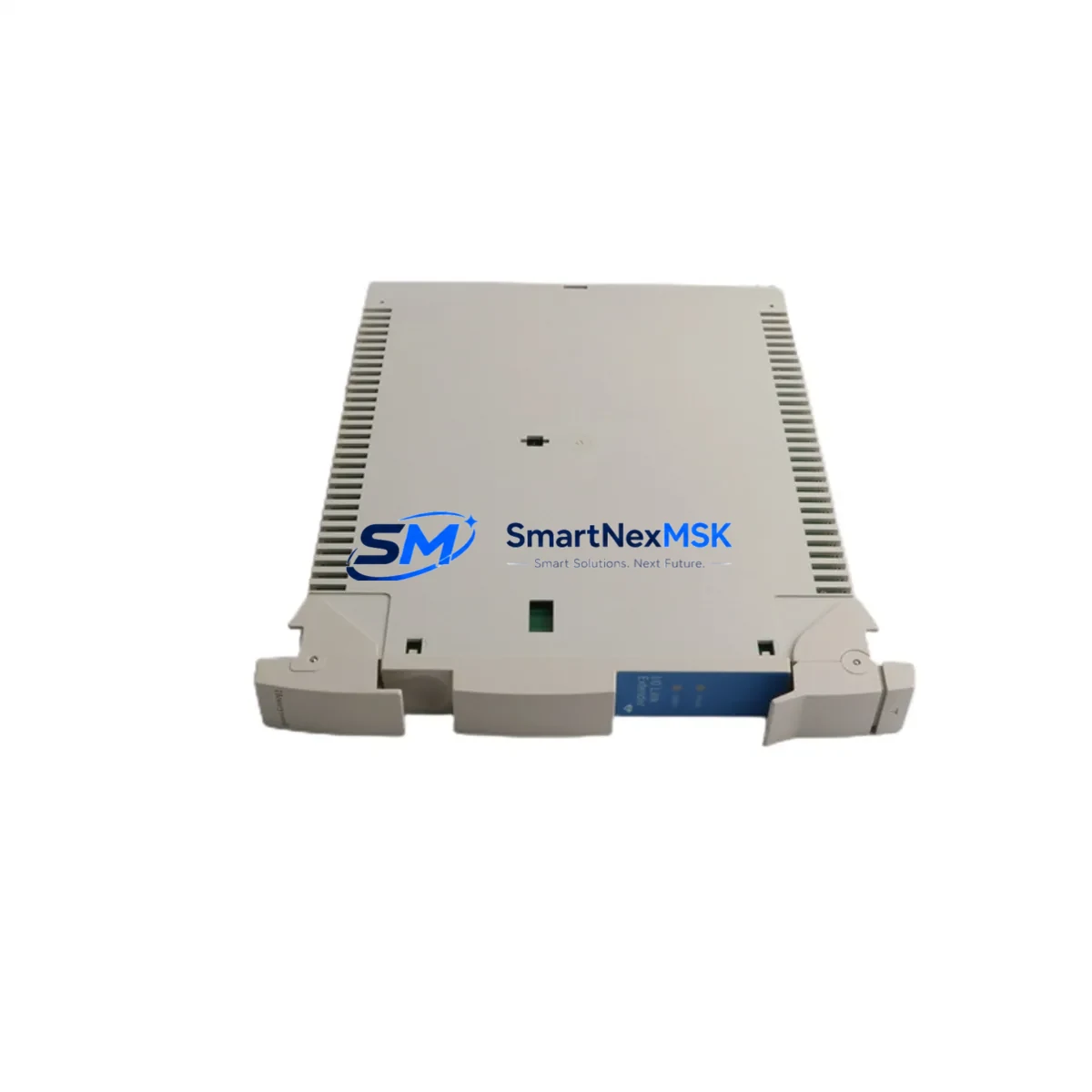

The Honeywell MC-IOLX02 (Part No. 51304419-150) is a high-reliability I/O Link Extender Card engineered for the Experion PKS C300 Distributed Control System platform. As legacy DCS installations age and OEM support windows close, the MC-IOLX02 has become a critical retrofit component for facilities seeking to extend the operational life of their existing control architecture without committing to a full platform migration. Whether you are replacing a failed card in an active production environment, upgrading a control cabinet to support expanded I/O capacity, or migrating from an older PMIO or CIOM-A module configuration, the MC-IOLX02 provides a wiring-compatible, firmware-aligned drop-in solution that minimizes engineering rework and reduces unplanned downtime.

Designed to operate within the standard C300 controller chassis, the MC-IOLX02 interfaces directly with the Experion PKS SCADA and control layer via the FTE (Fault Tolerant Ethernet) backbone. It supports the standard I/O Link protocol used across the Experion PKS ecosystem, ensuring seamless communication with field-mounted IOTA termination assemblies, remote I/O enclosures, and distributed process I/O nodes. Engineers replacing this card in an existing system should verify the I/O Link segment address configuration, confirm compatibility with the installed version of Experion PKS R4xx or R5xx software, and review the associated PMIO or Series C I/O module firmware revision to ensure protocol alignment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the MC-IOLX02 into an operating Experion PKS system requires a structured pre-migration assessment. Before removing the existing card, engineers should document the current I/O Link segment topology using Experion PKS Control Builder, capture all module address assignments, and export the active control strategy as a backup. The C300 controller — typically installed alongside the CC-PCNT01 process controller module — manages the I/O Link communication tree, and any address conflict introduced during card swap can cause I/O communication faults that propagate to the HMI operator station.

Power budget verification is essential. The C300 chassis power supply unit, such as the CC-PWR001 or CC-PWR002, must have sufficient headroom to support the MC-IOLX02 alongside co-installed modules including analog input cards, digital output modules, and communication interface cards. In high-density cabinets where the chassis is fully populated with Series C I/O modules, a supplemental chassis or I/O expansion rack may be required before the retrofit can proceed.

Termination wiring should be inspected at the IOTA level. The MC-IOLX02 connects to field wiring through dedicated IOTA termination assemblies, and technicians should confirm that the existing IOTA model is compatible with the replacement card revision. In systems where the original IOTA was installed more than ten years ago, terminal block corrosion or insulation degradation may require partial rewiring before the new card is seated.

For facilities running Experion PKS alongside legacy Honeywell TDC 3000 or PlantScape systems, the I/O Link Extender plays a key role in bridging older UCN (Universal Control Network) node data into the modern FTE Ethernet backbone. In these hybrid environments, the MC-IOLX02 is often installed in parallel with a CC-LINK01 or CC-LINK02 communication module to maintain dual-network visibility during the transition period. HMI faceplates built in Experion PKS Station or HMIWeb Display Builder should be reviewed to confirm that tag references remain valid after the card swap, particularly for analog loop displays and alarm group assignments.

I/O expansion scenarios — such as adding new field instruments to an existing control loop — may require reconfiguration of the I/O Link segment using Control Builder’s hardware tree. Technicians should assign the new MC-IOLX02 to the correct slot position, define the associated I/O module types (AI, AO, DI, DO), and download the updated configuration to the C300 controller before energizing the new field wiring. Programming cable access via the standard RS-232 or USB-to-serial adapter connected to the C300 front panel port is required for local configuration verification during commissioning.

Downtime Control During System Migration

Minimizing production downtime during an MC-IOLX02 swap requires a coordinated hot-standby or cold-swap strategy depending on the redundancy configuration of the installed C300 system. In redundant C300 controller pairs, the I/O Link Extender can often be replaced on the secondary controller while the primary remains in control, allowing the swap to proceed without interrupting the active control loop. After the replacement card is seated and the I/O Link segment is re-established, a bumpless switchover can be initiated from Experion PKS Station to transfer control to the newly commissioned secondary controller.

In non-redundant installations, the replacement window must be carefully scheduled during a planned maintenance outage. Prior to shutdown, all active control loops should be placed in manual mode from the operator station, and field devices should be confirmed in a safe state. The original program logic — including PID tuning parameters, interlock conditions, and alarm setpoints — should be exported from Control Builder and stored offline before the card is removed. After the MC-IOLX02 is replaced and the I/O Link segment is verified, the configuration is downloaded from the engineering workstation, and each I/O channel is tested against the field instrument before returning loops to automatic control.

Communication link integrity should be verified at each stage of the migration. FTE network switches, typically Cisco IE series or Honeywell-qualified industrial Ethernet switches, should be checked for port status and link speed negotiation after the card is reseated. Any I/O Link communication fault alarms appearing in the Experion PKS alarm summary should be cleared only after root-cause verification — not suppressed — to ensure the replacement card is fully operational before the system is returned to service.

Retrofit Support FAQ

Q: Is the MC-IOLX02 51304419-150 a direct drop-in replacement for an existing MC-IOLX02 in my C300 chassis?
A: Yes. The MC-IOLX02 51304419-150 is designed as a direct replacement for existing MC-IOLX02 units installed in Honeywell Experion PKS C300 chassis. No mechanical modification is required. After seating the card, verify the I/O Link segment address and download the module configuration from Control Builder to restore full functionality.

Q: What commissioning steps are required after installing the replacement card?
A: After physical installation, connect to the C300 engineering workstation via Control Builder, confirm the card appears in the hardware tree at the correct slot address, download the I/O configuration, and perform a channel-by-channel I/O verification against the field instrument list. Confirm FTE link status and clear any residual communication fault alarms before returning the system to automatic control.

Q: How do I confirm wiring compatibility with my existing IOTA termination assembly?
A: Cross-reference the IOTA model number installed in your cabinet against the MC-IOLX02 compatibility matrix in the Honeywell Experion PKS I/O Installation and Wiring Guide. In most standard C300 installations, the existing IOTA is fully compatible with the replacement card. If the IOTA was installed with an earlier revision, consult the part number suffix to confirm pin-for-pin compatibility before proceeding.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating and environmental conditions as specified in the Honeywell product datasheet. Each unit undergoes pre-shipment functional testing prior to dispatch. Warranty claims are supported via direct contact with our technical team. The warranty period begins from the date of confirmed delivery.
