Honeywell MC-PAIH03 51304754-150 Maintenance-Ready Spare Experion PKS: Spare Replacement & Industrial Downtime Risk Control

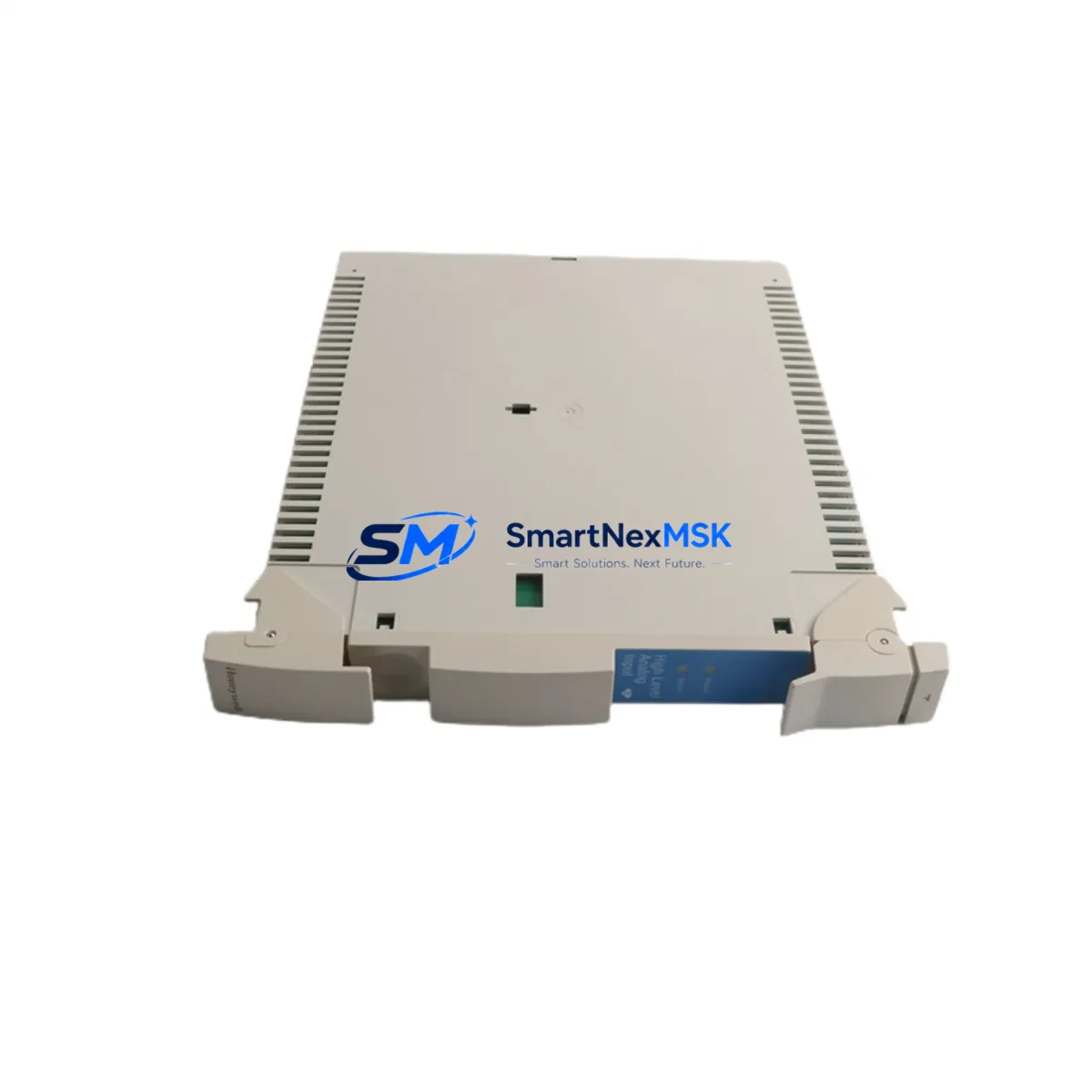

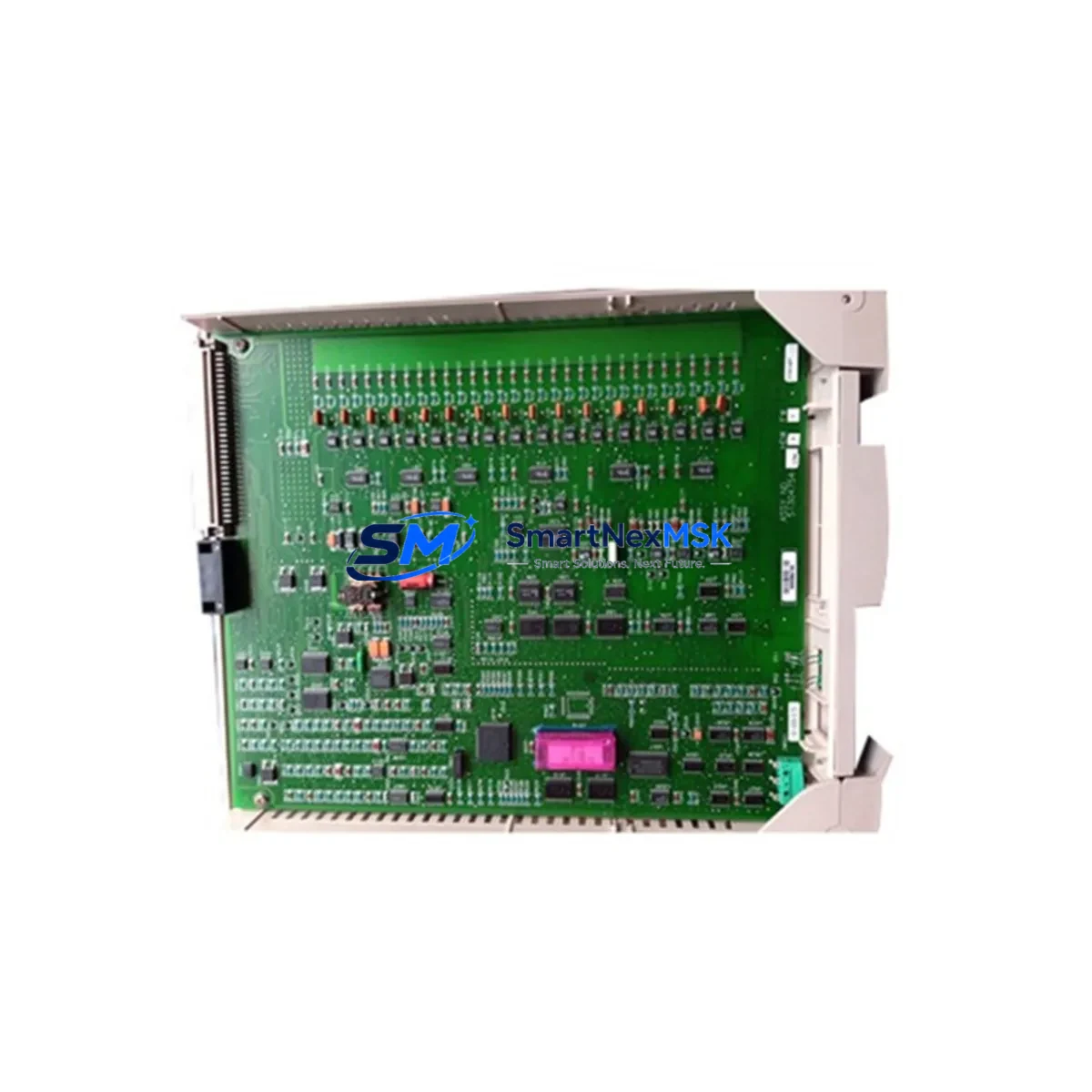

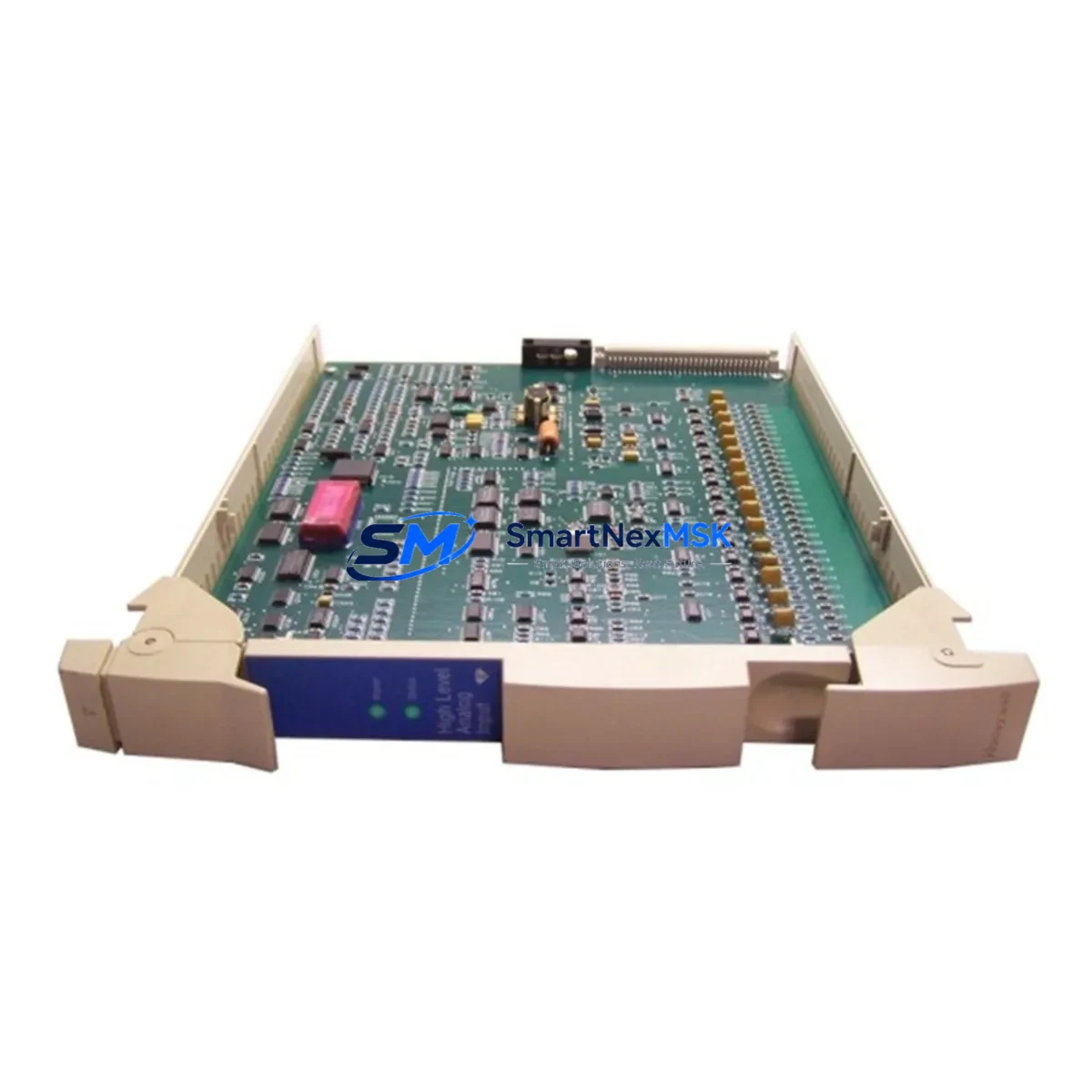

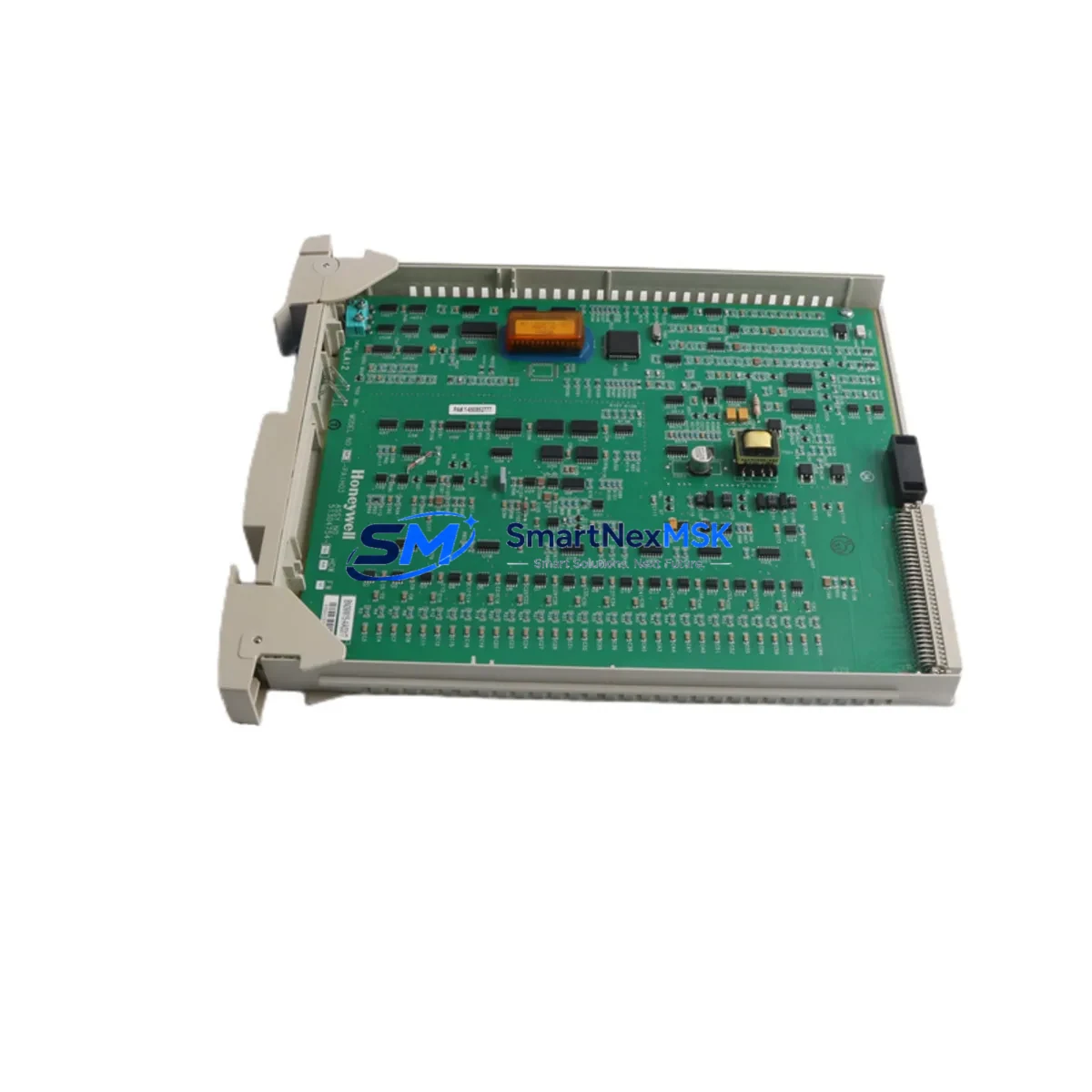

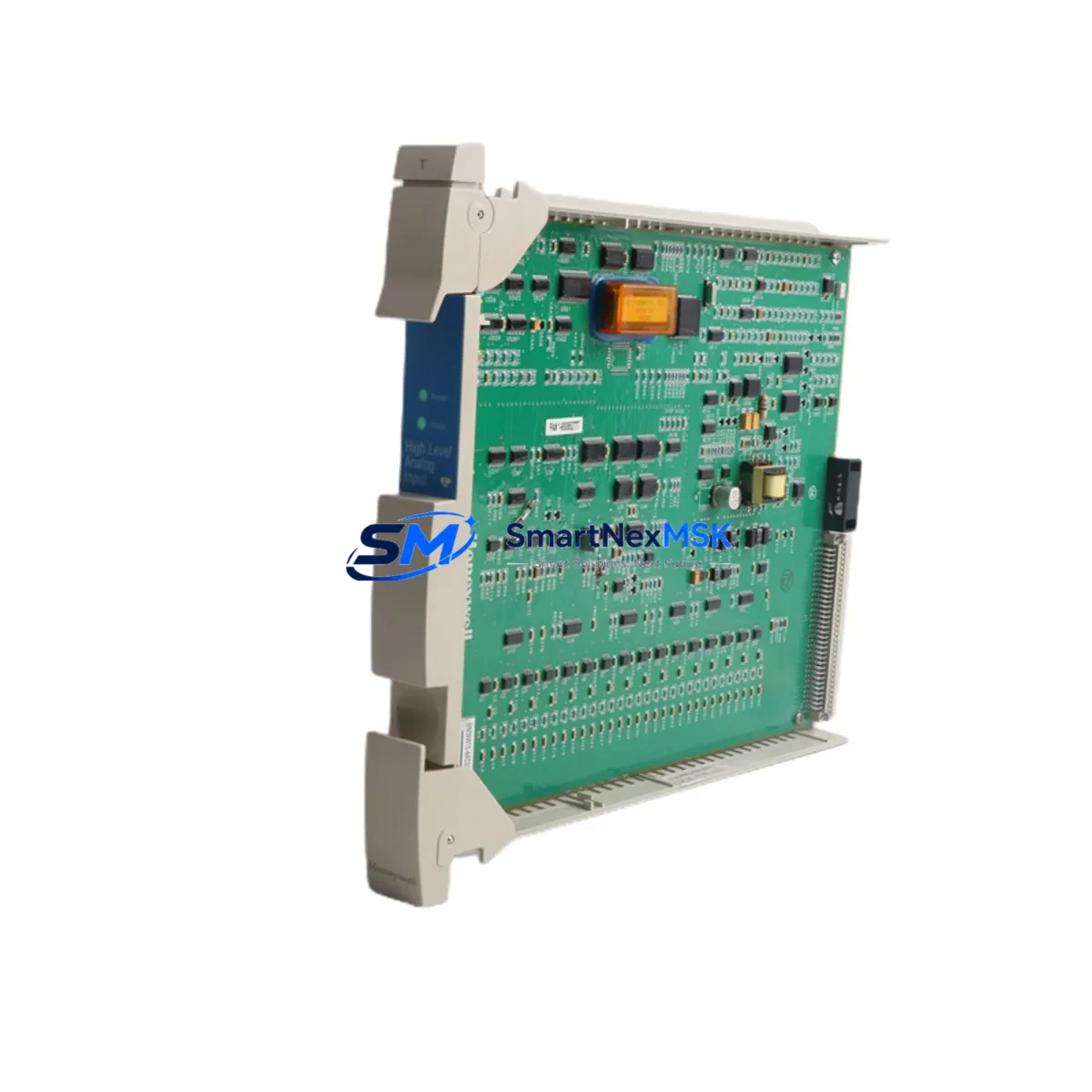

The Honeywell MC-PAIH03 (part number 51304754-150) is an 8-channel analog input module designed for the Experion PKS C200 and C300 distributed control system platforms. As a critical signal acquisition component within the process controller cabinet, this module handles 4–20 mA and voltage-based field signals from transmitters, sensors, and transducers across continuous process environments including oil & gas, chemical, power generation, and pulp & paper facilities. When this module fails or degrades, the consequences extend beyond a single I/O channel — the entire control loop dependent on its signal chain is compromised, triggering alarms, forcing manual override, and in worst cases, initiating an unplanned process shutdown.

Maintaining a verified, tested spare of the MC-PAIH03 51304754-150 in your site inventory is one of the most cost-effective strategies for protecting uptime in Experion PKS-based control architectures. This original Honeywell module is sourced, inspected, and shipped with full functional verification, ensuring it is ready for immediate installation without additional bench testing delays on-site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules a planned inspection or responds to an analog input fault alarm on an Experion PKS system, the MC-PAIH03 is rarely the only component that warrants attention. A thorough cabinet inspection and fault isolation procedure should encompass the broader signal chain and power distribution architecture to prevent repeat failures and ensure a stable return to automatic control.

During the same maintenance window, engineers should verify the condition and calibration of field transmitters feeding the module’s input channels — particularly 4–20 mA loop-powered devices where wiring degradation or terminal block corrosion can mimic module faults. The MC-TAIH02 terminal assembly, which interfaces field wiring to the MC-PAIH03 via the I/O Link cable, should be inspected for terminal tightness, oxidation, and correct cable seating. A damaged or loose I/O Link cable between the terminal assembly and the module is a common source of intermittent channel faults that are misdiagnosed as module failure.

The C200 or C300 controller module itself should be checked for firmware version compatibility and diagnostic fault logs. If the MC-PAIH03 replacement is being performed due to a persistent fault code, reviewing the controller’s event journal before swapping the module can confirm whether the fault is isolated to the I/O module or originates upstream in the controller backplane. The Series C I/O chassis and backplane should be inspected for bent connector pins, backplane power rail voltage integrity, and slot-to-slot communication health.

Power distribution within the control cabinet is another critical checkpoint. The MC-PWRJ01 or equivalent Experion PKS power supply module supplying the I/O chassis should be load-tested and its output voltage verified within specification. Aging power supplies operating near capacity are a leading cause of intermittent I/O module faults in legacy Experion installations. Inline fuses and circuit breakers protecting the 24 VDC distribution rail should also be inspected and replaced on a scheduled basis.

For sites running signal conditioning or galvanic isolation between field devices and the DCS, the signal isolator modules (such as Honeywell or third-party DIN-rail isolators) in the marshalling cabinet should be tested for output accuracy and loop integrity. A degraded isolator can introduce offset errors that appear as analog input drift on the MC-PAIH03 channels, leading to unnecessary module replacements.

Communication health between the Experion PKS server and the C200/C300 controller should be confirmed via the FTE (Fault Tolerant Ethernet) network switches and cables serving the controller node. Network faults can cause the Experion server to report I/O module offline status even when the module itself is fully functional. Additionally, the Experion PKS operator station or HMI should be used to run a live channel diagnostic on the replacement MC-PAIH03 immediately after installation to confirm all 8 channels are reading within expected engineering unit ranges before returning the loop to automatic mode.

Sites managing aging Experion PKS installations should also maintain spares for the MC-PAOH01 analog output module and MC-PDID01 digital input module, as these modules share the same chassis and backplane infrastructure and are subject to the same environmental aging factors. A consolidated spare parts kit covering the most failure-prone I/O module types significantly reduces mean time to repair (MTTR) across the control system lifecycle.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before removing the faulty MC-PAIH03, use the Experion PKS Station to place all affected control loops in manual mode. Document the current channel configuration, engineering unit ranges, and alarm setpoints from the module’s configuration in Control Builder. This ensures the replacement module can be configured identically without referencing paper records.

Step 2 — Safe removal: The MC-PAIH03 supports hot-swap removal in most Experion PKS configurations when the chassis is powered and the controller is in run mode. Confirm hot-swap capability for your specific chassis revision before proceeding. Disconnect the I/O Link cable from the terminal assembly side first, then slide the module out of its backplane slot. Avoid touching the backplane connector pins.

Step 3 — Replacement installation: Insert the new MC-PAIH03 51304754-150 into the same chassis slot. The module will automatically download its configuration from the C200/C300 controller upon recognition. Reconnect the I/O Link cable to the terminal assembly and verify the module status LED transitions from fault (red) to normal (green) within 30–60 seconds.

Step 4 — Channel verification: Using the Experion PKS Station, navigate to the module’s channel detail view and confirm all 8 channels are reading live field values within expected ranges. Compare readings against independent field instruments or handheld calibrators to validate signal accuracy before returning loops to automatic control.

Step 5 — Documentation and spare replenishment: Log the replacement in your CMMS (Computerized Maintenance Management System) with the module serial number, installation date, and fault description. Immediately initiate a purchase order for a replacement spare to restore your on-hand inventory level. Maintaining a minimum of one verified spare MC-PAIH03 per control system node is the recommended practice for sites with uptime SLAs.

Spare Parts Support FAQ

Q1: Is the MC-PAIH03 51304754-150 compatible with both C200 and C300 Experion PKS controllers?
Yes. The MC-PAIH03 is designed for the Honeywell Series C I/O platform and is compatible with both the C200 and C300 controller families within the Experion PKS architecture. It operates as a direct drop-in replacement in any Series C I/O chassis slot designated for analog input modules. No hardware modification is required; the controller automatically recognizes and configures the module upon installation.

Q2: What pre-shipment testing is performed on the MC-PAIH03 before delivery?
Every MC-PAIH03 unit is functionally tested prior to shipment. Testing includes power-on verification, backplane communication check, and channel-level signal integrity validation across all 8 analog input channels. Units that do not pass full functional verification are not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: How should the MC-PAIH03 be stored as a long-term spare?
Store the module in its original anti-static packaging in a climate-controlled environment with temperature between 0°C and 40°C and relative humidity below 85% non-condensing. Avoid storage near strong electromagnetic fields or in environments with airborne contaminants. Inspect stored spares annually for physical condition and, where possible, perform a power-on test every 12–18 months to confirm operational readiness. Modules stored beyond 5 years should be re-tested before deployment.

Q4: What does the 12-month warranty cover, and what is the replacement process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, contact our support team with the order reference and fault description. We will arrange priority shipment of a replacement unit to minimize your downtime. Warranty claims require the faulty module to be returned for inspection. Damage caused by incorrect installation, overvoltage, or environmental conditions outside specification is not covered under the standard warranty.
