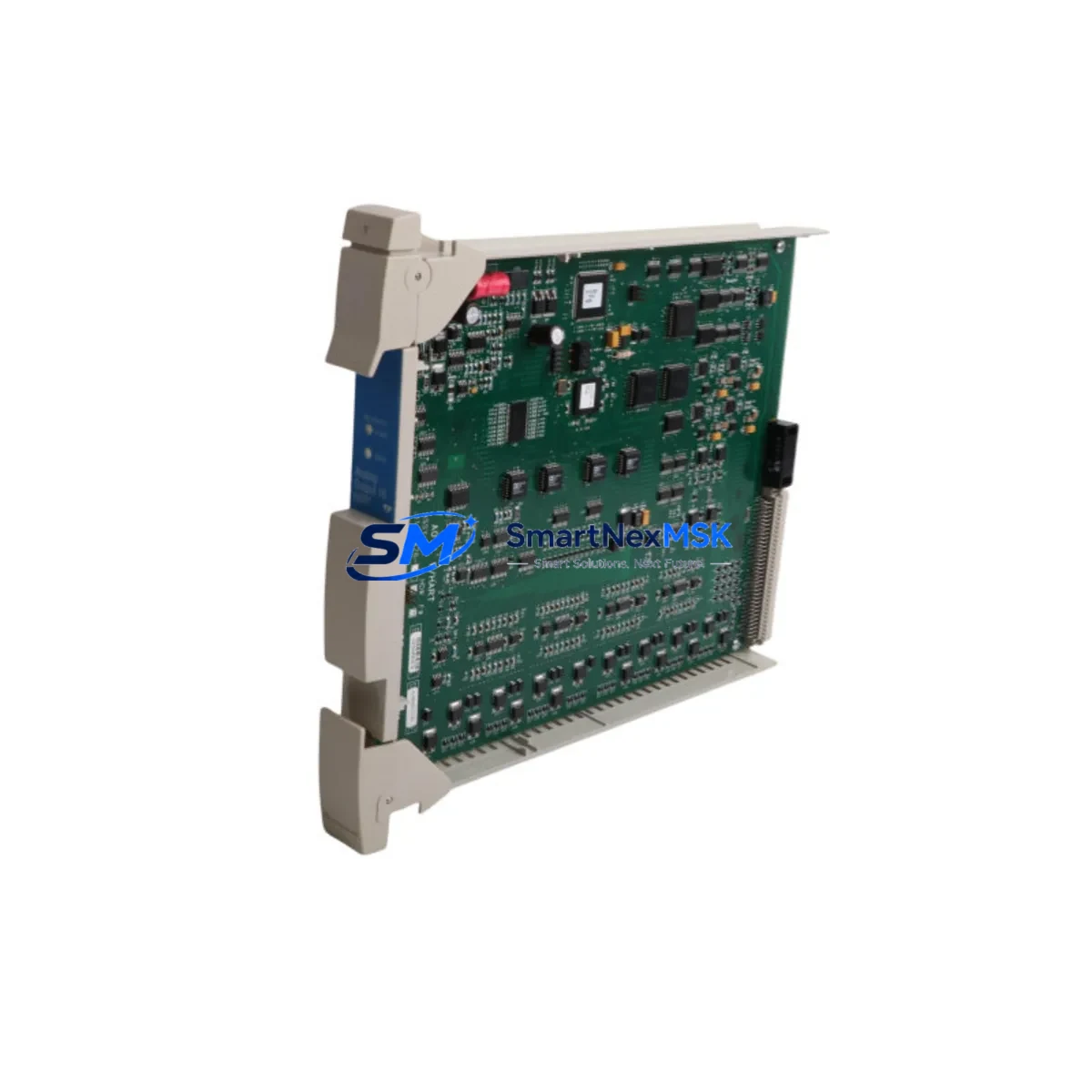

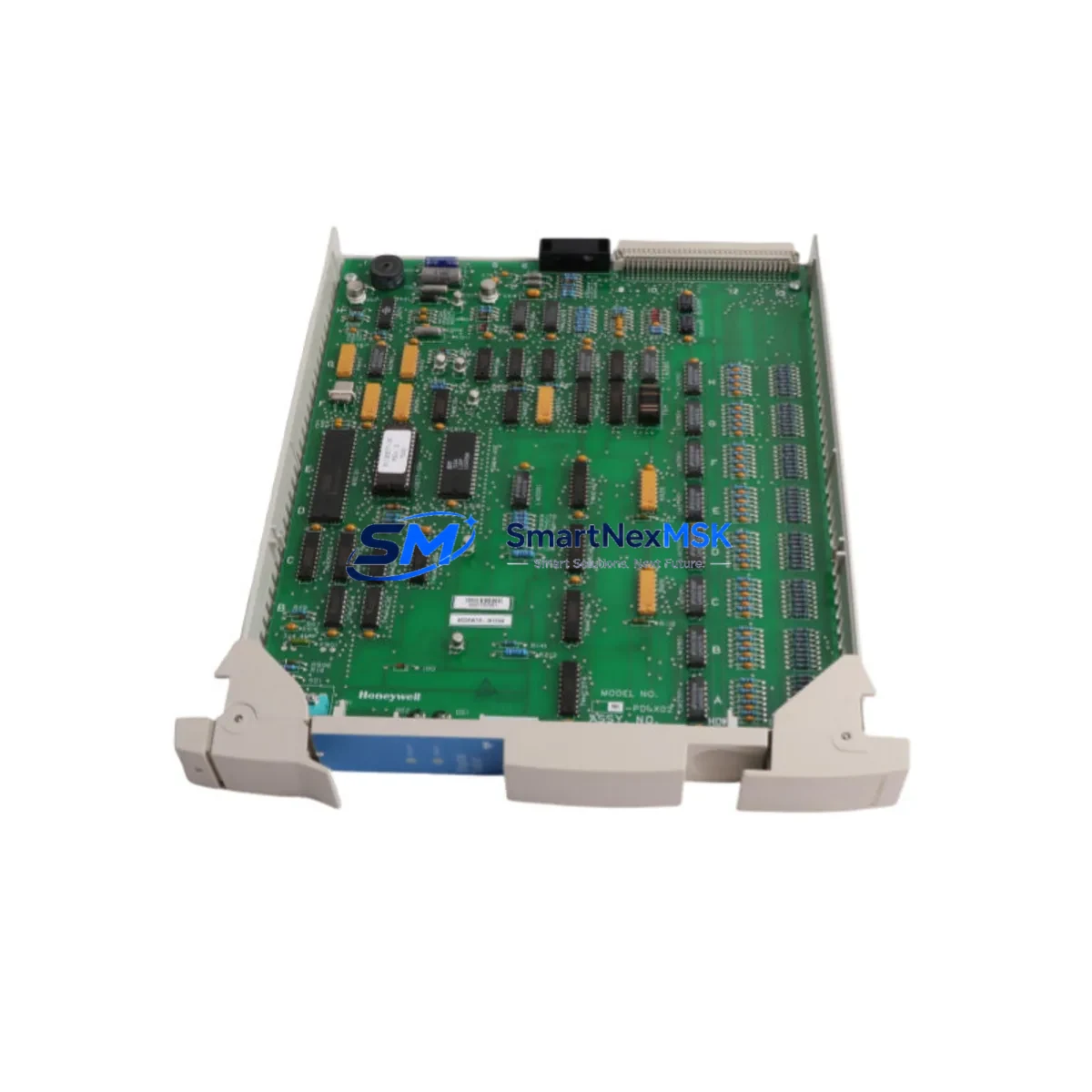

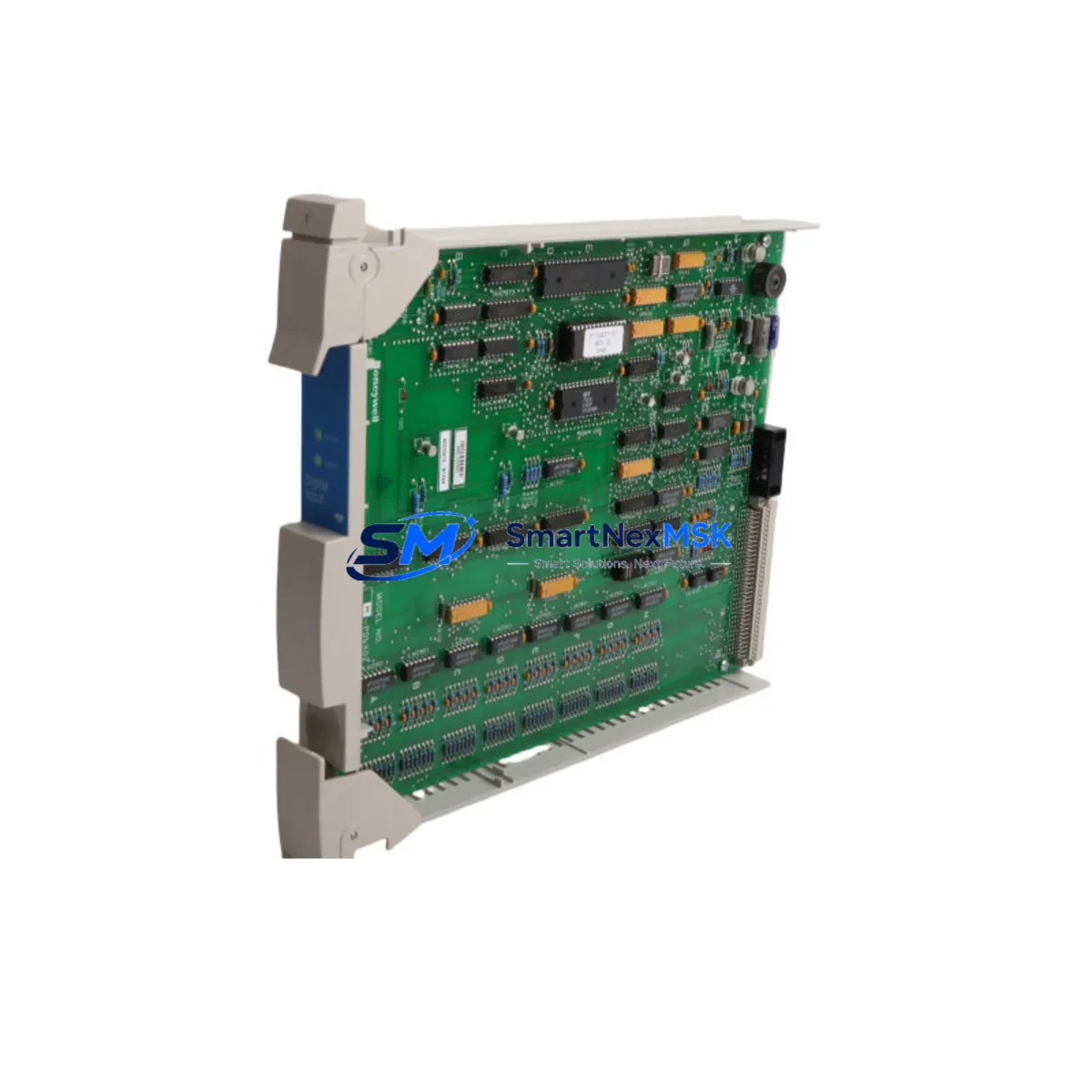

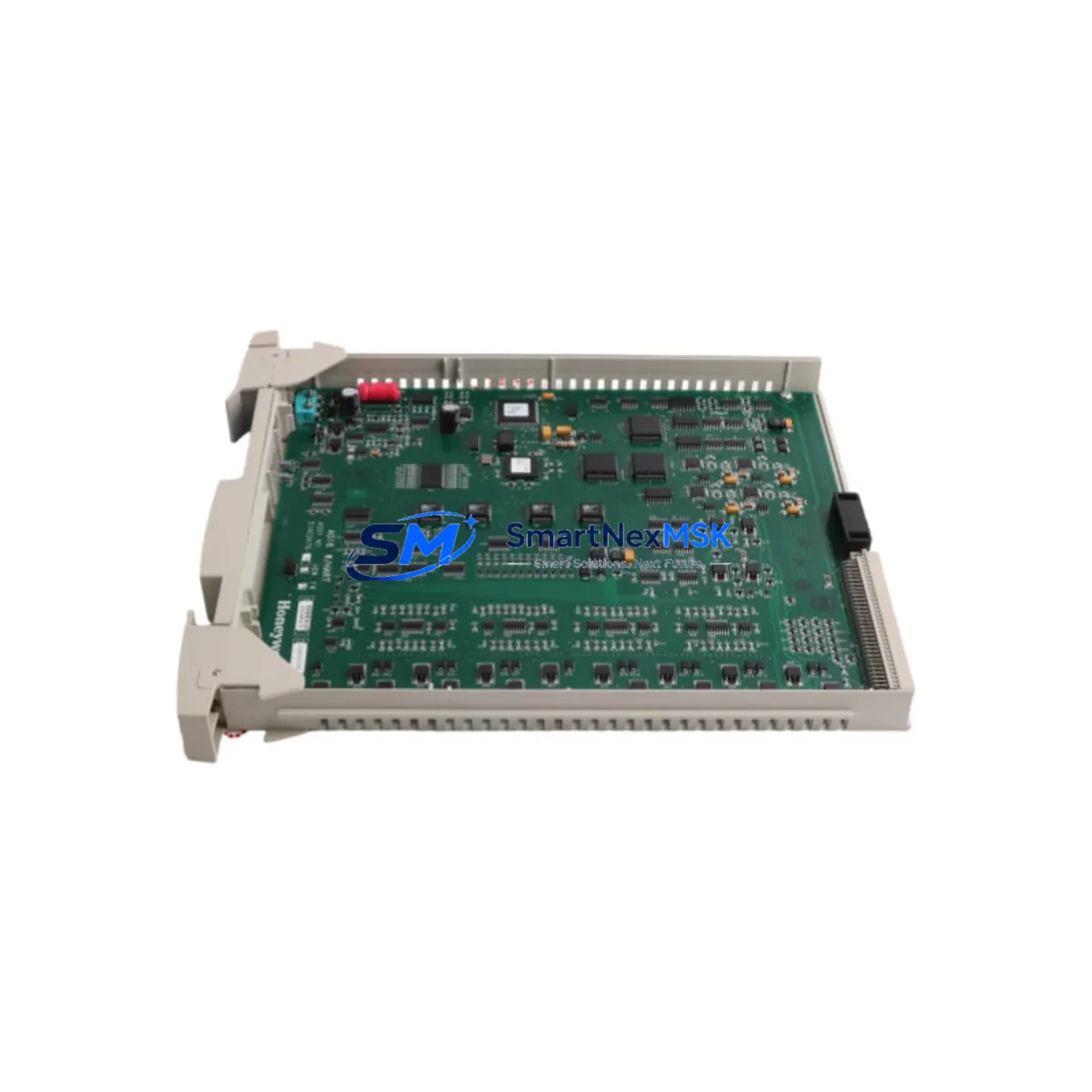

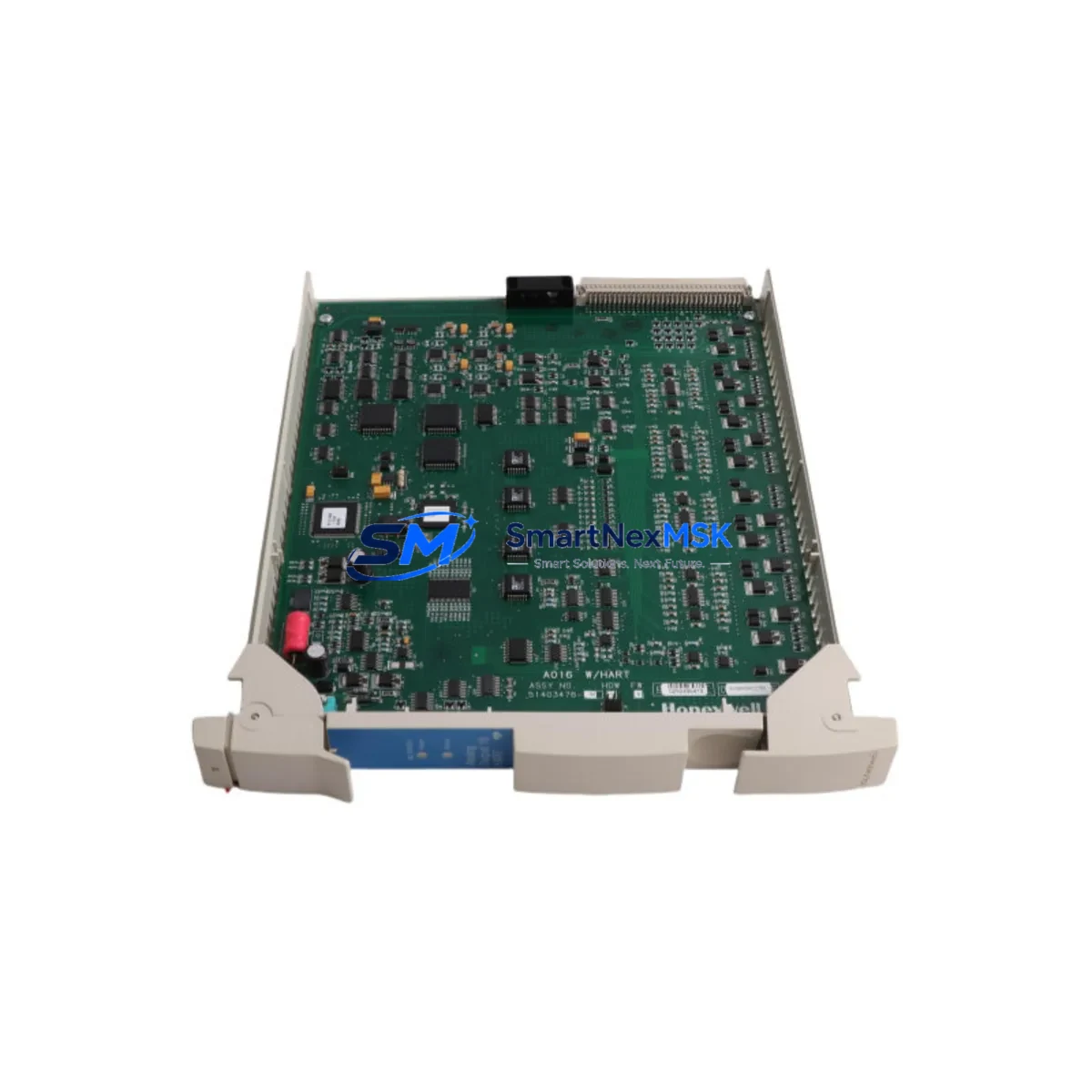

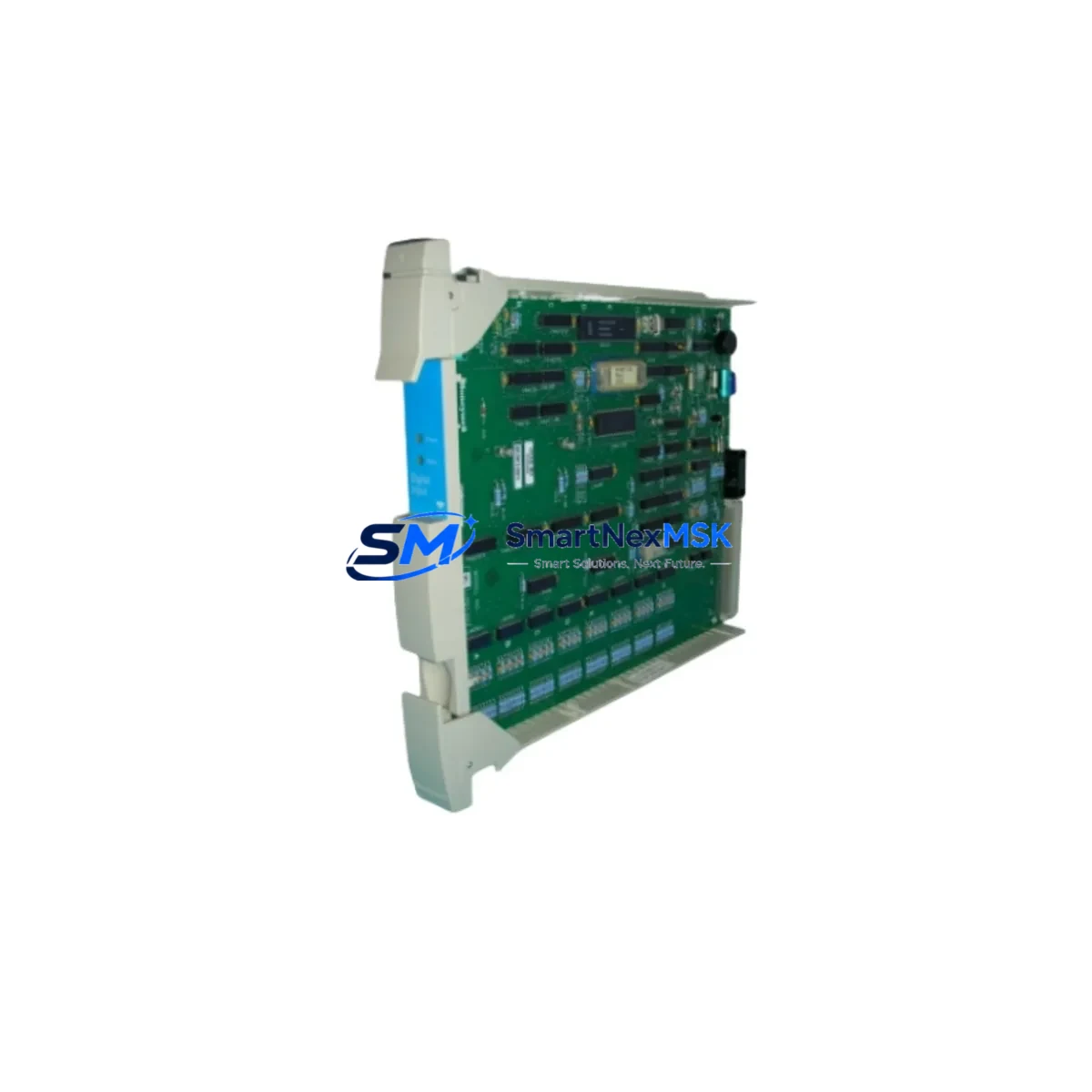

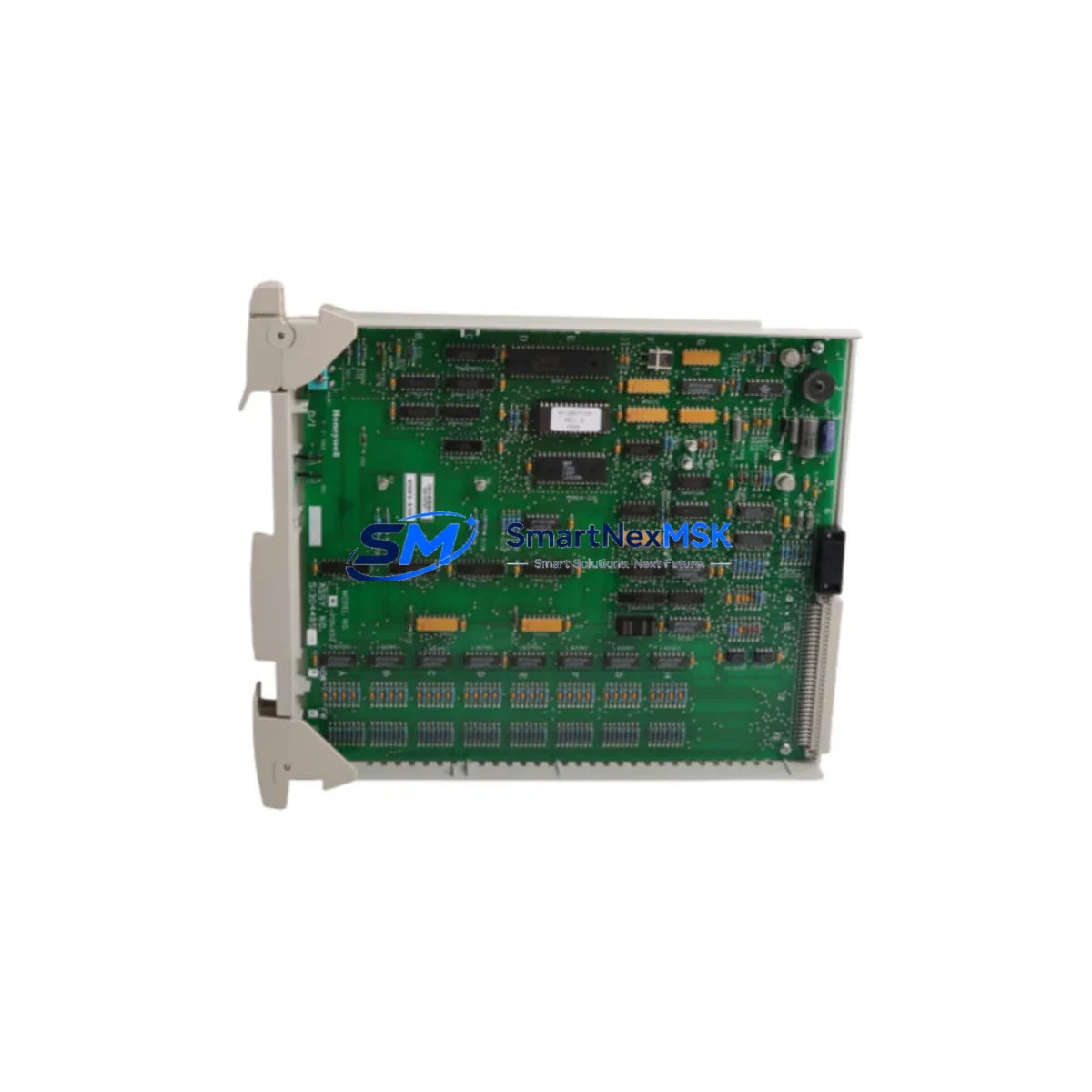

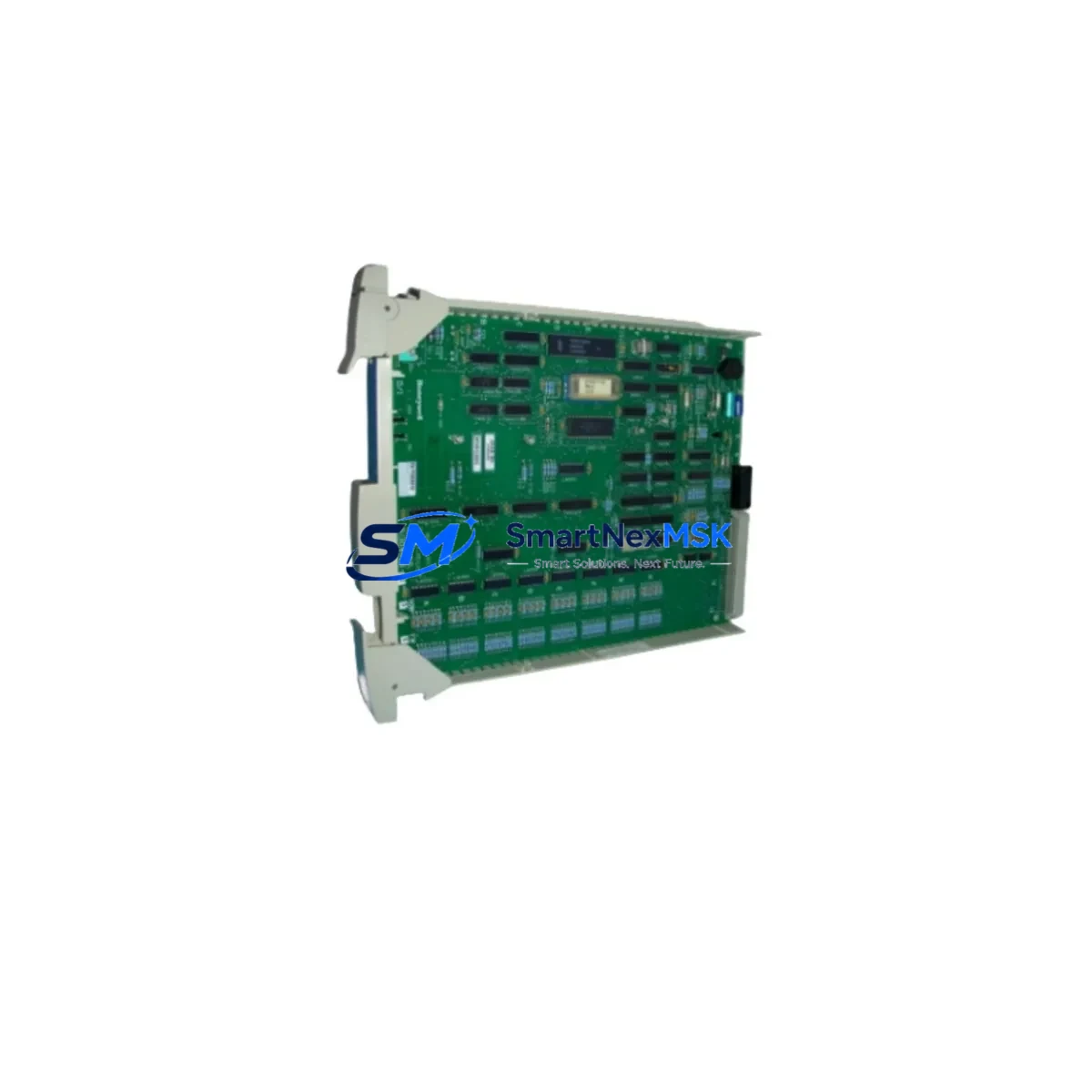

Honeywell MC-PDIX02 51304485-150 Retrofit-Ready DCS Digital Input for TDC 3000 Control Systems
The Honeywell MC-PDIX02 (part number 51304485-150) is a high-reliability DCS digital input module engineered for seamless integration into TDC 3000 distributed control system architectures. As legacy TDC 3000 platforms approach end-of-life and spare parts become increasingly scarce, the MC-PDIX02 serves as a verified drop-in replacement that preserves existing field wiring, FTA termination assemblies, and LCN communication links — dramatically reducing retrofit complexity and unplanned downtime.
This module is purpose-built for industrial environments where control continuity is non-negotiable. Whether you are executing a planned control cabinet upgrade, recovering from an unexpected module failure, or migrating I/O infrastructure ahead of a broader DCS modernization project, the MC-PDIX02 51304485-150 delivers the compatibility and reliability your operation demands. Each unit is fully tested prior to shipment, backed by a 12-month warranty, and available from verified inventory for fast global dispatch.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Part Number | MC-PDIX02 / 51304485-150 |
| Brand | Honeywell |
| Series | TDC 3000 / PlantScape / Experion PKS (legacy I/O compatible) |
| Module Type | DCS Digital Input Module |
| Installation | Direct backplane slot replacement — no mechanical modification required |
| Communication Compatibility | LCN (Local Control Network) compatible |
| Field Wiring | FTA (Field Termination Assembly) wiring retained; no re-termination needed |
| Replacement Recommendation | Direct replacement for failed or end-of-life MC-PDIX02 units in TDC 3000 cabinets |
| Commissioning Notes | Module address configuration via DIP switch; verify against existing UCN/LCN node map before insertion |
| Warranty | 12-Month Warranty — covers manufacturing defects and functional failure under normal operating conditions |
| Pre-Shipment Testing | Full functional test performed on every unit before dispatch |
| Origin | USA |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the MC-PDIX02 51304485-150 into an operating TDC 3000 system begins well before the module arrives on site. Engineers should start by auditing the existing I/O map and confirming the slot assignment within the affected IOP (Input/Output Processor) card cage. The MC-PDIX02 occupies a standard IOP slot and interfaces directly with the local FTA panel — meaning the MC-FTAI16 or equivalent FTA assembly already installed in the cabinet can typically be retained without modification.
Power budget verification is a critical pre-installation step. The TDC 3000 card cage power supply — often a Honeywell MC-PSIM01 or MC-PSIM02 power supply module — must have sufficient headroom to support the replacement module alongside all other installed cards. If the cabinet is running near capacity, this is also an appropriate time to evaluate whether a power supply upgrade is warranted as part of the broader modernization scope.
Backplane interface integrity should be inspected visually before insertion. Bent or corroded backplane connector pins are a common cause of intermittent faults in aged TDC 3000 cabinets and can be mistaken for module failure. Once the MC-PDIX02 is seated, the module address must be confirmed against the existing UCN/LCN node configuration stored in the Honeywell Universal Control Network database. Mismatched addresses will prevent the module from being recognized by the Highway Gateway or AM (Application Module) and will generate fault alarms in the operator console.
For sites running Honeywell’s HMIWeb or older GUS (Global User Station) operator interfaces, no HMI screen changes are required when performing a like-for-like MC-PDIX02 replacement — all existing display tags, alarm setpoints, and trend configurations remain valid. However, if the retrofit is part of a broader migration toward Experion PKS, the I/O assignment may need to be re-mapped within Experion’s Control Builder environment, and associated HMI graphics may require updating to reflect the new controller addressing scheme.
Communication link continuity is equally important. The LCN coaxial cable connections at the Highway Gateway module — such as the Honeywell MC-HHGW01 — should be inspected for signal integrity before and after the swap. In multi-drop LCN configurations, a single faulty terminator or damaged coax segment can affect all nodes on the segment, so isolating the affected drop before hot-swap is strongly recommended where the system architecture permits.
For I/O expansion projects running alongside the replacement, the MC-PDIX02 is commonly deployed in conjunction with Honeywell MC-PAOX02 analog output modules, MC-TAIX12 analog input termination assemblies, and MC-PDOX02 digital output modules to build out a complete I/O complement within the same card cage. Ensuring consistent firmware revisions across all newly installed modules minimizes compatibility risks during the commissioning phase.
Downtime Control During System Migration
Minimizing production downtime during a TDC 3000 digital input module replacement requires a structured, pre-validated approach. The most effective strategy is to prepare the replacement MC-PDIX02 51304485-150 offline — confirming DIP switch address settings, inspecting connector integrity, and verifying firmware compatibility — before the maintenance window opens. This preparation eliminates the most common sources of delay during live system intervention.
Where the process allows, a controlled shutdown of the affected I/O drop is preferable to a hot-swap. This protects the integrity of the LCN communication segment and prevents spurious input signals from propagating to the control strategy during the transition. The existing control logic in the AM or HPM (High-Performance Manager) controller does not need to be modified for a like-for-like module replacement — the program logic, PID loop configurations, and interlock conditions remain fully intact and will resume normal execution as soon as the replacement module is recognized on the LCN.
Field engineers should have a copy of the current I/O configuration report and the relevant CL (Control Language) program segments available during the swap. If the replacement is part of a phased migration — for example, moving selected I/O points from a legacy TDC 3000 IOP to a new Experion C300 controller — a parallel run period should be planned to validate signal integrity and alarm behavior before cutting over fully. This approach protects production continuity and provides a clear rollback path if unexpected compatibility issues arise.
Post-installation, a structured commissioning checklist should cover: module recognition on the LCN, correct point-by-point I/O signal verification against the field device list, alarm and trip function testing, and confirmation that all historian and trend data is being correctly captured by the Honeywell PHD (Process Historian Database) or equivalent data historian. Full commissioning documentation should be retained for the 12-month warranty period.
Retrofit Support FAQ
Q: Is the MC-PDIX02 51304485-150 a direct drop-in replacement for the original Honeywell TDC 3000 digital input module?
A: Yes. The MC-PDIX02 51304485-150 is a verified direct replacement for the original TDC 3000 digital input module. It installs into the same IOP card cage slot, retains compatibility with existing FTA field wiring, and communicates over the LCN without requiring changes to the control program or HMI configuration.
Q: What wiring changes are required when installing the MC-PDIX02 in an existing TDC 3000 cabinet?
A: In a like-for-like replacement scenario, no field wiring changes are required. The existing FTA termination assembly and associated cable harness remain in place. The only on-site action required is confirming the module address DIP switch setting matches the original configuration before inserting the module into the backplane.
Q: How is compatibility verified before the module is shipped?
A: Every MC-PDIX02 51304485-150 unit undergoes a full functional test prior to shipment. Testing covers digital input channel integrity, backplane communication, and power consumption within specification. A test report is available upon request. All units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.
Q: Can the MC-PDIX02 be used in a migration from TDC 3000 to Experion PKS?
A: The MC-PDIX02 is fully compatible with TDC 3000 I/O infrastructure and can serve as a stable interim solution during a phased Experion PKS migration. For sites transitioning to Experion’s EHPM or C300 controller platform, the module can continue to operate within the existing TDC 3000 I/O subsystem while the migration is staged, allowing individual control loops to be cut over to the new platform without requiring a full system shutdown.
