Honeywell MC-TAIH12 51304337-150 Retrofit-Ready HLAI for C300

Honeywell MC-TAIH12 51304337-150 Retrofit-Ready HLAI for C300 Control Systems

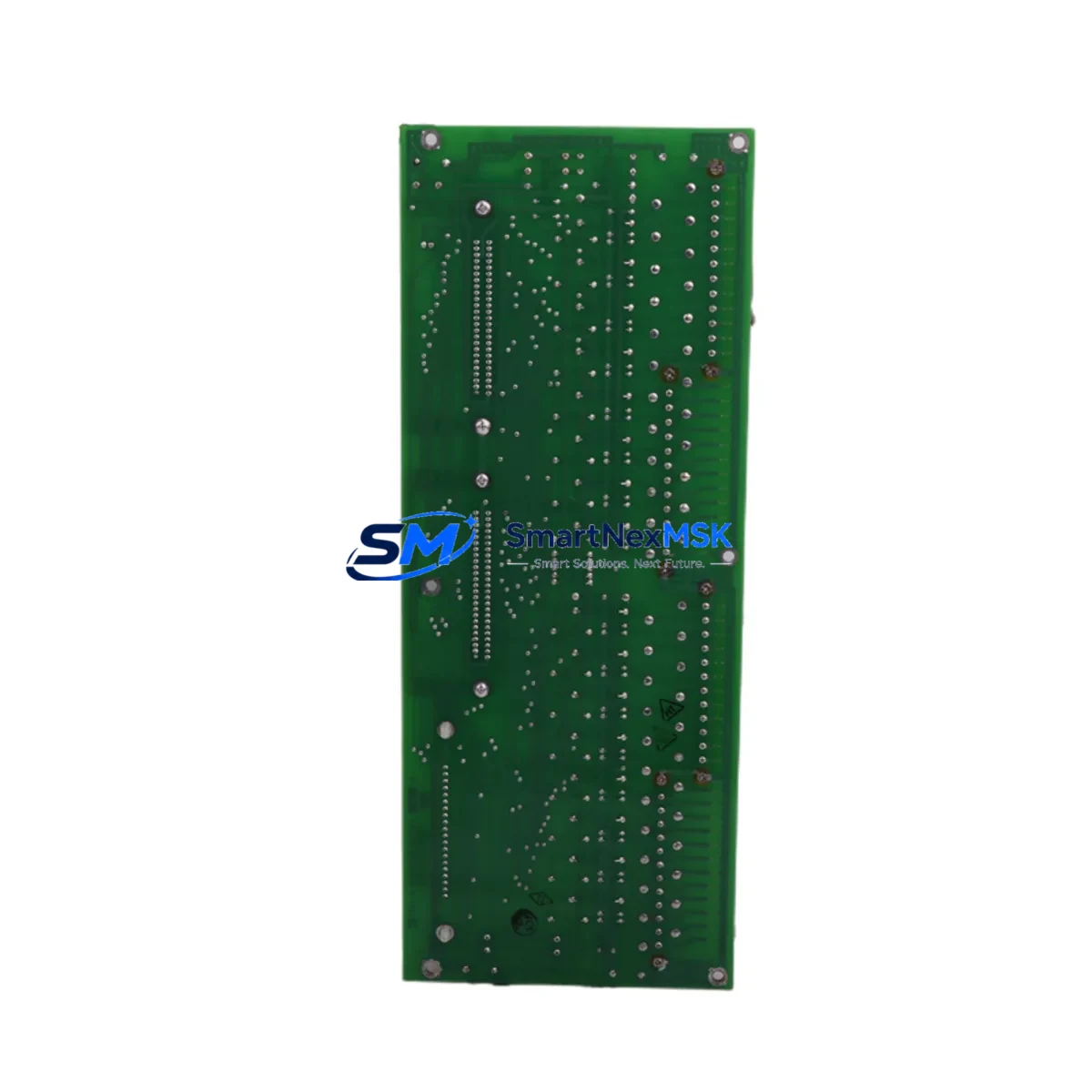

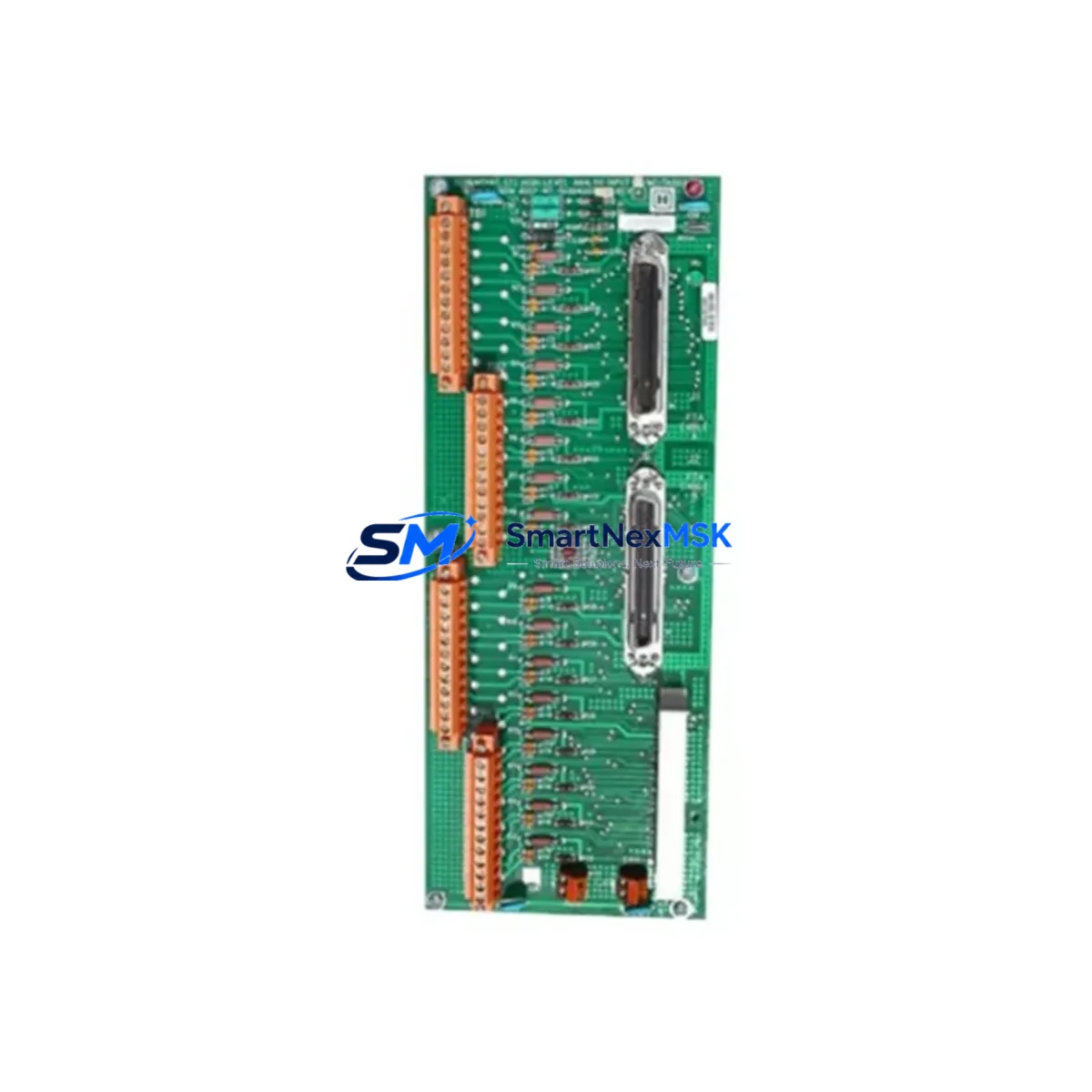

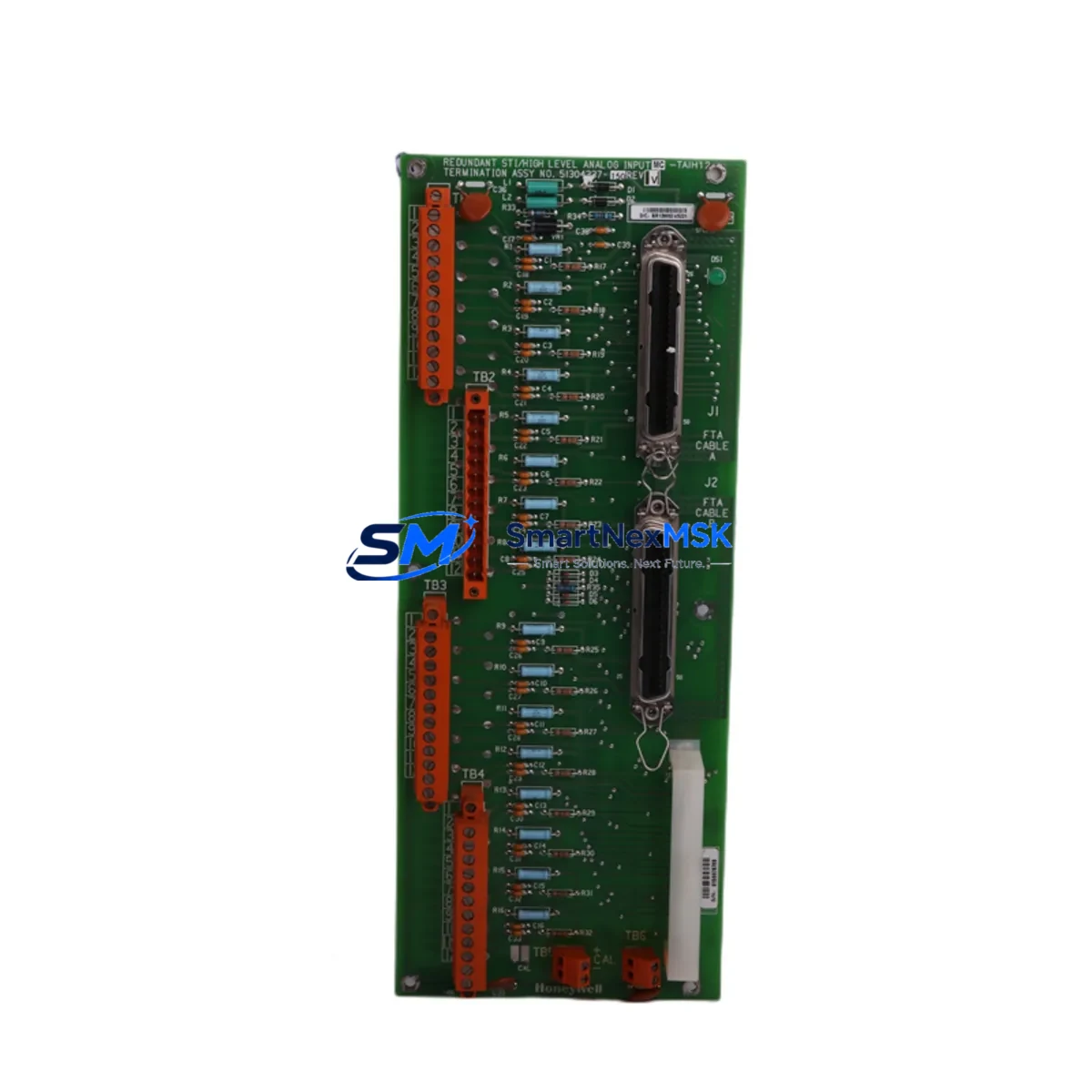

The Honeywell MC-TAIH12 (part number 51304337-150) is a High-Level Analog Input (HLAI) module engineered for the Experion PKS C300 Controller platform. As legacy DCS installations age and OEM support windows close, the MC-TAIH12 has become a critical retrofit component for facilities seeking to extend the operational life of their Honeywell C300-based control systems without committing to a full platform migration. This module accepts up to 12 channels of high-level analog input signals (4–20 mA / 1–5 V), interfaces directly with the Series C I/O FTA (Field Termination Assembly), and communicates over the Fault-Tolerant Ethernet (FTE) backplane — making it a direct, configuration-compatible replacement for worn or failed HLAI modules in existing cabinets.

Whether you are replacing a failed module in a running plant, upgrading a partially decommissioned control loop, or consolidating I/O during a control cabinet modernization project, the MC-TAIH12 51304337-150 ships pre-tested and ready for installation. Each unit undergoes functional verification against Honeywell C300 backplane communication standards before dispatch, and is covered by a 12-month warranty from the date of shipment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the MC-TAIH12 into an aging C300 system begins well before the module arrives on site. The first step is a power budget audit of the existing I/O chassis. The MC-PWRSUPP1 and MC-PWRSUPP3 power supply modules each have defined load limits; adding or replacing HLAI modules without verifying available headroom can cause intermittent resets or communication faults on adjacent modules. Document the current draw of all installed modules — including any MC-TAOX8H analog output modules, MC-TDID12 digital input modules, and MC-TDOD08 digital output modules sharing the same chassis — before proceeding.

Next, inspect the Field Termination Assembly (FTA). The MC-TAIH12 mates with the MC-PAIH03 or MC-PAIH22 FTA depending on your wiring configuration. Confirm that the IOTA cable connecting the FTA to the I/O chassis is undamaged and that terminal block screws are torqued to specification. In older installations, corroded terminals or loose field wiring are the most common cause of signal drift after a module swap — not the module itself. Label all field wires before disconnection and photograph the terminal layout.

For facilities running Experion PKS with an older C200 or C200E controller alongside C300 nodes, the MC-TAIH12 is not directly compatible with the C200 backplane. In mixed-generation cabinets, verify which controller node owns the I/O chassis before ordering. If the target chassis is managed by a C300 controller communicating over FTE, the MC-TAIH12 is the correct module. If the chassis is legacy Series C connected to a C200E via a CIOM-A or CIOM-B interface module, a different HLAI variant is required.

Module address assignment is handled entirely within Experion Builder. Because the MC-TAIH12 is a like-for-like replacement, the existing I/O module definition, tag assignments, and alarm limits in the control database remain valid. No re-download of the C300 controller strategy is required in most cases — a hot-swap with a subsequent module health check in Experion Station is sufficient. However, if the replacement module carries a different firmware revision, a full controller reload may be advisable to ensure parameter alignment. Coordinate with your DCS engineer to schedule this during a planned maintenance window.

HMI faceplate displays and historian tags linked to the original HLAI channels will continue to function without modification, provided the Experion tag names are preserved. If your facility uses a third-party SCADA system communicating via OPC DA or OPC UA over the Experion server, verify that the OPC item paths remain unchanged after the module replacement. In installations where a Modbus TCP gateway bridges Experion data to a third-party system, no gateway reconfiguration is needed as long as the register map is tag-based rather than slot-address-based.

Downtime Control During System Migration

Minimizing unplanned downtime during an HLAI module replacement requires a structured hot-swap protocol. Begin by placing all affected control loops in manual mode at the Experion operator station. This prevents the C300 controller from acting on stale or zero-value inputs during the module removal window. For critical process loops — particularly flow, pressure, or temperature inputs feeding interlock logic — coordinate with the process safety team to confirm that placing the loop in manual does not violate any SIS (Safety Instrumented System) bypass procedures.

With loops in manual, navigate to the I/O module status display in Experion Station and confirm the MC-TAIH12 slot shows a faulted or offline state. Remove the module by releasing the front latch and sliding it clear of the IOTA connector. Insert the replacement MC-TAIH12 51304337-150 firmly until the latch engages. The C300 controller will detect the new module within seconds and begin the initialization handshake over FTE. Monitor the module status LED — a solid green indicates successful backplane communication. If the LED flashes amber, check the IOTA cable seating and verify the module firmware is compatible with the installed Experion PKS release.

Once the module reports healthy in Experion Builder, return each control loop to automatic mode one at a time, verifying that the process variable reading matches the expected field value before proceeding to the next loop. This staged return-to-auto approach protects against wiring errors that might otherwise cause a process upset. Total elapsed downtime for a single-module swap using this procedure is typically under 15 minutes for an experienced DCS technician, making the MC-TAIH12 replacement one of the lowest-risk maintenance interventions in the C300 platform.

For facilities that cannot tolerate any control interruption, a redundant I/O strategy using paired HLAI modules with the MC-TAIH12 in a redundant IOTA configuration allows hot-swap without placing loops in manual. Confirm your existing chassis and FTA assembly supports redundant I/O mode before planning this approach.

Retrofit Support FAQ

Q1: Is the MC-TAIH12 51304337-150 a direct drop-in replacement for an existing HLAI module in my C300 chassis?
Yes. The MC-TAIH12 51304337-150 is form-fit-function compatible with the original Honeywell HLAI module for the Series C I/O platform. No changes to the FTA wiring, Experion tag database, or controller strategy are required for a like-for-like swap. Confirm the part number suffix (-150) matches your existing module to ensure the correct channel count and signal range.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, verify module health in Experion Station (green LED, no fault alarms). Perform a channel-by-channel signal check by comparing the Experion PV reading against a calibrated field reference at each terminal. If any channel shows offset or noise, inspect the corresponding FTA terminal and field wiring before suspecting the module. No re-download of the C300 strategy is required unless the firmware revision differs from the original module.

Q3: Can this module be used in a C200E system or only in C300?
The MC-TAIH12 is designed for the Honeywell C300 controller platform using the Series C I/O chassis and FTE backplane. It is not directly compatible with C200E systems, which use a different I/O bus architecture. If your cabinet contains both C200E and C300 nodes, verify which controller owns the target I/O chassis before ordering.

Q4: What does the 12-month warranty cover?
Each MC-TAIH12 51304337-150 unit is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, backplane communication failures, and channel signal accuracy outside published specifications under normal operating conditions. Units showing physical damage from incorrect installation, overvoltage, or environmental exposure beyond rated limits are not covered. Warranty claims are processed via our sales team with a return authorization number issued within 2 business days.
