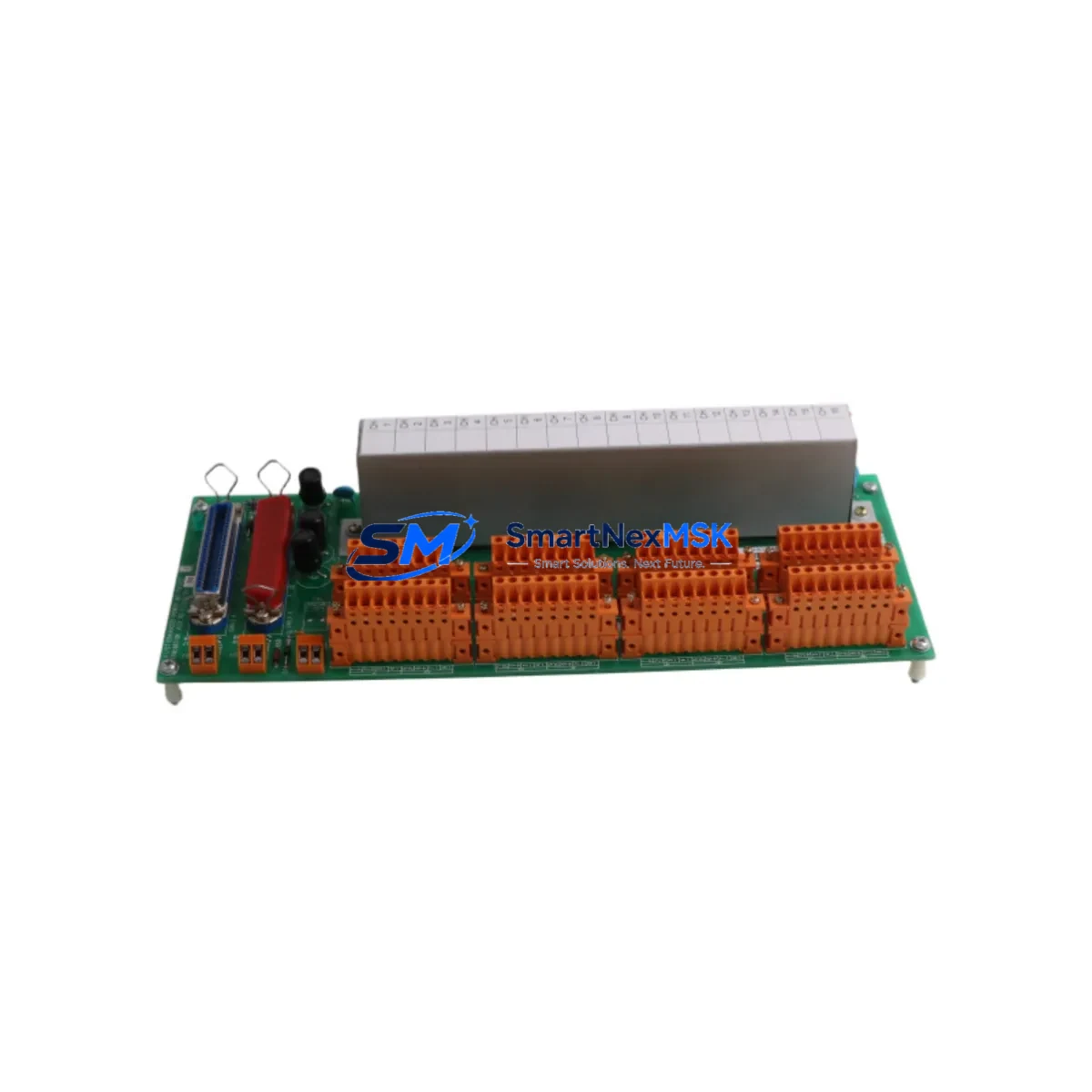

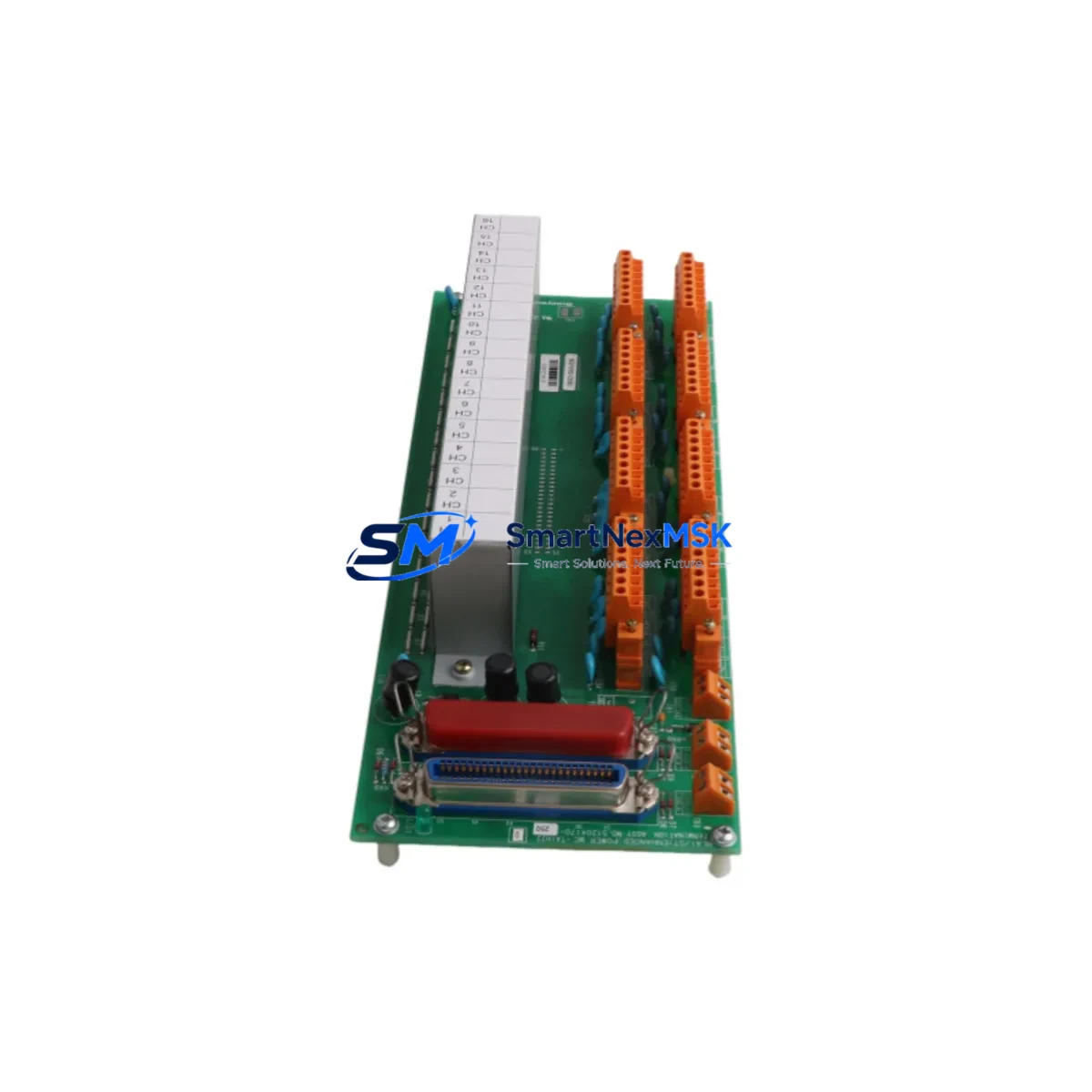

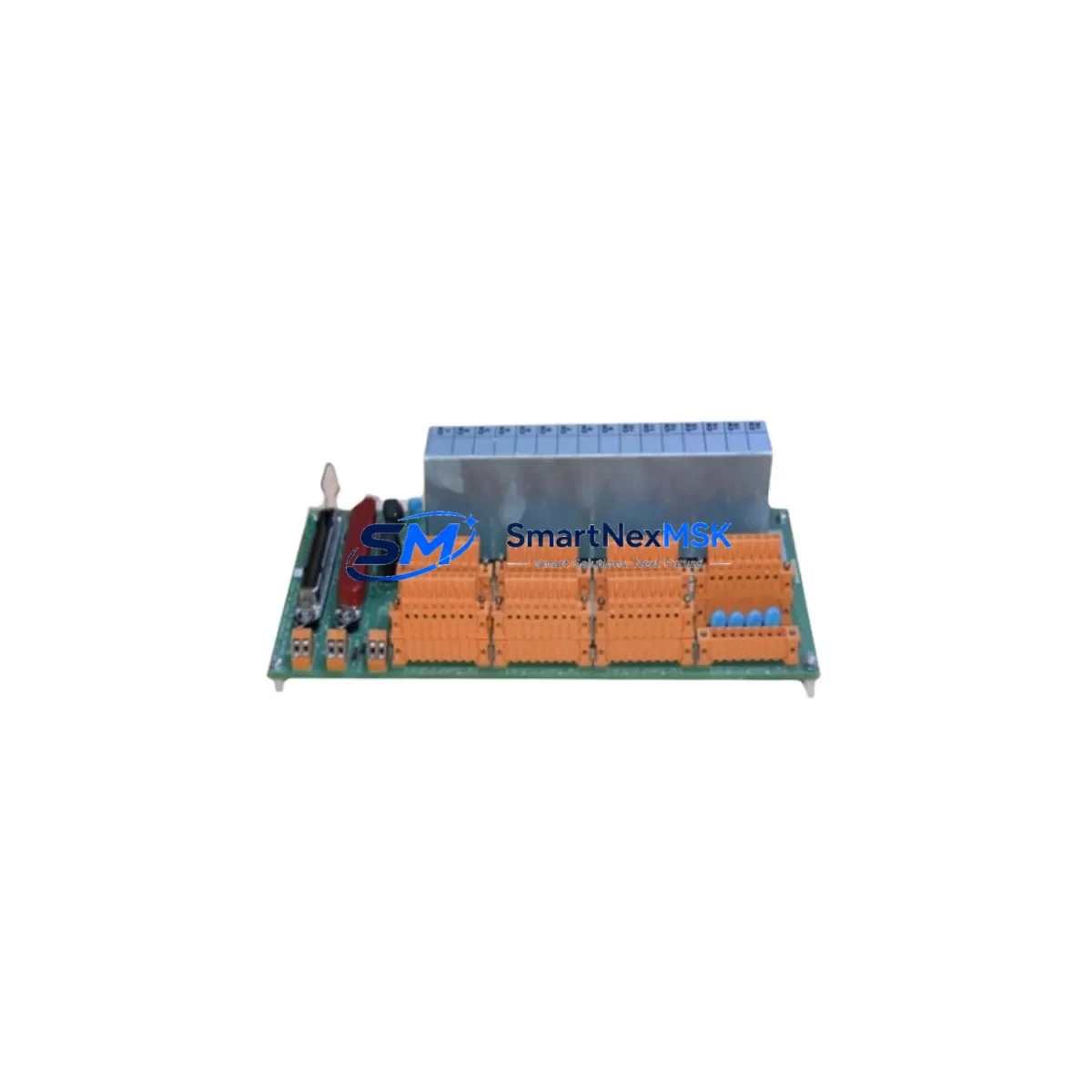

Honeywell MC-TAIH22 51204170-250 HLAI Retrofit Module

Honeywell MC-TAIH22 51204170-250 HLAI Retrofit Module: Compatible Modernization for TPS & TDC 3000 Control Systems

The Honeywell MC-TAIH22 (part number 51204170-250) is a High Level Analog Input (HLAI) module engineered for the TotalPlant Solution (TPS) and TDC 3000 distributed control system platforms. As legacy TPS and TDC 3000 installations approach end-of-support milestones, plant engineers and system integrators increasingly rely on verified replacement modules like the MC-TAIH22 to sustain production continuity, defer full platform migration costs, and maintain process control integrity without unplanned shutdowns.

This module provides 16 channels of high-level analog input, accepting standard 1–5 V and 4–20 mA process signals from field transmitters. It mounts directly into the standard TPS I/O Link backplane and communicates via the proprietary Honeywell I/O Link bus, making it a drop-in replacement for failed or end-of-life HLAI cards in existing control cabinets. Each unit shipped by SMARTNEXMSK undergoes functional verification and is covered by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful MC-TAIH22 retrofit begins well before the card arrives on site. Engineers should audit the existing TPS cabinet layout, confirming the backplane model (typically a standard 15-slot or 30-slot I/O Link chassis) and verifying that the MC-PWRJ1 or equivalent power module can sustain the additional load of a replacement HLAI card. In aging TPS installations, power budgets are often tight, particularly in cabinets that have been expanded over the years with additional I/O modules.

Terminal wiring is the next critical checkpoint. The MC-TAIH22 interfaces with field termination assemblies — most commonly the MC-TAIH02 or MC-TAIH12 FTA — which remain in place during a card swap. Engineers should inspect terminal blocks for corrosion, verify shield grounding continuity, and confirm that each of the 16 field channels is correctly mapped to the replacement module’s pin-out. Where the original FTA is also degraded, simultaneous replacement of both the I/O card and the termination assembly is recommended to avoid introducing a second failure point during commissioning.

Module addressing is handled through the I/O Link slot position and the associated IOP (Input/Output Processor) configuration stored in the TPS database. Before removing the failed card, engineers should export the current IOP configuration and channel engineering unit (EU) parameters from the TPS Engineering Station. This data set — including tag names, alarm limits, filter constants, and historian assignments — must be validated against the replacement module after installation. In most cases, the MC-TAIH22 accepts the existing configuration without modification, but firmware revision mismatches between the IOP and the HLAI card can occasionally require a database update.

For plants considering a longer-term migration from TPS to Experion PKS, the MC-TAIH22 serves as a bridge solution. It allows continued operation of the existing I/O infrastructure while the Experion C300 controller and EHPM (Experion Hybrid Process Manager) are staged in parallel. During this transition, the UCN highway interface, the AM (Application Module), and the HPM (High Performance Manager) remain active, and the MC-TAIH22 continues to deliver analog input data to the control strategy without interruption. This phased approach significantly reduces the capital expenditure and risk associated with a full cutover.

Communication link integrity should also be verified during retrofit planning. The I/O Link cable between the backplane and the IOP cabinet must be inspected for continuity and shielding integrity. In older installations, degraded I/O Link cables are a common source of intermittent communication faults that are incorrectly attributed to the I/O module itself. Replacing the MC-TAIH22 without addressing a faulty I/O Link segment will not resolve the underlying fault.

Finally, HMI display validation is an often-overlooked step. After the replacement card is installed and the IOP is re-enabled, operators should confirm that all 16 analog input channels are displaying correctly on the GUS (Global User Station) or equivalent operator console. Faceplates, group displays, and trend historians should be checked for correct EU scaling and alarm annunciation before the loop is returned to automatic control.

Downtime Control During System Migration

Minimizing downtime during an MC-TAIH22 replacement requires a structured pre-outage preparation protocol. The most effective approach is to inhibit alarms on all 16 channels at the GUS before initiating the card swap, preventing nuisance trips and operator confusion during the brief period when the module is offline. Controllers referencing the affected analog inputs should be placed in manual mode or backed up with last-good-value substitution, depending on the criticality of the process loop.

The physical card swap itself typically takes less than five minutes when the FTA remains in place. The IOP re-initialization and channel verification sequence adds another 10–20 minutes, depending on the number of active tags and the speed of the TPS database server. Total planned downtime for a single HLAI card replacement is generally under 30 minutes when the replacement module has been pre-staged and the engineering team has completed the pre-outage checklist.

For plants that cannot tolerate any process interruption, a parallel redundancy strategy is available on certain TPS configurations. Where redundant HLAI cards are installed, the standby module can be swapped without taking the primary offline. Engineers should confirm whether the existing backplane supports redundant I/O pairing before committing to this approach.

Original program logic — including PID tuning parameters, cascade configurations, and interlock conditions — is preserved in the TPS database and is not affected by the physical card replacement. This is a key advantage of same-platform module substitution: the control strategy remains intact, and the only post-swap verification required is signal-level confirmation at the channel inputs.

Retrofit Support FAQ

Q1: Is the MC-TAIH22 51204170-250 a direct drop-in replacement for the MC-TAIH02 or MC-TAIH12?
In most TPS installations, yes. The MC-TAIH22 uses the same backplane connector and I/O Link interface as earlier HLAI variants. However, engineers should verify the FTA pairing and IOP firmware revision to confirm full compatibility before installation. SMARTNEXMSK can provide the module datasheet and revision history upon request.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, re-enable the IOP from the TPS Engineering Station and perform a channel-by-channel signal verification using a calibrated loop calibrator. Confirm EU scaling, alarm limits, and historian tag assignments match the pre-swap configuration. Return all inhibited alarms and place controllers back in automatic mode only after all 16 channels have been verified.

Q3: Can this module be used during a phased migration from TPS to Experion PKS?
Yes. The MC-TAIH22 is fully compatible with the existing TPS I/O infrastructure and can continue operating alongside newly installed Experion C300 controllers and EHPM modules during a phased migration. This allows plants to modernize the control layer incrementally without replacing all field I/O simultaneously.

Q4: What does the 12-month warranty cover, and what is the shipping lead time?
The 12-month warranty covers functional failure under normal operating conditions, including I/O Link communication faults and channel input failures attributable to the module itself. Physical damage caused by incorrect installation or overvoltage is excluded. Units are shipped from Xiamen with full functional test documentation. Standard lead time is 3–7 business days for in-stock units; expedited shipping is available upon request.
