Honeywell MC-TAOY22 51204172-175 Spare TDC 3000 Automation

Honeywell MC-TAOY22 51204172-175 Maintenance-Ready Spare for TDC 3000 Automation

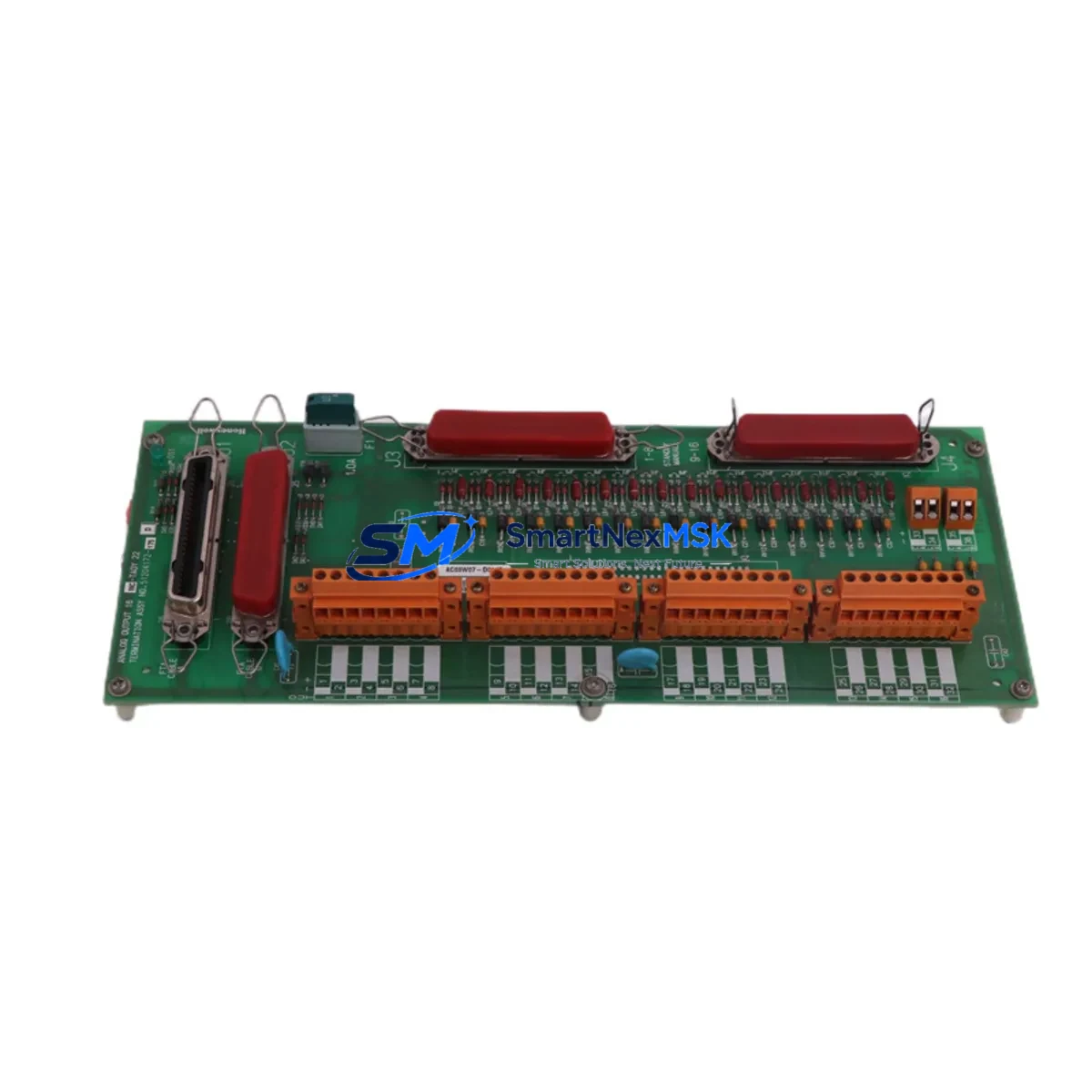

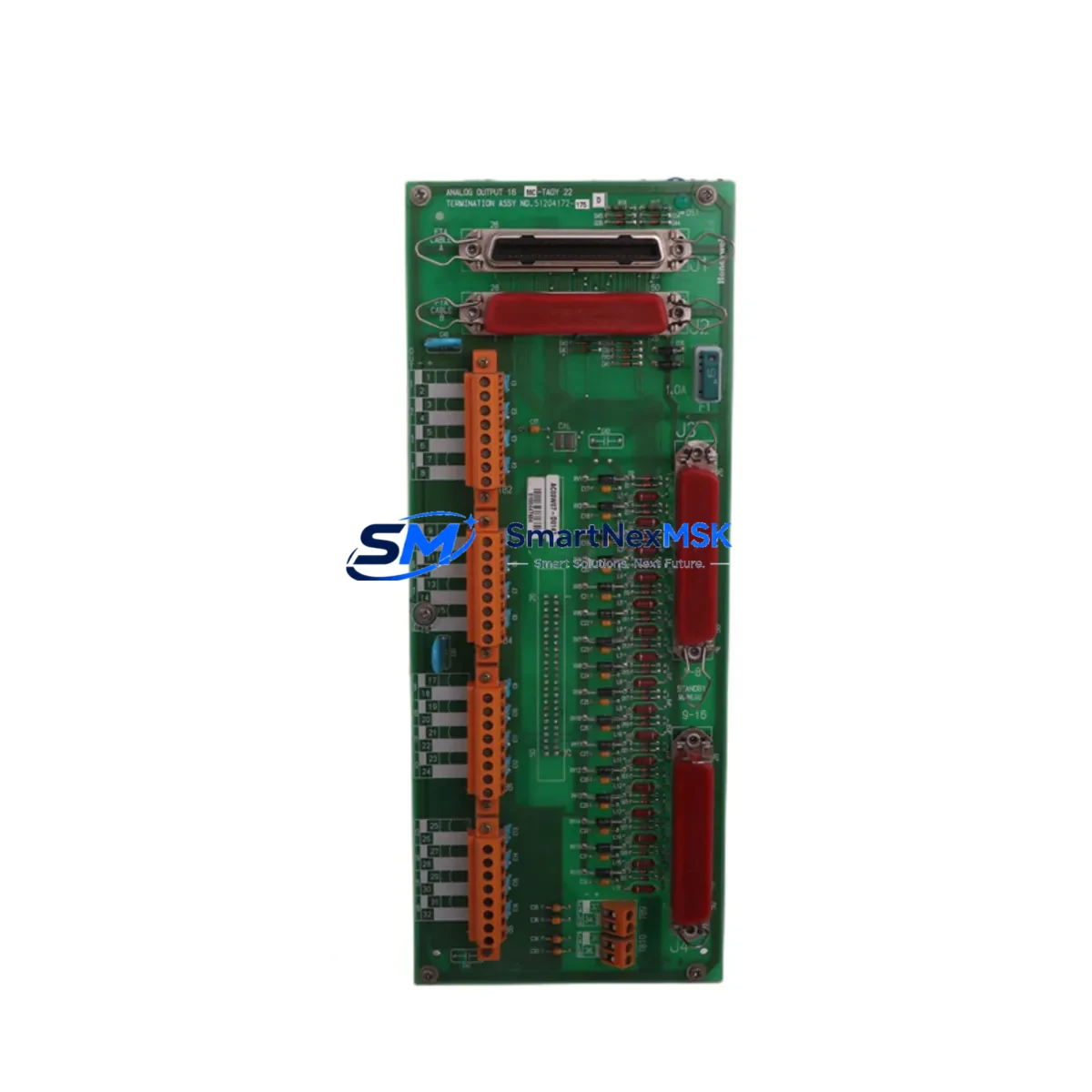

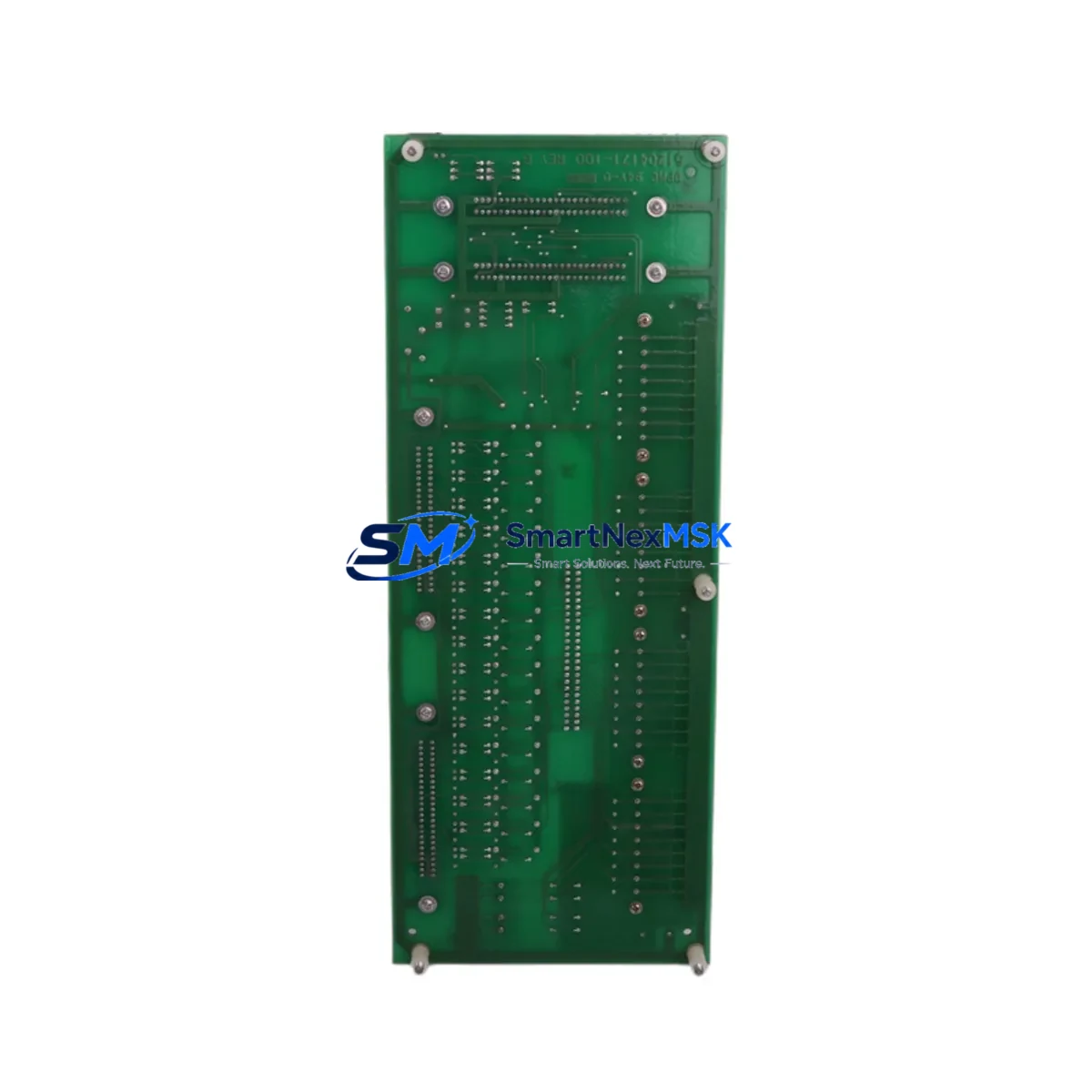

The Honeywell MC-TAOY22 (P/N 51204172-175) is an original analog output module designed for the TDC 3000 and Experion PKS distributed control systems. For maintenance engineers managing aging DCS infrastructure, this module represents a critical spare that directly governs 4–20 mA analog output signals to field devices including control valves, variable-frequency drives, and positioners. Unplanned failure of an analog output channel can trigger immediate process shutdown, making pre-positioned stock of the MC-TAOY22 a non-negotiable element of any serious spare parts strategy.

At SMARTNEXMSK, every MC-TAOY22 51204172-175 unit is sourced from verified OEM supply chains, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty. Our inventory is maintained to support both emergency same-day dispatch and scheduled maintenance procurement cycles, ensuring your control room is never left waiting on a critical component.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the MC-TAOY22 51204172-175, the scope of inspection should extend well beyond the module itself. A disciplined site inspection of the surrounding control cabinet and I/O subsystem is essential to prevent repeat failures and ensure the replacement module operates within specification from day one.

Begin with the 24 VDC backplane power supply — verify output voltage stability and ripple under load, as a degraded power rail is a common root cause of premature analog output module failure. Inspect the MC-PDPY22 or equivalent power distribution module for signs of thermal stress or connector oxidation. Next, audit the field termination assembly (FTA) and associated terminal blocks: corroded or loose screw terminals introduce resistance that distorts 4–20 mA loop accuracy and can be misdiagnosed as module failure.

For the I/O loop itself, check the field wiring continuity and loop resistance against the instrument data sheet for each connected device. If the plant uses HART-capable field instruments, confirm that the replacement MC-TAOY22 variant supports HART pass-through if required by your control strategy. Review the MC-TAIX11 or MC-TAIX22 analog input modules in the same card cage — a failing input module can generate erroneous feedback that masks an output module fault during diagnostics.

Communication integrity should also be verified: inspect the Highway Addressable Remote Transducer (HART) modem or multiplexer connections if HART asset management is in use. For systems running Honeywell UCN (Universal Control Network) or LCN (Local Control Network) coaxial cable segments, check termination resistors and cable shielding continuity — network degradation can cause intermittent module communication errors that appear as hardware faults.

In the same maintenance window, it is good practice to inspect relay output modules such as the MC-TDOY22 for contact wear if they share the same process interlock logic, and to verify the status of any signal isolators or loop-powered barriers installed between the DCS output and intrinsically safe field zones. Finally, confirm that the Honeywell Experion PKS controller or TDC 3000 AM/HPM node firmware is current and that the module address configuration matches the replacement unit before powering up.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module part number (MC-TAOY22, P/N 51204172-175) against the cabinet label and system configuration database. Cross-reference with the Honeywell TDC 3000 I/O module compatibility matrix to ensure the replacement revision is accepted by the host controller.

Step 2 — Safe isolation: Place the affected control loop in manual mode at the operator station. Notify field operators of the impending output freeze. If the process permits, drive the output to a safe state (e.g., valve closed or minimum position) before extraction.

Step 3 — Module extraction and inspection: Remove the MC-TAOY22 from the card cage. Inspect the backplane connector pins for damage or contamination. Clean the card cage slot with dry compressed air if debris is present.

Step 4 — Replacement installation: Insert the new MC-TAOY22 51204172-175 firmly into the card cage slot. Verify the module status LED sequence on power-up — a solid green indicates successful initialization and communication with the host controller.

Step 5 — Loop verification: From the engineering workstation, perform a channel-by-channel output test across the full 4–20 mA range. Confirm field device response at 4 mA (0%), 12 mA (50%), and 20 mA (100%) setpoints. Document results in the maintenance management system.

Step 6 — Return to automatic: Transfer the control loop from manual to automatic. Monitor the process variable for stability over the first 15–30 minutes of operation. Update the spare parts inventory record and initiate a replenishment order to restore buffer stock.

This workflow minimizes mean time to repair (MTTR) and ensures the replacement MC-TAOY22 is validated in service before the maintenance team leaves the site — a critical discipline for 24/7 continuous process plants.

Spare Parts Support FAQ

Q1: Is the MC-TAOY22 51204172-175 compatible with both TDC 3000 and Experion PKS systems?
Yes. The MC-TAOY22 with P/N 51204172-175 is designed for the Honeywell TDC 3000 platform and is also compatible with Experion PKS and PlantScape systems that utilize the same I/O backplane architecture. Always verify the firmware revision of your host controller against the module compatibility table in the Honeywell system documentation before installation.

Q2: What is your pre-shipment testing process and how does the 12-month warranty work?
Every MC-TAOY22 unit shipped by SMARTNEXMSK undergoes functional output verification across all analog channels prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are supported by our technical team with replacement or repair at no additional cost.

Q3: Can I use the MC-TAOY22 as a direct replacement for an older revision of the same module?
In most cases, yes — Honeywell maintains backward compatibility across revisions of the MC-TAOY22 within the TDC 3000 I/O family. However, we recommend confirming the specific revision level required by your system configuration with our technical sales team before ordering, particularly for systems running older TDC 3000 AM or HPM firmware versions.

Q4: How quickly can you ship, and do you support emergency procurement?
SMARTNEXMSK maintains buffer stock of the MC-TAOY22 51204172-175 to support emergency dispatch. In-stock units can be shipped same-day or next business day via express courier to minimize plant downtime. Contact our team directly for urgent requirements and we will confirm availability and lead time within 2 business hours.
