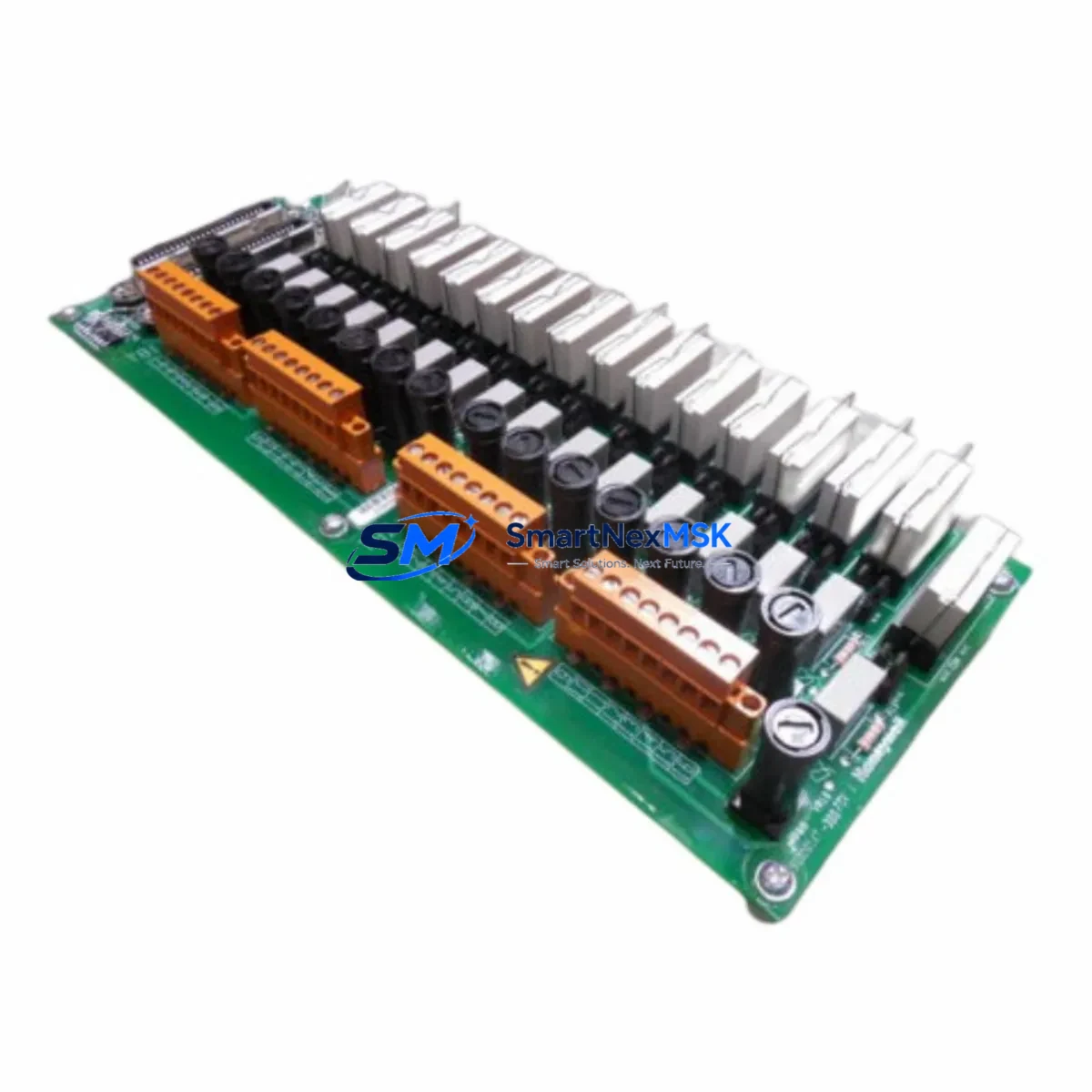

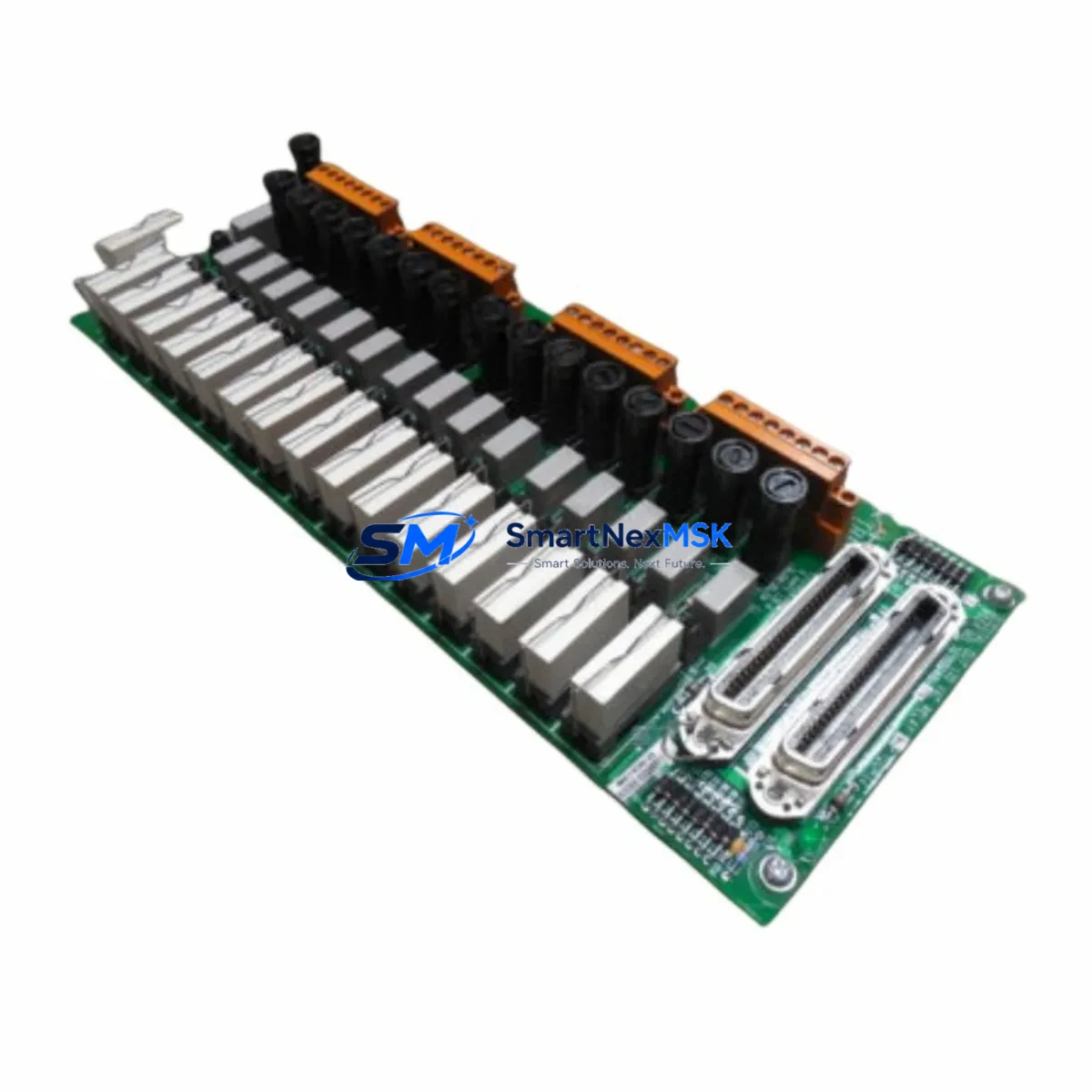

Honeywell MC-TDOR12 51309148-175 Safety Relay Output Module

Honeywell MC-TDOR12 51309148-175 Safety Relay Output Module: Reliable Control for Harsh Industrial Sites

In continuous-process industries where a single control failure can cascade into a plant-wide shutdown or a safety incident, the integrity of every relay output channel matters. The Honeywell MC-TDOR12 51309148-175 is a 12-channel digital relay output module engineered for the TDC 3000 and Experion PKS distributed control system platforms — two of the most widely deployed DCS architectures in refining, power generation, and heavy manufacturing. Designed to operate reliably inside high-density control cabinets exposed to electrical noise, thermal cycling, and continuous 24/7 duty, this module delivers the switching precision and fault tolerance that safety-critical relay output circuits demand.

Unlike general-purpose relay boards, the MC-TDOR12 51309148-175 is built to Honeywell’s ruggedized specification for field-hardened DCS I/O. Its relay contacts are rated for the inductive and resistive loads common in industrial interlock circuits — motor starters, solenoid valves, alarm annunciators, and emergency shutdown actuators — without the contact bounce or premature wear that degrades control reliability over time. Each channel is individually isolated, preventing a fault on one output from propagating to adjacent channels or back into the controller backplane, a critical protection feature in safety instrumented system (SIS) architectures where spurious trips must be minimized.

The module slots directly into the standard Honeywell I/O termination assembly used across the TDC 3000 and Experion PKS Series C families. When paired with the MC-TAIH04 analog input module, MC-PDIX02 digital input module, or MC-PDOX02 digital output module in the same I/O enclosure, the MC-TDOR12 contributes to a fully coordinated I/O strategy where signal integrity is maintained from field device to controller. The C200 or C300 controller modules managing these I/O assemblies rely on deterministic scan cycles; a relay output module that introduces latency or contact chatter undermines that determinism and creates unacceptable risk in interlock-critical loops.

Surge and transient protection is a key reliability factor in relay output applications. Field wiring connected to relay contacts is often routed through cable trays shared with power conductors, exposing the module to induced transients from motor switching, arc flash events, and lightning coupling. The MC-TDOR12 51309148-175 incorporates internal transient suppression to protect relay coil drivers from voltage spikes that would otherwise cause nuisance trips or coil driver failures. This protection is especially important in petrochemical and mining environments where high-power motor loads and variable-frequency drives generate significant conducted and radiated interference. Complementary surge protection devices installed on the field terminal blocks — such as Honeywell’s own surge arrestor assemblies or equivalent DIN-rail mounted SPDs — further harden the relay output circuit against external transient events.

Thermal management inside a fully populated DCS cabinet is a persistent challenge. The MC-TDOR12 is rated for the extended temperature range typical of Honeywell’s Series C I/O family, tolerating the elevated ambient temperatures that occur when cabinet cooling systems are marginal or when the installation is in a tropical or desert climate. This thermal resilience reduces the risk of relay contact resistance drift — a failure mode that causes intermittent output switching and is notoriously difficult to diagnose during live production. Paired with the XCPU controller module and the appropriate power supply modules (such as the MC-PSIM12 or equivalent redundant power supply assemblies), the MC-TDOR12 operates within a fully redundant power architecture that eliminates single-point power failures from the relay output subsystem.

For maintenance teams managing aging TDC 3000 or Experion PKS installations, the MC-TDOR12 51309148-175 is a direct plug-in replacement that requires no firmware changes or reconfiguration of the controller database. This hot-swap compatibility is essential in continuous-process plants where taking a controller offline for I/O replacement is not operationally feasible. Having a verified spare on the shelf — pre-tested and ready for immediate installation — is the single most effective strategy for minimizing mean time to repair (MTTR) when a relay output module fails during production.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust DCS control cabinet protection strategy for TDC 3000 and Experion PKS installations requires coordinated selection of I/O modules, power supplies, and communication components. The MC-TDOR12 51309148-175 anchors the relay output layer of this strategy, but its reliability depends on the integrity of the surrounding system architecture.

On the input side, the MC-PDIX02 digital input module and MC-TAIH04 analog input module provide the field signal acquisition that drives relay output decisions. If these input modules suffer from signal drift or noise-induced errors, the relay outputs will respond to false conditions — a safety risk in interlock circuits. Ensuring that input modules are equally ruggedized and properly shielded is therefore a prerequisite for reliable relay output operation.

The controller layer — typically a C200 or C300 controller module — executes the control logic that commands the MC-TDOR12’s relay channels. Controller redundancy, where a standby C300 takes over seamlessly on primary failure, ensures that relay output commands continue without interruption even during controller faults. The XCPU controller module used in TDC 3000 configurations provides equivalent redundancy for legacy installations.

Power supply integrity is equally critical. The MC-PSIM12 power supply module and its redundant counterpart supply the 24 VDC rail that powers the I/O backplane. A power supply failure that collapses this rail will de-energize all relay outputs simultaneously — a potentially dangerous condition in fail-energized interlock designs. Redundant power supply configurations with automatic switchover eliminate this single point of failure. Additionally, installing a DIN-rail mounted UPS module upstream of the cabinet power distribution ensures that brief mains interruptions do not cause relay output dropout during critical process phases.

Communication integrity between the I/O assemblies and the controller is maintained through the Honeywell FTE (Fault Tolerant Ethernet) network or the legacy LCN (Local Control Network) in TDC 3000 systems. Network switch redundancy and proper cable shielding prevent communication timeouts that would cause the controller to hold relay outputs in their last state — a behavior that must be carefully evaluated in the safety analysis for each interlock loop. Surge protection on Ethernet ports, using devices such as DIN-rail Ethernet surge protectors, further reduces the risk of communication hardware damage from induced transients on long cable runs between control rooms and field junction boxes.

Critical Industrial Safety Applications

The Honeywell MC-TDOR12 51309148-175 is deployed across a wide range of heavy industrial environments where relay output reliability directly affects process safety and production continuity.

In petrochemical and refining plants, the module controls solenoid valves on emergency depressurization systems, motor-operated isolation valves on high-pressure process lines, and alarm annunciator panels in the control room. The 12-channel capacity allows a single module to manage an entire section of the emergency shutdown (ESD) relay output matrix, reducing the number of modules that must be maintained and the number of potential failure points in the safety circuit.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the MC-TDOR12 drives relay outputs for turbine trip circuits, generator excitation control, and auxiliary equipment interlocks. The deterministic response time of the Experion PKS controller combined with the low-latency relay switching of the MC-TDOR12 ensures that turbine protection actions are executed within the required response window defined by the plant’s safety analysis.

In mining and mineral processing operations, where conveyor systems, crushers, and grinding mills operate under high electrical noise conditions generated by large variable-frequency drives and DC motor controllers, the MC-TDOR12’s transient suppression and channel isolation prevent nuisance trips that would halt production and create hazardous conditions for personnel working near moving equipment.

In water and wastewater treatment plants, the module controls pump motor starters, chemical dosing system actuators, and UV disinfection system interlocks. The extended temperature rating allows installation in outdoor control enclosures in climates where summer temperatures exceed the limits of standard industrial modules.

In metallurgical and steel production facilities, the MC-TDOR12 manages relay outputs for furnace safety interlocks, cooling water system controls, and rolling mill emergency stops — applications where a relay output failure can result in equipment damage, product loss, or personnel injury.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the MC-TDOR12 51309148-175?
A: The 12-month warranty covers all manufacturing defects and functional failures that occur under normal operating conditions within one year of the shipment date. If the module fails to perform its specified relay output functions during this period, we will replace or repair the unit at no additional cost. The warranty applies to the complete module assembly including relay contacts, coil drivers, and backplane interface circuitry.

Q: How is each unit tested before shipment?
A: Every MC-TDOR12 51309148-175 unit undergoes a full functional test prior to dispatch. This includes verification of all 12 relay output channels for correct switching operation, contact resistance measurement, isolation testing between channels and between channels and the backplane connector, and visual inspection of the module housing and connector pins. Units that do not pass all test criteria are quarantined and not shipped.

Q: Is the MC-TDOR12 51309148-175 compatible with both TDC 3000 and Experion PKS systems?
A: Yes. The MC-TDOR12 51309148-175 is designed for use in Honeywell’s Series C I/O architecture, which is shared between the TDC 3000 and Experion PKS platforms. It installs into the standard Series C I/O termination assembly and is recognized by both C200/C300 Experion PKS controllers and the legacy XCPU-based TDC 3000 controllers without requiring any configuration changes to the controller database.

Q: Can you guarantee long-term supply of the MC-TDOR12 51309148-175 for ongoing maintenance programs?
A: We maintain dedicated stock of the MC-TDOR12 51309148-175 and other Honeywell TDC 3000 and Experion PKS spare parts to support long-term maintenance programs at continuous-process facilities. We can discuss scheduled supply agreements for customers who require guaranteed availability of critical spare modules over multi-year maintenance cycles. Contact our team to discuss your specific inventory requirements.
