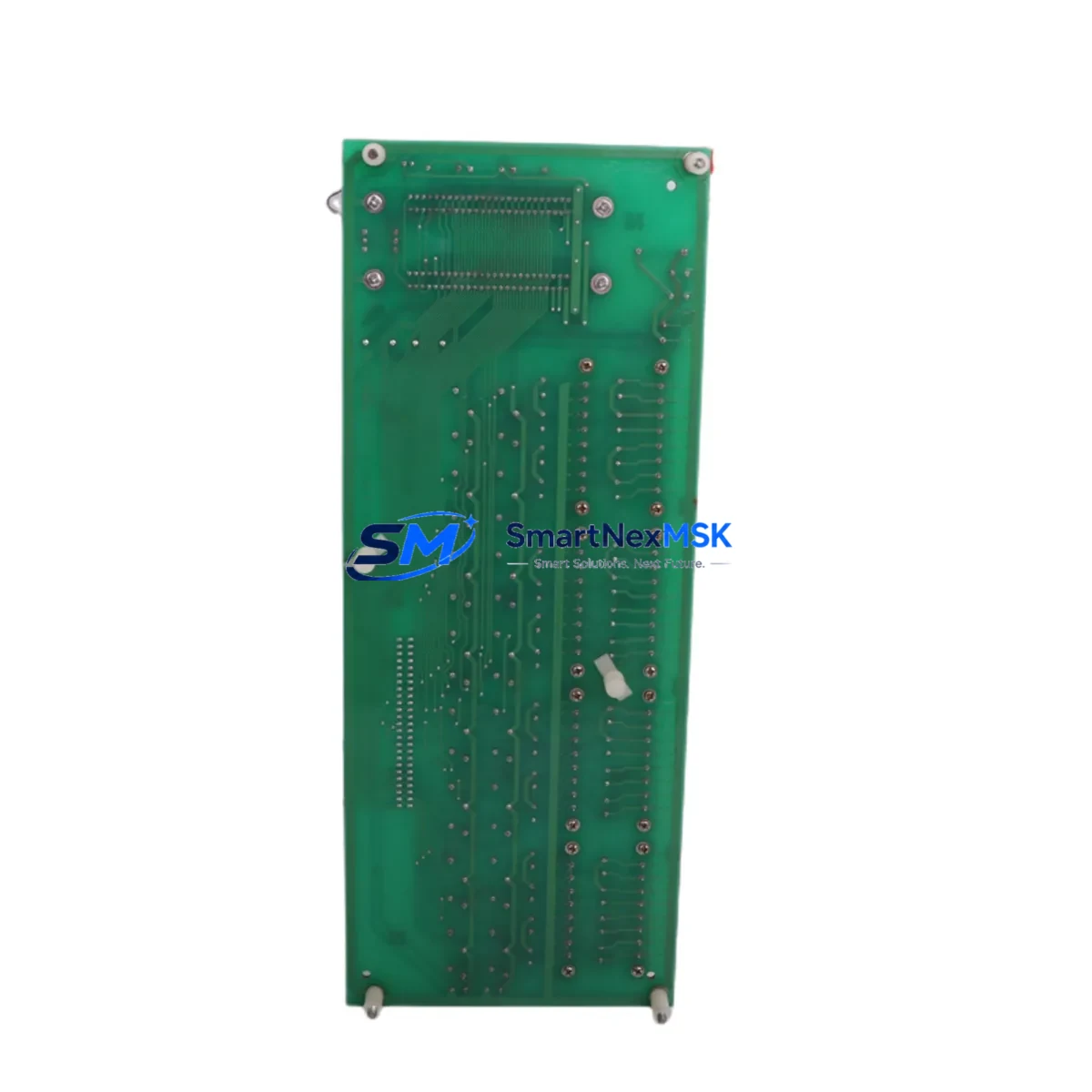

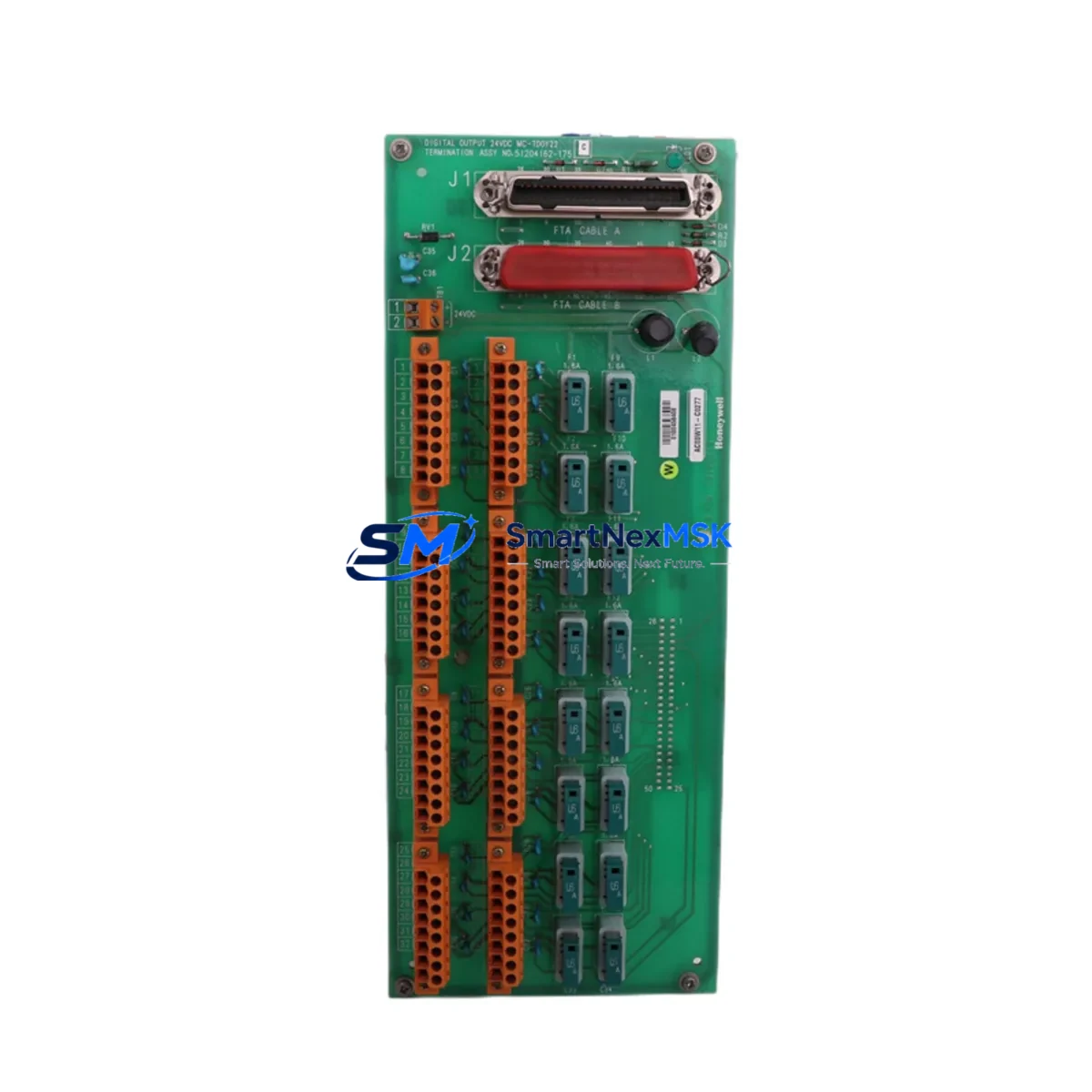

Honeywell MC-TDOY22 51204162-175 DO Termination Module

Honeywell MC-TDOY22 51204162-175 Retrofit-Ready Digital Output HD Termination Module for Experion PKS & TDC 3000 Control Systems

The Honeywell MC-TDOY22 (P/N 51204162-175) is a High-Density Digital Output Termination Assembly designed for seamless integration within Honeywell’s Experion PKS and legacy TDC 3000 distributed control system platforms. As aging DCS infrastructure reaches end-of-support milestones, this module has become a critical retrofit component for facilities undertaking control cabinet upgrades, I/O subsystem expansions, and partial platform migrations — all without requiring a full system replacement.

Whether you are replacing a failed termination board on an active production line, restoring a spare parts inventory for a TDC 3000 installation, or modernizing a legacy control loop to interface with current Experion PKS C300 or C200 controllers, the MC-TDOY22 provides a verified drop-in solution that preserves existing field wiring, terminal assignments, and I/O channel mapping.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the MC-TDOY22 into an existing control architecture requires a structured pre-installation review. Before removing the failed or obsolete termination board, engineers should document the current terminal wiring layout and photograph all field connections. The MC-TDOY22 mounts directly onto the HD I/O IOTA backplane rail — the same backplane used across Honeywell’s Experion PKS I/O subsystem — which means the physical installation is straightforward for technicians already familiar with the platform.

Power budget verification is a mandatory step. The field power supply feeding the DO termination assembly must be confirmed to support the full 22-channel load. In older TDC 3000 cabinets, the MC-PSRP01 or equivalent redundant power supply module should be inspected for output capacity before energizing the new termination board. If the cabinet is also undergoing an I/O expansion, the addition of supplementary MC-PAIH03 analog input termination assemblies or MC-TAIH04 modules on adjacent IOTA slots must be factored into the total power draw calculation.

For sites running a mixed Experion PKS and legacy TDC 3000 environment, the upstream C300 Controller or HPM (High-Performance Process Manager) must be confirmed as the active I/O link master for the affected I/O cabinet. The MC-IOLIM11 I/O Link Interface Module, which bridges the IOTA backplane to the UCN or FTE network, should be checked for firmware compatibility with the replacement termination assembly. In some retrofit scenarios, the MC-IOLIM12 redundant I/O Link module is installed alongside to provide failover capability — a recommended upgrade when the DO termination assembly serves critical interlock or shutdown outputs.

Field wiring on the MC-TDOY22 uses a standard screw-terminal block layout. When replacing a like-for-like unit, the existing field cable harness can be transferred directly without re-termination, significantly reducing installation time and the risk of wiring errors. However, if the replacement is part of a broader cabinet upgrade that includes installing a new MC-TDIY22 Digital Input termination assembly or reconfiguring shared commons on the terminal block, a full point-to-point continuity check is recommended before powering up.

HMI screen validation is often overlooked during termination board replacements. After the MC-TDOY22 is installed and the I/O link is re-established, operators should verify that all DO channel faceplate displays in the Experion Station or legacy GUS (Global User Station) reflect the correct output states. Any discrepancy between the physical output state and the HMI display may indicate a module address conflict or a channel offset error in the controller configuration database.

For sites using Profibus DP or HART field devices on adjacent I/O modules, the communication link integrity should be confirmed after the termination board swap, as physical disturbance of the backplane can occasionally cause transient communication faults on neighboring modules such as the MC-TDOP12 or MC-TAIH22.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a DO termination assembly in a live production environment. The recommended approach is to pre-stage the replacement MC-TDOY22 unit and perform a bench-level functional test before scheduling the field swap. This includes verifying the module’s output relay operation, confirming the terminal block integrity, and checking that the DIP switch address configuration matches the original unit’s settings as documented in the Experion Builder project or TDC 3000 configuration database.

Where process conditions permit, the affected DO channels should be placed in manual mode at the controller level before the physical swap. This prevents spurious output transitions during the brief period when the termination assembly is disconnected from the backplane. For critical interlock outputs, coordination with the process safety team is required to ensure that the manual state does not violate any safety instrumented function (SIF) requirements.

The physical replacement of the MC-TDOY22 on the IOTA backplane is a hot-swap-capable operation on Experion PKS systems with redundant I/O link configuration. On non-redundant TDC 3000 installations, a controlled shutdown of the affected I/O cabinet section is required. In either case, the total field swap time — from module removal to I/O link re-establishment and channel verification — is typically achievable within a planned maintenance window of 30 to 60 minutes, provided that pre-staging and documentation steps have been completed in advance.

After installation, the Experion PKS system will automatically re-scan the I/O link and restore communication with the new termination assembly. A channel-by-channel output verification using the Experion Station’s I/O diagnostic display confirms that all 22 DO channels are responding correctly before returning the affected control loops to automatic mode. All units supplied by SMARTNEXMSK are pre-tested prior to shipment and covered by a 12-month warranty, reducing the risk of repeat downtime from component failure.

Retrofit Support FAQ

Q1: Is the MC-TDOY22 (51204162-175) a direct drop-in replacement for my existing unit?
Yes. The MC-TDOY22 with P/N 51204162-175 is a direct physical and functional replacement for same-revision units installed on Honeywell Experion PKS and TDC 3000 IOTA backplanes. No field wiring changes are required for a like-for-like swap. Confirm the DIP switch address settings match the original module before installation.

Q2: What commissioning steps are required after installing the replacement termination board?
After physical installation, verify that the I/O Link module (e.g., MC-IOLIM11 or MC-IOLIM12) has re-established communication with the new termination assembly. Use Experion Builder or the TDC 3000 configuration utility to confirm all 22 DO channel assignments are correct. Perform a channel-by-channel output test from the Experion Station diagnostic display before returning loops to automatic control.

Q3: Can this module be used with both Experion PKS C300 controllers and legacy HPM controllers?
Yes. The MC-TDOY22 is compatible with both the Experion PKS C300/C200 controller family and the legacy TDC 3000 HPM (High-Performance Process Manager), provided the I/O Link interface module and backplane configuration are consistent with the target platform. For mixed-platform environments, confirm the I/O link firmware revision supports the termination assembly revision in use.

Q4: What does the 12-month warranty cover, and how is it handled?
All MC-TDOY22 units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. Each unit undergoes functional testing prior to dispatch. In the event of a warranty claim, contact our technical support team at sales@smartnexmsk.com with the order reference and a description of the fault. Replacement or repair will be arranged with priority handling to minimize your operational impact.
