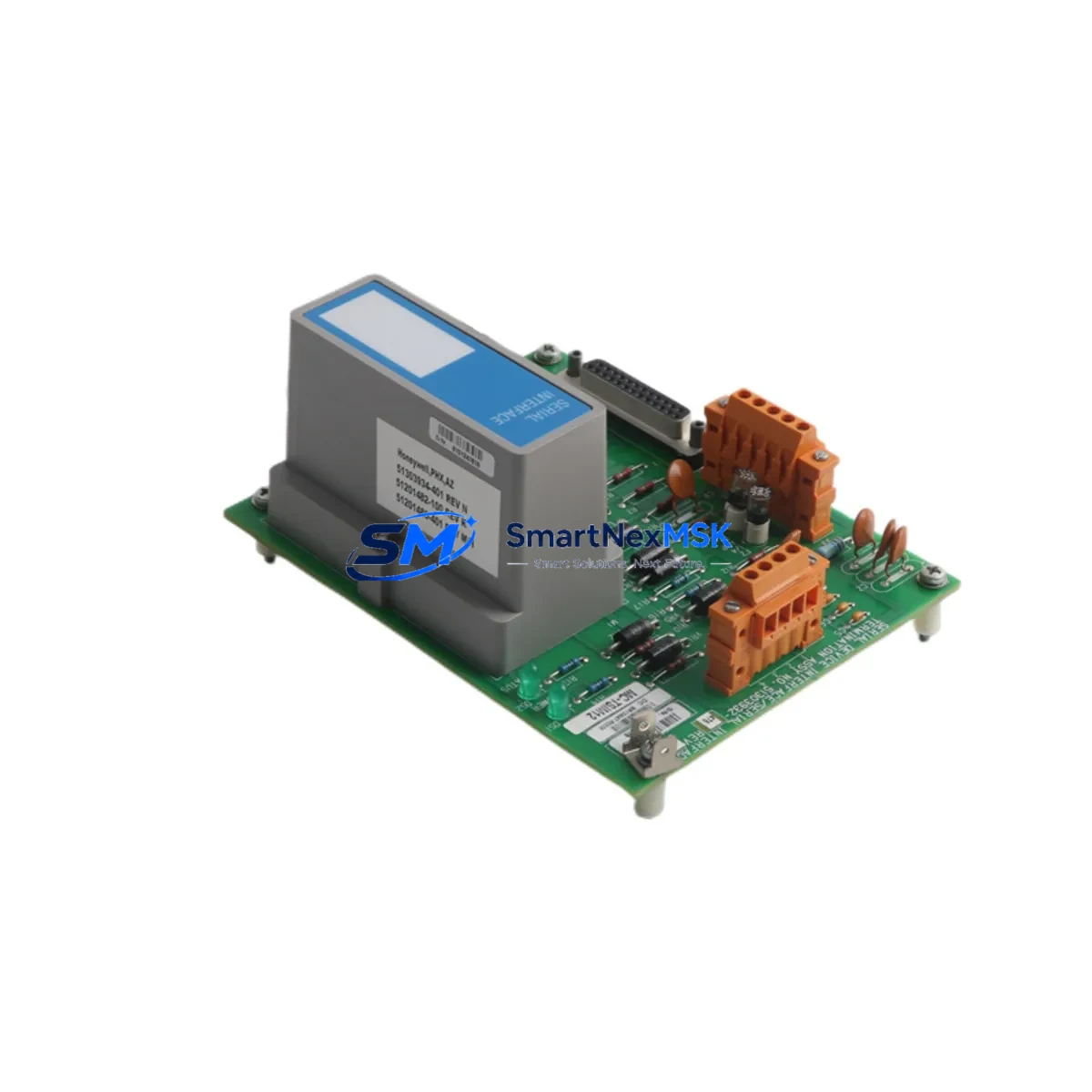

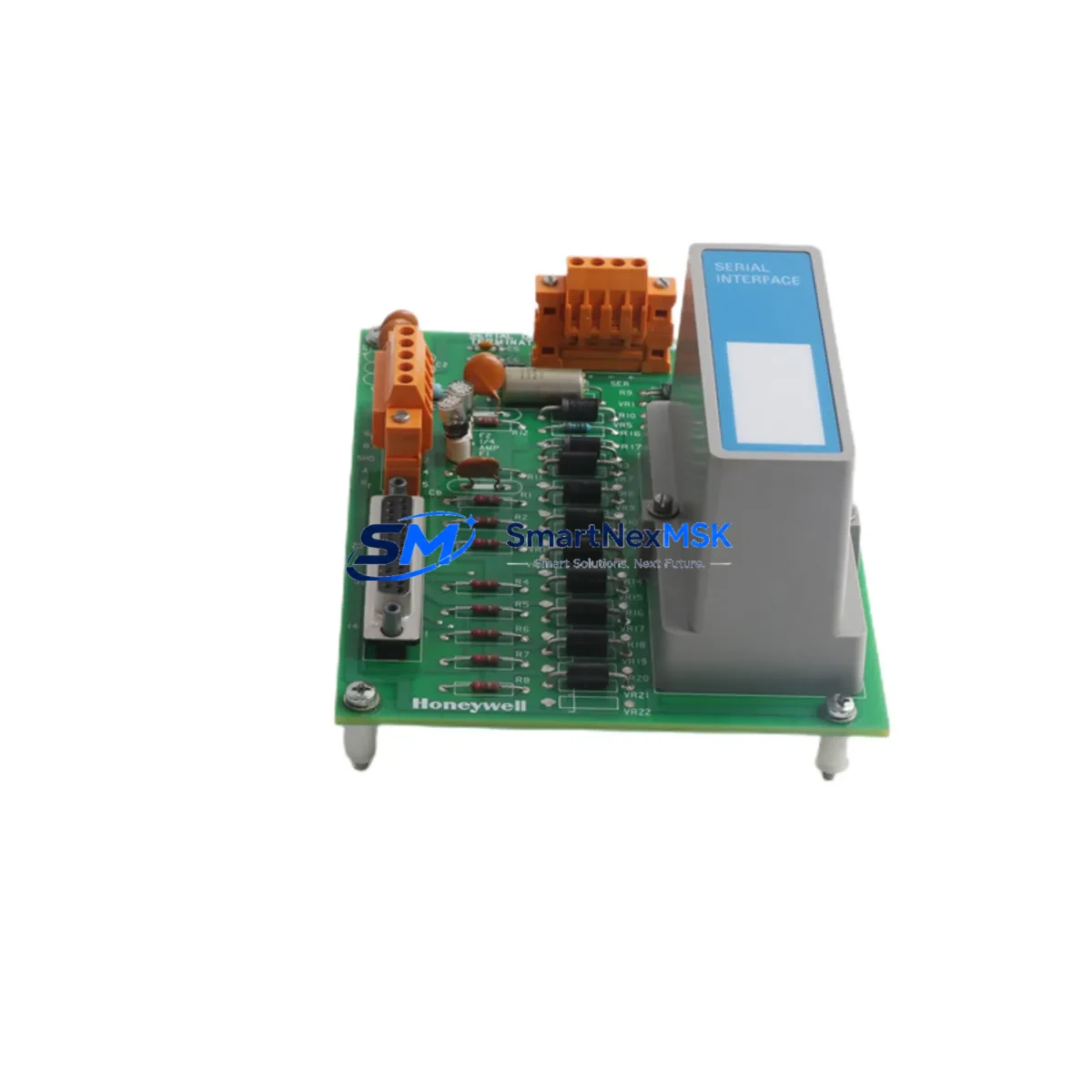

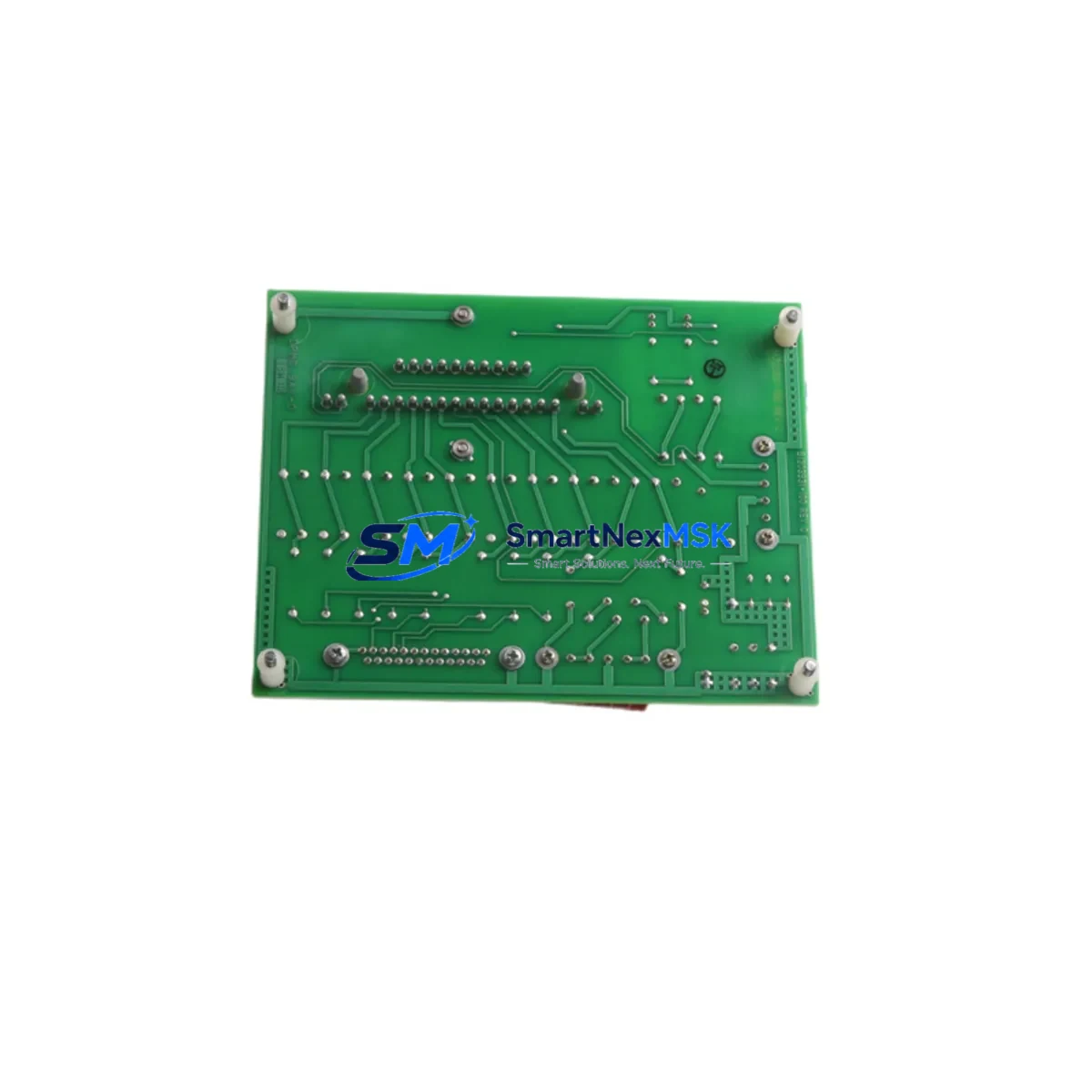

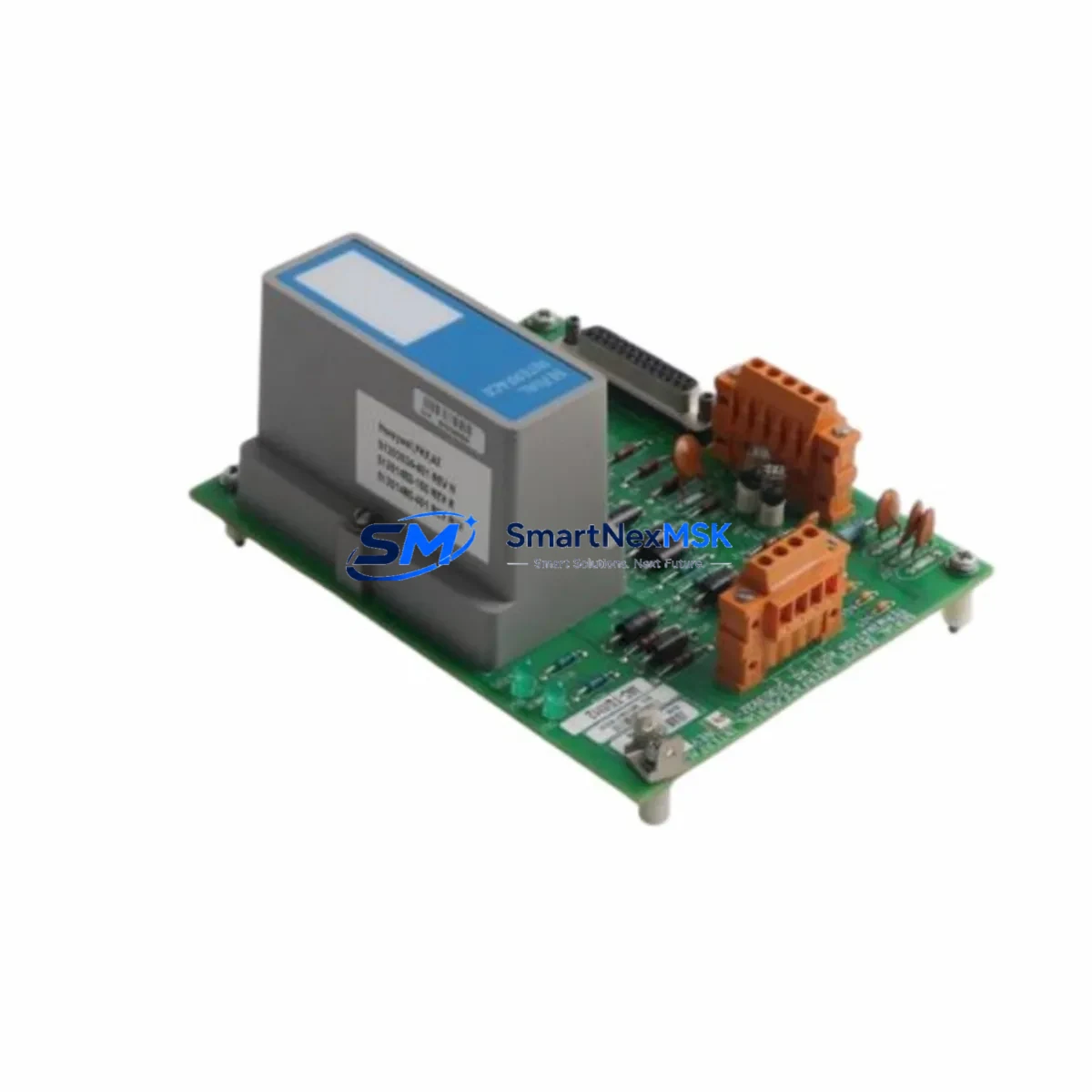

Honeywell MC-TSIM12 51303932-476 Retrofit-Ready Serial Interface for Experion PKS Control Systems
The Honeywell MC-TSIM12 (P/N 51303932-476) is a DCS serial interface module engineered for the Experion PKS distributed control platform. Designed to support both RS-232 and RS-485 serial communication protocols, this module serves as a direct retrofit replacement for aging or discontinued serial interface cards within existing Honeywell C200, C300, and legacy TDC 3000 control architectures. Whether you are modernizing a legacy control cabinet, recovering from an unplanned module failure, or executing a planned system upgrade, the MC-TSIM12 provides a reliable, specification-matched solution that minimizes engineering rework and reduces total downtime.
Industrial facilities operating Experion PKS environments frequently encounter the challenge of sourcing discontinued serial interface components. The MC-TSIM12 addresses this directly — it is stocked, tested, and shipped with a 12-month warranty, giving maintenance engineers and procurement teams confidence in both availability and post-delivery support. Each unit undergoes functional verification prior to dispatch, covering communication link integrity, terminal block continuity, and backplane connector condition.
Upgrade Compatibility Table
| Parameter | MC-TSIM12 (51303932-476) | Notes / Retrofit Guidance |
|---|---|---|
| Communication Protocols | RS-232 / RS-485 | Verify existing field wiring polarity before swap |
| Backplane Interface | Experion PKS C200 / C300 Chassis | Confirm chassis slot assignment in Control Builder |
| Installation Format | DIN-rail / chassis card slot | No mechanical modification required for direct replacement |
| Power Requirement | Supplied via backplane (24 VDC bus) | Verify PM-TSIM or MC-PDOX power module capacity before insertion |
| Module Address / Slot Config | Configured via Experion Control Builder | Re-use existing module tag and address; no re-download required if tag is preserved |
| Communication Compatibility | Modbus RTU, proprietary Honeywell serial | Confirm baud rate, parity, and stop-bit settings match field device |
| Replacement Recommendation | Direct drop-in for MC-TSIM12 variants | Cross-reference P/N 51303932-476 against installed label before ordering |
| Commissioning Focus | Serial link test, loop-back verification | Use Experion Station diagnostics to confirm link status post-swap |
| Warranty | 12 Months | Covers functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the MC-TSIM12 into an operating Experion PKS environment requires systematic pre-work across several engineering disciplines. Before the physical swap, maintenance teams should audit the existing MC-PDOX power distribution module to confirm available backplane current budget — adding or replacing a serial interface card changes the load profile on the chassis power bus. If the chassis is shared with analog input modules such as the MC-TAIX12 or digital output modules like the MC-TDOY22, the cumulative draw must remain within the rated capacity of the installed power supply.
Terminal block wiring is a critical checkpoint. The MC-TSIM12 uses a removable terminal block that should be photographed and labeled before disconnection. RS-485 two-wire and four-wire configurations differ in their A/B polarity assignments, and incorrect reconnection will prevent communication link establishment without generating an obvious hardware fault. Field devices communicating over Modbus RTU — such as variable frequency drives, flow computers, or third-party analyzers — must have their baud rate, parity, and stop-bit settings documented and matched exactly in the replacement module’s configuration.
For facilities running Experion PKS R400 or earlier, the Control Builder project file should be backed up before any hardware change. The module tag assigned to the original MC-TSIM12 must be preserved in the replacement configuration to avoid requiring a full controller download, which would interrupt all I/O on the affected C200 or C300 controller. If the project requires a download, coordinate with operations to schedule a controlled process hold rather than accepting an unplanned interruption.
Where the retrofit involves migrating from a legacy TDC 3000 Data Hiway serial node to an Experion PKS serial interface, additional engineering is required to map the original Hiway addresses to Experion module tags. In these cases, the MC-TSTM02 serial termination module and associated FTA (Field Termination Assembly) wiring panels may also need replacement or re-termination. HMI display faceplates referencing the old Hiway point names will require updates in the Experion Station graphics environment to reflect the new tag structure.
Communication link migration from legacy serial to Ethernet-based protocols is increasingly common in brownfield upgrades. If the long-term roadmap includes transitioning field devices to HART or PROFIBUS DP, the MC-TSIM12 serves as a stable interim solution while the broader protocol migration is planned and budgeted. Pairing it with an MC-ENET01 Ethernet interface module in the same chassis allows parallel operation of serial and network-based I/O during the transition period.
Rack and chassis integrity should also be assessed during the retrofit. Older Experion PKS chassis assemblies may have worn backplane connectors or corroded card guides that increase the risk of intermittent contact faults. If the chassis shows signs of physical wear, replacing the MC-TSIM12 in isolation may not resolve recurring communication faults — a chassis inspection and potential replacement of the MC-RACK08 or MC-RACK16 card cage should be included in the scope of work.
Downtime Control During System Migration
Minimizing process interruption during a serial interface module replacement requires a structured hot-swap or controlled-outage procedure. For non-redundant serial links, the replacement window must be coordinated with the process team to identify a period of low operational impact — typically during a scheduled maintenance window or planned production hold.
Before pulling the existing MC-TSIM12, confirm that the Experion Station operator display shows the serial link in a faulted or offline state, and that any downstream control loops dependent on data from the serial-connected field device have been placed in manual mode. This prevents the controller from acting on stale or invalid process values during the swap interval.
The physical replacement takes less than five minutes for a trained technician: remove the terminal block, extract the module from the card slot, insert the replacement MC-TSIM12, reconnect the terminal block, and observe the module status LED. A solid green LED within 30 seconds indicates successful backplane recognition. The Experion Station diagnostic display should then confirm link re-establishment with the field device.
If the link does not recover automatically, the most common causes are baud rate mismatch, incorrect RS-485 termination resistor state, or a module address conflict in the Control Builder configuration. Each of these can be resolved at the engineering workstation without additional hardware changes, keeping total recovery time well under one hour in most cases. Preserving the original program logic and module tag structure — rather than creating a new module definition — is the single most effective measure for protecting control continuity and reducing commissioning time after the swap.
Retrofit Support FAQ
Q: Is the MC-TSIM12 51303932-476 a direct replacement for all MC-TSIM12 part number variants?
A: The P/N 51303932-476 is the primary revision for the MC-TSIM12 serial interface module. Before ordering, verify the part number on the installed module label. Minor hardware revisions may exist; contact our technical team with your installed P/N and firmware revision for confirmation of cross-compatibility.
Q: What commissioning steps are required after installing the replacement module?
A: After physical installation, verify the module status LED, confirm the serial link status in Experion Station diagnostics, and perform a loop-back or live communication test with the connected field device. If the module tag was preserved in the Control Builder project, no controller download is required. Document baud rate, parity, and wiring configuration before and after the swap.
Q: Does the unit ship pre-tested, and what does the 12-month warranty cover?
A: Yes. Every MC-TSIM12 unit is functionally tested prior to shipment, covering backplane connector integrity, terminal block continuity, and communication port operation. The 12-month warranty covers functional failure under normal operating conditions and excludes physical damage caused during installation or operation outside rated specifications.
Q: Can this module be used in a TDC 3000 to Experion PKS migration project?
A: The MC-TSIM12 is native to the Experion PKS platform and is not directly compatible with TDC 3000 Data Hiway hardware. In a migration project, it serves as the target-platform serial interface after the control architecture has been transitioned to Experion PKS. Engineering support for tag mapping, FTA re-termination, and HMI graphic updates is recommended for full migration projects.
