Honeywell MU-TAIH02 51304453-100 Retrofit-Ready Analog Input Termination Board for Experion PKS Control Systems

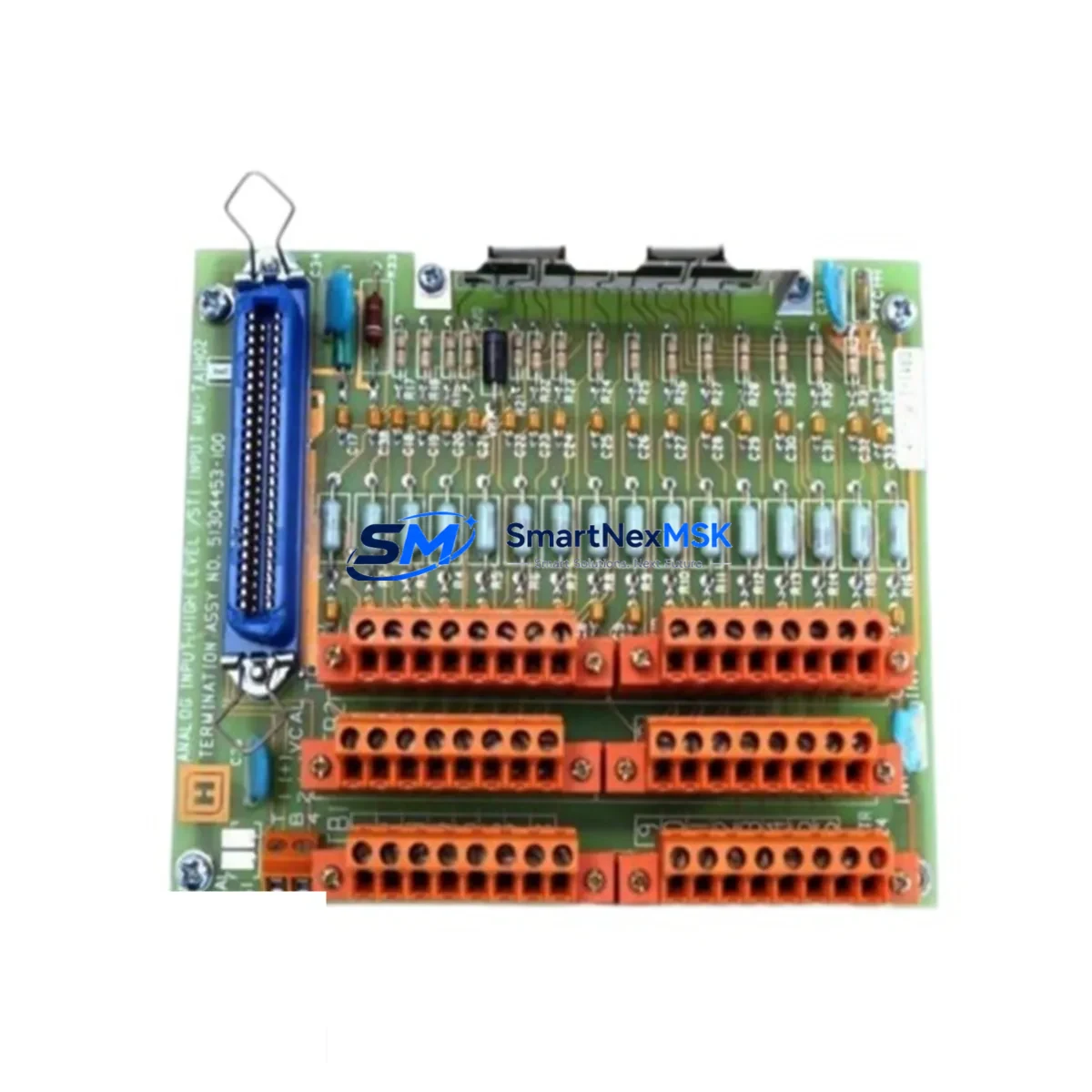

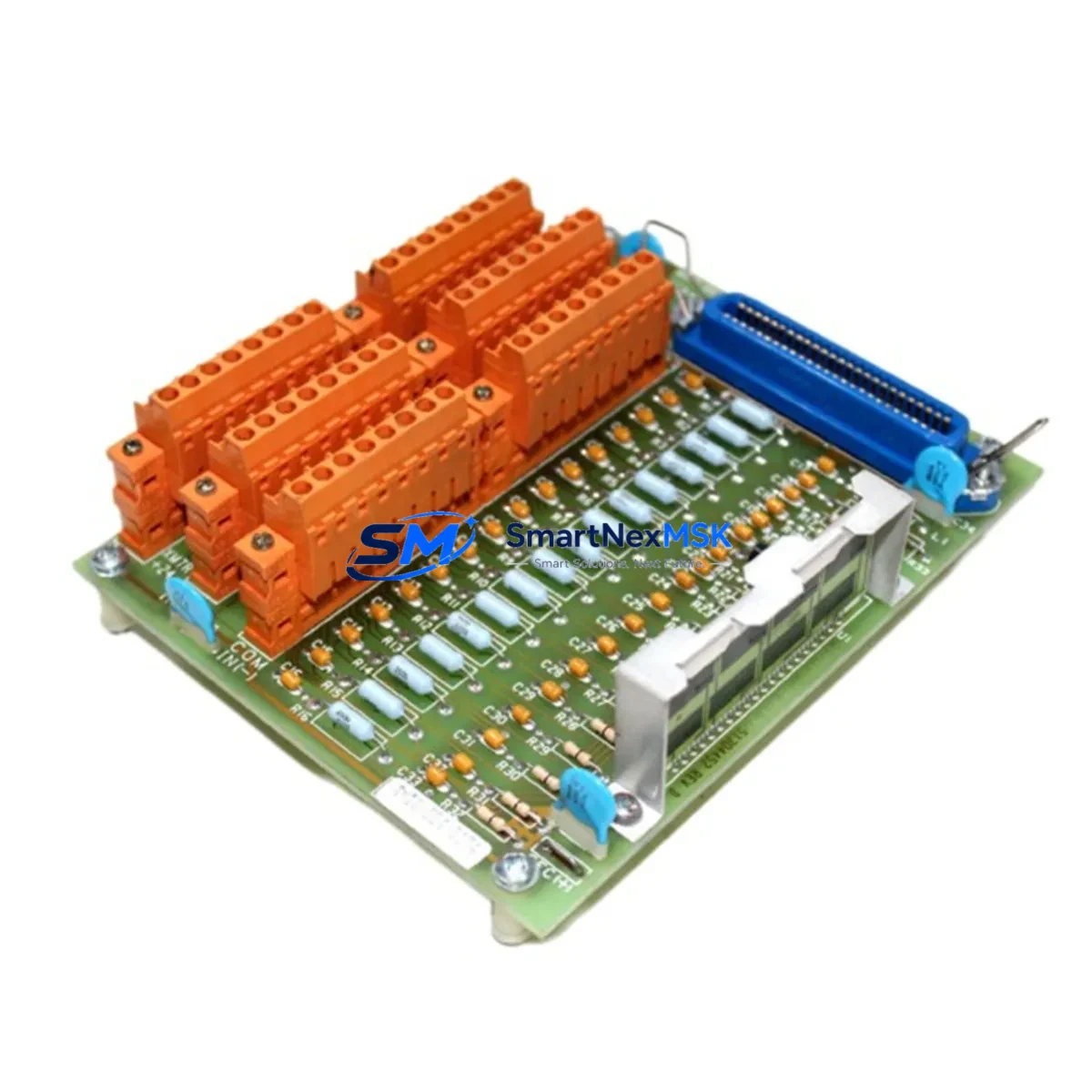

The Honeywell MU-TAIH02 (Part No. 51304453-100) is a high-density analog input termination assembly designed for use within the Honeywell Experion PKS distributed control system platform. As legacy TDC 3000 and PlantScape systems reach end-of-life, the MU-TAIH02 serves as a critical retrofit component enabling engineers to migrate field wiring, I/O signal conditioning, and marshalling infrastructure to the current Experion PKS architecture without full cabinet replacement. This board is engineered for direct compatibility with the Honeywell IOTA (I/O Termination Assembly) backplane ecosystem, supporting seamless integration into existing control cabinets during phased modernization projects.
Whether you are replacing a failed termination board on a running process line, upgrading a legacy analog input channel cluster, or executing a full DCS migration from TDC 3000 to Experion PKS R500 or later, the MU-TAIH02 51304453-100 provides the field-side termination interface required for 4–20 mA analog input signals. Its screw-terminal field wiring design preserves existing cable runs, eliminating the need to re-pull field instrumentation wiring during retrofit — a key factor in minimizing planned shutdown windows.
Upgrade Compatibility Table
| Parameter | MU-TAIH02 51304453-100 | Notes / Retrofit Guidance |
|---|---|---|
| Compatible Platform | Honeywell Experion PKS | Replaces legacy TDC 3000 / PlantScape AI termination assemblies |
| Signal Type | Analog Input (AI), 4–20 mA | Verify field loop power source; IOTA may supply loop power |
| Backplane Interface | IOTA Backplane (Experion PKS) | Confirm backplane slot assignment matches module address in Control Builder |
| Terminal Block Type | Screw-terminal field wiring | Existing field cable terminations can be reused; verify wire gauge compatibility |
| Replacement for | TDC 3000 AI Termination Panels | Cross-reference legacy wiring diagrams before re-termination |
| Communication Protocol | Experion PKS internal bus | No additional protocol configuration required at termination level |
| Installation Requirement | DIN rail / cabinet mount | Confirm cabinet rail spacing and IOTA mounting bracket compatibility |
| Commissioning Requirement | Control Builder module address assignment | Verify I/O module address in Experion PKS Control Builder after installation |
| Warranty | 12-Month Warranty | Covers manufacturing defects; pre-shipment functional test included |
Retrofit Planning for Existing Automation Systems
Successful integration of the MU-TAIH02 51304453-100 into an existing control system requires a structured pre-retrofit assessment. Engineers should begin by auditing the current IOTA backplane configuration and confirming available slot positions within the Experion PKS I/O cabinet. The MU-TAIH02 pairs directly with Honeywell analog input I/O modules such as the MC-PAIH03 or MC-PAIH02 high-performance AI modules, which handle signal processing while the MU-TAIH02 provides the physical field termination interface.
Power budget verification is essential before installation. The Experion PKS power supply module — typically a Honeywell MC-PDPY1 or equivalent redundant power supply — must have sufficient capacity to support the additional I/O load introduced by the new termination assembly and its associated AI module. In cabinets running near capacity, a supplemental power supply or load redistribution across the backplane may be required prior to commissioning.
Field wiring re-termination should follow the original loop wiring diagram. Each analog input channel on the MU-TAIH02 supports a dedicated screw-terminal pair for the positive and negative signal conductors, with shield drain connections routed to the cabinet ground bus. Engineers migrating from TDC 3000 HLAI (High-Level Analog Input) termination panels should verify that existing field cables are compatible with the MU-TAIH02 terminal pitch and conductor cross-section before proceeding.
For systems incorporating Honeywell FIM (Field Interface Module) or FTA (Field Termination Assembly) architectures in parallel with the Experion PKS IOTA system, confirm that the new termination board does not conflict with existing marshalling cabinet layouts. In multi-cabinet configurations, the Honeywell C300 Controller or C200E Controller node assignment must be updated in the Experion PKS server database to reflect the new I/O module address after physical installation.
Where the retrofit involves migration from a legacy Honeywell HPM (High-Performance Process Manager) or AM (Application Module) node, the associated control strategy in Control Builder must be reviewed to ensure that analog input channel references are remapped to the new IOTA-based I/O addresses. HMI display faceplates configured in Experion PKS Station or HMIWeb Display Builder should be validated post-migration to confirm that process variable tags are reading correctly from the new termination assembly.
In projects involving communication protocol migration — for example, transitioning from legacy Controlnet or Data Hiway to Fault Tolerant Ethernet (FTE) — the MU-TAIH02 installation is typically part of a broader I/O subsystem upgrade. In these cases, the Honeywell ENIM (Ethernet Network Interface Module) or FIM4 module may also require reconfiguration to accommodate the updated I/O topology. Coordination between the DCS engineer and the field instrumentation team is critical to ensure that all analog input signal sources are correctly identified and re-terminated without cross-channel errors.
Downtime Control During System Migration
Minimizing unplanned downtime during a DCS termination board replacement is a primary concern for process facilities operating continuous production lines. The MU-TAIH02 51304453-100 supports a phased replacement strategy: because the termination assembly is physically separate from the I/O processing module, it is possible to pre-wire the new MU-TAIH02 on a bench, verify terminal assignments against the loop wiring diagram, and stage the assembly for rapid installation during a planned maintenance window.
Prior to the cutover, engineers should export the current Experion PKS Control Builder configuration as a backup, preserving all existing control module logic, PID tuning parameters, and I/O channel assignments. This backup ensures that if the migration encounters an unexpected issue, the system can be restored to its previous state without loss of control strategy data. The Experion PKS server’s checkpoint and restore functionality should be tested in a non-production environment before the live cutover.
During the physical swap, field loops connected to the affected analog input channels should be placed in manual mode at the DCS operator station to prevent spurious control actions during the re-termination period. Once the MU-TAIH02 is installed and field wiring is re-terminated, the I/O module should be powered up and the channel status verified in the Experion PKS System Display before returning loops to automatic control. A channel-by-channel signal verification — comparing live process values against independent field measurements — should be completed before sign-off.
For facilities that cannot tolerate any interruption to analog input monitoring, a temporary bypass using a portable signal simulator connected to the new termination board can maintain control continuity while the original field wiring is being transferred. This approach is particularly effective in safety-instrumented system (SIS) adjacent applications where analog input signal integrity must be maintained throughout the migration window.
Retrofit Support FAQ
Q1: Is the MU-TAIH02 51304453-100 a direct drop-in replacement for legacy Honeywell TDC 3000 analog input termination panels?
The MU-TAIH02 is designed for the Experion PKS IOTA backplane architecture and is not a mechanical drop-in for TDC 3000 termination panels. However, it serves as the functional replacement in a TDC 3000 to Experion PKS migration, preserving field wiring while upgrading the termination and I/O processing infrastructure. A wiring adapter or re-termination to the MU-TAIH02 screw terminals is required.
Q2: What commissioning steps are required after installing the MU-TAIH02?
After physical installation, the associated analog input I/O module must be assigned the correct module address in Experion PKS Control Builder. Each analog input channel should be verified for correct signal range, engineering units, and alarm limits. A live signal check — comparing the DCS displayed value against a calibrated field reference — should be performed for each active channel before returning the loop to automatic control.
Q3: Can the MU-TAIH02 be used with both redundant and non-redundant I/O module configurations?
Yes. The MU-TAIH02 supports both standard and redundant I/O module configurations within the Experion PKS IOTA architecture. For redundant configurations, confirm that the backplane slot pairing and module addressing are correctly configured in Control Builder to enable automatic failover between the primary and secondary I/O modules.
Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
All MU-TAIH02 51304453-100 units supplied by SMARTNEXMSK are covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes a pre-shipment functional test to verify terminal integrity and backplane connector condition before dispatch. Warranty claims are supported by our technical team at sales@smartnexmsk.com.
