Honeywell MU-TAMR03 51309218-125 Retrofit-Ready Analog Input

Honeywell MU-TAMR03 51309218-125 Retrofit-Ready Analog Input Multiplexer for TDC 3000 Control Systems

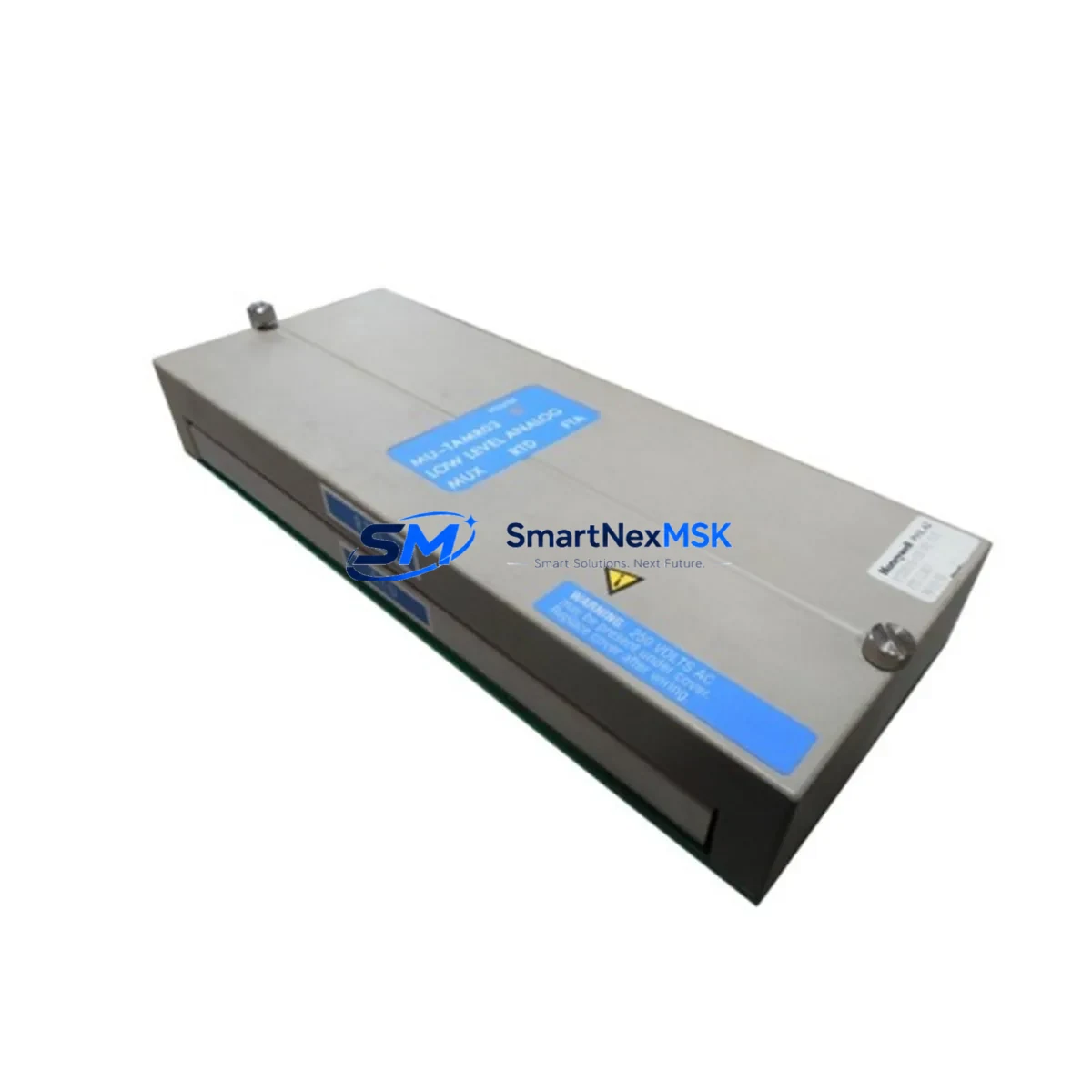

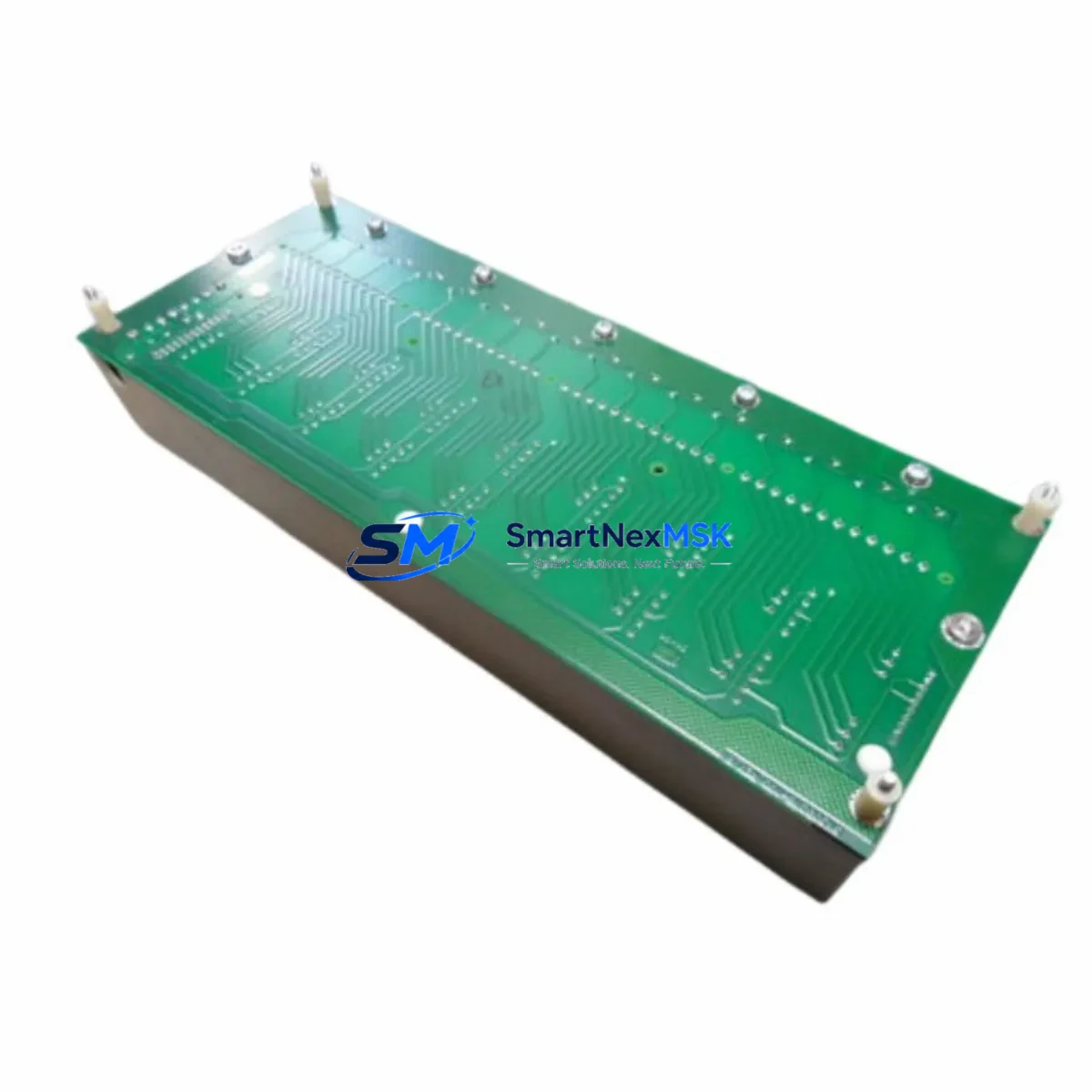

The Honeywell MU-TAMR03 (P/N 51309218-125) is a proven analog input multiplexer module designed for the Honeywell TDC 3000 distributed control system platform. As legacy TDC 3000 installations continue to operate across refineries, chemical plants, and power generation facilities worldwide, the MU-TAMR03 remains a critical spare for maintaining system continuity, supporting planned upgrades, and enabling smooth migration toward the Experion PKS architecture. Whether you are replacing a failed module on an active production line or pre-positioning inventory for a scheduled turnaround, this module delivers the compatibility and reliability your retrofit project demands.

Sourced from verified supply channels and subject to full functional testing prior to shipment, each MU-TAMR03 unit is backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions. Our inventory is maintained to support urgent dispatch requirements, with units available for same-day processing and international freight coordination.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the MU-TAMR03 into an existing TDC 3000 retrofit project requires careful coordination across multiple system layers. Before removing the failed module, engineers should document the current channel assignments, verify the power budget of the affected IOP rack, and confirm that the replacement unit carries the same firmware revision as the installed base where applicable. The TDC 3000 card cage accommodates the MU-TAMR03 in its standard slot configuration, but technicians must confirm backplane connector integrity and inspect the rack’s power supply module — such as the Honeywell MC-PDOX02 or equivalent IOP power supply — to ensure adequate current capacity for the restored analog input count.

Terminal wiring compatibility is a common concern during module replacement. The MU-TAMR03 interfaces with field termination assemblies (FTAs) via the standard Honeywell marshalling cabinet wiring scheme. Before disconnecting field cables, technicians should photograph or document the existing terminal block layout and verify signal types — 4–20 mA, thermocouple, or RTD — against the replacement module’s channel configuration. Associated FTA modules, such as the MC-TAIH02 or MC-TAIR02 series, must be confirmed compatible with the replacement MU-TAMR03 to avoid signal conditioning mismatches.

For sites migrating from TDC 3000 toward Experion PKS, the MU-TAMR03 can serve as a bridging component during phased migration. In this scenario, the existing UCN infrastructure — including the Honeywell NIM (Network Interface Module) and associated UCN coaxial cabling — remains in service while new Experion C300 controllers are introduced in parallel. The MU-TAMR03 continues to handle analog input acquisition on the legacy IOP side, feeding data through the UCN to the Application Module (AM) or History Module (HM) until the full cutover is complete. This approach minimizes the scope of simultaneous changes and reduces the risk of unplanned process interruptions.

I/O expansion planning should also account for the role of the MU-TAMR03 within the broader analog input architecture. Sites that require additional analog input capacity during the retrofit may consider supplementing with Honeywell MU-TAIH02 high-level analog input modules or integrating HART-capable I/O modules where smart field device communication is required. The programming environment — whether Honeywell Control Builder, LCN Configuration Studio, or a third-party DCS migration tool — must be updated to reflect any changes in module addressing, tag assignments, and alarm limits before the replacement module is brought online.

HMI screen updates are frequently overlooked during module replacement projects. If the MU-TAMR03 replacement results in any change to tag names, channel numbers, or engineering unit scaling, the corresponding Honeywell Station displays or Experion HMIWeb displays must be revised to maintain operator visibility. Coordination with the control room team to schedule a brief display freeze or shadow mode during commissioning is recommended to prevent operator confusion during the transition.

Downtime Control During System Migration

Minimizing unplanned downtime during MU-TAMR03 replacement is achievable through disciplined pre-work and a structured hot-swap protocol. Begin by placing the affected process loops in manual control at the operator station, ensuring that the field devices — control valves, transmitters, and associated actuators — are held at their last known safe positions. This preserves process stability while the module is physically exchanged.

Before pulling the module, use the TDC 3000 diagnostic tools or Experion Station to confirm that all channels on the target MU-TAMR03 are in a known state and that no active interlocks or safety logic are dependent on real-time input from those channels. If safety instrumented system (SIS) inputs are routed through the affected module, coordinate with the SIS engineer and obtain a formal bypass authorization before proceeding.

The physical replacement of the MU-TAMR03 in a powered rack should follow Honeywell’s live insertion guidelines. Confirm that the replacement module is fully seated in the card cage before restoring channel assignments in the configuration database. After insertion, monitor the module status LED indicators and verify that the UCN communication link is re-established within the expected initialization window — typically under 60 seconds for a properly configured replacement module.

Once the module is online, perform a channel-by-channel verification against the pre-replacement baseline: confirm signal values, engineering unit scaling, alarm setpoints, and historian tag continuity. Return all affected loops to automatic control only after each channel has been individually verified. Document the replacement event in the plant maintenance management system (CMMS) and update the as-built wiring records to reflect any terminal changes made during the retrofit. This disciplined approach consistently achieves module replacement within a two-to-four-hour maintenance window, well within the tolerance of most planned turnaround schedules.

Retrofit Support FAQ

Q1: Is the MU-TAMR03 51309218-125 a direct drop-in replacement for all TDC 3000 analog input multiplexer slots?
A: Yes. The MU-TAMR03 with part number 51309218-125 is designed as a direct slot replacement within the standard TDC 3000 IOP card cage. No hardware modification to the rack or backplane is required. Verify that the module address DIP switch settings match the original configuration before powering the slot.

Q2: What commissioning steps are required after installing the replacement MU-TAMR03?
A: After physical installation, confirm UCN link establishment via the system diagnostic display, verify all channel tag assignments in the configuration database, check engineering unit scaling for each active channel, and validate alarm setpoints against the current process safety documentation. Place loops in automatic control only after individual channel verification is complete.

Q3: Can the MU-TAMR03 be used during a phased migration from TDC 3000 to Experion PKS?
A: Yes. The MU-TAMR03 is fully compatible with the legacy UCN infrastructure and can continue to operate alongside newly introduced Experion C300 controllers during a phased migration. This allows sites to maintain analog input acquisition on the legacy IOP side while progressively transitioning control functions to the Experion platform, reducing the scope and risk of simultaneous cutover.

Q4: What does the 12-month warranty cover, and what is the pre-shipment testing process?
A: Each MU-TAMR03 unit undergoes full functional testing prior to shipment, including channel integrity verification and communication link validation. The 12-month warranty covers manufacturing defects and operational failures under normal service conditions from the date of shipment. Units that fail within the warranty period are eligible for replacement or repair at no additional cost. Contact our technical team with the unit serial number and failure description to initiate a warranty claim.
