Honeywell MU-TLPA02 51304467-100 Retrofit-Ready Power Adapter

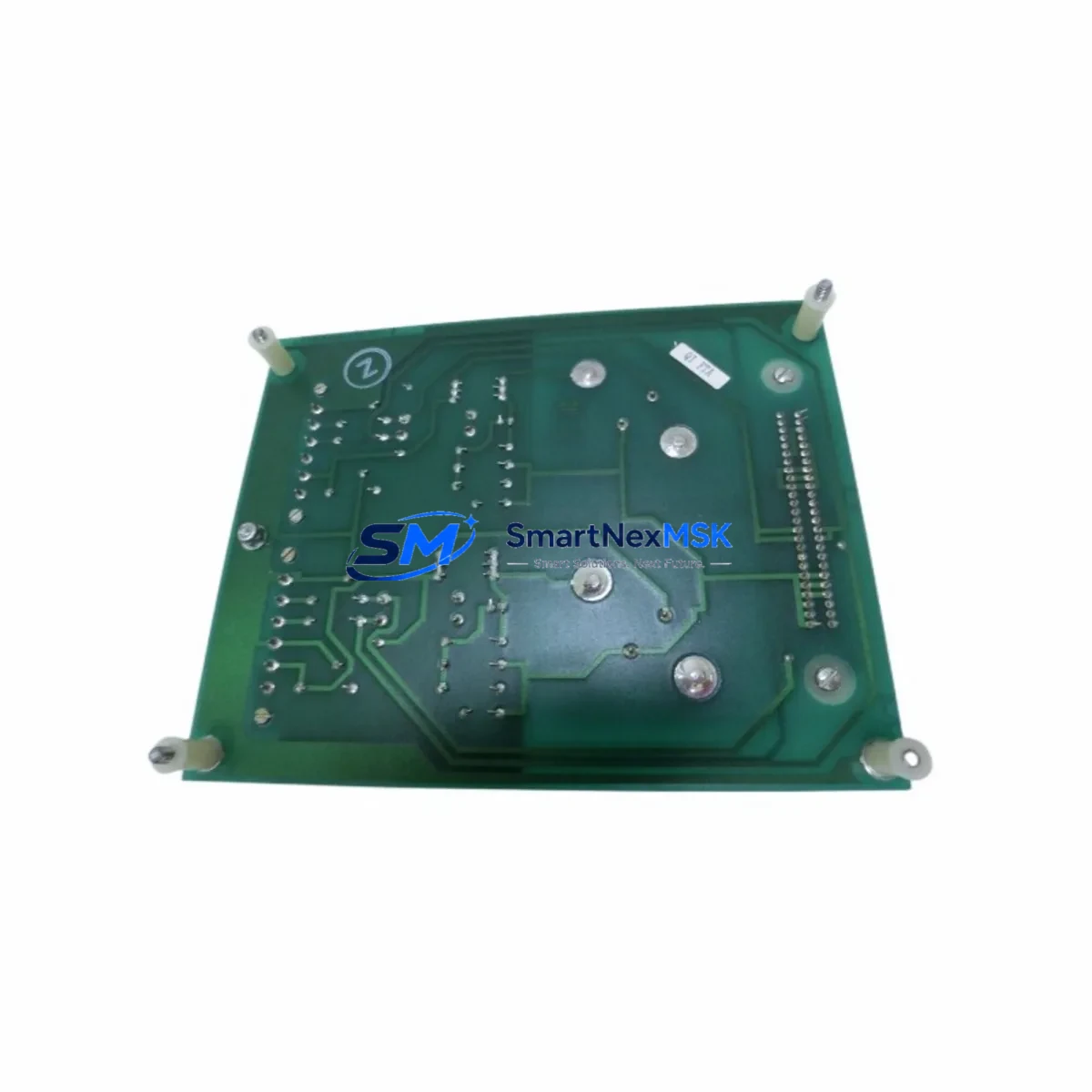

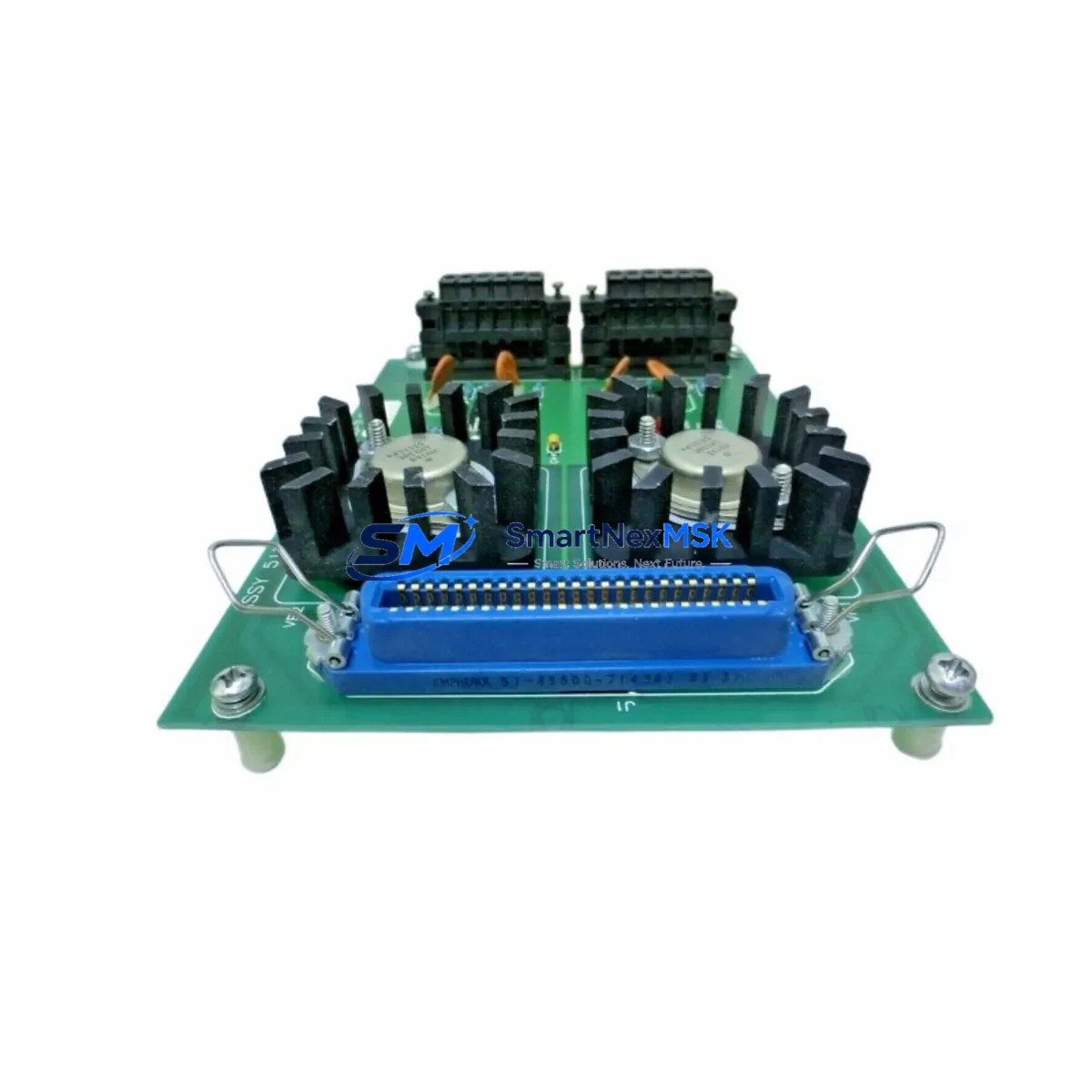

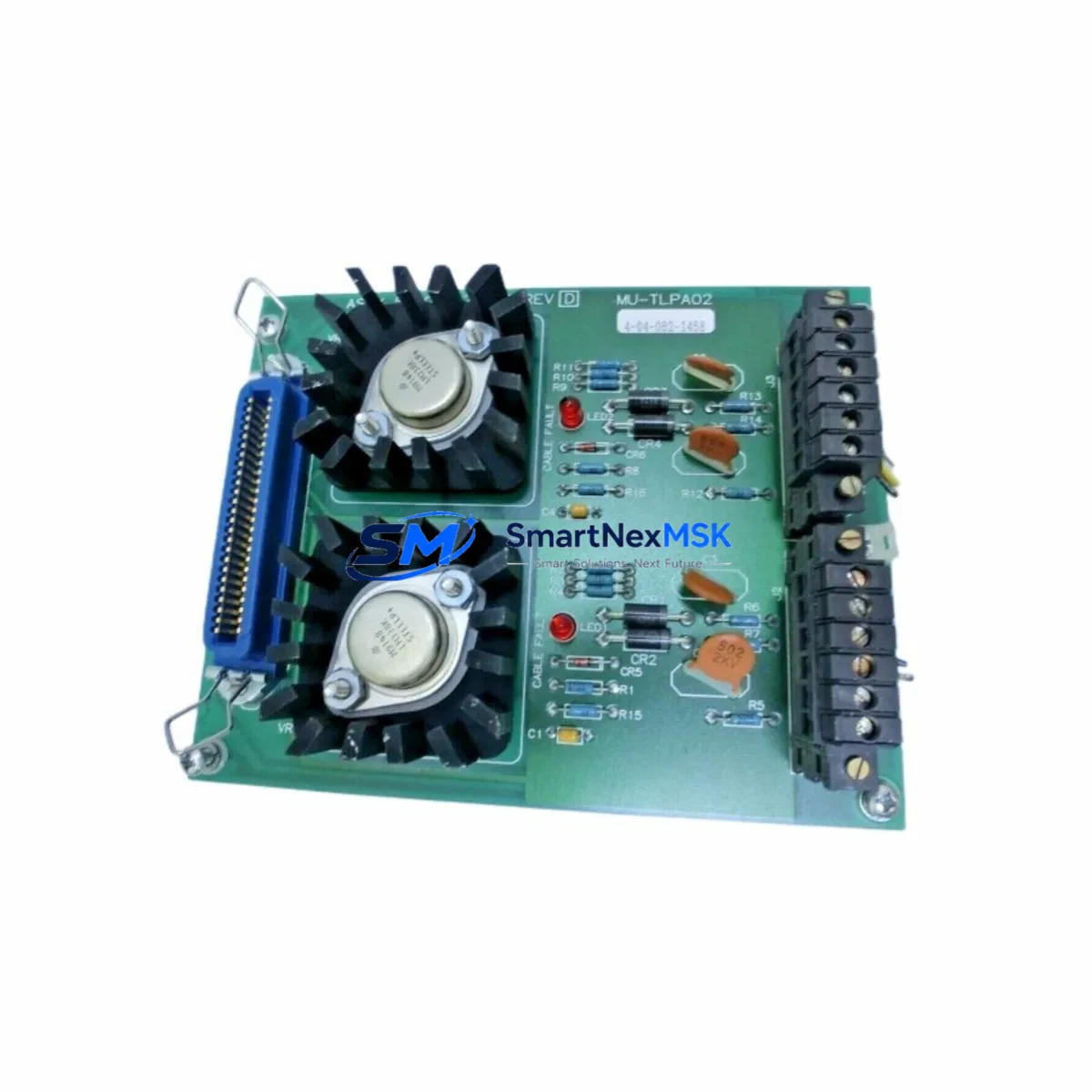

Honeywell MU-TLPA02 51304467-100 Retrofit-Ready Power Adapter Board for Experion PKS Series C Control Systems

The Honeywell MU-TLPA02 (part number 51304467-100) is a Power Adapter Board engineered for seamless integration into Experion PKS Series C distributed control system architectures. As legacy TDC 3000 and PlantScape systems reach end-of-life, plant engineers and automation integrators increasingly rely on the MU-TLPA02 as a validated retrofit component that bridges aging field wiring infrastructure with modern Experion PKS controller platforms. Whether you are executing a phased migration from a TDC 3000 High-Performance Process Manager (HPPM) or upgrading a PlantScape Console Station to a full Experion PKS C300 controller environment, the MU-TLPA02 provides the electrical interface and terminal adaptation required to preserve existing I/O wiring while adopting current-generation control hardware.

In retrofit and upgrade projects, the MU-TLPA02 is typically installed alongside the MU-TAIH02 Analog Input Termination Assembly and the MU-TAOH02 Analog Output Termination Assembly, allowing engineers to reuse existing marshalling cabinet wiring without re-termination. The board interfaces directly with the C300 Controller Module mounted on the ASSY 51304485-100 Series C I/O Link chassis, and is compatible with the standard 24 VDC power distribution rail used across Experion PKS Series C cabinets. When replacing older PMIO termination panels, the MU-TLPA02 eliminates the need for full cabinet rewiring, significantly reducing both engineering hours and scheduled downtime.

Before installation, engineers must verify the following: the cabinet power supply capacity (typically 24 VDC, minimum 5 A per rail segment), the backplane slot assignment within the Series C I/O chassis, the module address configuration in Experion PKS Control Builder, and the integrity of existing field terminal wiring. The MU-TLPA02 uses a standard DIN-rail-compatible mounting profile and connects to the I/O chassis via a keyed backplane connector, preventing incorrect orientation during installation. Terminal block pitch is 5.08 mm, compatible with standard 1.5 mm² field wiring used in most process plant marshalling cabinets.

Program compatibility is a critical consideration in any Experion PKS retrofit. Control strategies built in Experion PKS Control Builder using Function Block Diagrams (FBD) or Sequential Function Charts (SFC) do not require modification when the MU-TLPA02 replaces an equivalent legacy termination board, provided that the I/O channel assignments and module addresses are preserved in the hardware configuration. Engineers should perform a full Control Builder hardware tree comparison before and after the swap to confirm that no orphaned I/O points exist. HMI display associations in Experion PKS Station should also be validated to ensure that process graphics referencing the affected I/O channels continue to resolve correctly after the module replacement.

Communication link integrity must be verified after installation. The Experion PKS Series C architecture uses the FTE (Fault Tolerant Ethernet) network for controller-to-server communication, and the C300 controller connected through the MU-TLPA02’s host chassis must re-establish its FTE link within the expected timeout window. Network switch port assignments, IP address reservations, and FTE redundancy pair configurations should be documented before the retrofit begins and verified against the live system after power-up. If the system includes a Redundant Controller Module pair, both primary and secondary C300 modules must be confirmed as synchronized before returning the loop to automatic control.

Field commissioning after MU-TLPA02 installation should follow a structured loop check procedure: energize the cabinet, confirm 24 VDC rail voltage at the termination board, verify green status LEDs on the associated C300 I/O modules, perform a point-by-point signal injection test for all analog input channels, and confirm output signal delivery to final control elements. Any channel showing a BAD or UNCERTAIN quality status in Experion PKS Station should be investigated at the terminal block level before the loop is returned to service. A commissioning record documenting as-found and as-left signal values for each channel provides the audit trail required for process safety management compliance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful MU-TLPA02 retrofit begins with a thorough audit of the existing control cabinet. Engineers should document the current termination board model, the number of active I/O channels, the field wiring gauge and color coding, and the power supply loading before any hardware is removed. In most Experion PKS Series C cabinets, the power distribution architecture uses a redundant 24 VDC supply pair — typically a Honeywell CC-PWRR01 Power Supply Module or equivalent — feeding a common bus bar. Confirming that the bus bar can support the MU-TLPA02’s inrush and steady-state current draw is a prerequisite for safe installation.

The retrofit scope typically extends beyond the MU-TLPA02 itself. Engineers frequently replace or inspect the following components as part of the same work order: the MU-TAIH02 Analog Input Termination Assembly for thermocouple and RTD inputs, the MU-TAOH02 Analog Output Termination Assembly for 4–20 mA control outputs, the CC-SCMB01 Series C Marshalling Cabinet Bus, and the C300 Controller Module if the existing unit is approaching its recommended service interval. In systems where Profibus DP or HART communication is used for field device integration, the associated Honeywell HART Multiplexer or Profibus DP Gateway module should also be inspected and firmware-updated as part of the retrofit window.

For plants migrating from TDC 3000 architectures, the MU-TLPA02 is often paired with a Honeywell Series C Migration Kit that includes pre-wired adapter harnesses, allowing the existing PMIO cable bundles to connect directly to the new termination board without re-termination at the marshalling panel. This approach reduces the retrofit window from multiple shifts to a single planned outage, and eliminates the risk of wiring errors introduced during manual re-termination. The migration kit approach also preserves the original cable identification labels, maintaining traceability for future maintenance activities.

I/O expansion planning should be addressed during the retrofit design phase. If the plant intends to add new measurement points — such as additional temperature inputs for heat exchanger monitoring or new flow transmitter inputs for a process expansion — the Series C I/O chassis supports additional I/O modules in vacant slots, and the MU-TLPA02 can be installed in a chassis that already hosts other module types, including digital input modules (MU-TDID12) and digital output modules (MU-TDOD12), without requiring a dedicated chassis per module type.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any live-plant control system retrofit. The MU-TLPA02 replacement procedure is designed to be executed within a planned maintenance window, typically four to eight hours for a single termination board swap including loop checks. To protect the original control program logic, engineers should export a full Control Builder snapshot — including the hardware configuration, control strategy, and alarm configuration — before beginning any physical work. This snapshot serves as the recovery baseline if the new hardware configuration requires rollback.

Where process conditions permit, individual control loops should be placed in manual mode at the Experion PKS Station operator console before the associated I/O channels are disconnected. Final control elements — including control valves and variable speed drives — should be confirmed in their safe-state positions before field wiring is disturbed. For loops that cannot be taken to manual (such as safety-instrumented system inputs monitored by a Honeywell Safety Manager or FSC controller), the retrofit must be coordinated with the SIS engineer to ensure that the safety function is not impaired during the maintenance window.

After the MU-TLPA02 is installed and the cabinet is re-energized, the C300 Controller Module will perform an automatic hardware scan and report the new termination board in the Control Builder hardware tree. Engineers should confirm that all previously configured I/O channels appear with GOOD quality status before returning any loop to automatic. A staged return-to-auto sequence — starting with the least critical loops and progressing to primary process control loops — reduces the risk of process upsets caused by accumulated setpoint drift during the manual period. All as-left values should be recorded in the plant maintenance management system (CMMS) before the work order is closed.

Retrofit Support FAQ

Q1: Is the MU-TLPA02 (51304467-100) a direct drop-in replacement for legacy Honeywell PMIO termination boards?
The MU-TLPA02 is designed for Experion PKS Series C and is not a pin-for-pin replacement for TDC 3000 PMIO termination panels. However, when used with the appropriate Series C Migration Kit adapter harnesses, it provides a validated upgrade path that preserves existing field wiring. Engineers should confirm the specific adapter harness part number required for their PMIO cable type before ordering.

Q2: What wiring checks are required before installing the MU-TLPA02?
Before installation, verify that all field cables are correctly identified and labeled, that terminal block screws are torqued to specification (typically 0.5–0.6 Nm for 5.08 mm pitch terminals), that shield drain wires are connected to the cabinet earth bar, and that no open-circuit or short-circuit conditions exist on any field loop. A megger test on field cables is recommended if the cables have been disturbed or if the plant has experienced moisture ingress in the marshalling cabinet.

Q3: Will the existing Experion PKS control strategy require modification after the MU-TLPA02 is installed?
No control strategy modification is required provided that the I/O channel addresses and module slot assignments in Control Builder are preserved during the hardware swap. If the MU-TLPA02 is installed in a different chassis slot than the original board, the hardware configuration must be updated in Control Builder and downloaded to the C300 Controller Module before the new configuration becomes active. HMI graphics in Experion PKS Station do not require rebuilding if the parameter references remain unchanged.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Every MU-TLPA02 unit is functionally tested prior to shipment, including power-on self-test verification, backplane connector integrity check, and terminal block continuity test. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with anti-static packaging and include a test report. Warranty claims are processed with a replacement-first policy to minimize plant downtime. Contact sales@smartnexmsk.com for warranty registration and RMA procedures.
