Honeywell RID-125N-1224 Spare for RID Series Automation

Honeywell RID-125N-1224 Spare for RID Series Automation: Spare Part Replacement & Industrial Downtime Risk Control

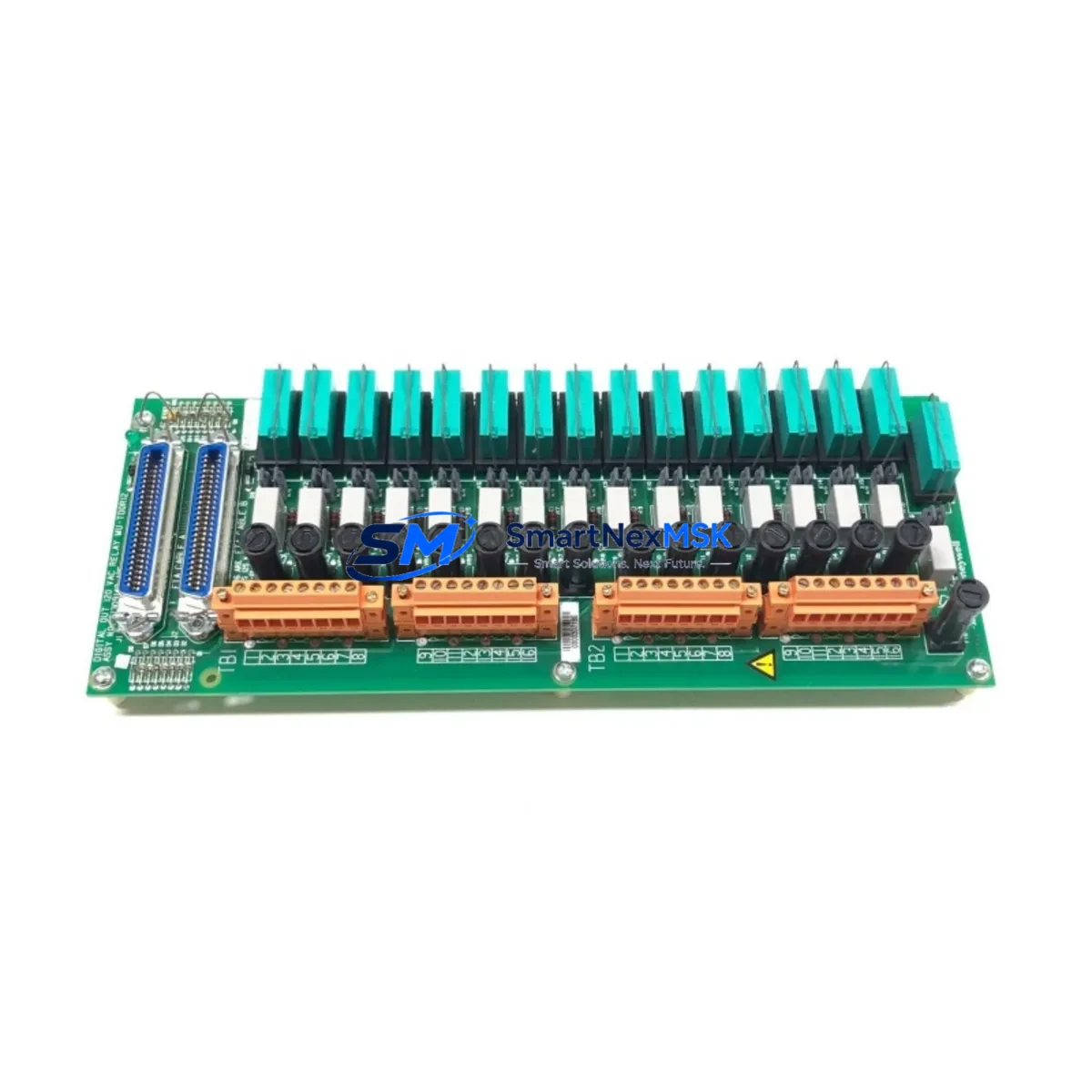

The Honeywell RID-125N-1224 is an original relay interface module engineered for the Honeywell RID Series, widely deployed in DCS architectures, safety instrumented systems (SIS), and process automation control cabinets across oil & gas, chemical, power generation, and heavy manufacturing facilities. As a maintenance-ready spare, the RID-125N-1224 provides direct field replacement capability, enabling maintenance and procurement engineers to restore system continuity with minimal downtime exposure.

This module serves as a critical signal interface between field devices and the control system’s I/O layer. Its 12–24 VDC dual-voltage input range (as indicated by the -1224 suffix) makes it compatible with a broad range of field wiring configurations, reducing the need for rewiring during emergency replacement. Each unit is individually tested prior to shipment and backed by a 12-month warranty, ensuring confidence in both quality and long-term supply continuity.

For facilities operating legacy Honeywell TDC 3000, Experion PKS, or Safety Manager platforms, maintaining a stocked RID-125N-1224 spare is a recognized best practice. Relay interface modules are high-cycle components subject to contact wear, coil fatigue, and insulation degradation — particularly in high-frequency switching or high-ambient-temperature environments. Proactive spare stocking prevents unplanned shutdowns that can cost tens of thousands of dollars per hour in lost production.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned replacement of the RID-125N-1224, maintenance engineers should treat the intervention as an opportunity for a broader control cabinet inspection. The relay interface module sits at the intersection of field wiring and the control system’s digital I/O layer — meaning adjacent components are subject to the same environmental stresses and operational cycles.

Begin by verifying the 24 VDC power supply rail feeding the RID module rack. A degraded Honeywell CC-PWR01 or equivalent DCS power supply module can cause intermittent relay dropout that mimics a faulty RID-125N-1224, leading to misdiagnosis. Simultaneously, inspect the terminal blocks and marshalling strips in the same cabinet section — loose or corroded terminations are a common root cause of relay interface failures in humid or vibration-prone environments.

Check the associated Honeywell CC-TCNT01 communication controller or equivalent network interface module for firmware version alignment, as mismatched firmware can cause I/O scan errors that appear as relay faults. If the RID-125N-1224 is part of a safety loop, also verify the Honeywell FSC (Fail-Safe Controller) I/O modules and their associated signal isolators — particularly galvanic isolators on 4–20 mA loops — to ensure signal integrity is maintained post-replacement.

For facilities using Honeywell Experion PKS, the replacement workflow should include a check of the C300 or C200 controller module health status via the Experion Station HMI. Any pending alarms or diagnostic flags on the associated I/O link should be cleared and verified after the RID-125N-1224 is installed. Additionally, inspect fuse holders and circuit protection devices on the relay output circuits — a blown fuse on the load side is frequently overlooked and can cause a newly installed relay module to appear non-functional.

Procurement engineers building a spare parts list around the RID-125N-1224 should also consider stocking Honeywell RID-125N-2448 modules (the 24–48 VDC variant) if the facility operates mixed-voltage field circuits, as well as Honeywell CC-SCMB02 or equivalent backplane connectors to address mechanical wear on high-cycle racks. A well-structured spare parts kit for this module family typically includes the relay interface module itself, a spare power supply fuse set, one spare terminal block assembly, and a signal isolator for each critical analog loop.

Site Replacement Workflow

The RID-125N-1224 is designed for plug-in field replacement, minimizing the skill level and time required for on-site intervention. Follow this workflow to ensure a safe, compatible, and efficient replacement:

Step 1 — Isolation & Permit: Obtain a work permit and isolate the affected relay output circuit at the field junction box. Do not de-energize the entire rack unless required by site safety procedures — the RID Series supports hot-swap in many configurations, but confirm with your system documentation before proceeding.

Step 2 — Documentation: Photograph the existing wiring and record the terminal assignments before removal. Cross-reference with the as-built loop drawing to confirm the replacement module’s input voltage range matches the installed wiring (12 VDC or 24 VDC coil drive).

Step 3 — Module Swap: Remove the faulty RID-125N-1224 by releasing the locking tab and sliding the module from the rack. Insert the replacement unit, ensuring the connector seats fully. Verify the LED status indicator illuminates correctly upon energization.

Step 4 — Functional Verification: From the Experion Station or equivalent HMI, force the associated digital output and confirm field device response. Check relay contact resistance with a calibrated multimeter if the application is safety-critical.

Step 5 — Documentation & Spare Replenishment: Update the maintenance log with the replacement date, module serial number, and test results. Immediately initiate a purchase order to replenish the consumed spare — lead times for original Honeywell RID Series modules can extend to 4–8 weeks during peak demand periods.

This workflow applies equally to legacy TDC 3000 installations where the RID-125N-1224 may be replacing an older-generation relay module. Compatibility is maintained through the standardized rack interface, but always verify the coil voltage and contact rating against the original specification sheet before installation.

Spare Parts Support FAQ

Q1: Is the RID-125N-1224 compatible with both Honeywell TDC 3000 and Experion PKS systems?
Yes. The RID-125N-1224 is designed for the Honeywell RID Series rack architecture, which is used across TDC 3000, Experion PKS, and Safety Manager platforms. Always verify the rack slot type and backplane connector version against your system’s as-built documentation before installation.

Q2: What is the warranty coverage and how is it validated?
Every RID-125N-1224 unit supplied by SMARTNEXMSK carries a 12-month warranty from the date of shipment. Each module undergoes functional testing prior to dispatch. Warranty claims are supported by our technical team at sales@smartnexmsk.com with a typical response time of 24 business hours.

Q3: How should I verify compatibility before installation if my system documentation is incomplete?
Provide us with your system platform (TDC 3000 / Experion PKS / Safety Manager), the rack model number, and the existing module part number visible on the nameplate. Our engineering support team will confirm compatibility and, where applicable, identify any firmware or hardware revision considerations before shipment.

Q4: What is the recommended spare stocking strategy for the RID-125N-1224?
For facilities with 10 or more RID-125N-1224 modules installed, we recommend maintaining a minimum of 2 units on-site as cold spares. For critical safety loops or remote sites with extended resupply lead times, a minimum of 3–5 units is advisable. SMARTNEXMSK supports long-term supply agreements to ensure consistent availability for multi-year maintenance programs.
