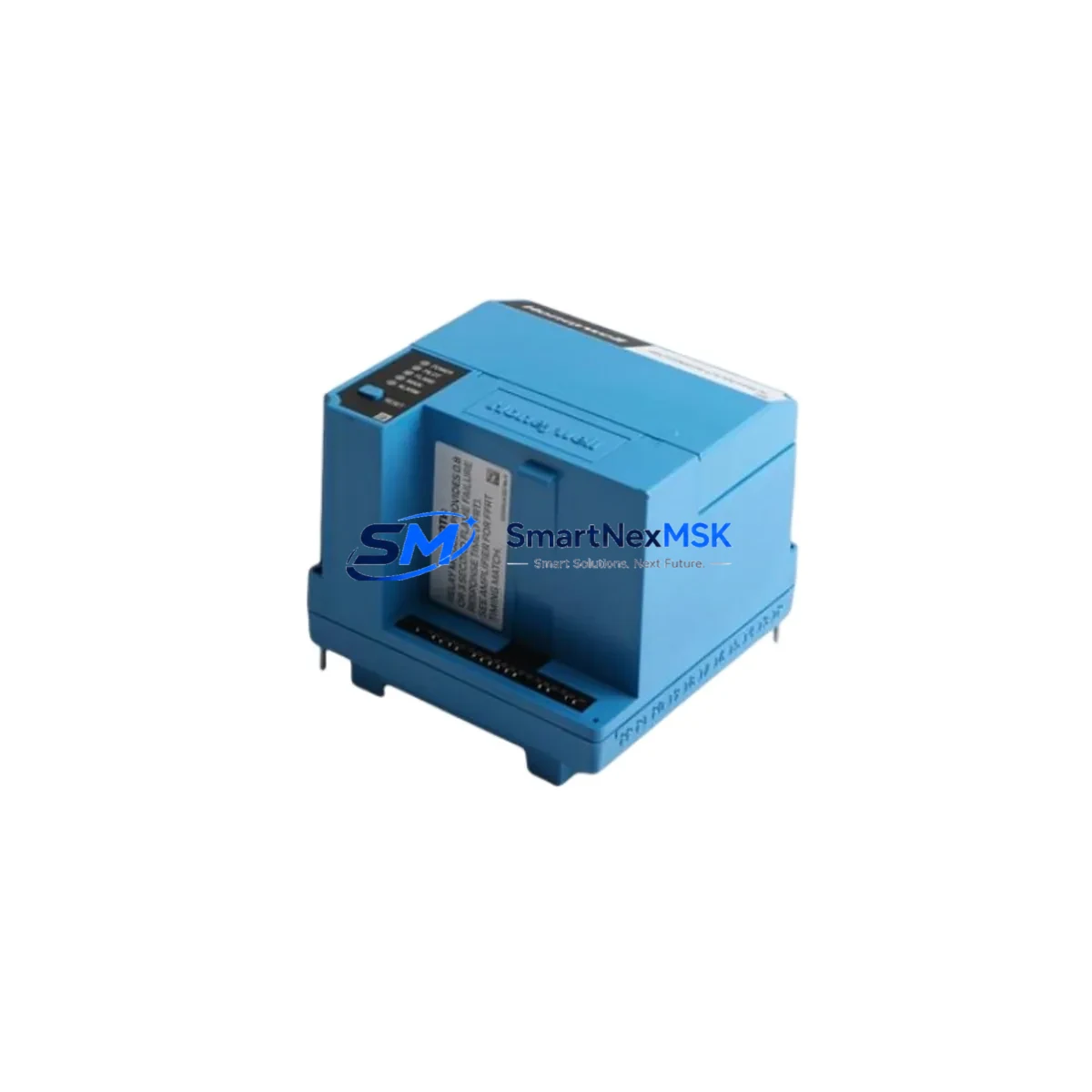

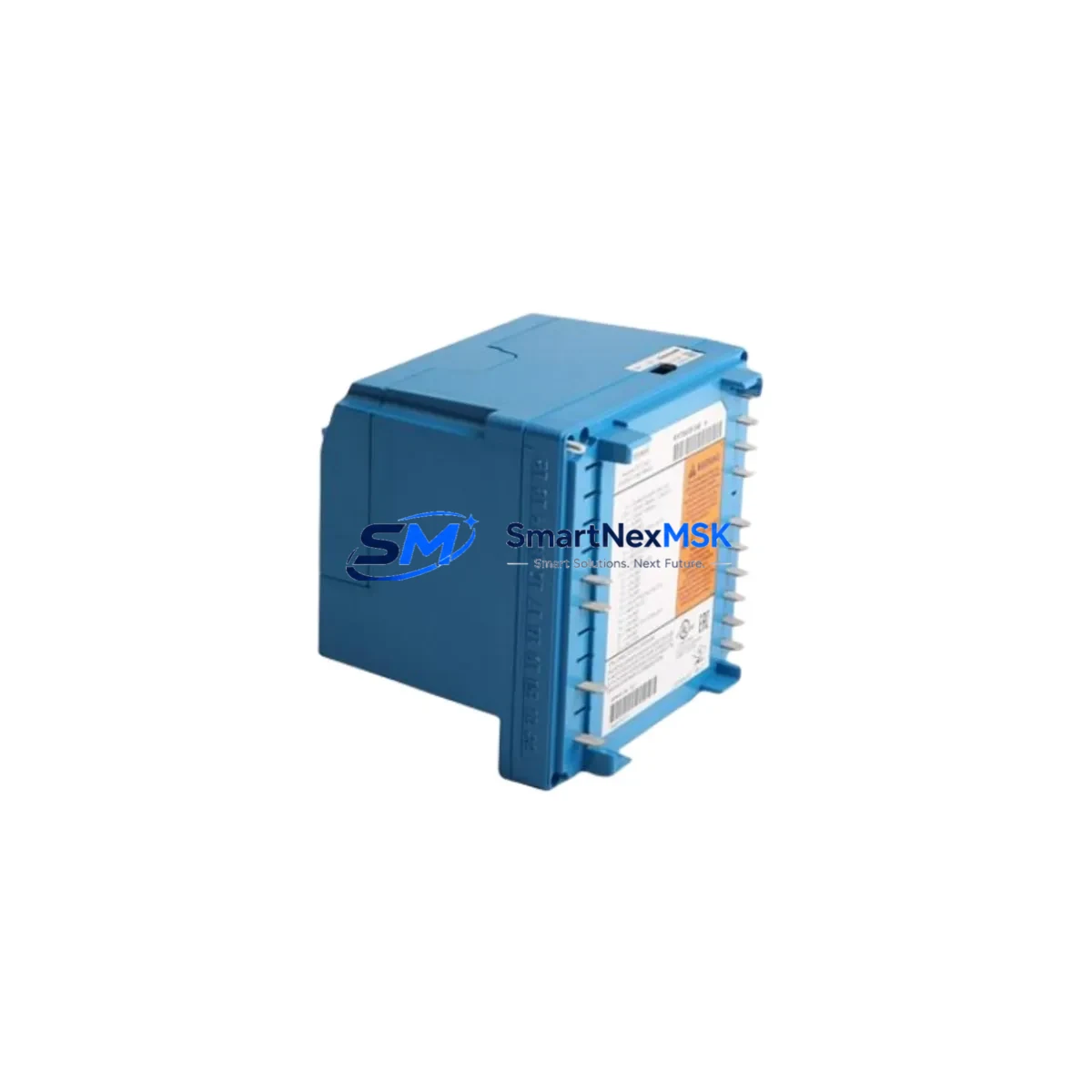

The Honeywell RM7890B1048 is a critical flame safeguard relay module within the 7800 Series Burner Management System (BMS), engineered for continuous combustion supervision in industrial boilers, furnaces, and process heating systems. When this module fails or reaches end-of-service life, unplanned downtime can cascade across an entire production line. SMARTNEXMSK stocks the RM7890B1048 as a maintenance-ready original spare — pre-tested, fully compatible, and ready for immediate site deployment to minimize burner system downtime.

For maintenance engineers managing aging combustion control infrastructure, the RM7890B1048 represents a direct drop-in replacement for the existing 7800 Series relay base. Its standardized wiring interface and DIN-rail-compatible mounting ensure that field replacement can be completed without panel redesign or software reconfiguration. Procurement engineers benefit from a confirmed 12-month warranty, documented test records, and long-term supply availability — critical factors when sourcing spares for systems that may no longer be in active production.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the RM7890B1048 in a live burner management panel is rarely an isolated task. A thorough maintenance engineer will treat this replacement as an opportunity to audit the entire combustion control loop. The relay base — typically an R7847A or R7848A — should be inspected for contact wear, terminal corrosion, and secure seating before the new module is installed. A degraded relay base is one of the most common causes of premature relay failure and nuisance lockouts.

The flame scanner or UV detector connected to the RM7890B1048 should be cleaned and tested for signal strength. Honeywell C7027, C7035, or C7076 series scanners are common companions in 7800 Series installations; a weak or intermittent flame signal will cause repeated lockouts even with a new relay installed. Similarly, the ignition transformer and ignition electrode gap should be verified — a weak spark can prevent flame establishment and trigger safety shutdown sequences.

On the electrical supply side, the 120 VAC control circuit feeding the relay should be checked for voltage stability and proper fusing. A dedicated control circuit fuse or miniature circuit breaker protects the relay from upstream transients. The burner control panel’s terminal blocks and wiring harness should be inspected for loose connections, insulation degradation, and correct labeling — particularly on the flame signal input, valve output, and safety interlock terminals.

For systems integrated with a PLC or DCS, the digital output from the RM7890B1048 (burner run status, lockout alarm) should be verified at the I/O module level. If the plant uses a Honeywell HC900 or Experion controller, confirm that the discrete input card is reading the relay status correctly after replacement. Communication modules linking the BMS to the SCADA or DCS should also be checked for active alarms or diagnostic faults that may have been masked by the relay failure.

Where an HMI panel displays burner status, the operator screen should be tested post-replacement to confirm that run, lockout, and alarm states are correctly reflected. Annunciator relay modules and signal isolators in the interlock circuit are worth inspecting as part of the same maintenance window — these components share the same control voltage and are subject to the same aging mechanisms as the flame safeguard relay itself.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Follow site LOTO procedures. Isolate the 120 VAC control supply to the burner management panel. Confirm zero energy state with a calibrated voltage tester before opening the panel.

Step 2 — Document existing wiring: Photograph the relay base terminal connections and record any field wiring deviations from the original schematic. This is especially important in older installations where field modifications may not be reflected in as-built drawings.

Step 3 — Remove the failed RM7890B1048: Unlock the relay module from the base (quarter-turn locking mechanism on most 7800 Series bases). Inspect the base contacts for pitting or carbon deposits. Clean with contact cleaner if necessary.

Step 4 — Install the replacement module: Seat the new RM7890B1048 firmly into the relay base. Confirm the locking tab engages. Do not force — misalignment can damage the base contacts.

Step 5 — Restore power and perform a controlled startup: Re-energize the control circuit. Initiate a manual burner startup sequence. Observe the relay’s LED indicators through the ignition trial, flame establishment, and run phases. Confirm lockout reset function operates correctly.

Step 6 — Verify system integration: Confirm burner run status is correctly reported to the PLC/DCS I/O, HMI, and any remote monitoring system. Log the replacement in the plant maintenance management system (CMMS) with the new module’s serial number and installation date.

This workflow supports a target replacement time of under 60 minutes for a prepared maintenance team, minimizing production impact and restoring combustion system availability quickly.

Spare Parts Support FAQ

Q: Is the RM7890B1048 still available as a new original part?
A: Yes. SMARTNEXMSK maintains stock of the Honeywell RM7890B1048 as a new original spare. Each unit is sourced through verified supply channels and tested before shipment. We support long-term availability for 7800 Series installations, including systems that are no longer in active production by the OEM.

Q: How do I confirm compatibility before ordering?
A: The RM7890B1048 is compatible with standard 7800 Series relay bases including the R7847, R7848, and R7849 families. Confirm your existing relay base model number from the panel nameplate or wiring diagram. If you are unsure, contact our technical team at sales@smartnexmsk.com with your existing part number and we will confirm compatibility before shipment.

Q: What testing is performed before shipment?
A: Every RM7890B1048 unit undergoes functional verification prior to dispatch. Testing covers power-on self-test, flame signal input response, lockout and reset function, and output relay operation. A test record is available upon request for quality documentation purposes.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or use outside the specified operating parameters. Warranty claims are processed directly through SMARTNEXMSK with replacement or refund at our discretion.
