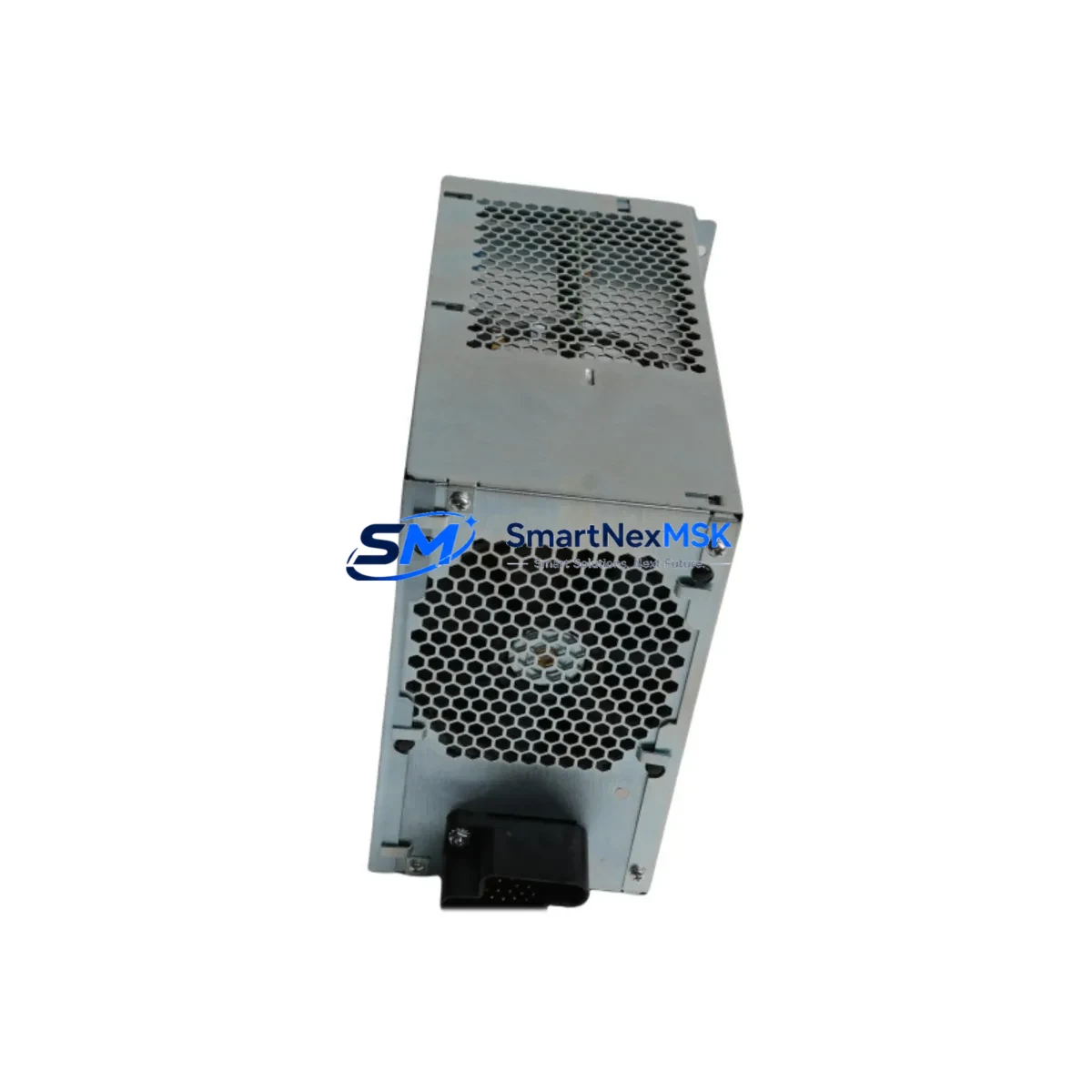

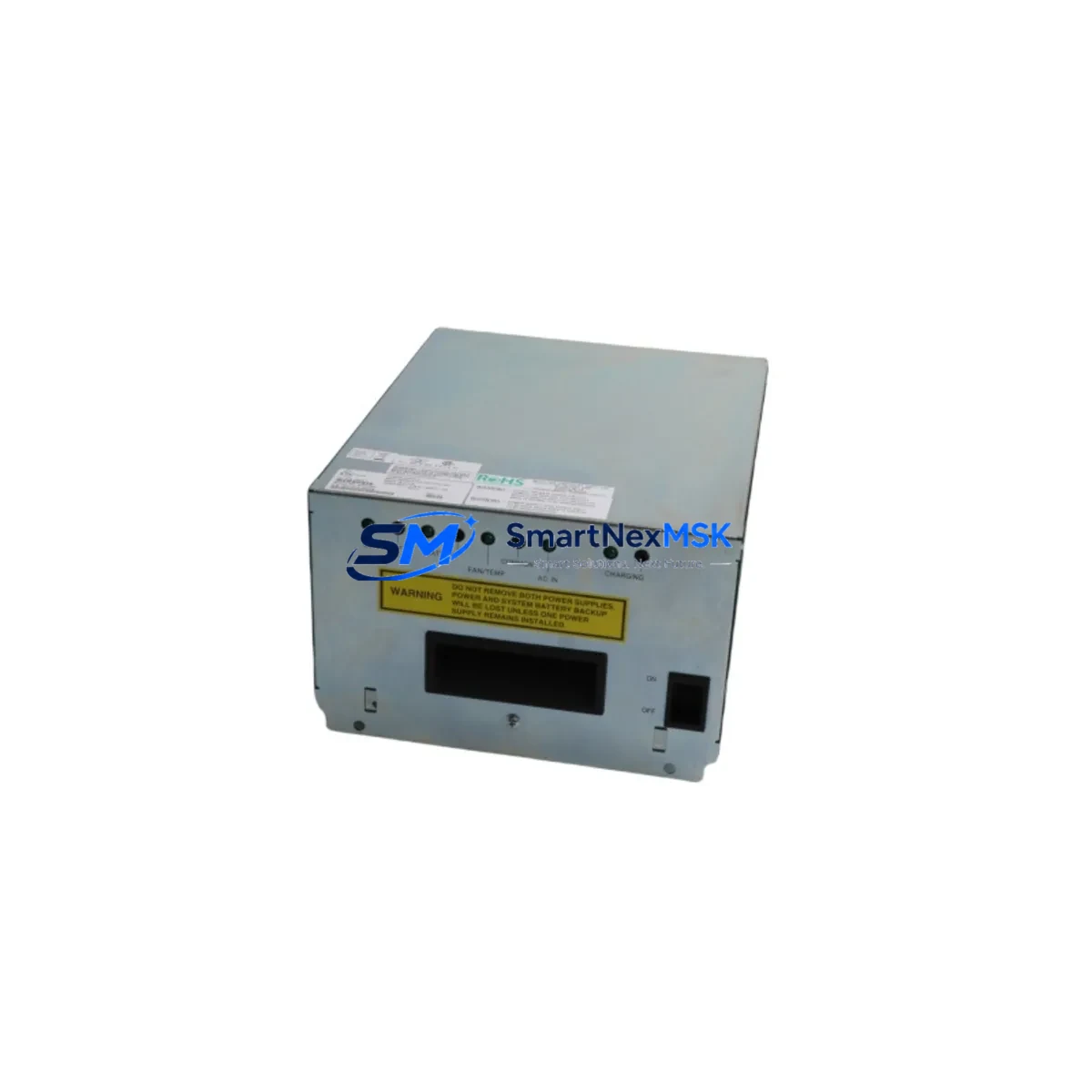

Honeywell SPS5785 51198651-100 Retrofit-Ready Power Supply

Honeywell SPS5785 51198651-100 Retrofit-Ready Power Supply for Experion PKS & TDC 3000 Control Systems

The Honeywell SPS5785 (part number 51198651-100) is a DCS power supply module engineered for seamless retrofit integration into legacy Experion PKS and TDC 3000 distributed control system architectures. As aging infrastructure reaches end-of-life and OEM support for discontinued spare parts becomes increasingly scarce, the SPS5785 provides a verified, wiring-compatible replacement path that minimizes engineering rework and eliminates the need for full panel redesign. Whether you are executing a planned control cabinet upgrade, recovering from an unplanned failure, or executing a phased migration from TDC 3000 to Experion PKS R500 or later, this module is a proven drop-in solution backed by a 12-month warranty and pre-shipment functional testing.

The SPS5785 supplies regulated DC power to the C200 Controller chassis and associated I/O link infrastructure. It is designed to operate within the standard Honeywell Universal Control Network (UCN) backplane environment, maintaining full compatibility with existing terminal block wiring, cabinet power distribution rails, and grounding schemes. Engineers replacing a failed or end-of-life power supply can retain original field wiring without re-termination, significantly reducing downtime exposure during the swap procedure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the SPS5785 into an operating plant environment requires a structured pre-retrofit assessment. Before scheduling the maintenance window, engineers should audit the existing C200 Controller chassis to confirm available slot positions and verify that the total power draw of installed I/O modules — including HLAI (High-Level Analog Input) cards, LLMUX (Low-Level Multiplexer) modules, and any co-located DO (Digital Output) modules — does not exceed the rated output capacity of the replacement power supply. In systems where the original SPS5785 was operating near its power budget ceiling, it is advisable to redistribute I/O loading across a secondary chassis or install an additional PM I/O Power Module to balance the load before the cutover.

Terminal block integrity is a critical checkpoint. Inspect all 24 VDC distribution wiring from the power supply output to the C200 chassis backplane and confirm that cable insulation, ferrule crimps, and terminal torque values meet Honeywell installation standards. In TDC 3000 environments being migrated to Experion PKS, the existing HPM (High-Performance Process Manager) wiring harness may require adapter termination to interface with the updated backplane connector pinout — confirm this against the site-specific as-built drawings before proceeding.

Communication infrastructure must also be validated prior to cutover. The SPS5785 supports the Fault Tolerant Ethernet (FTE) dual-network topology standard in Experion PKS deployments. Confirm that both FTE switch ports connected to the C200 Controller node are active and that the Experion Server has a valid node definition for the chassis in Configuration Studio. In legacy TDC 3000 sites still running UCN coaxial infrastructure, verify that the UCN Interface Module (UIM) and associated UCN tap connections remain intact and that the node address assigned to the chassis does not conflict with any other device on the network segment.

For sites executing a broader control system upgrade — for example, migrating from a TDC 3000 HPM to a C300 Controller with CHARM I/O — the SPS5785 may serve as an interim power supply during the phased migration, powering the legacy C200 chassis while the new CHARM I/O cabinets are commissioned in parallel. In this scenario, the Experion Operator Station (OS) and associated HMI display builder graphics should be reviewed to ensure that point references tied to the C200 chassis are correctly mapped and that no orphaned display tags remain after the migration cutover. Programming engineers should also verify that all Control Execution Environment (CEE) function blocks resident on the C200 Controller are exported and archived before the chassis is powered down for the swap.

Where the retrofit involves replacing multiple modules simultaneously — for example, swapping both the SPS5785 power supply and a co-located C200 Controller module — it is recommended to stage the replacement in sequence rather than simultaneously, allowing each module to be individually verified before the next is removed. This approach preserves control continuity on adjacent process loops and reduces the risk of a full chassis outage affecting multiple control strategies at once.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any DCS power supply replacement. The SPS5785 supports hot-standby power redundancy configurations in Experion PKS systems equipped with dual power supply slots, allowing the replacement module to be installed and verified while the redundant unit continues to supply the chassis — effectively achieving a zero-downtime swap in fully redundant configurations. For non-redundant chassis configurations, the planned outage window should be scoped to include: module removal and installation (typically 15–30 minutes), FTE link verification and node re-registration in Experion Configuration Studio, CEE download confirmation, and a controlled loop checkout sequence to verify that all analog and digital I/O points are responding correctly before returning the unit to automatic control.

To protect original program logic, engineers should export a full CEE backup from the Experion Server prior to the maintenance window and confirm that the backup file is accessible from a secondary engineering workstation. If the C200 Controller loses its program during the power interruption — which can occur if the controller battery backup is depleted — the CEE download procedure from the Experion Server will restore all function block logic, tuning parameters, and interlock configurations without requiring manual re-entry. HMI display graphics and alarm configurations stored on the Experion Operator Station are unaffected by the power supply replacement and do not require re-commissioning.

Field control continuity during the outage window should be maintained by placing all affected control loops in manual mode at the Experion Operator Station before initiating the swap. Operators should confirm that all downstream final control elements — including control valves, variable frequency drives, and motor starters — are in a safe hold state before the chassis is de-energized. Upon restoration of power and successful CEE download, loops should be returned to automatic control in a staged sequence, with each loop verified against its process variable trend before the next is transferred.

Retrofit Support FAQ

Q1: Is the SPS5785 (51198651-100) a direct drop-in replacement for the original Honeywell part?
Yes. The SPS5785 is wiring-compatible with the original 51198651-100 power supply. No terminal re-wiring or backplane adapter is required for standard C200 chassis installations. Confirm the chassis slot assignment and power budget before installation.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, verify FTE link status on both network ports, confirm the node address in Experion Configuration Studio, and perform a CEE download from the Experion Server if the controller program was lost during the outage. Conduct a full I/O point checkout before returning loops to automatic control.

Q3: Has this unit been tested before shipment?
Yes. All SPS5785 units are functionally tested prior to shipment. A test report confirming power output, communication link integrity, and module self-diagnostics is available on request. Units are shipped with protective packaging to prevent transit damage.

Q4: What warranty coverage is provided?
All units are covered by a 12-month warranty from the date of shipment. Warranty coverage includes module failure under normal operating conditions. Technical support for installation and commissioning questions is available through our sales team.
