Honeywell TC-FTEB01 Retrofit-Ready FTE Bridge for Experion PKS

Honeywell TC-FTEB01 Retrofit-Ready FTE Bridge for Experion PKS Control Systems

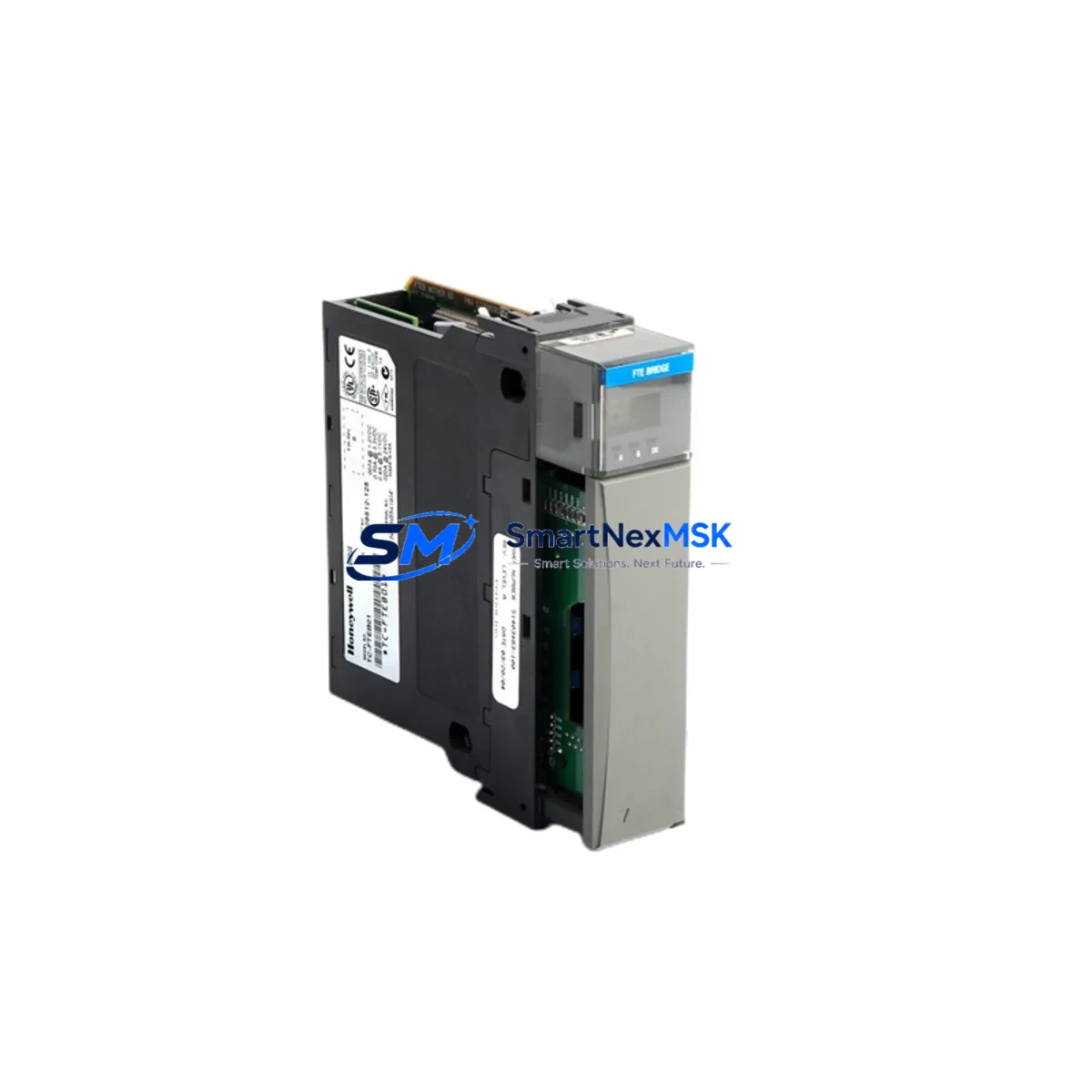

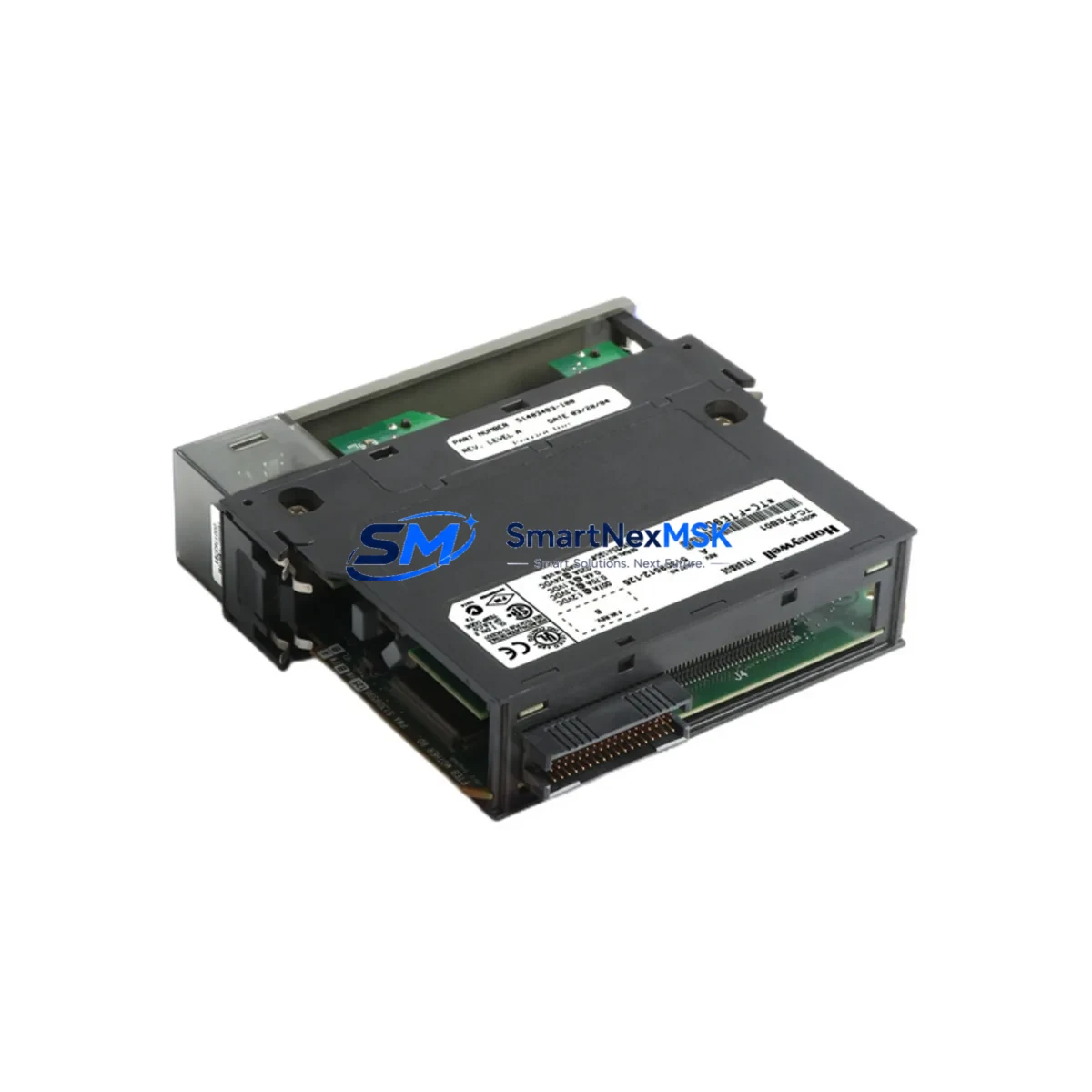

The Honeywell TC-FTEB01 (P/N 51309512-125) is a Fault Tolerant Ethernet (FTE) Bridge Module engineered for the Experion PKS distributed control platform. As legacy DCS installations age and OEM support windows close, this module has become a critical retrofit component for plants seeking to extend the operational life of their existing control architecture without committing to a full platform migration. Whether you are replacing a failed unit on a live process line, upgrading a control cabinet to support expanded I/O, or migrating from an older C200 or C300 controller node, the TC-FTEB01 provides the network bridging capability required to maintain FTE ring integrity and controller redundancy.

The FTE network is the backbone of Experion PKS communication, linking controllers, I/O modules, servers, and operator stations across a dual-ring, fault-tolerant topology. When a bridge module fails or becomes obsolete, the entire FTE segment can lose redundancy, exposing the process to single-point-of-failure risk. Sourcing a verified replacement TC-FTEB01 with confirmed firmware compatibility is therefore a time-critical operation for maintenance and reliability engineers.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TC-FTEB01 retrofit begins well before the module arrives on site. Engineers should audit the existing FTE ring topology using the Experion Station network diagnostics tool to identify all active nodes, confirm ring continuity, and document the current firmware revision running on adjacent bridge modules. In most Experion PKS installations, the FTE ring connects the C300 Process Controller or C200E Controller to the ESVT Server and operator stations, passing through one or more TC-FTEB01 bridge nodes mounted in the Series C I/O chassis.

Before removing the failed module, verify that the chassis power supply — typically a TC-PSA024 or TC-PSB024 24 VDC power module — is delivering within specification. An under-voltage condition on the backplane is a common root cause of bridge module failure and must be corrected before installing the replacement unit. Check the TC-CCR013 or TC-CCR014 chassis carrier rail for corrosion or loose seating, as poor backplane contact can cause intermittent FTE link errors that mimic a failed bridge.

For sites running FOUNDATION Fieldbus or HART field devices through TC-FIO Series I/O modules, confirm that the FTE bridge replacement does not interrupt the I/O module polling cycle. In redundant controller configurations, the standby C300 should assume primary control automatically during the bridge swap, but this failover must be verified in the Experion Station before work begins. If the plant uses Profibus DP gateways — such as the TC-PRS021 — connected through the same FTE segment, those gateway links should be monitored throughout the replacement procedure.

HMI screens built in Experion Station or third-party SCADA systems connected via OPC-DA or OPC-UA should be reviewed to confirm that controller tag paths do not change after the bridge module swap. In most cases, the FTE bridge is transparent to the tag namespace, but any custom network alias configured in the FTE network map must be re-verified post-installation. Programming cables such as the MC-TPPR02 Control Builder cable may be needed if a firmware update is required on the replacement module before it is accepted by the FTE ring.

Downtime Control During System Migration

Minimizing unplanned downtime during a TC-FTEB01 replacement requires a structured pre-outage checklist and a clear rollback plan. The recommended approach is to perform the swap during a scheduled maintenance window with the process in a safe, stable state. If the Experion PKS system is configured for controller redundancy, the primary/standby switchover should be tested in simulation mode at least 48 hours before the physical swap to confirm that the standby C300 or C200E will accept primary control without operator intervention.

Before pulling the failed bridge module, export the current FTE network configuration from Experion Configuration Studio and save it to a secure backup location. This configuration file documents the ring topology, node addresses, and VLAN assignments, and is essential for restoring the network if the replacement module requires re-commissioning. The actual module swap typically takes under 15 minutes for a trained technician; the majority of downtime risk lies in post-installation verification — confirming FTE ring closure, checking all I/O module heartbeats, and validating controller communication with the Experion server.

Once the TC-FTEB01 is seated and the chassis is powered, the FTE network discovery process will assign the module its node identity automatically. Monitor the Experion Station network health display for ring closure confirmation on both Ring A and Ring B before returning the process to automatic control. All field I/O values should be cross-checked against the pre-outage baseline to confirm that no tag mapping or scaling has been affected by the module replacement.

Retrofit Support FAQ

Q1: Is the TC-FTEB01 (51309512-125) a direct replacement for the earlier 51309512-100 revision?
Yes. The -125 revision is backward compatible with the -100 and -115 revisions in the same Experion PKS chassis. No chassis carrier or backplane modification is required. Confirm the Experion server firmware version supports the -125 revision before installation; Experion R310 and later releases fully support this part number.

Q2: What commissioning steps are required after installing the replacement module?
After seating the module, power the chassis and allow the FTE network discovery cycle to complete (typically 2–5 minutes). Verify ring closure on both FTE ports using Experion Station network diagnostics. If the module does not appear in the network map within 10 minutes, check backplane seating, verify PSU output voltage, and confirm that the FTE ring cable connections on Ring A and Ring B ports are secure and undamaged.

Q3: Can the TC-FTEB01 be used in a mixed C200 and C300 controller environment?
Yes. The FTE bridge module operates at the network layer and is controller-type agnostic. It will bridge FTE traffic between C200, C200E, and C300 nodes on the same ring without configuration changes. Ensure that all controllers on the ring are running compatible Experion firmware revisions to avoid protocol version mismatches.

Q4: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers manufacturing defects and functional failure under normal industrial operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, failure description, and photographic evidence of the defect. Replacement or repair will be arranged within 5 business days of claim approval.
