TRICONEX 3006 Retrofit-Ready Main Processor for Tricon

TRICONEX 3006 Retrofit-Ready Main Processor for Tricon Control Systems

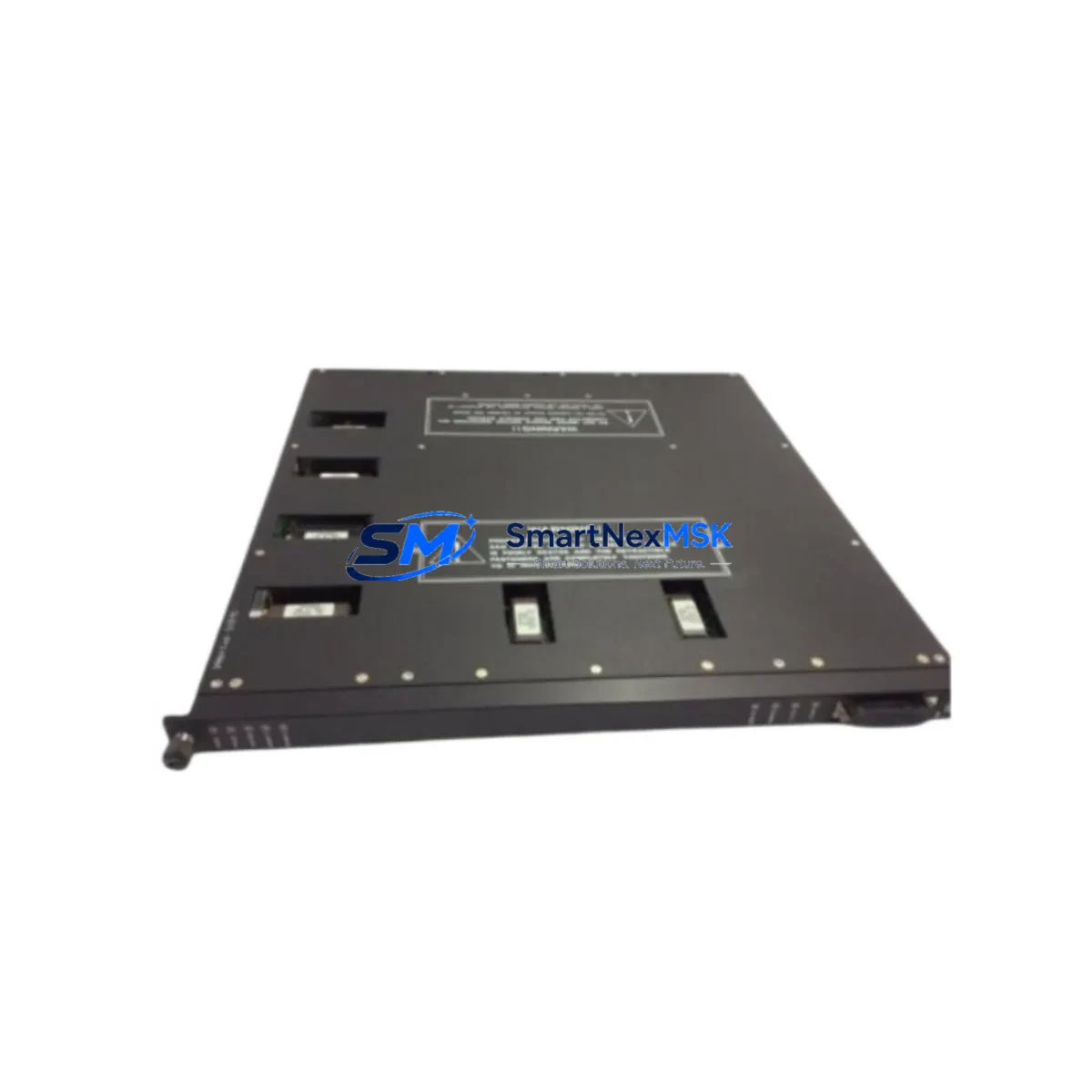

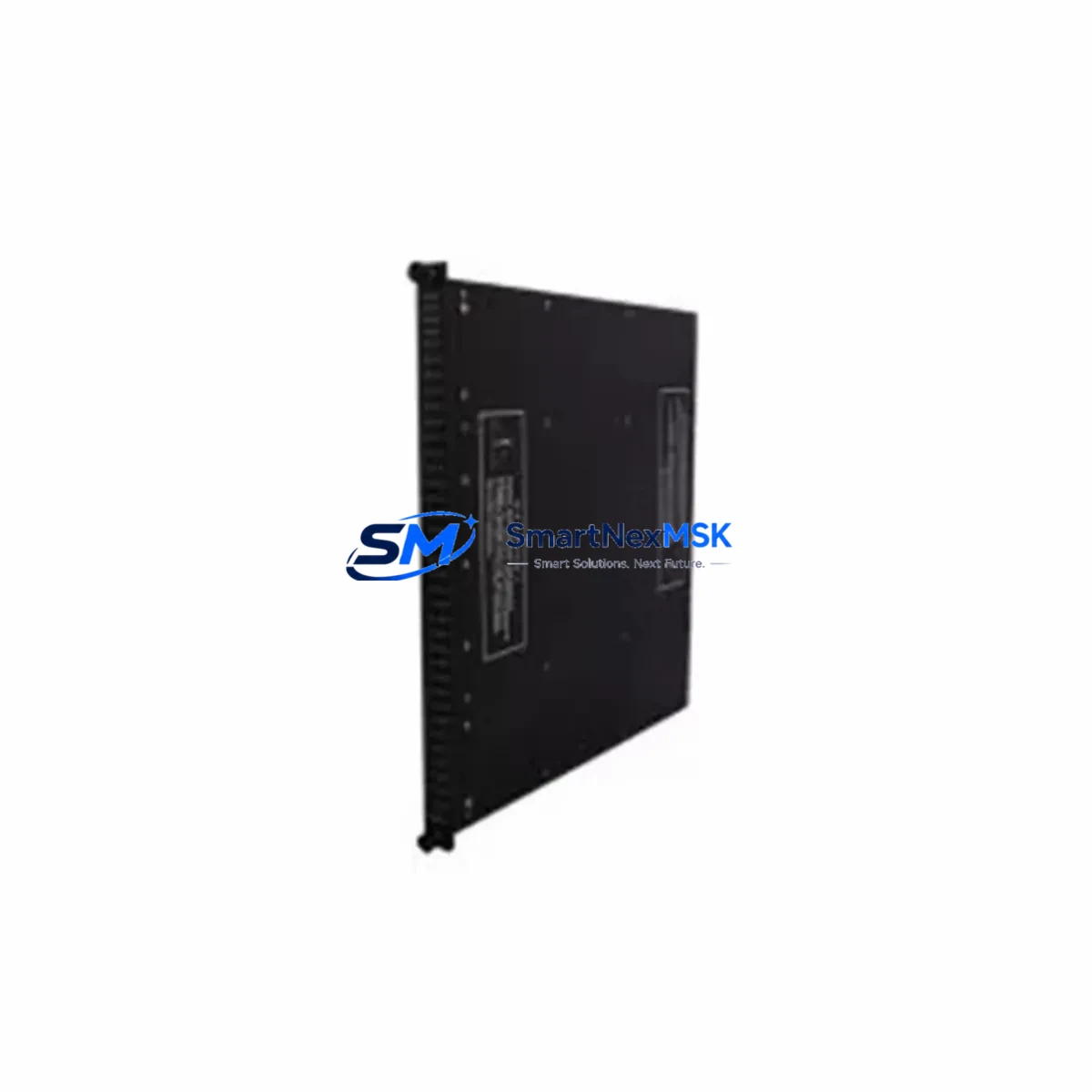

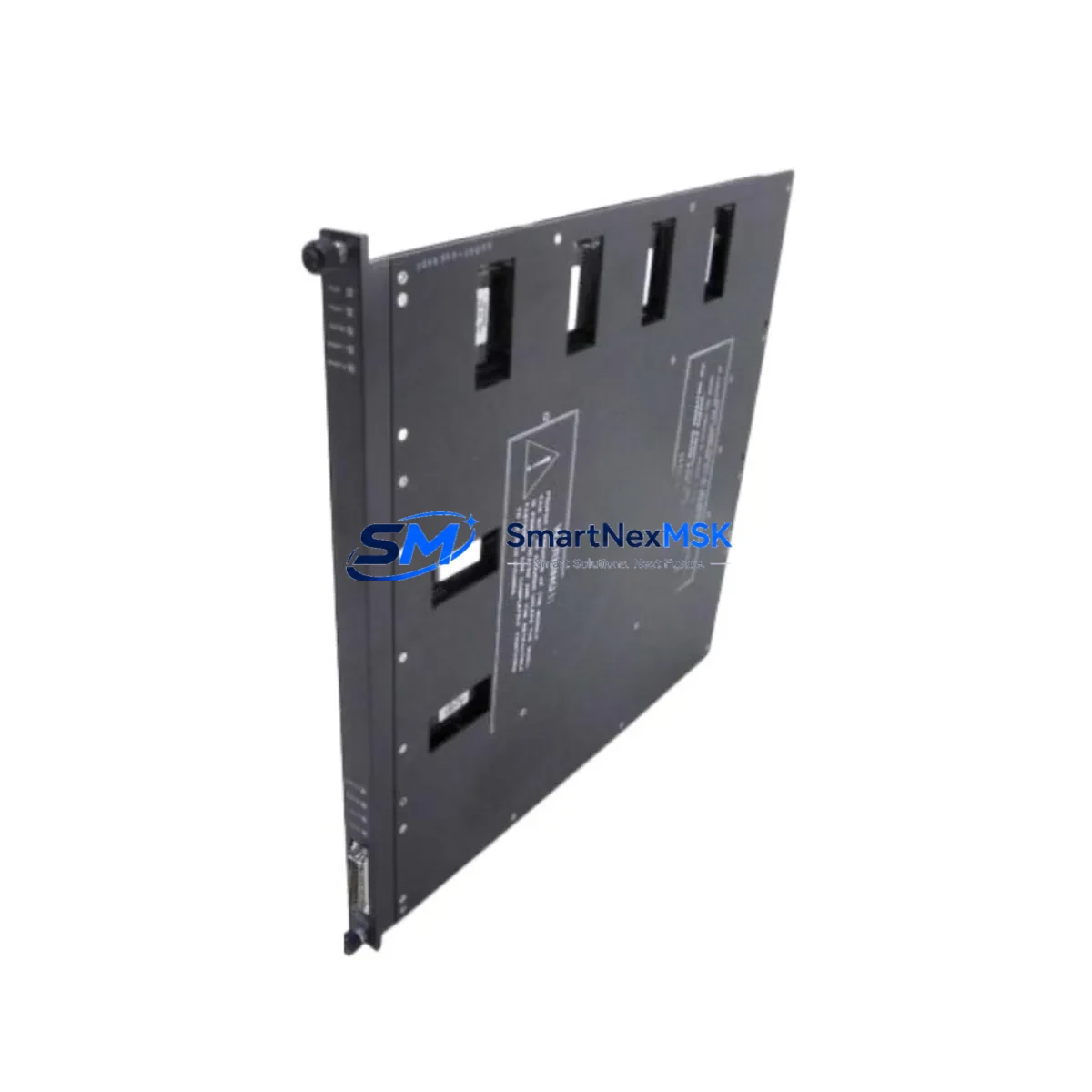

The TRICONEX 3006 Main Processor Module is a proven, retrofit-ready solution for facilities operating legacy Tricon Triple Modular Redundant (TMR) safety PLC platforms. Designed to serve as a direct replacement for aging or discontinued processor modules in Tricon safety instrumented systems (SIS), the 3006 enables seamless control system modernization without requiring a full platform migration. Whether your facility is managing a scheduled turnaround, responding to an unplanned failure, or executing a phased safety system upgrade, the TRICONEX 3006 delivers the processing performance and backward compatibility your engineering team requires.

At SMARTNEXMSK, every TRICONEX 3006 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained to support urgent industrial requirements, with global logistics coordination available for time-critical retrofit projects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a Tricon TMR safety PLC system requires careful pre-engineering to ensure zero compromise to process safety integrity. When integrating the TRICONEX 3006 into an existing control cabinet, engineers must first audit the chassis configuration, confirming that the Tricon main chassis backplane is free of corrosion, that all slot connectors are intact, and that the existing TRICONEX 3008 or 3007 communication modules remain functional. The 3006 processor interfaces directly with the Tricon backplane and must be assigned the correct module address consistent with the existing TriStation 1131 project configuration.

Power budget verification is a critical pre-installation step. The TRICONEX 8310 or 8311 power supply modules feeding the chassis must be confirmed to have sufficient headroom to support the 3006 alongside co-installed I/O modules such as the TRICONEX 3501 digital input module, TRICONEX 3601T analog input module, or TRICONEX 3703E analog output module. Overloading the power rail during a hot-swap operation can cause cascading faults across the TMR voting logic.

Terminal wiring on field I/O modules does not require modification when replacing only the main processor. However, if the retrofit scope includes upgrading from an older Tricon v9 chassis to a v10 or v11 platform, terminal block adapters and updated marshalling panels may be required. In such cases, the TRICONEX 4351B or 4352A termination assemblies are commonly referenced in the field wiring documentation.

Communication link continuity must be validated post-installation. If the plant network relies on Modbus RTU or TSAA over the TRICONEX 4119A or 4120 network communication modules, the TriStation 1131 project must be re-downloaded and the communication node table verified. HMI screens connected via OPC or DDE bridges should be tested for tag resolution before returning the system to automatic mode. Where HART-enabled field instruments are wired through TRICONEX analog I/O modules, HART pass-through functionality should be re-confirmed after processor replacement.

For facilities running parallel DCS and SIS architectures, the 3006 replacement should be coordinated with the DCS engineering team to ensure that safety interlock logic outputs remain consistent with the DCS control narrative. This is particularly important in applications where the Tricon system interfaces with Honeywell Experion, Emerson DeltaV, or Yokogawa CENTUM platforms via hardwired or serial communication links.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern during any Tricon processor replacement. The TRICONEX 3006 supports hot-swap replacement within a fully redundant TMR configuration, meaning that in a healthy three-module system, one processor can be removed and replaced while the remaining two modules maintain voting integrity and process control continuity. This capability is fundamental to the Tricon TMR architecture and is the primary reason Tricon systems are specified for SIL 2 and SIL 3 safety instrumented functions.

Before initiating the swap, the TriStation 1131 diagnostic panel should confirm that the replacement module is recognized and that the project configuration matches the installed firmware version on the 3006. A mismatch between the TriStation project revision and the module firmware can prevent the processor from joining the TMR voting group, effectively reducing the system to a 2oo2 configuration during the commissioning window — a condition that must be managed within the plant safety management of change (MOC) procedure.

Original program logic should be archived from the TriStation workstation prior to any hardware change. The sequence of events recorder (SOE) log should be exported and timestamped to preserve pre-maintenance system state. After the 3006 is installed and the TriStation project is downloaded, a full system diagnostic scan should be executed to confirm that all I/O modules, communication modules, and field instruments are reporting correctly before the MOC is closed and the system is returned to normal operation.

For facilities without a spare TriStation programming workstation on-site, SMARTNEXMSK can advise on compatible programming cable options and TriStation software licensing to support emergency commissioning scenarios.

Retrofit Support FAQ

Q1: Is the TRICONEX 3006 a direct drop-in replacement for the existing processor in my Tricon chassis?
Yes. The 3006 is slot-compatible with Tricon v9, v10, and v11 main chassis backplanes. No mechanical modification is required. Confirm the module address assignment in your TriStation 1131 project matches the physical slot position before powering the module.

Q2: What commissioning steps are required after installing the 3006?
After physical installation, connect the TriStation 1131 workstation via the programming port, download the current project to the replacement module, and run a full diagnostic scan. Verify that the module joins the TMR voting group, confirm all I/O module statuses, and validate communication link integrity with any connected HMI or DCS systems before closing the work order.

Q3: Does the unit ship with a warranty, and what does it cover?
Yes. Every TRICONEX 3006 supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating and storage conditions. Pre-shipment functional testing is performed on all units prior to dispatch to reduce the risk of DOA failures on-site.

Q4: Can you supply compatible I/O and communication modules to complete a full Tricon system retrofit?
Yes. SMARTNEXMSK maintains inventory of Tricon-compatible modules including digital input/output modules, analog I/O modules, network communication modules, power supply modules, and termination assemblies. Contact our technical sales team with your full BOM or chassis configuration and we will confirm availability and lead times.
