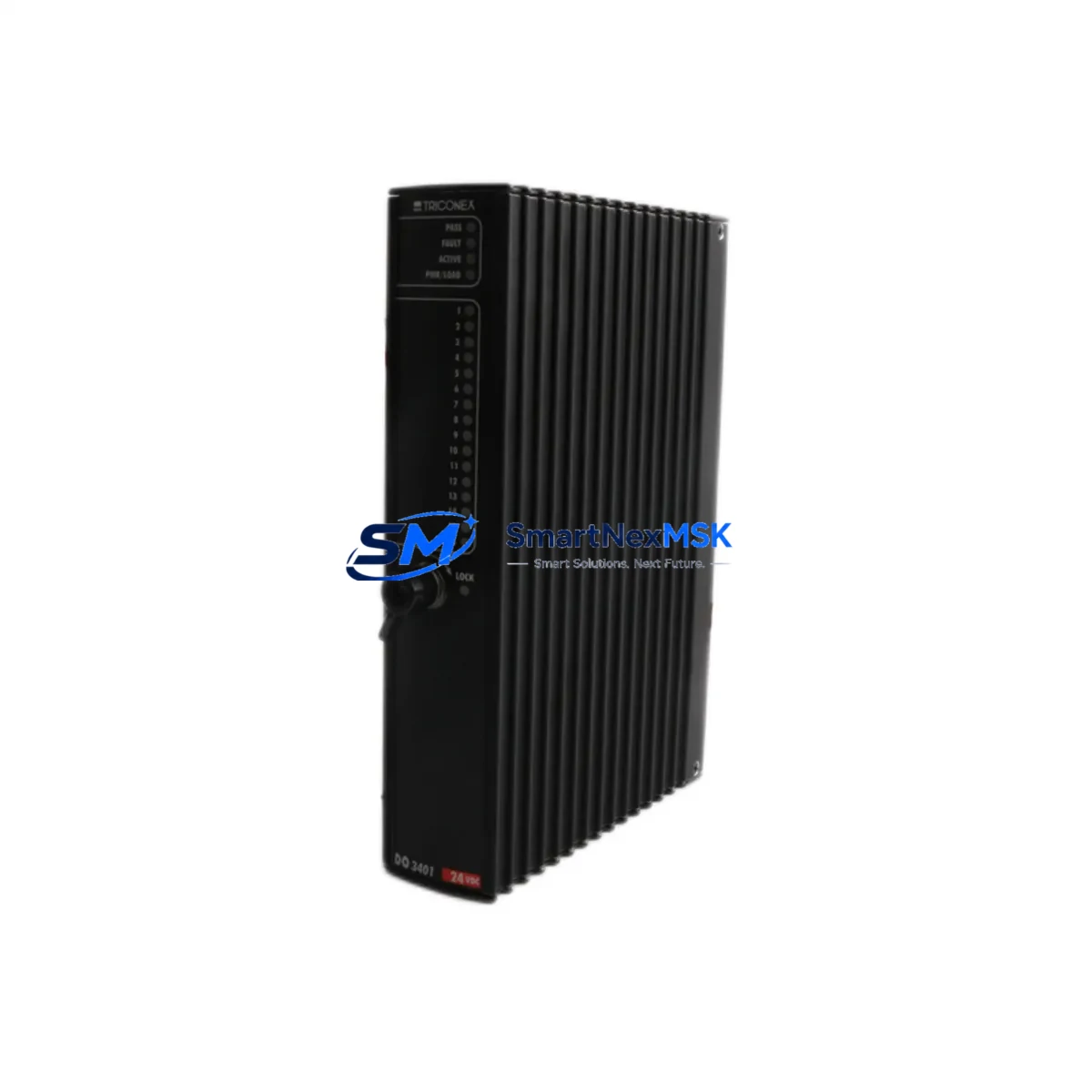

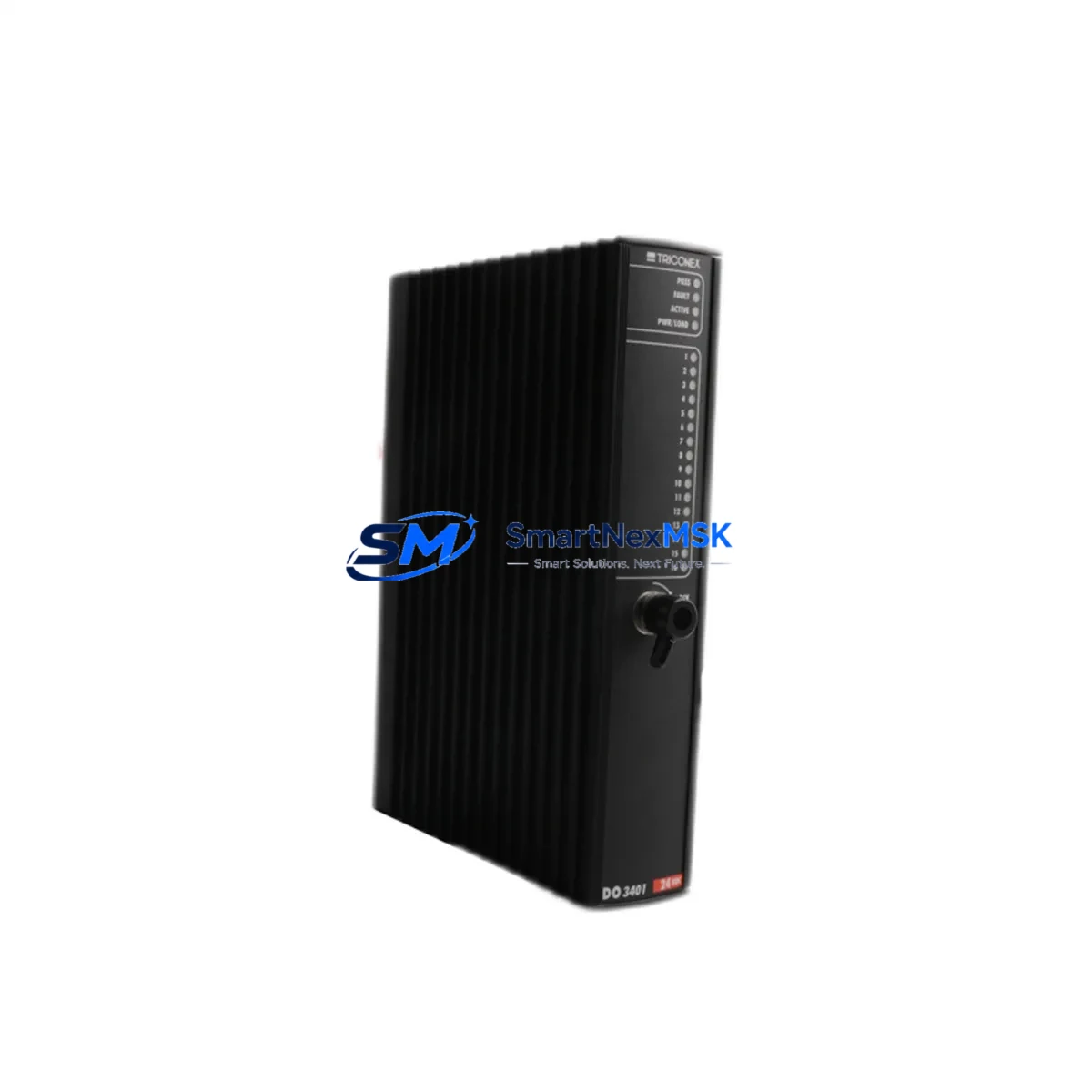

The TRICONEX 3401 is a Digital Output Module designed for use within the Tricon Triple Modular Redundant (TMR) Safety PLC platform — one of the most widely deployed safety instrumented systems in oil & gas, petrochemical, power generation, and continuous process industries. Maintaining an on-hand spare of the 3401 is a fundamental element of any credible SIS maintenance strategy. When a digital output channel fails or a module reaches end-of-service life, the ability to execute a rapid, verified replacement directly determines how quickly a process unit can return to safe, controlled operation.

This listing provides an original TRICONEX 3401 Digital Output Module, sourced from authorized supply channels, individually inspected, function-tested prior to shipment, and backed by a 12-month warranty. Whether you are building a first-line spare kit, replenishing a depleted maintenance inventory, or replacing a module that has triggered a diagnostic fault, this unit is ready for immediate deployment into your Tricon chassis.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the TRICONEX 3401 in the field is rarely an isolated event. Experienced maintenance engineers know that a digital output module fault is often a symptom of broader stress on the I/O subsystem or the field wiring loop. Before closing out a 3401 replacement work order, a thorough site inspection should cover the following associated components and subsystems:

Power Supply Modules (e.g., TRICONEX 8312, 8110): Verify that the chassis power supply rails are within specification. An under-voltage or ripple condition on the 24 VDC bus can accelerate output module degradation and cause intermittent channel faults. If the power supply module has not been replaced within its recommended service interval, schedule it as a concurrent spare.

Digital Input Modules (e.g., TRICONEX 3501, 3503): In a typical SIS loop, the 3401 digital output drives a final element (solenoid valve, motor contactor, or shutdown relay). The corresponding digital input module reading the valve position feedback or process interlock should be inspected for channel health at the same time. A degraded input module can mask a genuine process fault.

Communication Modules (e.g., TRICONEX 4351B, 4119A): If the 3401 fault was accompanied by communication alarms or Tricon diagnostic messages, inspect the communication module responsible for DCS or SCADA integration. A failing communication module can generate spurious output commands that stress the digital output channels.

Termination Assemblies and Field Terminal Panels: Inspect the termination assembly connected to the 3401 for loose terminals, corroded contacts, or damaged field wiring. High-resistance connections at the terminal block are a common root cause of channel overcurrent events that damage output modules.

Relay Output Modules and Interposing Relays: Where the 3401 drives interposing relays rather than direct field loads, inspect the relay coil resistance and contact condition. Welded relay contacts can back-feed voltage into the output module and cause latent damage not immediately visible in diagnostics.

Signal Isolators and Barriers: For installations where the 3401 output passes through a Zener barrier or galvanic isolator before reaching the field device, verify that the isolator is within its rated operating range. A degraded isolator can introduce leakage current that triggers false diagnostics on the output module.

Main Chassis and Backplane: Inspect the Tricon main chassis backplane connector for the slot previously occupied by the 3401. Bent or oxidized backplane pins are a known failure mode in high-cycle maintenance environments and can cause a new module to exhibit the same fault as the one being replaced.

HMI and Operator Workstation: After replacement, confirm that the Tricon TriStation or DCS operator station correctly reflects the restored output channel status. An HMI that continues to show a fault after a successful module swap may indicate a configuration or communication issue that requires separate resolution.

Maintaining a structured spare parts kit that includes the 3401 alongside its associated power, input, and communication modules ensures that your maintenance team can resolve the majority of Tricon I/O faults within a single planned maintenance window — minimizing unplanned downtime and reducing the risk of a safety system impairment event.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the fault is isolated to the 3401 module using Tricon diagnostic software (TriStation 1131 or equivalent). Document the slot address, chassis number, and current channel status before proceeding.

Step 2 — Safety Authorization: Obtain a Management of Change (MOC) or Permit to Work (PTW) as required by your site SIS maintenance procedure. Notify the control room operator of the impending maintenance action.

Step 3 — Hot-Swap Execution: The TRICONEX 3401 supports online replacement in a healthy TMR system. With the remaining two legs of the TMR architecture maintaining voted output integrity, the faulty module can be extracted and the replacement inserted without initiating a process shutdown. Follow the TRICONEX hot-swap procedure precisely — do not force the module or bypass the keying mechanism.

Step 4 — Post-Replacement Diagnostics: Allow the Tricon system to complete its self-test cycle on the new module (typically 30–60 seconds). Confirm all 32 output channels return to healthy status in the diagnostic display. Verify field device response on critical output channels before releasing the system to normal operation.

Step 5 — Documentation and Spare Replenishment: Record the replacement in your CMMS (Computerized Maintenance Management System), including the removed module’s serial number and fault history. Immediately initiate a purchase order to replenish the consumed spare — a zero-spare position on a critical SIS output module is an unacceptable maintenance risk.

This workflow applies equally to planned preventive replacements and emergency corrective maintenance. The key advantage of stocking an original, pre-tested TRICONEX 3401 is that Steps 3 and 4 can be completed in under 15 minutes by a qualified technician — compared to days or weeks if the spare must be sourced reactively from the open market.

Spare Parts Support FAQ

Q1: Is this TRICONEX 3401 compatible with all Tricon TMR chassis versions?
The 3401 is designed for the Tricon main chassis platform. Compatibility should be verified against your specific chassis version (v9 or v10) and TriStation configuration. We recommend confirming the module revision level against your system’s approved spare parts list before installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: What testing is performed before shipment?
Each TRICONEX 3401 unit undergoes functional verification prior to dispatch, including power-on self-test confirmation and output channel continuity checks. Units that do not pass inspection are not listed for sale. A 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: How should I manage long-term spare inventory for the TRICONEX 3401?
For critical SIS applications, industry best practice recommends maintaining a minimum of one hot spare per installed chassis, with a secondary spare held at a regional warehouse or third-party MRO provider. Given the extended lead times sometimes associated with legacy TRICONEX modules, proactive inventory positioning is strongly preferred over reactive procurement. We offer long-term supply agreements for customers requiring guaranteed stock availability.

Q4: Can the TRICONEX 3401 replace older or discontinued digital output module variants in the Tricon platform?
In many cases, the 3401 can serve as a direct replacement for earlier Tricon digital output module variants, subject to firmware compatibility and TriStation configuration alignment. We recommend consulting the TRICONEX module compatibility matrix or contacting our technical support team to confirm cross-reference suitability before committing to a replacement in a live SIS environment.
