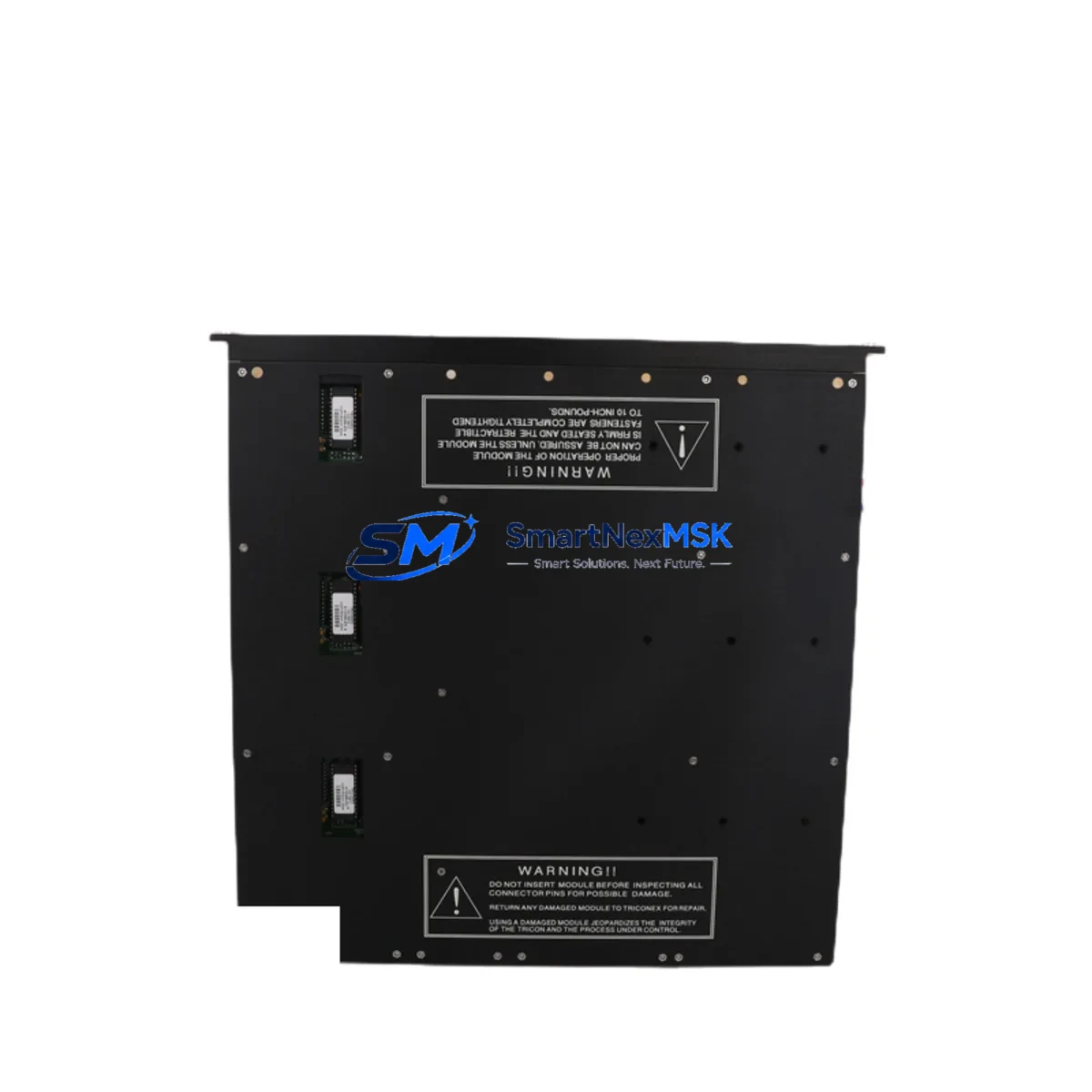

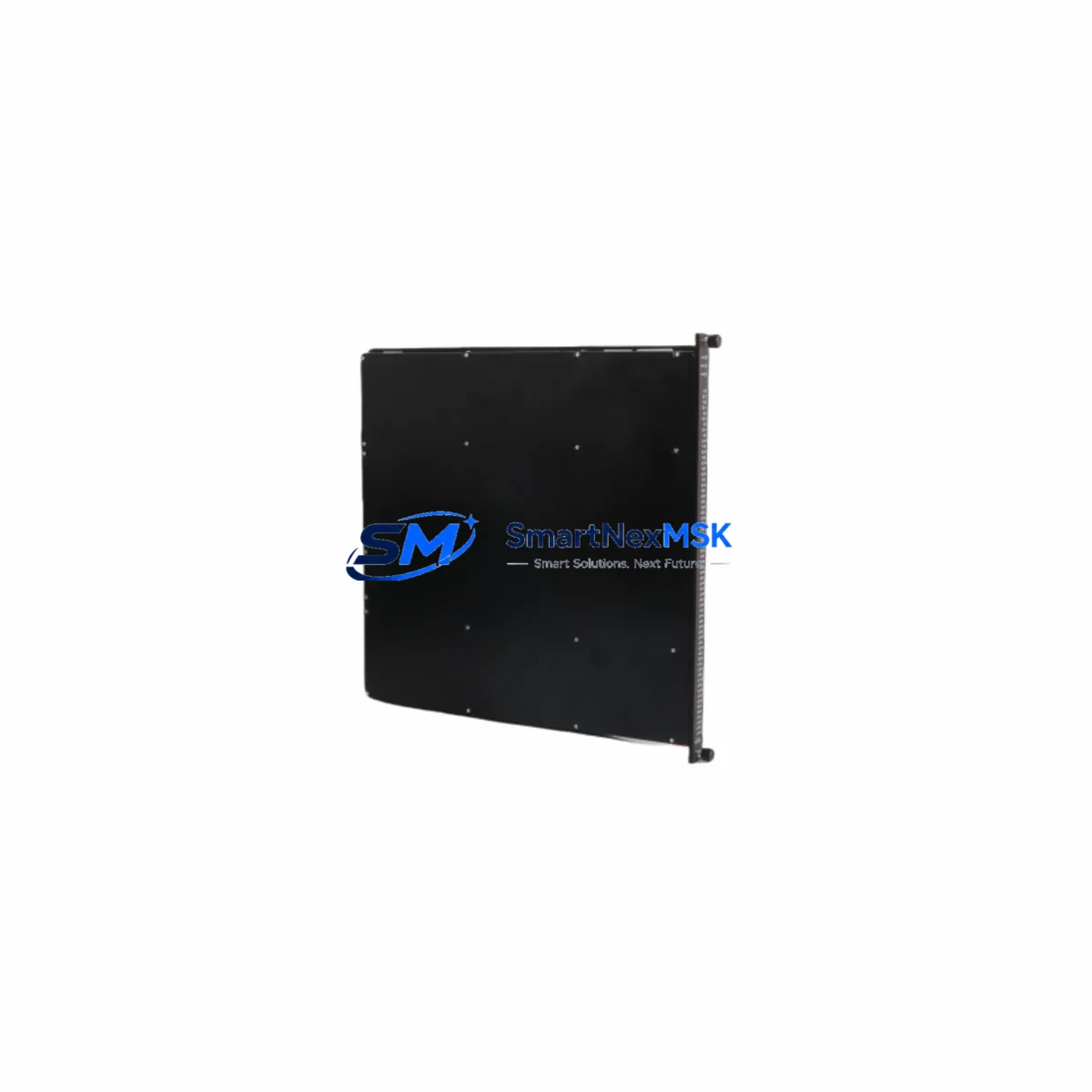

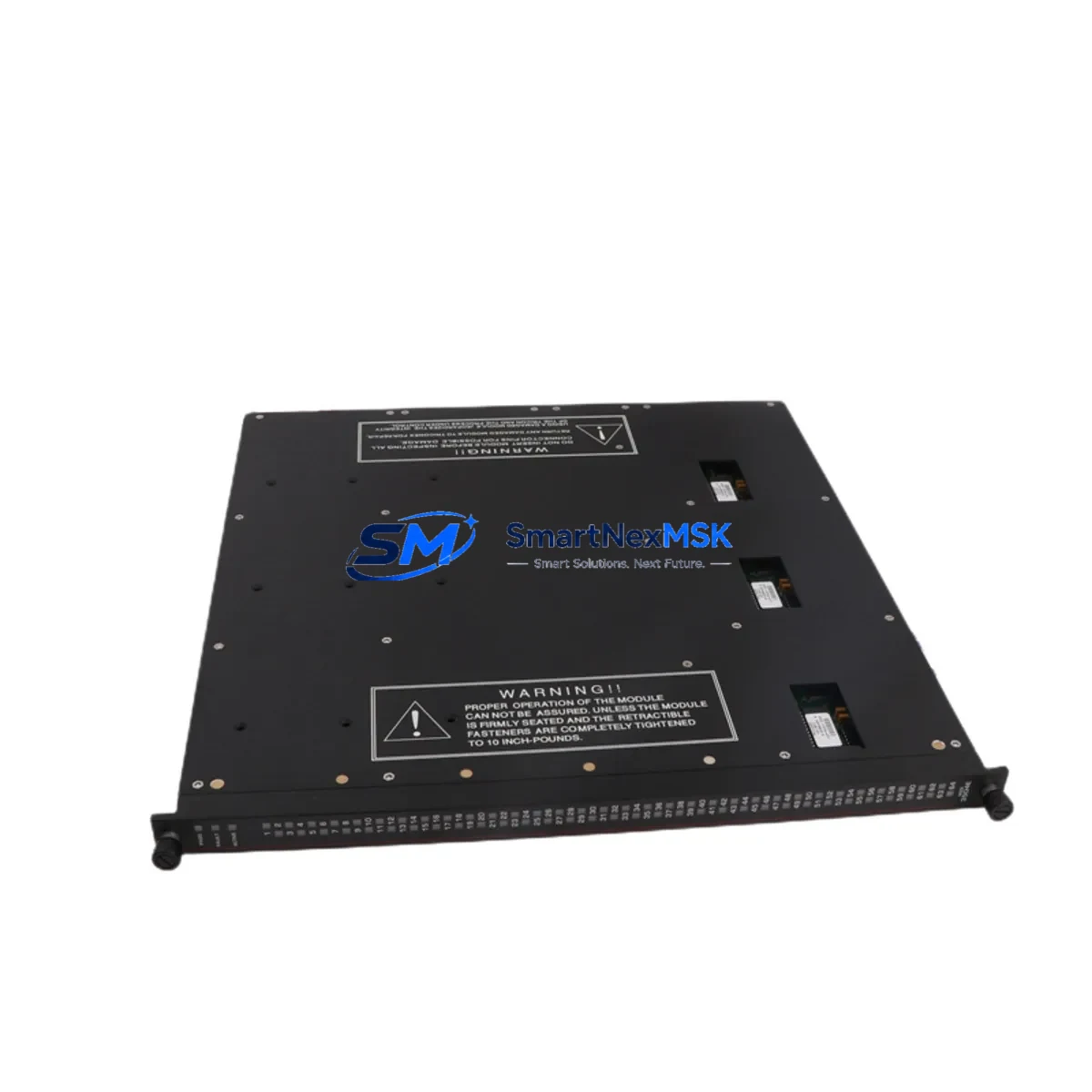

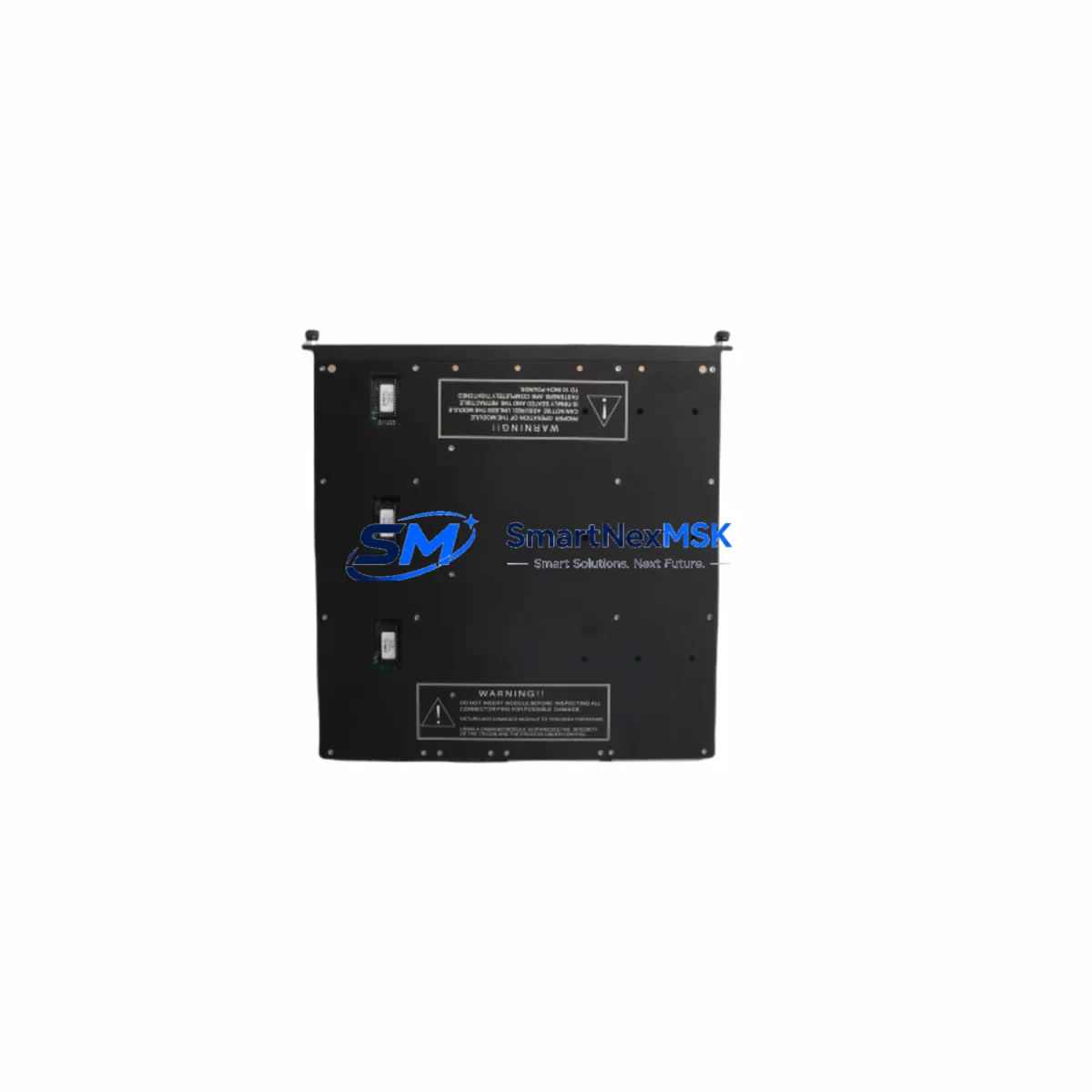

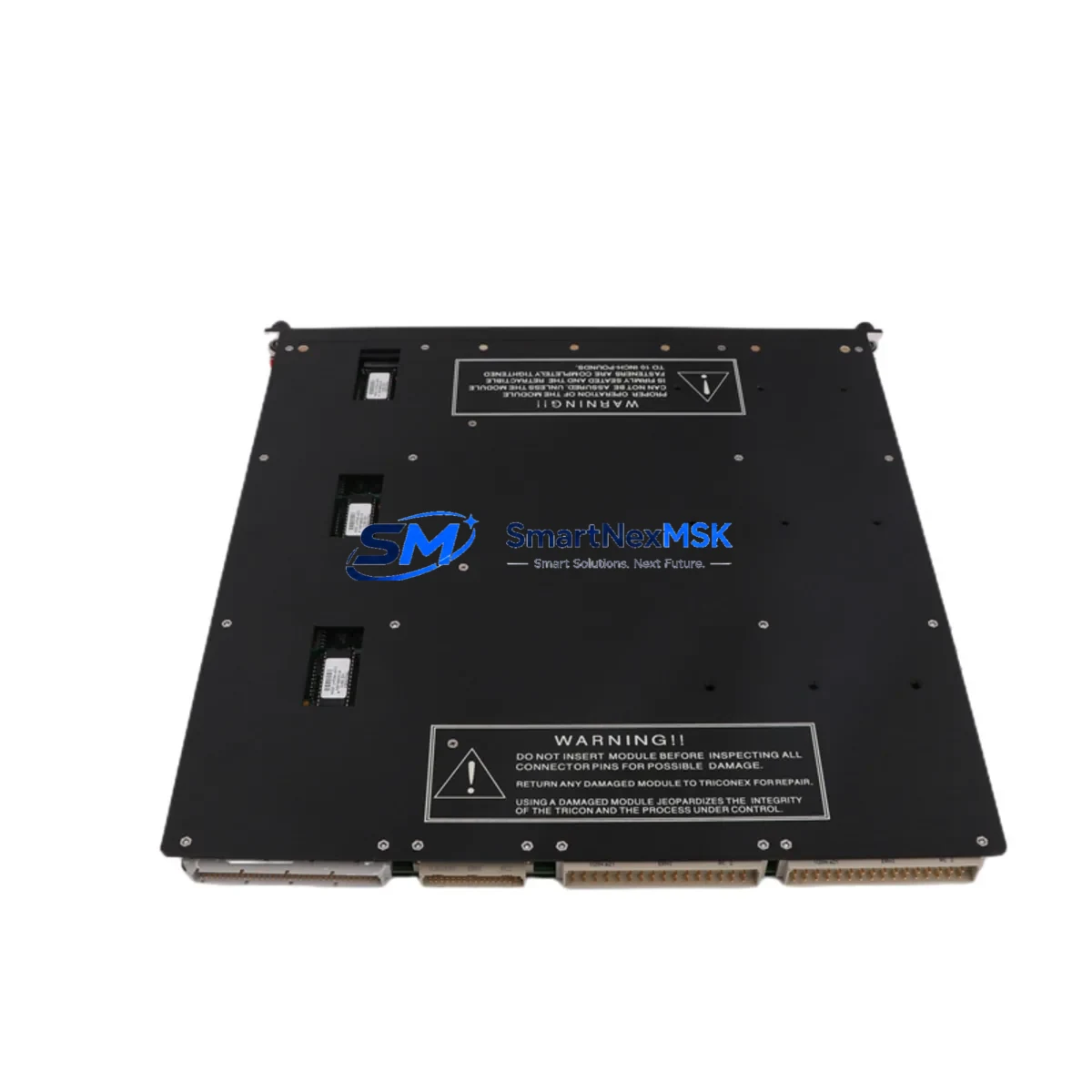

TRICONEX 3504E Maintenance-Ready Spare for Tricon Automation
The TRICONEX 3504E is a high-density digital input module engineered for Tricon Triple Modular Redundant (TMR) safety systems operating at SIL 3 integrity levels. In process industries — oil & gas, petrochemical, power generation, and chemical manufacturing — unplanned downtime caused by a failed I/O module can cascade into costly production losses and safety incidents. Stocking a verified, original TRICONEX 3504E spare is the most direct strategy to compress mean time to repair (MTTR) and restore system availability within a single maintenance window.
This module provides 32 channels of 24 VDC digital input, fully compatible with the Tricon chassis backplane and the TriStation 1131 programming environment. Each unit is tested prior to shipment against original TRICONEX factory specifications, ensuring plug-and-play replacement without reconfiguration overhead. A 12-month warranty covers the full replacement period, giving maintenance and procurement engineers confidence in long-term supply continuity.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 3504E |
| Brand | TRICONEX (Schneider Electric) |
| Series | Tricon TMR (Triple Modular Redundant) |
| Module Type | High-Density Digital Input (DI) |
| Input Channels | 32 Channels, 24 VDC |
| Safety Integrity Level | SIL 3 (IEC 61511 / IEC 61508) |
| Architecture | TMR — Triple Modular Redundant |
| Backplane Compatibility | Tricon Main Chassis, Expansion Chassis |
| Programming Environment | TriStation 1131 |
| Input Voltage | 24 VDC Nominal |
| Operating Temperature | 0°C to 60°C |
| Mounting | Tricon Backplane Slot (Hot-swap capable) |
| Origin | USA |
| Condition | Original, New / Surplus New |
| Pre-shipment Test | Yes — functional test against factory spec |
| Warranty | 12 Months |
| Typical Application | ESD, F&G, BMS, Process Safety Systems |
| Replacement Compatibility | Direct replacement for 3504E in Tricon v9/v10 systems |
Maintenance Planning for Continuous Operation
When a TRICONEX 3504E digital input module is flagged during routine control cabinet inspection or fault diagnostics, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A comprehensive replacement workflow should extend to the surrounding electrical circuit and system architecture.
Begin by verifying the Tricon Power Module (e.g., 8312) supplying the chassis — a degraded power supply can induce spurious input faults that mimic module failure. Inspect the Tricon Main Chassis (e.g., 3700A) backplane connectors for oxidation or mechanical damage before seating the replacement 3504E. If the system uses an Expansion Chassis (e.g., 3703E), confirm that the expansion cable and termination panel are intact.
On the field wiring side, check the terminal assembly and field termination unit (FTU) associated with the 3504E slot — corroded terminals or loose field wiring are a common root cause of repeated module faults. Inspect the signal isolators or barriers (e.g., Pepperl+Fuchs or MTL series) protecting the 24 VDC input circuits from field-side transients. Fuse integrity on the field power distribution rail should also be confirmed at this stage.
For systems with communication-intensive architectures, verify the Tricon Communication Module (e.g., 4351B or 4119A) status — a degraded comms module can generate misleading diagnostic alarms that implicate healthy I/O modules. If the Tricon system interfaces with a DeltaV or Honeywell DCS via Modbus or OPC, confirm that the gateway configuration remains intact after the module swap.
Maintenance planners should also schedule concurrent inspection of the Tricon Digital Output modules (e.g., 3603E or 3625) in adjacent slots, particularly in ESD and F&G applications where input and output modules share the same cabinet and are subject to identical environmental stressors. Keeping a minimum of one spare 3504E and one spare digital output module on-site is a recognized best practice for SIL 3 safety system maintenance under IEC 61511 lifecycle requirements.
Site Replacement Workflow
Step 1 — Isolation & Permit: Obtain a valid work permit and confirm the safety system is in the appropriate bypass or maintenance override state per your site safety management system. Never remove a Tricon module without authorized bypass of the affected safety function.
Step 2 — Diagnostic Confirmation: Use TriStation 1131 to confirm the fault is isolated to the 3504E module and not to the field device, wiring, or FTU. Document the slot address and chassis number.
Step 3 — Hot-Swap Procedure: The Tricon TMR architecture supports online module replacement (hot-swap) without system shutdown in most configurations. Verify your system version supports this before proceeding. Extract the faulty 3504E using the module ejector handle.
Step 4 — Inspection & Seating: Inspect the backplane connector on the replacement 3504E for pin integrity. Seat the module firmly until the locking tab engages. Confirm the module LED status transitions from fault to normal within the TriStation diagnostic view.
Step 5 — Functional Verification: Perform a channel-by-channel input verification using the TriStation I/O forcing or diagnostic tools. Confirm all 32 channels respond correctly to field signals before releasing the bypass.
Step 6 — Documentation: Update the maintenance log, spare parts register, and CMMS record. Reorder a replacement spare to restore on-site buffer stock.
Spare Parts Support FAQ
Q1: Is this a genuine original TRICONEX 3504E or a third-party compatible module?
This is an original TRICONEX (Schneider Electric) 3504E module — not a clone, aftermarket, or third-party compatible unit. Each module is sourced from authorized channels and undergoes functional testing prior to shipment to verify compliance with original factory specifications.
Q2: What warranty and post-shipment support is provided?
All units carry a 12-month warranty from the date of shipment. If a module exhibits a defect within the warranty period, we provide replacement or full refund. Pre-shipment test reports are available upon request for quality-critical procurement processes.
Q3: How do I confirm compatibility with my specific Tricon system version?
The 3504E is compatible with Tricon v9 and v10 chassis configurations. Please provide your chassis model number, TriStation version, and slot configuration when placing your order so our technical team can confirm direct compatibility before shipment.
Q4: What is your lead time and can you support emergency or urgent orders?
Standard orders ship within 3–5 business days after payment confirmation. For emergency plant shutdowns or urgent maintenance situations, expedited processing is available — contact our team directly at sales@smartnexmsk.com or +86 18259474341 to discuss priority fulfillment options.
