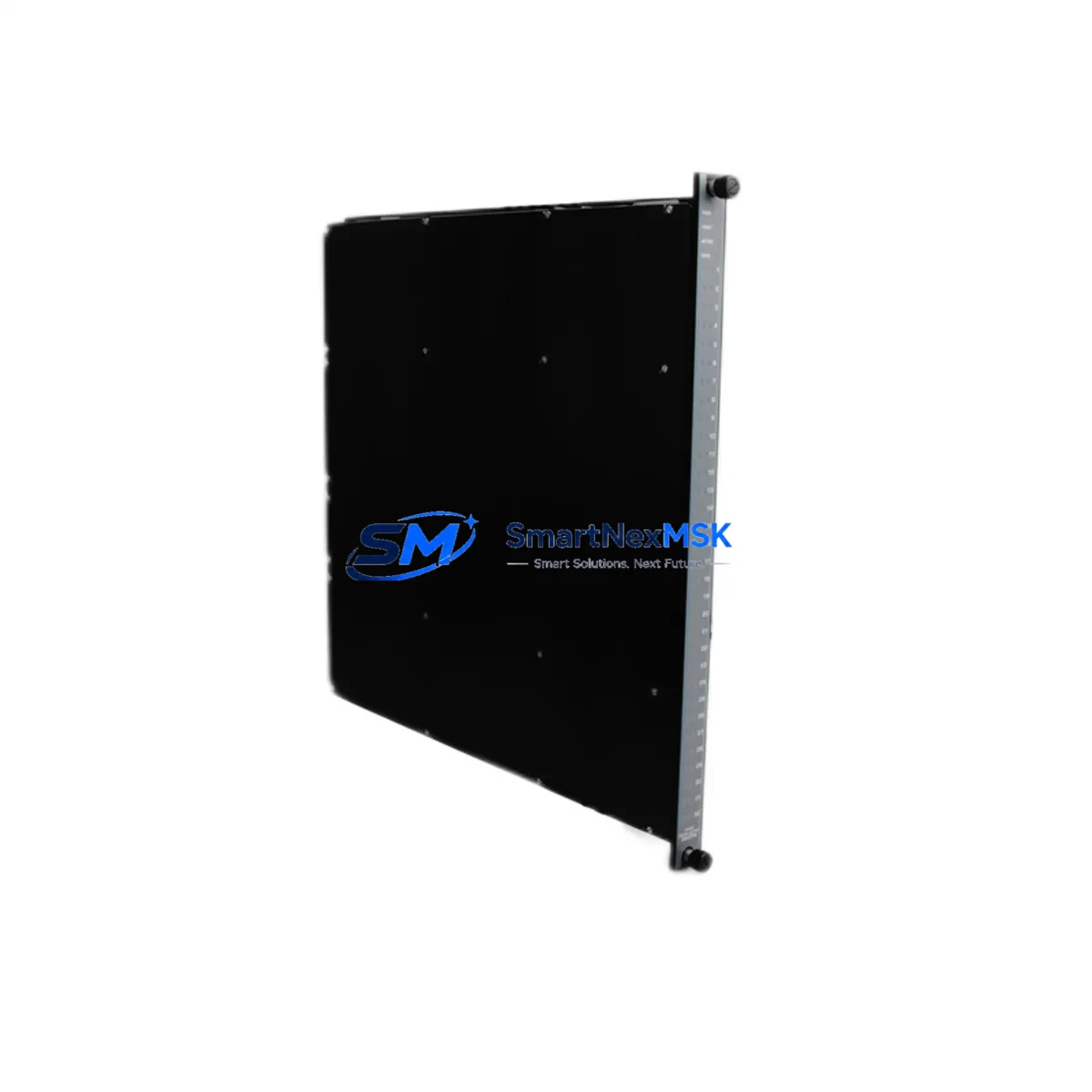

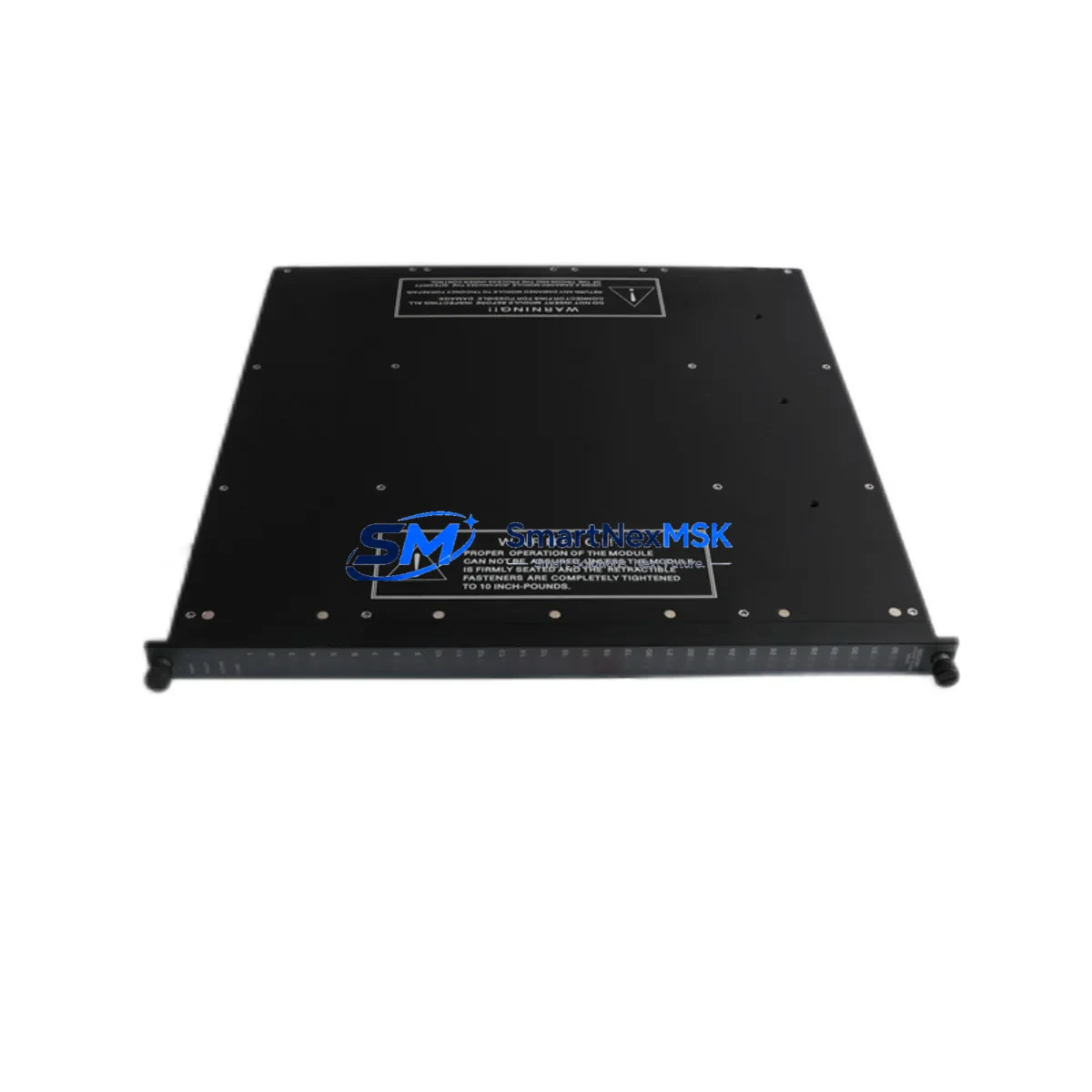

The TRICONEX 3625N is an original DC power supply module engineered for the Tricon Triple Modular Redundant (TMR) Safety Instrumented System (SIS). In process industries where unplanned downtime carries severe operational and safety consequences, maintaining a verified spare of the 3625N in your critical spares inventory is a fundamental risk-mitigation strategy. This unit is sourced, inspected, and dispatched with a 12-month warranty, ensuring your maintenance team can execute a rapid, confident replacement without extended lead-time exposure.

The 3625N supplies regulated DC power to the Tricon chassis backplane, supporting the redundant power architecture that underpins TMR fault tolerance. Degradation or failure of this module can compromise the entire SIS voting logic, making it one of the highest-priority components in any Tricon-based control cabinet. Maintenance engineers responsible for SIL-rated loops should treat the 3625N as a Tier-1 critical spare alongside the main processor and communication modules.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned replacement of the 3625N power supply, a disciplined maintenance engineer will not stop at the module itself. The Tricon TMR cabinet is an integrated system, and a power event often reveals latent issues in adjacent components. During the same maintenance window, inspect and consider stocking spares for the following:

• TRICONEX 3625 (non-N variant) — the predecessor power supply; confirm which revision is installed across your chassis fleet to avoid mixed-revision mismatches.
• Tricon Main Processor Module (e.g., 3008) — the CPU that coordinates TMR voting; a power transient can stress processor memory and I/O scan cycles.
• Tricon Communication Module (e.g., 4351B / 4352B) — Modbus and TriStation communication cards should be verified for firmware integrity after any power interruption.
• Tricon Digital Input Modules (e.g., 3501E / 3503E) — 24 VDC DI cards are sensitive to supply voltage fluctuations; check channel diagnostics post-replacement.
• Tricon Digital Output Modules (e.g., 3601E / 3603E) — Solid-state DO modules should be tested for correct energization under load after power restoration.
• Tricon Analog Input Modules (e.g., 3703E / 3706A) — 4–20 mA AI cards require signal integrity verification; recalibrate if drift is detected after a power event.
• Backplane / Chassis Assembly — Inspect backplane connector pins for oxidation or heat stress; a failing power supply can cause localized thermal damage to the chassis slot.
• Cabinet-level fuses and circuit breakers — Verify upstream AC/DC fusing is intact and within rated amperage; replace any fuses that show signs of thermal discoloration.
• Terminal blocks and field wiring terminations — Loose or corroded terminals on power input wiring are a common root cause of intermittent power supply alarms; re-torque and inspect insulation.
• UPS / Battery backup unit — If the Tricon cabinet is backed by an uninterruptible power supply, test battery capacity and transfer time during the same maintenance cycle to ensure seamless failover.

Procurement engineers should note that the 3625N has an extended lead time from OEM channels when ordered reactively. Holding one verified spare on-site eliminates this exposure and supports a proactive maintenance posture aligned with IEC 61511 SIS lifecycle requirements.

Site Replacement Workflow

Replacing the TRICONEX 3625N in a live Tricon TMR system follows a structured sequence to preserve SIS integrity and minimize downtime risk:

1. Pre-replacement verification: Confirm the replacement 3625N matches the revision level of the installed unit. Check the TriStation 1131 diagnostic screen for active power supply alarms and document baseline system status.
2. Redundancy confirmation: Verify that the redundant power supply (second 3625N or 3625) is healthy and carrying full load before initiating removal. Do not proceed if both supplies show degraded status simultaneously.
3. Hot-swap execution: In a properly configured dual-supply chassis, the 3625N can be replaced without a system shutdown. Slide the module out smoothly, insert the replacement, and observe the front-panel LED indicators for normal power-good status within 10 seconds.
4. Post-replacement diagnostics: Run a full TriStation diagnostic cycle. Confirm all three legs (A, B, C) report healthy status. Verify I/O module channel diagnostics show no new faults introduced by the power event.
5. Documentation: Record the replacement in the site maintenance log with the old module’s serial number, replacement date, and technician ID. Retain the removed module for failure analysis if root cause investigation is required.

This workflow is applicable to both planned preventive maintenance and emergency corrective maintenance scenarios. Having a pre-tested, warranted 3625N spare on-site compresses the corrective maintenance timeline from days (OEM order) to hours (shelf-to-cabinet).

Spare Parts Support FAQ

Q1: Is this 3625N an original TRICONEX module or a third-party replacement?
This is an original TRICONEX 3625N module, not a clone or third-party substitute. Each unit is inspected and function-tested prior to shipment to confirm output voltage regulation and backplane interface integrity. A 12-month warranty is included with every order.

Q2: How do I verify compatibility with my specific Tricon chassis version?
The 3625N is compatible with Tricon v9 and v10 chassis platforms. To confirm compatibility, check the chassis model label and the TriStation 1131 project configuration file for the declared power supply type. If you are upgrading from a 3625 (non-N) to a 3625N, consult the TRICONEX hardware compatibility matrix or contact our technical team with your chassis serial number before ordering.

Q3: What is your inventory and lead-time policy for the 3625N?
We maintain stock of the 3625N to support both planned procurement and emergency replacement scenarios. Orders are processed and dispatched within 1–3 business days. For sites requiring guaranteed on-site availability, we recommend purchasing a minimum of one spare per Tricon cabinet and refreshing stock immediately after any field deployment.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. If a warranty claim is required, contact our support team with the order number and a description of the fault. We will arrange return shipping and provide a replacement or full refund upon inspection confirmation.
