Triconex 3805H Maintenance-Ready Spare for Tricon TMR Automation

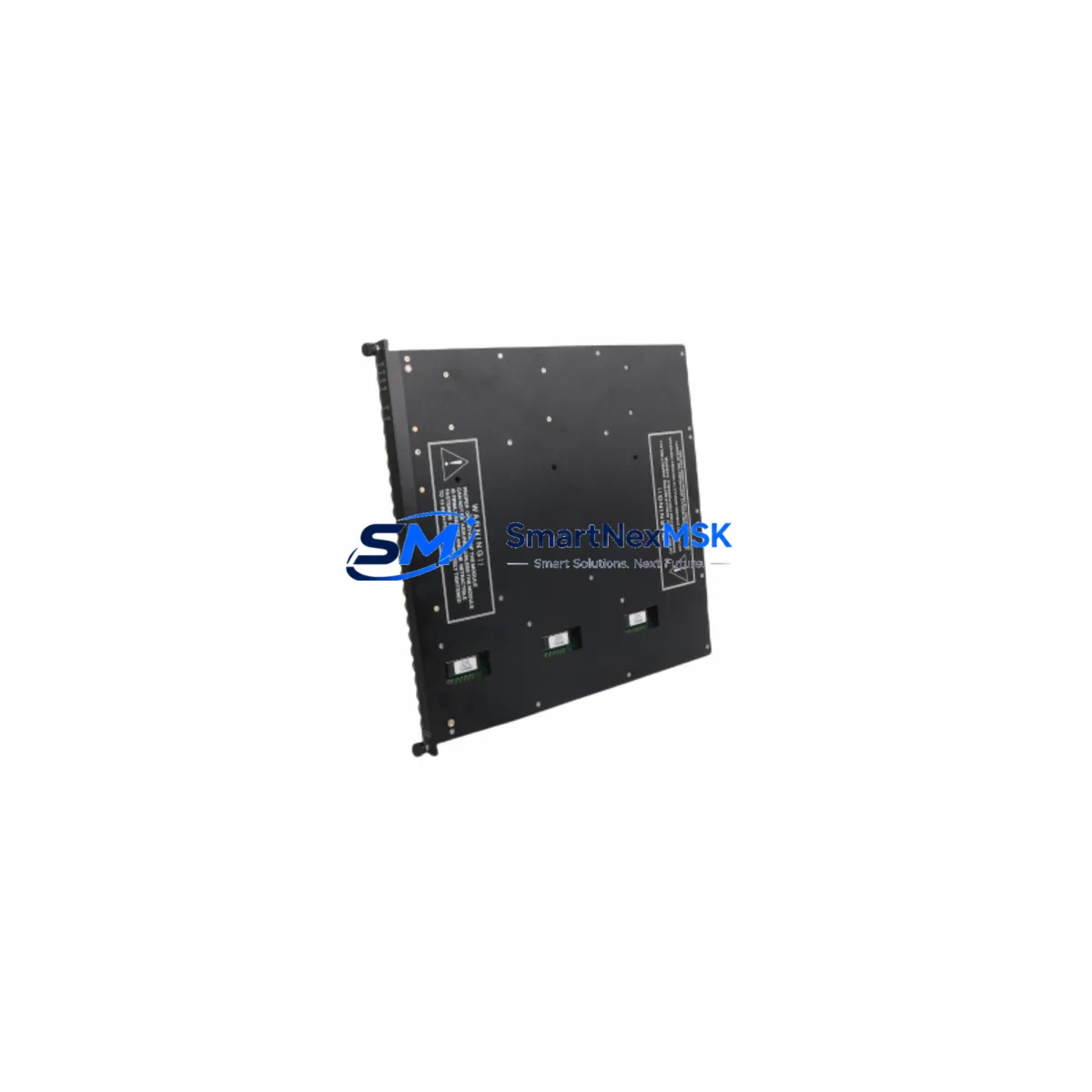

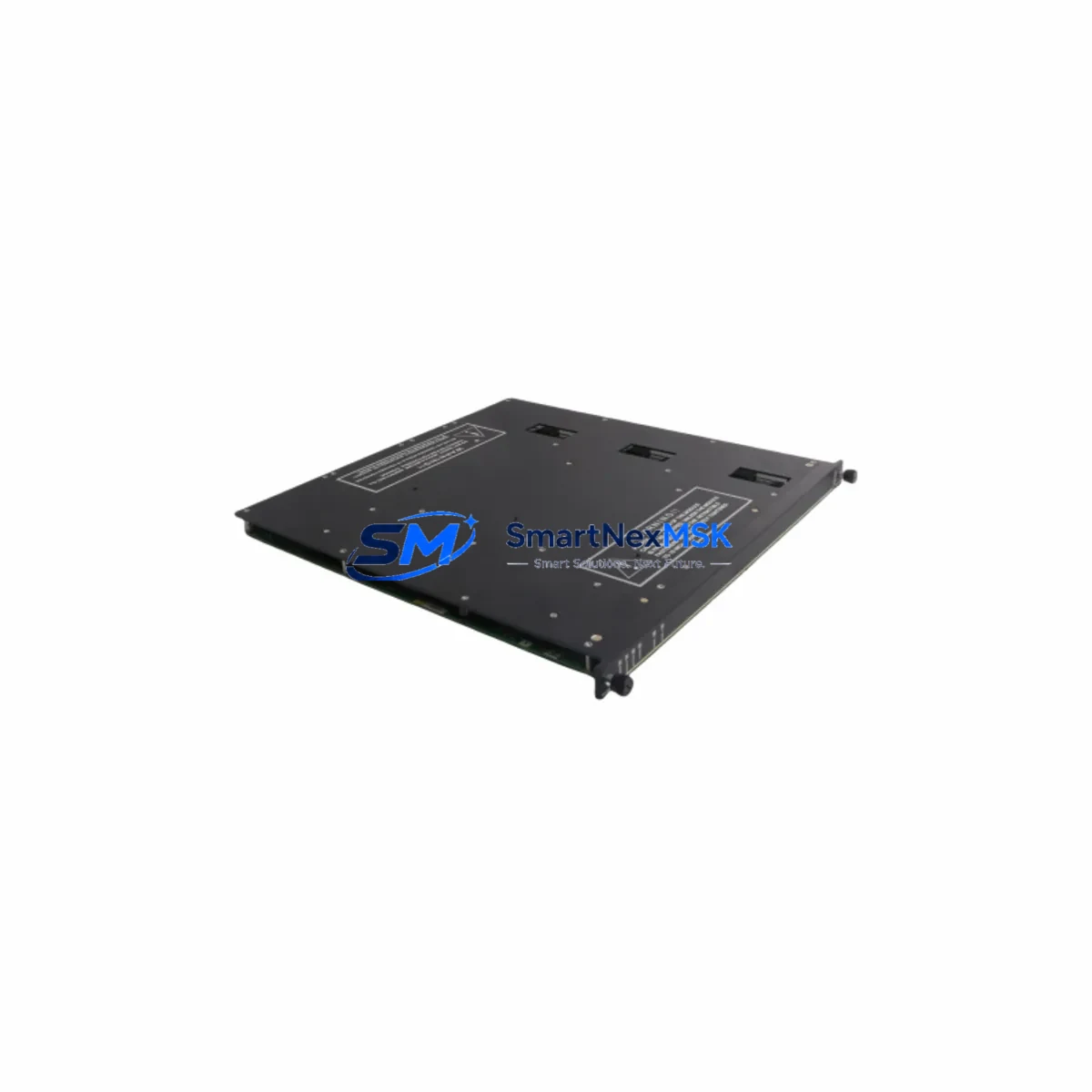

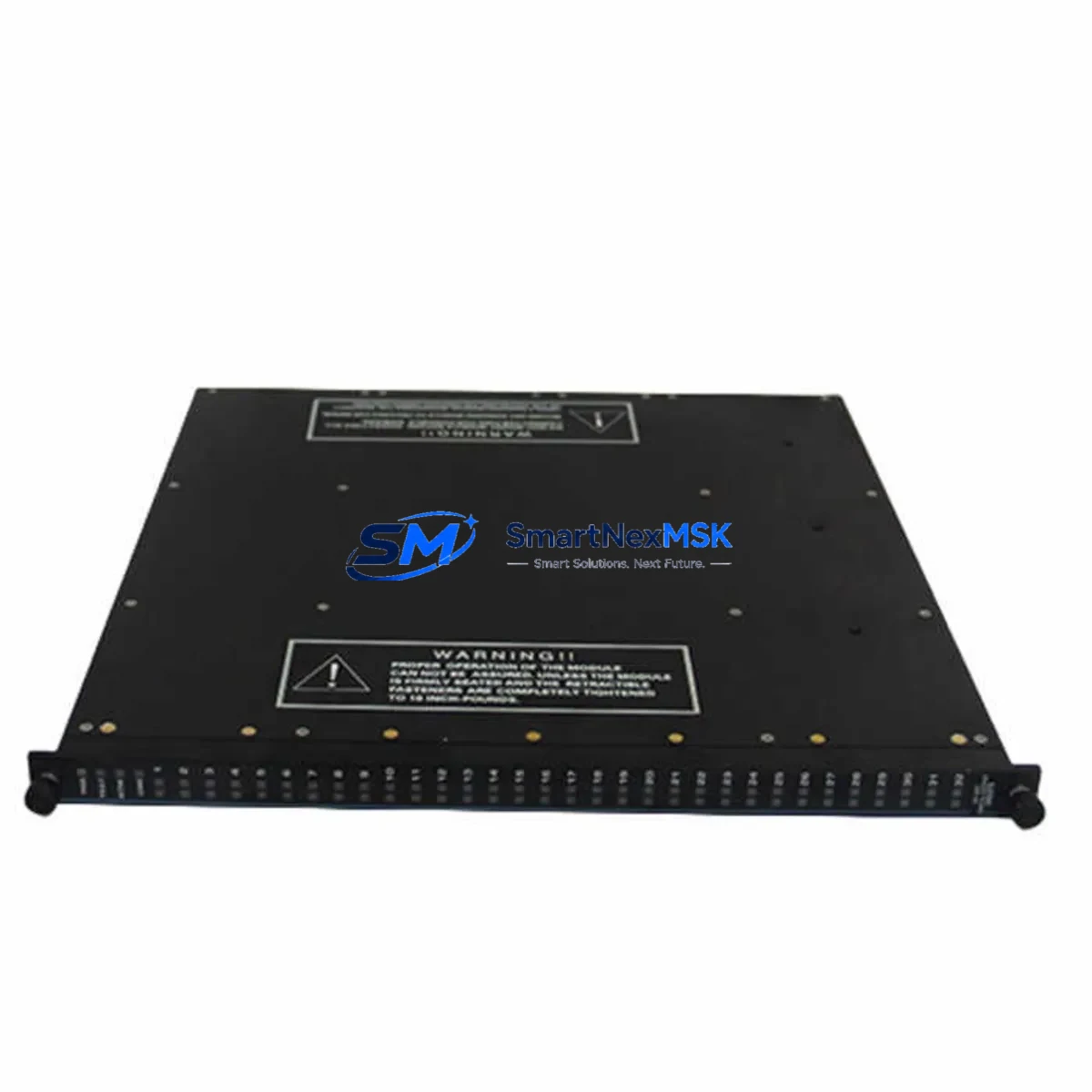

The Triconex 3805H is an original analog output module engineered for deployment within the Tricon Triple Modular Redundant (TMR) safety system architecture. For maintenance engineers managing safety-critical process control environments — including oil & gas, petrochemical, power generation, and chemical processing — the 3805H represents a mission-critical spare that directly governs field actuator signals and process loop integrity. Unplanned downtime caused by a failed analog output module can cascade into full safety system shutdowns, making rapid, verified replacement essential to plant continuity.
Sourced as an original Triconex component, the 3805H is fully compatible with the Tricon v9 and v10 chassis backplane, supporting 8-channel 4–20 mA analog output with HART protocol pass-through capability. Each unit undergoes functional testing prior to shipment, covering channel-level signal accuracy, loop integrity, and communication handshake with the Tricon Main Processor (MP) module. A 12-month warranty is provided on all units, backed by documented test records available upon request.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 3805H |
| Brand | Triconex (Schneider Electric) |
| Series | Tricon TMR Safety System |
| Module Type | Analog Output Module (AOM) |
| Output Channels | 8 Channels, 4–20 mA |
| Protocol Support | HART Pass-Through |
| Chassis Compatibility | Tricon v9 / v10 Backplane |
| Power Supply Requirement | Supplied via Tricon chassis backplane |
| Operating Temperature | 0°C to 60°C |
| Origin | Original OEM, USA |
| Application Environment | Safety-critical process control, SIL 2/3 loops |
| Maintenance Recommendation | Inspect annually; replace on first sign of channel drift or communication fault |
| Pre-Shipment Testing | Full functional test, channel accuracy verification, loop integrity check |
| Warranty | 12 Months |
Maintenance Planning for Continuous Operation
When a Triconex 3805H analog output module is flagged during routine control cabinet inspection or predictive maintenance review, experienced maintenance engineers know that replacing the module in isolation is rarely sufficient. A comprehensive site assessment should accompany any 3805H replacement to prevent repeat failures and ensure the restored safety loop meets its original SIL rating.
Begin by verifying the Tricon Main Processor (MP3008 or MP3007) for active fault logs and communication health — a degraded MP can cause false channel faults on downstream analog output modules. Inspect the Tricon Power Module (PM) supplying the chassis; voltage sag or ripple on the backplane rail is a common root cause of analog output drift and should be measured before the new 3805H is commissioned. Check the Tricon Communication Module (TCM) for network integrity, particularly if the 3805H fault coincided with HART communication errors reported in the DCS historian.
On the field side, inspect the marshalling terminal blocks and field termination assemblies (FTAs) connected to the 3805H output channels. Corroded terminals, loose wire ferrules, or degraded cable insulation can introduce loop resistance that mimics module failure. Verify the loop power supply and field isolators for each 4–20 mA channel — signal isolators from the Tricon I/O bus to field instruments should be tested for output accuracy and isolation resistance.
If the system includes a Tricon Analog Input Module (3703E or 3721) in the same control loop for feedback verification, cross-check its calibration records. Mismatched AI/AO calibration is a frequent source of loop instability after an AOM replacement. For systems with Triconex Enhanced Intelligent Safety (EIS) modules or co-located Tricon Communication Controller (TCC) units, confirm firmware compatibility with the replacement 3805H before energizing the chassis slot.
Procurement engineers should also consider stocking the Tricon Analog Output Module 3805E (predecessor variant) alongside the 3805H to cover legacy chassis configurations still in service at older plant installations. Maintaining a minimum of two 3805H units in the on-site critical spare inventory is recommended for facilities operating continuous process lines where a single AOM failure can trigger a safety instrumented function (SIF) demand.
Site Replacement Workflow
Step 1 — Pre-Replacement Verification: Confirm the replacement 3805H firmware revision matches the existing chassis configuration using Triconex TriStation 1131 software. Document the current channel output values and loop statuses before initiating any module swap.
Step 2 — Safe Module Extraction: The Tricon TMR architecture supports online module replacement (hot-swap) under specific conditions. Verify with your site safety management system (SMS) whether a bypass or inhibit is required for the affected SIF loops before proceeding. Follow the Tricon Module Replacement Procedure (MRP) documented in the system’s Safety Manual.
Step 3 — Module Installation and Seating: Insert the 3805H into the correct chassis slot, ensuring full backplane connector engagement. The Tricon chassis will automatically detect the new module and initiate a self-test sequence. Monitor the module status LEDs — a solid green RUN indicator confirms successful initialization.
Step 4 — Loop Commissioning and Verification: Using TriStation 1131 or the plant DCS, verify each of the 8 output channels against the field instrument response. Confirm HART communication is re-established for all HART-enabled field devices. Document as-found and as-left loop values in the maintenance management system (CMMS).
Step 5 — Return to Service: Remove any bypasses or inhibits applied during the replacement. Update the spare parts inventory record and schedule the next planned inspection interval per the site’s preventive maintenance (PM) program.
Spare Parts Support FAQ
Q1: Is the Triconex 3805H compatible with both Tricon v9 and v10 chassis?
Yes. The 3805H is designed for the Tricon TMR backplane and is compatible with both v9 and v10 chassis generations. Always verify the firmware revision using TriStation 1131 before installation to ensure compatibility with your specific system configuration.
Q2: What testing is performed before the 3805H is shipped?
Each 3805H unit undergoes a full functional test covering all 8 analog output channels, signal accuracy verification (4–20 mA range), loop integrity check, and HART communication handshake. Test records are available upon request. All units are shipped with a 12-month warranty from the date of delivery.
Q3: How should the 3805H be stored as a long-term critical spare?
Store in a climate-controlled environment (10°C–40°C, <85% RH non-condensing), in the original anti-static packaging. Inspect annually for physical damage and verify firmware revision currency. For facilities with extended storage requirements (>24 months), a functional bench test is recommended before deployment.
Q4: Can the 3805H replace the older Triconex 3805E in legacy installations?
In most cases, yes — the 3805H is the updated variant of the 3805E with enhanced diagnostics. However, chassis slot compatibility and firmware baseline must be confirmed via TriStation 1131 before substitution. Contact our technical team with your chassis serial number and current firmware version for a compatibility confirmation prior to ordering.
