TRICONEX 3806E Retrofit-Ready Analog Input for Tricon Systems

TRICONEX 3806E Retrofit-Ready Analog Input for Tricon Systems: Seamless Compatibility and Legacy System Upgrade

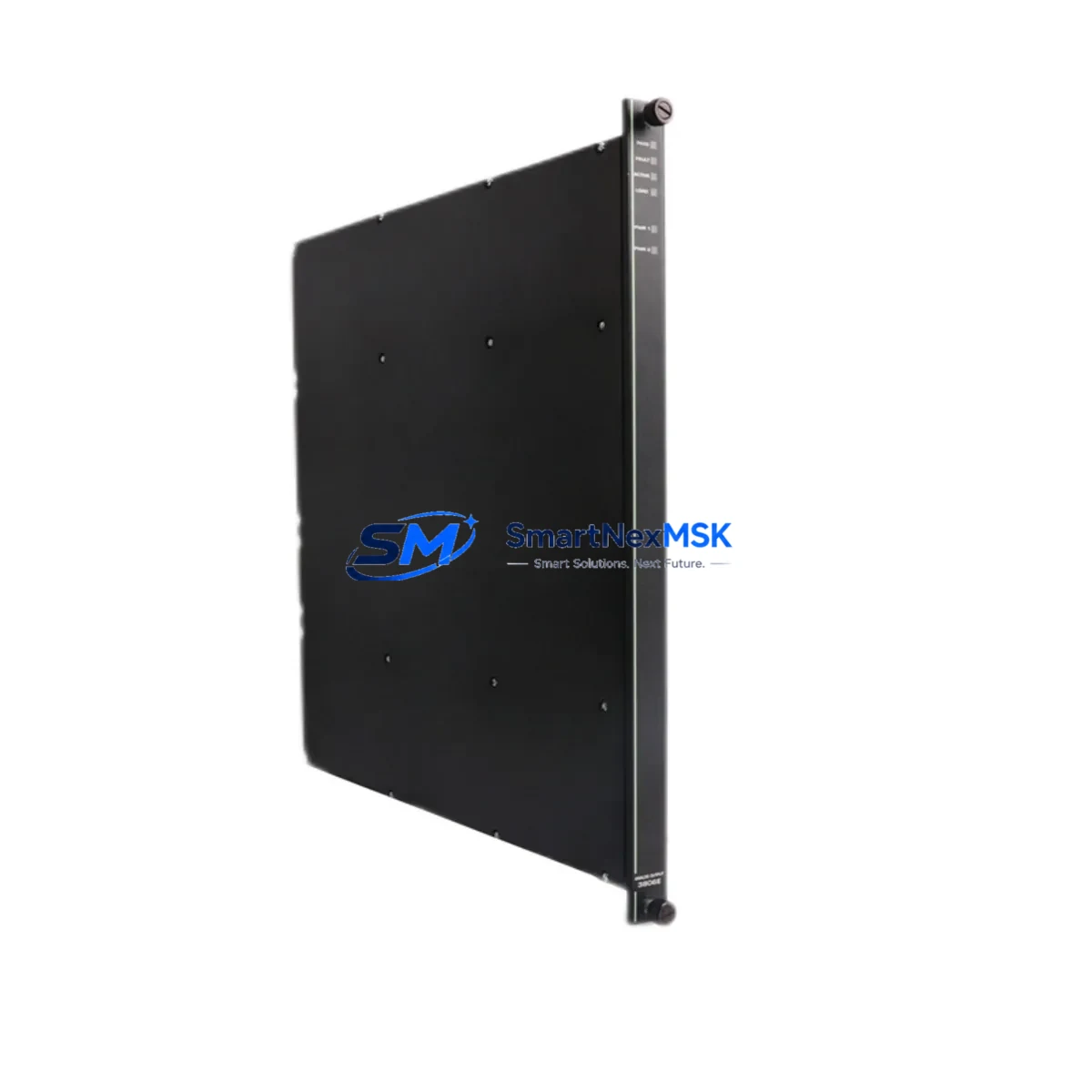

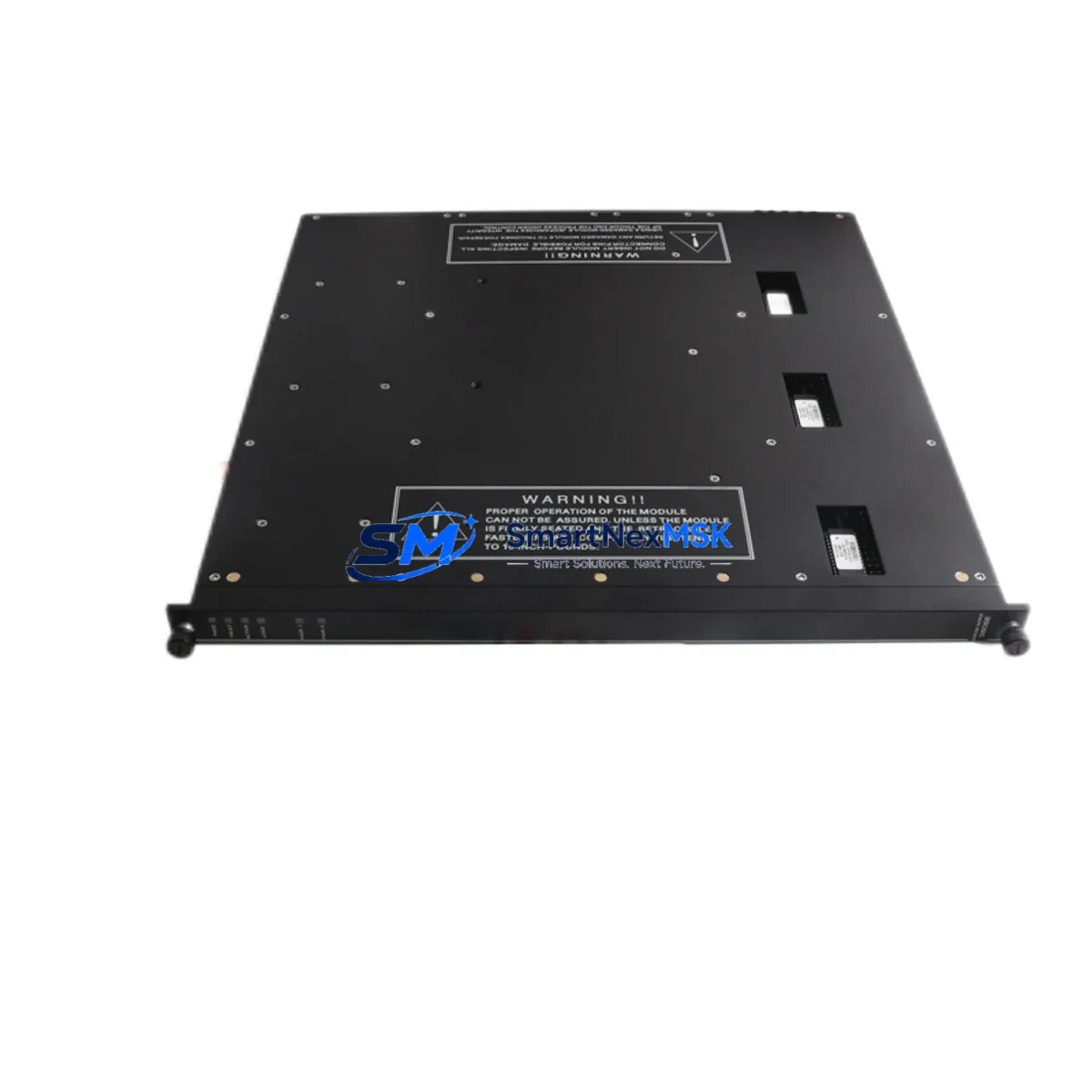

The TRICONEX 3806E is a high-integrity analog input module engineered for the Tricon Triple Modular Redundancy (TMR) safety system platform. Designed to SIL 3 requirements under IEC 61511, this module delivers reliable 4–20 mA and voltage signal acquisition across all three redundant legs of the Tricon chassis. As original 3806E units reach end-of-life or become increasingly difficult to source through OEM channels, SMARTNEXMSK maintains verified stock of tested, warranty-backed 3806E modules to support ongoing plant operations, scheduled turnarounds, and emergency replacements.

Whether you are managing a refinery DCS migration, upgrading a legacy safety instrumented system (SIS), or restoring a Tricon rack after an unplanned failure, the 3806E integrates directly into your existing Tricon chassis without requiring firmware changes, backplane rewiring, or TriStation 1131 program modifications. This makes it one of the most operationally efficient replacement paths available for aging Tricon-based control architectures.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3806E retrofit begins well before the module arrives on-site. Engineers should first audit the existing Tricon chassis slot map to confirm the target slot address and verify that the replacement module’s firmware revision is compatible with the installed Tricon Main Processor — typically a Tricon MP 3008 or 3009 — running the plant’s safety logic. The TriStation 1131 project file should be backed up and the I/O configuration exported prior to any physical intervention.

Terminal wiring on the field termination assembly (FTA) connected to the 3806E must be documented before removal. In many legacy installations, the FTA — often a Triconex 3703E or 3700A termination panel — carries field instrument wiring that has not been formally re-documented since original commissioning. Photograph or trace each terminal before disconnecting. Confirm loop power supply voltage at the FTA; the 3806E supports both internally and externally powered transmitter loops, and incorrect power configuration is a common source of post-swap signal errors.

If the plant’s Tricon system communicates with a DCS or historian via Triconex TCM 4351B or TCM 4352 communication modules using Modbus TCP or OPC, verify that the analog input tags mapped through these communication paths remain correctly addressed after the module swap. Tag address offsets in the Tricon memory map are slot-dependent, and any slot reassignment will require a corresponding update in the DCS tag database and HMI faceplate configuration.

For plants running Triconex TSAA (Triconex Safety Application Architecture) or integrating with a Honeywell Experion or Emerson DeltaV DCS layer, the 3806E replacement should be coordinated with the DCS team to ensure that the analog input values feeding interlock logic and HMI displays are validated against live field readings before the safety system is returned to automatic mode. Where a Tricon 3805E (the predecessor 8-channel AI module) was previously installed in the same slot, confirm that the channel count difference is reflected in the TriStation I/O table — the 3806E’s 16-channel architecture may require tag additions rather than simple substitution.

Rack-level planning should also account for power budget. The Tricon Power Supply Module 8312 or 8310 feeding the chassis must have sufficient headroom to support the 3806E’s current draw alongside other installed I/O modules. In high-density racks with multiple analog modules, a power audit is recommended before adding or replacing modules. If the rack is approaching its power limit, consider distributing I/O across an expansion chassis connected via a Tricon 3501E or 3502E Remote I/O module.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3806E replacement requires a structured pre-outage preparation protocol. Begin by placing the affected analog input channels in manual override within the Tricon safety logic using TriStation 1131’s online monitoring mode. This ensures that field transmitter signals — pressure, temperature, flow, or level — do not trigger spurious shutdowns during the physical swap. Document the current process values for each channel as a baseline for post-swap validation.

If the Tricon system is operating in a fully redundant TMR configuration, the 3806E can often be replaced with the chassis energized, provided the remaining two legs maintain signal integrity. Confirm this with your site’s safety management of change (MOC) procedure before proceeding. In simplex or degraded-redundancy configurations, a controlled process hold or bypass may be required.

After physical installation, use TriStation 1131’s I/O diagnostics to verify that all 16 channels report valid signal status before releasing the channels from manual override. Cross-check analog values against field instrumentation readings and confirm that HMI displays — whether running on a Wonderware InTouch, FactoryTalk View, or native Triconex operator interface — reflect accurate live values. Log the replacement event in the plant’s maintenance management system (CMMS) and retain the outgoing module for failure analysis if applicable.

SMARTNEXMSK ships all 3806E modules with a pre-shipment functional test report. Each unit is bench-tested for channel accuracy, TMR signal voting behavior, and backplane communication integrity before dispatch, reducing the risk of a second outage caused by a defective replacement unit.

Retrofit Support FAQ

Q1: Is the TRICONEX 3806E a direct drop-in replacement for the 3805E?
The 3806E and 3805E share the same backplane form factor and Tricon chassis slot compatibility, but the 3806E provides 16 analog input channels versus the 3805E’s 8. If replacing a 3805E with a 3806E, the additional 8 channels must be configured in TriStation 1131 — they will not automatically inherit existing tag assignments. Confirm with your system integrator whether the expanded channel count requires a safety logic modification under your site’s MOC process.

Q2: What wiring checks are required before installing the 3806E?
Verify field termination polarity, loop power source (internal vs. external), and shield grounding at the FTA. Confirm that transmitter output ranges match the module’s configured input range (4–20 mA is most common). Check for any corroded or loose terminal connections on the FTA that may have contributed to the original module failure.

Q3: Can the 3806E be installed while the Tricon system is online?
In a fully healthy TMR configuration, hot-swap replacement is generally supported by the Tricon architecture. However, site-specific safety procedures, MOC requirements, and the current redundancy status of the chassis must be evaluated before proceeding. Always consult your site’s SIS engineer and follow the Triconex hardware installation guide for your chassis revision.

Q4: What does the 12-month warranty cover?
All 3806E modules supplied by SMARTNEXMSK carry a 12-month warranty covering functional defects under normal operating conditions. Each unit ships with a pre-shipment test report. Warranty claims are supported by our technical team via email and phone. Modules showing physical damage from incorrect installation, overvoltage, or environmental exposure outside rated specifications are evaluated on a case-by-case basis.
