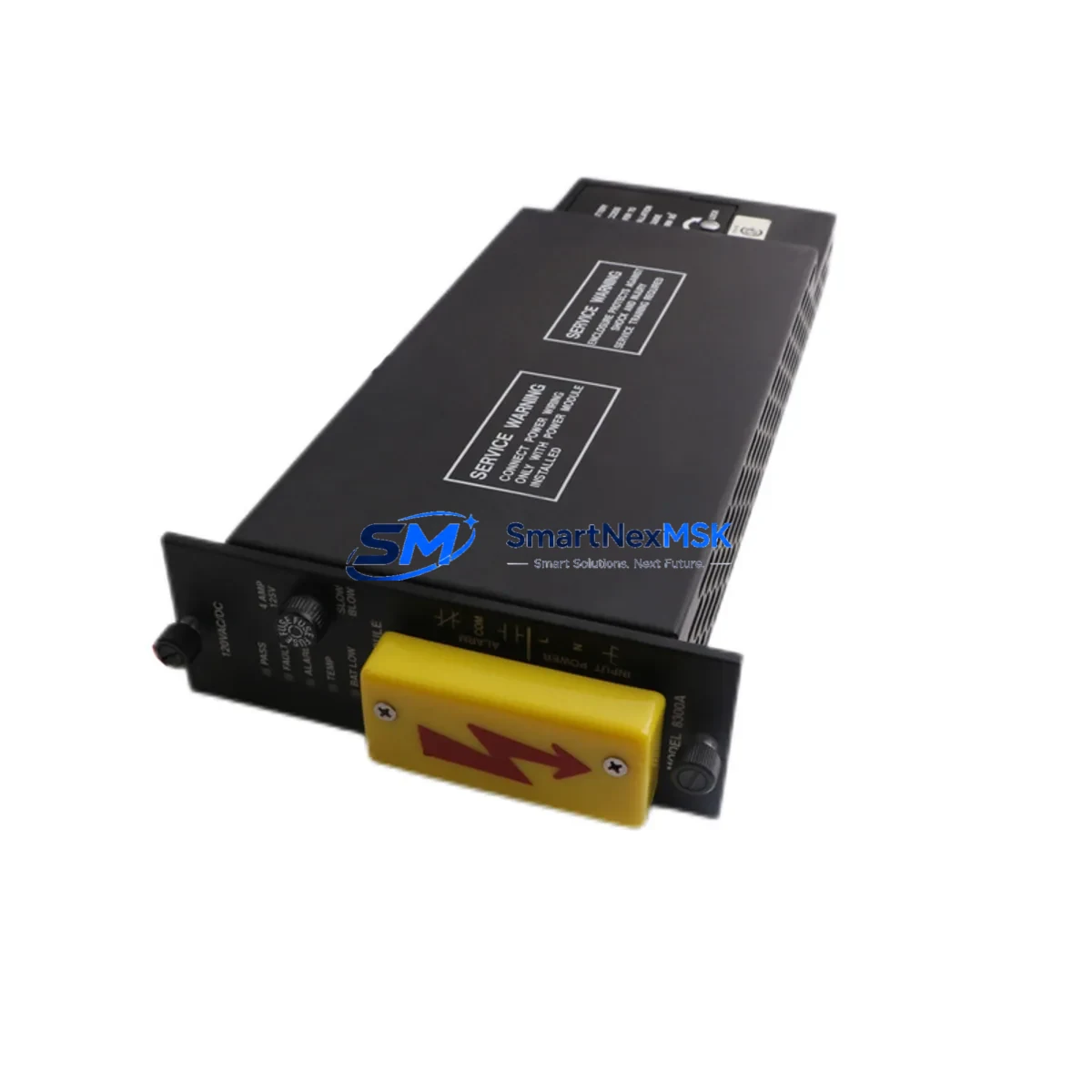

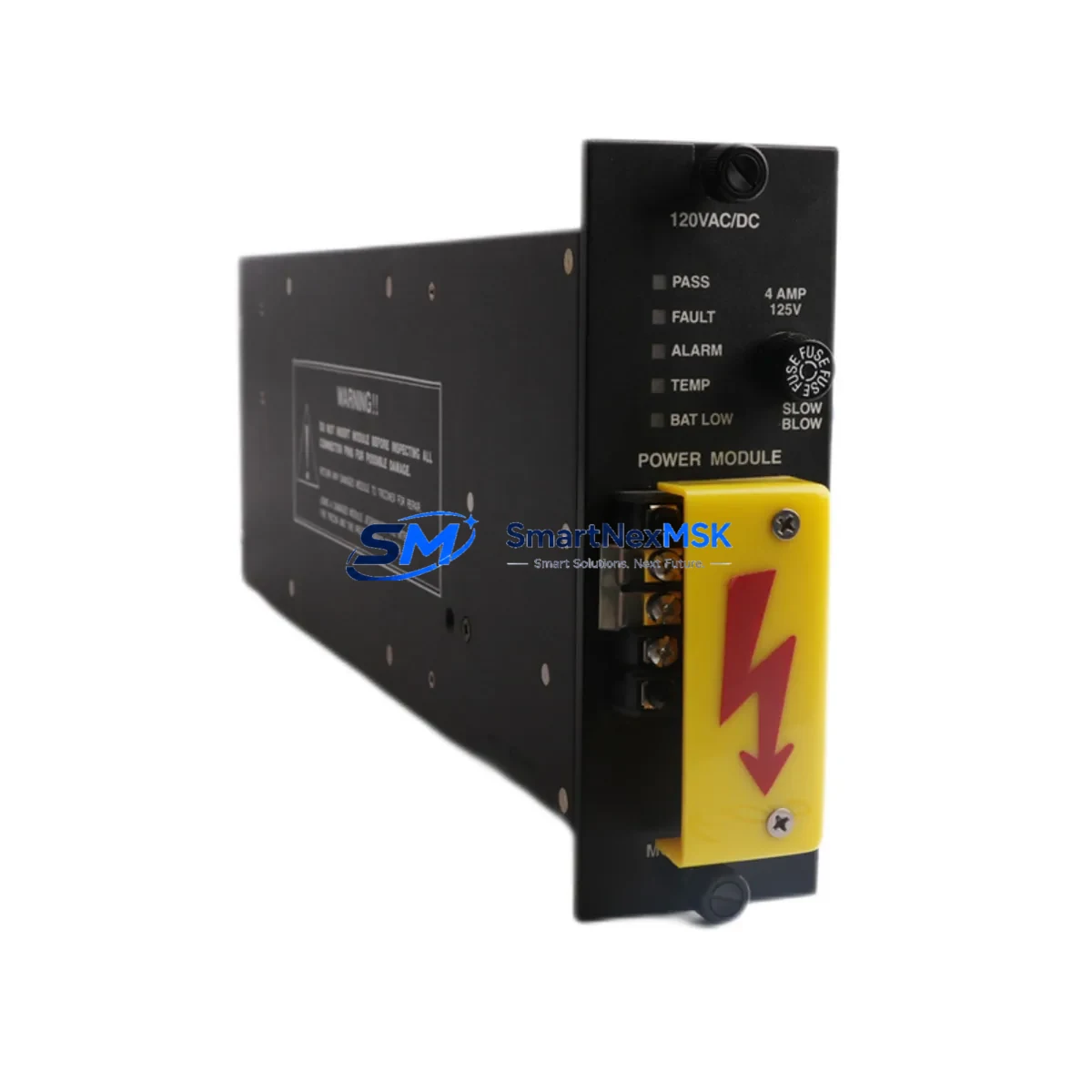

The TRICONEX 8300A is an original power supply module engineered for the Tricon Safety Instrumented System (SIS) — one of the most widely deployed triple-modular redundant (TMR) platforms in oil & gas, petrochemical, power generation, and chemical processing facilities worldwide. When a power supply fault is detected during a routine control cabinet inspection or an unplanned shutdown event, rapid access to a verified spare is the single most effective way to restore system integrity and minimize process downtime. This listing provides a maintenance-ready, original-specification 8300A module with full functional testing, documented traceability, and a 12-month warranty covering defects in materials and workmanship.

Maintenance engineers and reliability teams managing aging Tricon systems understand that the 8300A is not an isolated component — it is the backbone of the chassis power architecture. A degraded or failed power supply can cascade into spurious trips, loss of I/O communication, or complete controller shutdown. Proactive spare parts stocking of the 8300A, alongside complementary modules such as the TRICONEX 3008 Main Processor and TRICONEX 3700A Enhanced Intelligent Communication Module (EICM), is a recognized best practice in SIS lifecycle management under IEC 61511.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare parts strategy for Tricon-based safety systems extends well beyond stocking a single power supply. When a maintenance or reliability engineer schedules a planned outage to replace the 8300A, the same cabinet inspection window should be used to evaluate the condition of adjacent modules and interconnects that share the same power rail and backplane bus.

Start with the TRICONEX 3006 or 3008 Main Processor Module — the processor draws directly from the 8300A output rails, and any marginal voltage condition accelerates processor EEPROM wear. Simultaneously, inspect the TRICONEX 3501 or 3503 Digital Input Module and TRICONEX 3601 or 3603 Digital Output Module for signs of contact oxidation or field wiring insulation degradation, as these I/O modules are the most frequent sources of nuisance trips in humid or high-vibration environments.

Communication integrity should also be verified during the same maintenance window. The TRICONEX 3700A EICM and TRICONEX 4351B or 4352B Hiway Interface Module (HIM) rely on stable backplane power; a failing 8300A often manifests first as intermittent Modbus or DCS communication errors before a hard fault is logged. Replacing the power supply proactively eliminates this ambiguity.

On the field wiring side, inspect terminal blocks and marshalling panels for loose connections, particularly on TRICONEX 3805E or 3808 Analog Input Modules where millivolt-level signals are susceptible to ground loops introduced by degraded power supply isolation. Signal isolators and surge protection barriers installed upstream of analog inputs should be tested for leakage current at the same interval.

Finally, review the chassis backplane and the TRICONEX 3998 Termination Panel or equivalent field termination assembly for corrosion on connector pins. A comprehensive inspection checklist that covers the 8300A power supply, processor, I/O modules, communication interfaces, and field terminations transforms a reactive replacement into a proactive reliability event — reducing the probability of an unplanned SIS trip and extending the operational life of the entire Tricon system by years.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the chassis is operating in TMR mode and that the redundant power supply legs (Leg A, B, C) are all reporting healthy status via the Tristation 1131 diagnostic screen or the front-panel LED array. Document the current fault log before any physical intervention.

Step 2 — Hot-swap preparation: The 8300A is designed for hot-swap replacement in a live TMR chassis without requiring a system shutdown, provided the remaining two power supply legs are healthy. Notify the control room operator and confirm process conditions are stable before proceeding.

Step 3 — Module extraction: Release the front-panel locking lever, slide the 8300A out of its chassis slot, and immediately inspect the backplane connector for bent pins or debris. Do not leave the slot vacant for more than 60 seconds in a live system.

Step 4 — Spare insertion and verification: Insert the replacement 8300A firmly until the connector seats fully. Observe the front-panel LEDs — the PWR indicator should illuminate green within 5 seconds. Verify output voltage stability via the Tristation diagnostic interface and confirm all three legs return to a balanced load-sharing state.

Step 5 — Documentation and spare replenishment: Log the replacement in the site CMMS (Computerized Maintenance Management System), record the removed module’s serial number for RMA or failure analysis, and immediately initiate a purchase order for a replacement spare to restore your minimum stock level. Maintaining at least one 8300A on the shelf at all times is the industry-standard recommendation for SIL 3 systems with no planned migration path.

This workflow applies equally to legacy Tricon v9 installations and current v10 deployments, ensuring backward compatibility and minimizing the engineering effort required to qualify the replacement module for continued SIS service.

Spare Parts Support FAQ

Q1: Is the 8300A compatible with both Tricon v9 and v10 chassis?
Yes. The 8300A power supply module is mechanically and electrically compatible with both Tricon v9 and v10 main chassis configurations. No firmware or configuration changes are required upon installation. Always verify the chassis slot assignment against your system’s as-built documentation before insertion.

Q2: How is the module tested before shipment?
Every 8300A unit undergoes a full power-on functional test prior to shipment. Output voltages (+5 VDC, +15 VDC, −15 VDC) are measured under load and compared against OEM specifications. Units that fail to meet tolerance thresholds are quarantined and not offered for sale. A test report is available upon request for critical SIS applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or unauthorized modification. In the event of a warranty claim, we provide a replacement unit or full refund after failure analysis confirmation. Warranty support is handled directly by our technical team at sales@smartnexmsk.com.

Q4: Can you support long-term or blanket purchase orders for ongoing spare parts programs?
Yes. We support scheduled delivery agreements, blanket POs, and vendor-managed inventory (VMI) arrangements for maintenance teams managing multiple Tricon installations. Long-term supply commitments allow us to reserve stock and provide priority allocation during periods of market shortage — a common challenge for legacy SIS modules that are no longer in active OEM production. Contact our team to discuss your annual consumption requirements and preferred delivery schedule.
