TRICONEX DO 3401 Spare for Tricon TMR Automation

TRICONEX DO 3401 Spare for Tricon TMR Automation: Spare Replacement & Industrial Downtime Risk Control

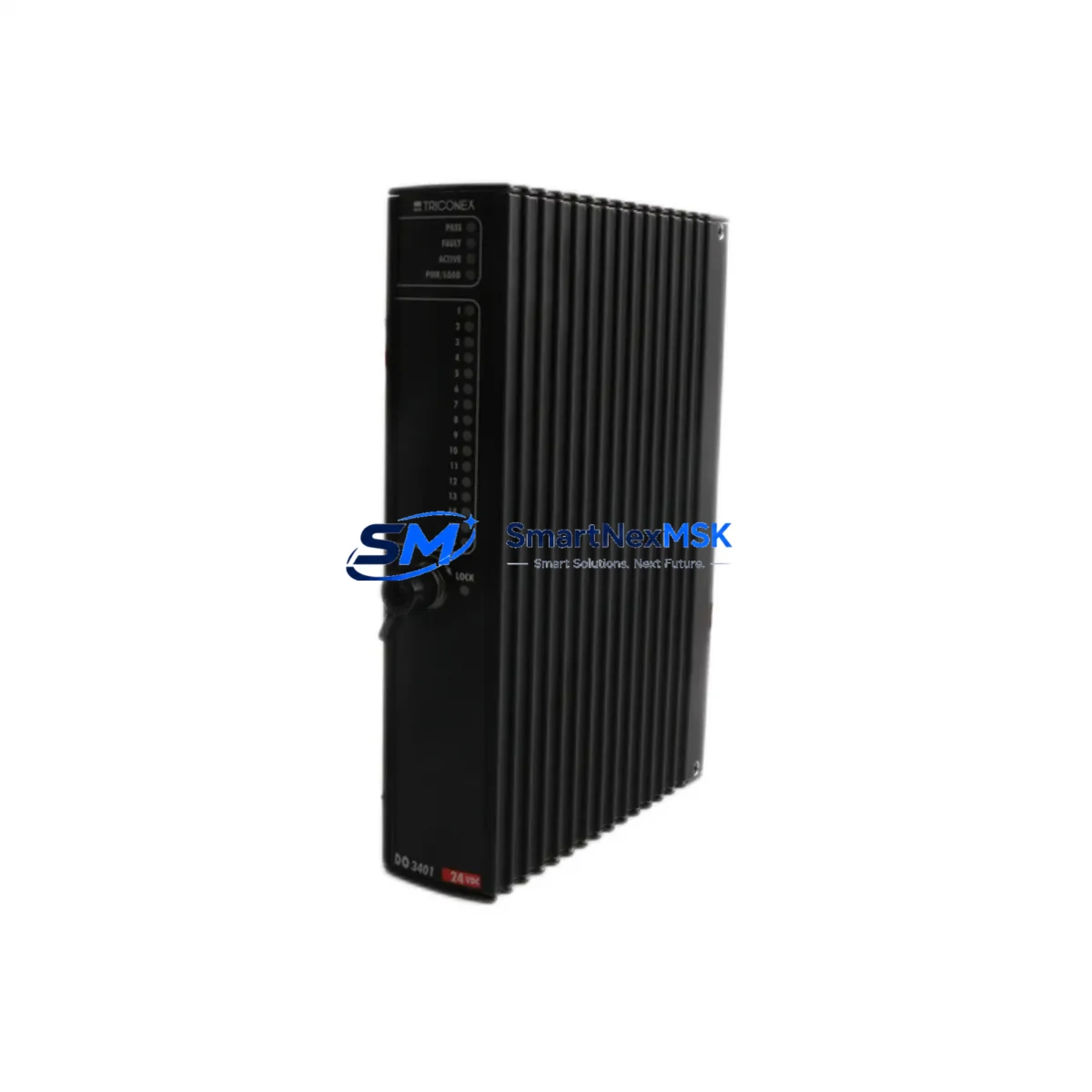

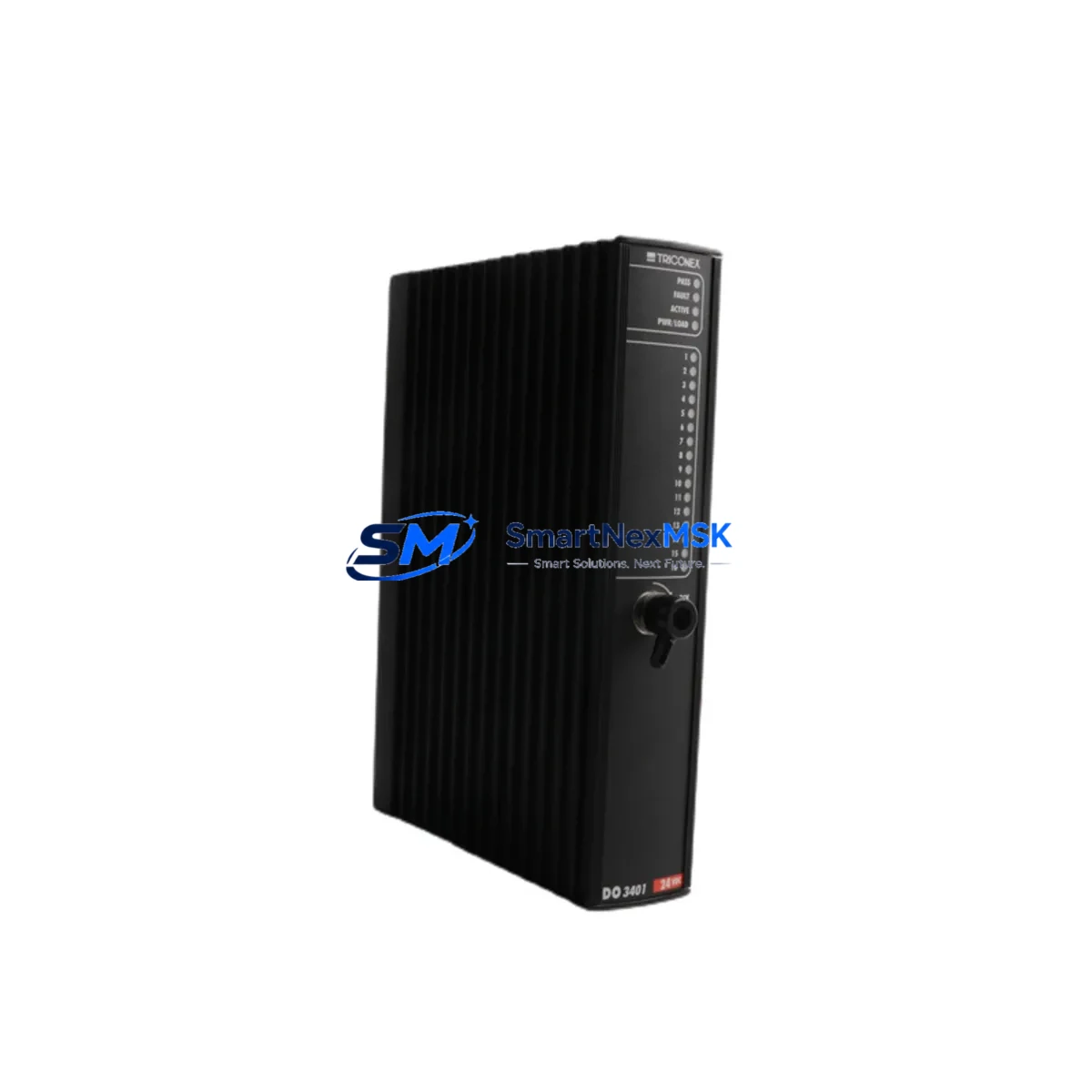

The TRICONEX DO 3401 is an original digital output module engineered for Tricon Triple Modular Redundant (TMR) safety systems — one of the most widely deployed safety-rated control architectures in oil & gas, petrochemical, power generation, and continuous process industries. When a DO 3401 module reaches end-of-life, exhibits output channel faults, or fails a diagnostic self-test, rapid spare replacement is the only path to restoring full TMR voting integrity and avoiding unplanned process shutdown. Stocking a verified original DO 3401 spare is a fundamental element of any responsible maintenance strategy for Tricon-based safety instrumented systems (SIS).

Each unit supplied by SMARTNEXMSK is sourced as an original TRICONEX component, subjected to pre-shipment functional verification, and backed by a 12-month warranty. We maintain long-term supply capability for legacy Tricon hardware, supporting maintenance engineers and procurement teams who must sustain aging control systems well beyond the OEM’s active production window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a DO 3401 module in a live Tricon TMR system is rarely an isolated task. A disciplined maintenance engineer will treat the module swap as an opportunity to inspect the entire output circuit and surrounding cabinet infrastructure. Before or during replacement, the following components and assemblies should be evaluated as part of a comprehensive site inspection:

The Tricon Power Supply Module (e.g., 8312 or 8310 series) should be load-tested to confirm it can sustain full output current demand after the new DO 3401 is inserted. A marginal power supply that passes light-load diagnostics may still fail under the inrush current of a freshly installed output module. Similarly, the Tricon Main Chassis Backplane connector pins at the target slot should be inspected for oxidation, mechanical wear, or bent contacts — a damaged backplane connector is a common root cause of intermittent module faults that are misdiagnosed as module failure.

On the field wiring side, the terminal blocks and marshalling panels connected to the DO 3401 output channels should be checked for loose terminations, insulation degradation, and correct labeling. If the system uses relay output expansion panels or solid-state relay (SSR) interface modules driven by the DO 3401 channels, these should be tested for coil continuity and switching response before the new module is commissioned. Relay contacts that have welded or degraded will mask a successful module replacement and generate nuisance alarms.

For systems with Tricon Communication Modules (TCM, e.g., 4351B or 4352B) or Tricon Enhanced Intelligent Communication Modules (EICM), verify that the network configuration and node addressing remain intact after the module swap — some firmware versions require a soft reset of the communication layer following hot-swap operations. If the plant uses a Tristation 1131 engineering workstation for configuration and diagnostics, confirm that the replacement module’s firmware revision is compatible with the active project file before going online.

Additionally, inspect any signal isolators or loop-powered barriers in the output circuit, particularly in hazardous area installations where Zener barriers or galvanic isolators protect the field devices. A failed isolator can present as a DO channel fault even after a successful module replacement. Fuse holders and circuit protection devices on the output commons should also be verified — blown fuses are frequently overlooked during emergency replacements and will prevent output activation on the new module.

For aging Tricon installations, consider simultaneously auditing the DI 3401 or AI 3721 input modules in adjacent slots, as thermal cycling and vibration stress affect all modules in the same chassis equally. A proactive spare strategy that covers both input and output module types significantly reduces the risk of a second unplanned outage within the same maintenance window.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the faulty module’s slot address using Tristation 1131 or the Tricon system diagnostics panel. Document the current channel status, output states, and any active fault codes. Verify that the replacement DO 3401 carries the same or compatible firmware revision as the installed unit.

Step 2 — Hot-Swap Execution: The Tricon TMR architecture supports online module replacement without process interruption. With the system in RUN mode and the two remaining legs maintaining voting integrity, extract the faulted module by releasing the front-panel locking lever. Insert the replacement DO 3401 firmly until the backplane connector seats fully and the module latch engages.

Step 3 — Post-Insertion Diagnostics: Monitor the Tristation diagnostic display for module initialization status. The DO 3401 will perform an internal self-test sequence upon power-up. Confirm that all 32 output channels report healthy status and that no new fault codes are generated. Verify output states against the process control narrative to confirm correct field device response.

Step 4 — Documentation and Spare Replenishment: Record the replacement in the plant maintenance management system (CMMS) with the module serial number, slot address, date, and technician ID. Immediately initiate a purchase order for a replacement spare to restore your on-hand buffer. A minimum of one DO 3401 spare per Tricon chassis is the recommended inventory posture for critical SIS applications.

Step 5 — Return-to-Service Confirmation: Conduct a functional output test on all channels using the Tristation force output utility (in accordance with your site’s management of change and bypass procedures). Obtain sign-off from the responsible instrument engineer before removing any bypass or inhibit that was applied during the replacement.

Spare Parts Support FAQ

Q1: Is the DO 3401 supplied by SMARTNEXMSK an original TRICONEX component or a compatible substitute?
All DO 3401 units we supply are original TRICONEX (Schneider Electric) components — not third-party compatible substitutes or rebranded alternatives. Each unit is individually verified for functionality prior to shipment. We do not supply counterfeit or refurbished-without-disclosure parts. If you require a certificate of conformance or test report, please request it at the time of order.

Q2: How do I confirm compatibility between the DO 3401 spare and my installed Tricon system version?
Compatibility is determined by the Tricon chassis generation (Tricon v9 or v10 platform), the active firmware version on your system, and the Tristation 1131 project file revision. In most cases, the DO 3401 is backward compatible across Tricon TMR chassis generations. We recommend providing your system’s chassis model number and firmware version when placing your order so our technical team can confirm compatibility before shipment.

Q3: What does the 12-month warranty cover, and what is the claim process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions as specified in the TRICONEX product documentation. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, a description of the fault symptom, and the module serial number. We will arrange return shipping and either repair or replace the unit at no charge.

Q4: Can SMARTNEXMSK support long-term supply for legacy Tricon hardware beyond OEM availability?
Yes. Long-term supply of legacy TRICONEX hardware — including DO 3401, DI 3401, AI 3721, power supply modules, and communication modules — is a core capability of SMARTNEXMSK. We maintain strategic inventory of discontinued and end-of-life Tricon components specifically to support plants that must sustain aging SIS infrastructure for 5–15+ years beyond the OEM’s active production window. Contact us to discuss a long-term supply agreement or blanket order arrangement.
