TRICONEX EMPII 3006 Spare for Tricon 3000 Automation

TRICONEX EMPII 3006 Maintenance-Ready Spare for Tricon 3000 Automation

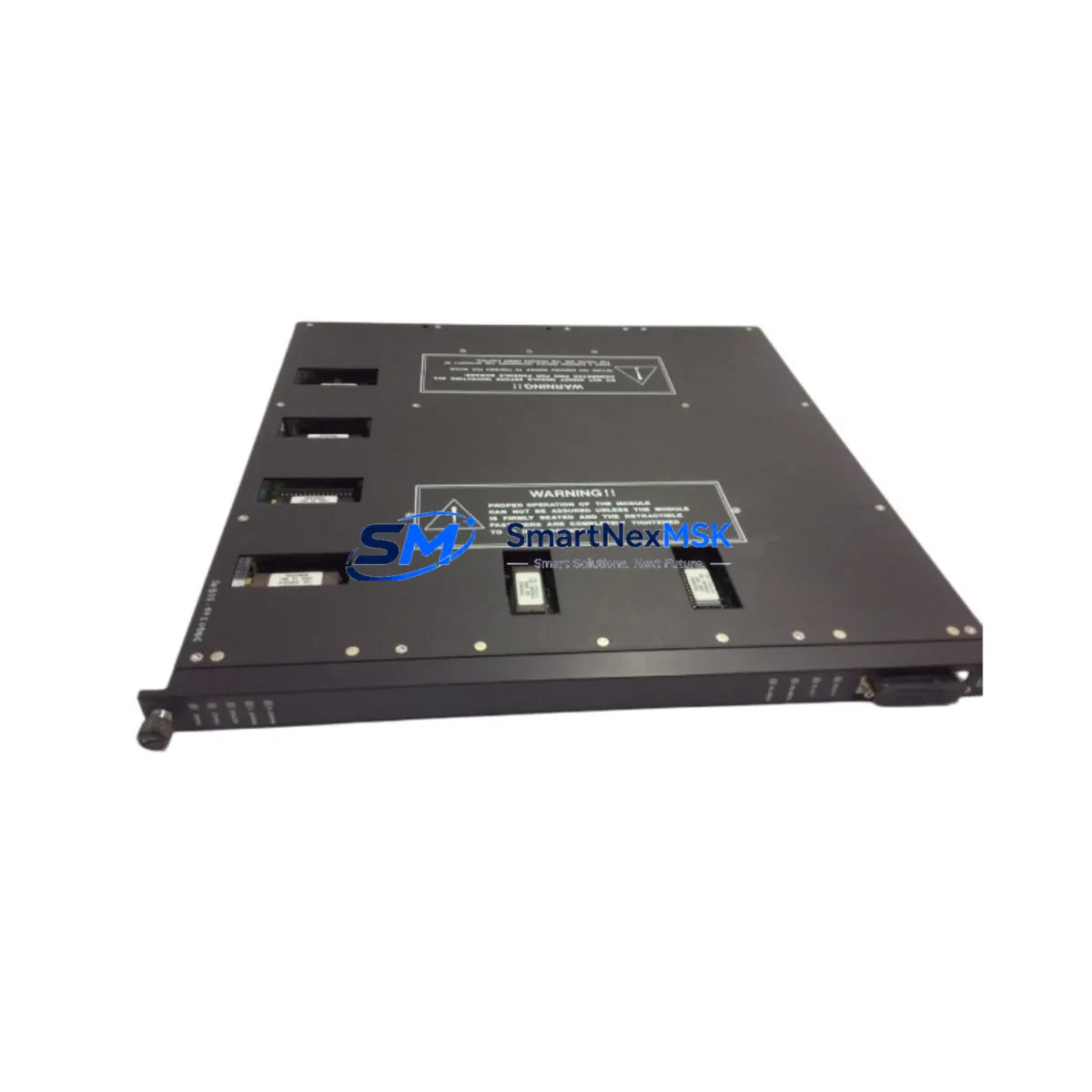

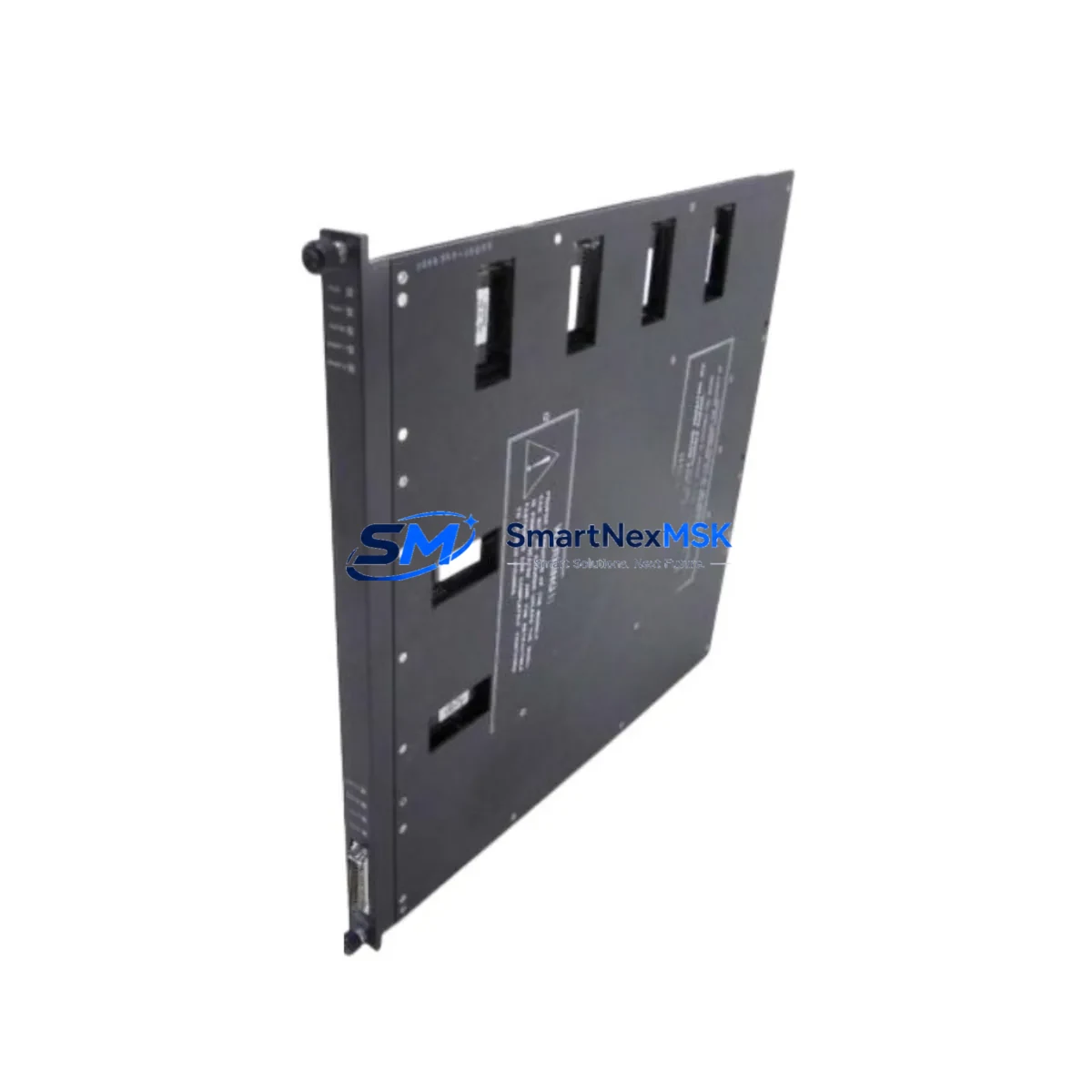

The TRICONEX EMPII 3006 is the Enhanced Main Processor II module at the heart of the Tricon Triple Modular Redundant (TMR) safety system — one of the most widely deployed SIL 3–rated safety PLCs in oil & gas, petrochemical, power generation, and pipeline control applications. When this processor fails or reaches end-of-life, the entire safety instrumented system (SIS) is at risk. Unplanned downtime in these environments carries severe operational, financial, and safety consequences. Holding a verified, tested EMPII 3006 spare on-site is the single most effective measure a maintenance team can take to protect system availability and accelerate shutdown recovery.

Our EMPII 3006 units are sourced from original TRICONEX supply chains, individually inspected, and function-tested prior to dispatch. Each unit ships with a 12-month warranty covering manufacturing defects and operational failures under normal industrial conditions. We support maintenance engineers and procurement teams with long-term supply continuity — critical for legacy Tricon 3000 series installations that may no longer be covered by OEM active support programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the EMPII 3006 in a live Tricon TMR system is rarely an isolated task. Experienced maintenance engineers know that a processor swap is the right moment to audit the entire control cabinet for latent faults that could trigger the next unplanned shutdown. Before or during an EMPII 3006 replacement, the following components should be inspected and — where stock allows — held as concurrent spares:

Power Supply Modules (e.g., Tricon 8312 or 8310 Power Supply): The EMPII 3006 depends on stable, clean DC power from the chassis power supply. A degraded power module can cause intermittent processor resets that mimic processor faults. Verify output voltage rails and ripple before concluding the processor is the root cause.

Communication Modules (e.g., Tricon 4351A or 4352A Hiway Interface Module): If the EMPII 3006 failure was accompanied by loss of DCS communication or historian data gaps, inspect the Hiway Interface Module. These modules handle the Modbus or proprietary protocol bridge between the Tricon and the DCS, and their failure is often misattributed to the main processor.

I/O Modules — Digital Input (e.g., Tricon 3501E DI Module) and Digital Output (e.g., Tricon 3601E DO Module): During a planned processor replacement, perform a full I/O diagnostic scan. Marginal DI or DO modules that were masked by the processor fault may surface after the new EMPII 3006 is installed. Holding at least one spare DI and DO module per chassis reduces secondary downtime risk.

Analog Input Modules (e.g., Tricon 3703E AI Module): In process safety applications, AI modules reading pressure, temperature, and flow transmitters are critical to SIS logic. Verify channel-by-channel calibration and signal integrity after the processor swap, particularly if the system experienced a hard shutdown.

Termination Assemblies and Field Wiring Panels: Loose or corroded terminations on the field wiring panels connected to the Tricon I/O chassis are a common source of spurious trips after maintenance. Inspect all terminal blocks, cable shields, and connector seating during the EMPII 3006 replacement window.

Chassis Backplane: In older Tricon 3000 installations, the backplane connector pins can develop micro-corrosion or mechanical wear. If the EMPII 3006 replacement does not resolve the fault, the backplane should be the next diagnostic focus.

TriStation 1131 Programming Cable and Workstation: Ensure the engineering workstation running TriStation 1131 is available and the communication cable is functional before beginning the swap. A failed download after processor replacement can extend downtime significantly.

Battery Backup Module: The EMPII 3006 relies on a battery-backed RAM to retain the application program during power loss. Confirm the battery module is within its service life — typically 3–5 years — and replace it concurrently if it is approaching end-of-life.

Procurement engineers should consider establishing a minimum spare parts inventory that covers the EMPII 3006 alongside at least one power supply module, one communication module, and one each of the most common I/O module types deployed in the installation. This multi-layer spare strategy is the industry standard for SIL 3 systems where proof-test intervals and mean-time-to-restore (MTTR) targets are contractually defined.

Site Replacement Workflow

The EMPII 3006 is designed for hot-swap replacement in a fully redundant Tricon TMR chassis, meaning a skilled maintenance engineer can replace a faulted processor leg without initiating a full system shutdown — provided the remaining two legs are healthy and the system is in the correct operational state.

Step 1 — Pre-Replacement Verification: Connect the TriStation 1131 workstation and confirm the system status. Document the current application program version, I/O configuration, and any active alarms. Verify that the two remaining TMR legs are fault-free before proceeding.

Step 2 — Module Extraction: Follow TRICONEX lockout/tagout procedures. The EMPII 3006 can be extracted from its chassis slot using the module ejector handles. Avoid touching the backplane connector pins.

Step 3 — Spare Insertion and Download: Insert the replacement EMPII 3006 into the vacated slot. The TMR system will automatically synchronize the new processor with the running application from the healthy legs. In some configurations, a manual program download via TriStation 1131 may be required — confirm with the site’s safety management of change (MOC) procedure.

Step 4 — Post-Replacement Diagnostics: Run a full system diagnostic from TriStation 1131. Confirm all three TMR legs show healthy status, all I/O channels are reading correctly, and no new alarms are present. Document the replacement in the site maintenance log.

This workflow applies equally to planned preventive replacements — for example, replacing an EMPII 3006 that has accumulated excessive operating hours or has been flagged during a periodic proof test — and to emergency corrective replacements following an unplanned fault. In both cases, having a pre-tested spare on-site eliminates the lead-time risk associated with sourcing a replacement under emergency conditions.

Spare Parts Support FAQ

Q1: Is this EMPII 3006 compatible with all Tricon 3000 series chassis?
Yes. The EMPII 3006 is the standard Enhanced Main Processor II for the Tricon 3000 series TMR platform. It is compatible with all standard Tricon 3000 main chassis configurations. If your installation uses a Tricon 3008 or 3009 chassis variant, please confirm the chassis revision with our technical team before ordering to ensure full backplane compatibility.

Q2: What testing is performed before dispatch?
Each EMPII 3006 unit undergoes a multi-stage inspection process: visual inspection for physical damage, connector pin integrity check, power-on functional test, and communication interface verification. Units that do not pass all stages are quarantined and not offered for sale. A test report is available upon request for critical SIS applications.

Q3: How should the EMPII 3006 be stored as a long-term spare?
Store in the original anti-static packaging in a climate-controlled environment: temperature 15–25 °C, humidity below 60% RH, away from direct sunlight and electromagnetic interference sources. Inspect the unit annually and verify the battery backup module’s charge state. Rotate stock on a first-in, first-out basis if multiple units are held.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and operational failures under normal industrial operating conditions as specified in the TRICONEX EMPII 3006 product documentation. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the specified environmental range. Warranty claims are processed within 5 business days of receipt of the returned unit, with a replacement dispatched upon fault confirmation.
