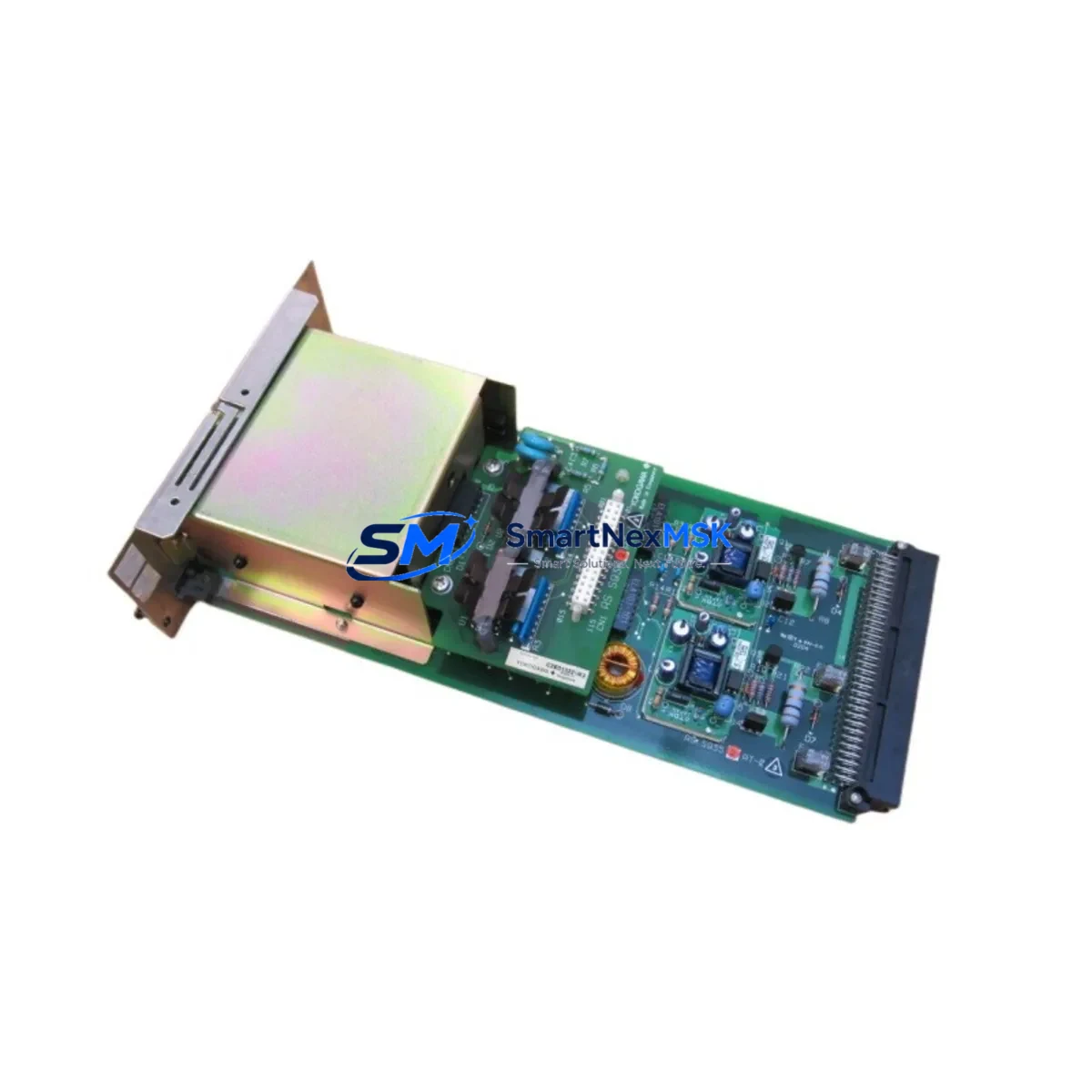

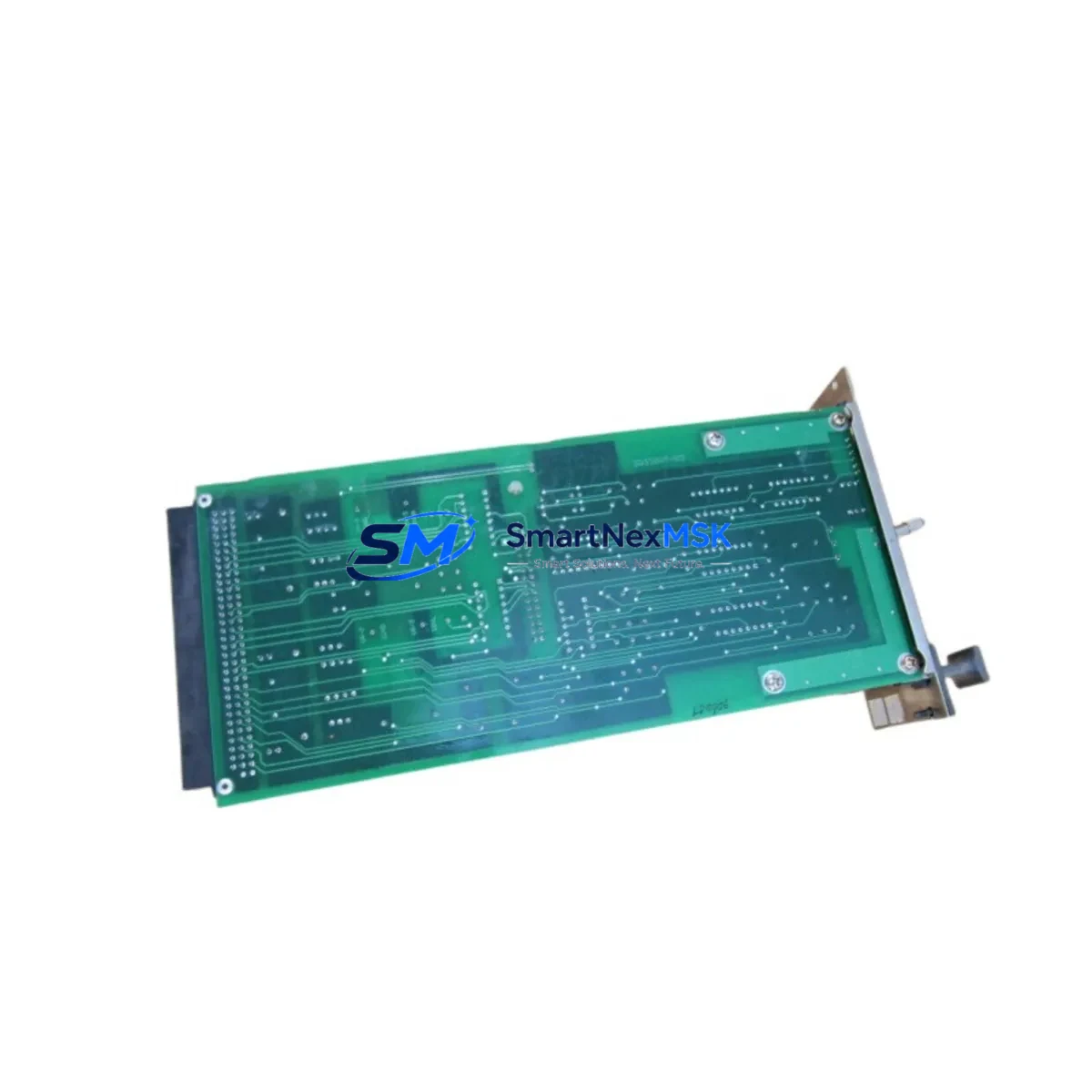

YOKOGAWA AIP502 Maintenance-Ready Spare for CENTUM CS Automation
The YOKOGAWA AIP502 is an original V-Net coupler module designed for the CENTUM CS and CENTUM CS3000 Distributed Control System (DCS) platforms. In industrial process automation environments — including oil & gas, petrochemical, power generation, and continuous manufacturing — the AIP502 serves as a critical communication backbone component, enabling reliable V-Net fieldbus connectivity between field controllers, I/O subsystems, and the engineering workstation. Unplanned failure of this module can result in complete loss of process visibility and control loop integrity, making a pre-qualified spare unit an essential element of any maintenance strategy.
At SMARTNEXMSK, every AIP502 unit is sourced as an original YOKOGAWA component, individually tested prior to shipment, and backed by a 12-month warranty. Our inventory is maintained to support both emergency breakdown replacement and planned shutdown procurement, with fast international dispatch to minimize your plant’s exposure to unscheduled downtime.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | AIP502 |
| Brand | YOKOGAWA |
| Compatible Platform | CENTUM CS, CENTUM CS3000 DCS |
| Module Function | V-Net Coupler (fieldbus communication interface) |
| Communication Bus | V-Net (YOKOGAWA proprietary real-time control bus) |
| Installation | DCS control cabinet backplane / bus coupler slot |
| Origin | Japan (Original YOKOGAWA) |
| Operating Environment | Industrial control room / DCS cabinet, standard IEC conditions |
| Pre-Shipment Test | Yes — functional verification before dispatch |
| Warranty | 12 Months |
| Availability | In Stock — ready for immediate shipment |
| Maintenance Recommendation | Inspect V-Net termination resistors and cable integrity at each planned shutdown; replace AIP502 if bus error counts increase or communication timeouts are logged |
Maintenance Planning for Continuous Operation
When a maintenance or reliability engineer schedules replacement of the AIP502 V-Net coupler, the scope of inspection should extend beyond the module itself. The V-Net communication layer interconnects multiple subsystems, and a degraded coupler often masks or accelerates faults in adjacent components. During the same maintenance window, engineers should verify the condition of the AIP501 V-Net interface card installed in the field control station, as well as the ACM12 communication module that bridges the V-Net to the process I/O bus. Termination resistors on the V-Net coaxial segment should be measured and replaced if impedance has drifted.
On the power supply side, the PW481 or PW482 dual-redundant power supply modules feeding the DCS cabinet should be load-tested; a marginal power supply is a common root cause of intermittent V-Net communication errors that are incorrectly attributed to the coupler. Simultaneously, the EB401 or EB501 field control station backplane connectors should be cleaned and inspected for oxidation, particularly in humid or coastal plant environments.
For I/O integrity, the AAI141 analog input module and ADV151 digital input module connected downstream of the affected control station should be verified for correct signal levels and channel health. If the plant operates with HART-enabled field instruments, the AAI841 HART analog I/O module should also be included in the inspection checklist. Any RY series relay output modules in the same cabinet should have their contact resistance checked, as relay degradation can introduce ground loops that corrupt bus signals.
Where the CENTUM CS3000 system interfaces with a YOKOGAWA STARDOM or third-party SCADA via serial or Ethernet gateway, the ALR111 communication interface module should be confirmed operational. Finally, the HIS (Human Interface Station) engineering workstation connection to the V-Net should be re-validated after any coupler replacement to confirm that historian data logging and alarm management resume without gap.
Maintaining a minimum of one AIP502 spare per DCS cluster, alongside spares for the power supply and primary I/O modules listed above, is the recommended strategy for plants targeting less than four hours mean time to repair (MTTR) on DCS communication faults.
Site Replacement Workflow
The AIP502 is a hot-swap-capable module within the CENTUM CS/CS3000 architecture under most firmware revisions, but site procedures should always be confirmed against the installed system version before live replacement. The recommended workflow is as follows:
1. Pre-replacement verification: Log into the CENTUM CS3000 HIS and navigate to the system status display. Record all active V-Net error counters and confirm which field control stations are reporting communication degradation. Export the current system configuration backup to a portable medium before touching any hardware.
2. Module identification and isolation: Locate the AIP502 in the DCS cabinet using the system topology diagram. If the installation is dual-redundant, confirm which coupler is the active primary before removal. Switch control to the redundant path if available.
3. Physical replacement: Remove the faulty AIP502 by releasing the front-panel locking lever. Insert the replacement unit — verify that the module firmware version is compatible with the installed CENTUM CS/CS3000 software revision. YOKOGAWA engineering bulletins should be consulted for any firmware constraints between AIP502 hardware revisions.
4. Post-replacement validation: Monitor the HIS system status display for V-Net error clearance. Confirm that all downstream field control stations re-establish communication within the expected timeout window. Run a full I/O scan and verify that analog and digital signal values are consistent with field instrument readings. Document the replacement in the plant maintenance management system (CMMS) with the new module serial number and test results.
This workflow minimizes process disruption, maintains system compatibility, and provides a documented audit trail for regulatory and reliability reporting.
Spare Parts Support FAQ
Q1: Is the AIP502 compatible with both CENTUM CS and CENTUM CS3000 systems?
Yes. The AIP502 V-Net coupler is designed for use across the CENTUM CS and CENTUM CS3000 DCS families. However, compatibility with specific firmware revisions should be confirmed against your installed system version. Our technical team can assist with compatibility verification prior to order.
Q2: How is each AIP502 unit tested before shipment?
Every unit undergoes functional verification on a YOKOGAWA-compatible test bench, confirming V-Net communication integrity, power consumption within specification, and physical connector condition. A test report is available upon request. Units that do not pass are not dispatched.
Q3: What is the warranty coverage and what does it include?
All AIP502 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. Warranty claims are processed with priority turnaround to minimize plant downtime.
Q4: Can you support long-term or blanket spare parts orders for aging CENTUM CS systems?
Yes. We specialize in supporting legacy DCS platforms where OEM supply has been discontinued or lead times are extended. We can arrange scheduled delivery programs, reserved stock agreements, and multi-SKU spare kits tailored to your plant’s maintenance schedule. Contact our team to discuss a long-term supply arrangement.
