Yokogawa CP345-S1 Spare for CENTUM VP Automation

Yokogawa CP345-S1 Spare for CENTUM VP Automation: Spare Replacement & Industrial Downtime Risk Control

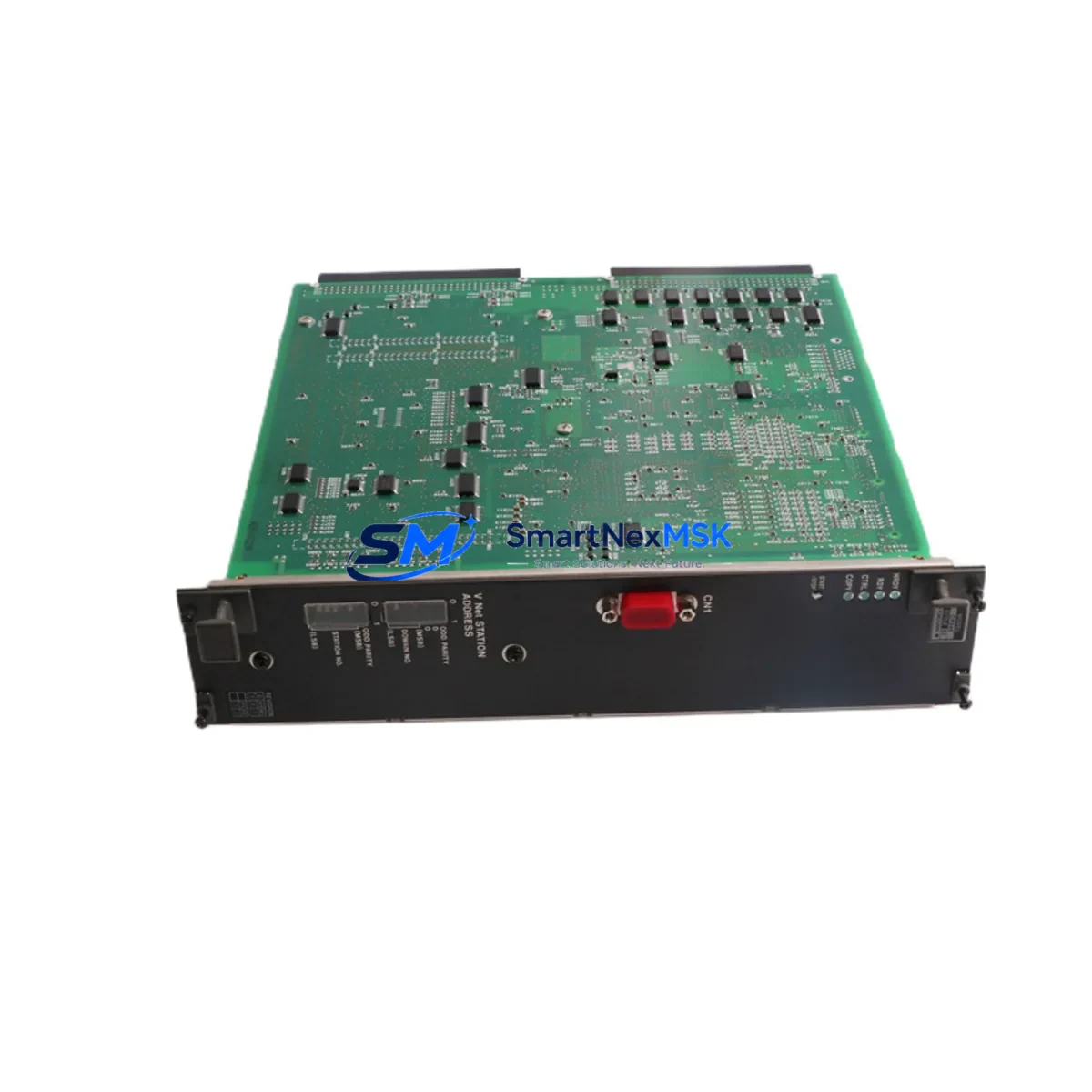

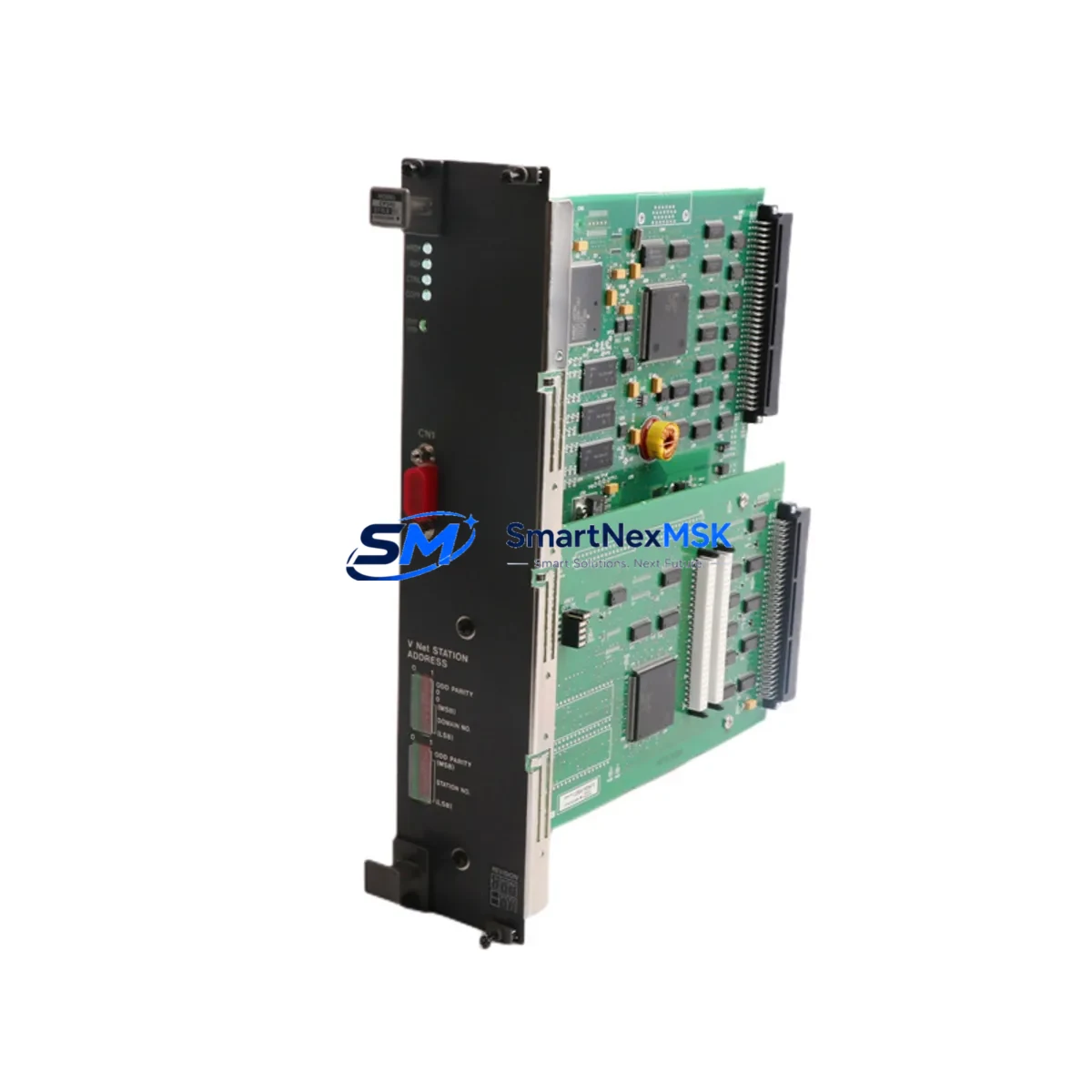

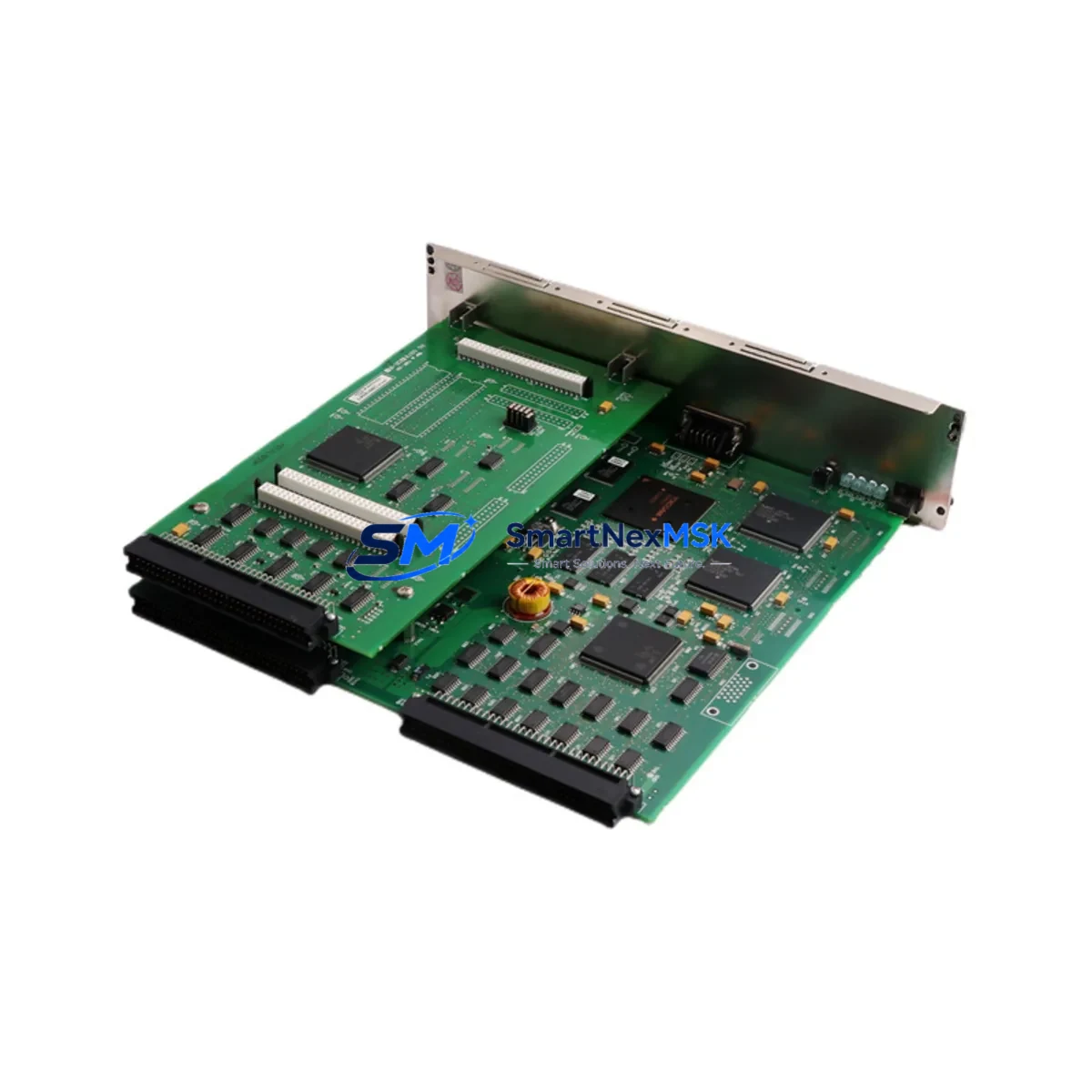

The Yokogawa CP345-S1 is a central processor module designed for the CENTUM VP distributed control system — one of the most widely deployed DCS platforms in refining, petrochemical, power generation, and continuous process industries. When a CP345-S1 fails or reaches end-of-service life, the impact on production continuity is immediate. This listing provides a maintenance-ready, original-specification CP345-S1 spare module, sourced, inspected, and dispatched to support rapid site replacement and minimize unplanned downtime.

For maintenance engineers managing aging CENTUM VP cabinets, having a verified CP345-S1 spare on the shelf is not optional — it is a core element of any responsible spare parts strategy. This module governs real-time control execution, I/O scanning, and communication with field devices across the entire DCS node. A failed processor module without an available replacement can result in hours or days of production loss. Our supply chain is structured to support both emergency procurement and planned maintenance cycles, with stock available for immediate dispatch and 12-month warranty coverage on every unit.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a CP345-S1 in a live CENTUM VP system is rarely an isolated task. Experienced maintenance engineers know that a processor module fault is often a symptom of broader cabinet-level stress — and that a thorough replacement procedure must account for the surrounding electrical and communication environment.

Before or during a CP345-S1 replacement, the following components should be inspected and verified as part of a complete maintenance workflow:

Power Supply Modules (PW302 / PW481): The processor module draws regulated DC power from the cabinet backplane. A degraded PW302 or PW481 power supply module can cause intermittent processor resets that mimic CPU faults. Always verify output voltage stability before concluding the processor is the root cause.

Vnet/IP Communication Modules (BCV1 / ESB Bus Coupler): The CP345-S1 communicates with the HIS (Human Interface Station) and other FCS nodes via Vnet/IP. If the ESB bus coupler or network interface card shows CRC errors or link-down events, replacing the processor alone will not restore full system communication. Inspect the BCV1 bus coupler and Ethernet switch ports serving the control network.

I/O Module Racks and AAI / ADV / ADA Cards: Analog input modules such as the AAI143-S and digital output modules such as the ADV151-P are directly scanned by the CP345-S1. After processor replacement, verify that all I/O modules are recognized and that no I/O fault alarms persist. A failed I/O module that was masked by the processor fault may surface post-replacement.

Redundancy Tracking Module (RCU10 / RCU20): In redundant FCS configurations, the redundancy control unit manages switchover between primary and secondary CP345-S1 modules. Confirm that the RCU is functioning correctly and that the standby processor is synchronized before returning the system to automatic control.

Terminal Boards and Field Wiring: Loose or corroded terminal connections on TB series terminal boards can introduce signal noise that stresses the processor’s I/O scanning cycle. Inspect all field wiring terminations during the maintenance window.

Fuses and Surge Protection Devices: Cabinet-level fuse blocks and surge arrestors protecting the 24VDC field power rail should be checked for continuity and rated capacity. A blown fuse on the field power bus can cause multiple I/O channels to report faults simultaneously, creating a misleading picture of processor failure.

Maintaining a coordinated spare parts inventory — including at minimum one CP345-S1 processor, one PW302 power supply, one AAI143-S analog input module, and one BCV1 bus coupler — provides the foundation for a sub-4-hour recovery from most CENTUM VP cabinet faults.

Site Replacement Workflow

The CP345-S1 is designed for structured replacement within the CENTUM VP maintenance framework. The following workflow reflects best practices for minimizing downtime and ensuring system integrity during a processor module swap:

Step 1 — Pre-Replacement Verification: Confirm the fault is isolated to the CP345-S1 by reviewing the CENTUM VP system alarm log and FCS diagnostic screen. Check that the standby processor (if in redundant mode) has taken control cleanly. Download and archive the current FCS configuration database before proceeding.

Step 2 — Module Removal: Follow Yokogawa’s lockout/tagout procedure for the affected FCS cabinet. In non-redundant configurations, coordinate with the control room to place the affected loops in manual mode. Remove the CP345-S1 by releasing the front-panel locking lever and sliding the module from the backplane slot.

Step 3 — Replacement Module Inspection: Verify the replacement CP345-S1 part number and firmware revision against the system’s engineering documentation. Confirm that the module has passed pre-shipment functional testing. Check for any physical damage to the backplane connector pins.

Step 4 — Installation and Initialization: Insert the replacement module into the backplane slot and secure the locking lever. Power on the FCS and monitor the CENTUM VP system display for processor initialization status. In redundant configurations, confirm that the new module synchronizes with the active processor within the expected timeframe.

Step 5 — Post-Replacement Validation: Verify all I/O channels are scanning correctly. Confirm Vnet/IP communication is re-established with the HIS and other FCS nodes. Return all loops from manual to automatic control and document the replacement in the site maintenance log.

This workflow applies equally to planned maintenance replacements and emergency fault recovery scenarios. Having a pre-tested CP345-S1 spare on site reduces Step 3 to a simple verification check, cutting total replacement time significantly compared to sourcing a module under emergency conditions.

Spare Parts Support FAQ

Q: Is this CP345-S1 an original Yokogawa module or a compatible replacement?
A: This is an original Yokogawa CP345-S1 module — not a third-party compatible or remanufactured unit. All modules are sourced from authorized supply channels and undergo pre-shipment functional inspection. A test report is available on request.

Q: What CENTUM VP versions and FCS cabinet types is the CP345-S1 compatible with?
A: The CP345-S1 is compatible with CENTUM VP R4.x through R6.x field control stations, including standard FCS and safety-instrumented SFCS configurations. Compatibility with specific cabinet revisions should be confirmed against your site’s engineering bill of materials. Our technical team can assist with compatibility verification prior to order.

Q: What does the 12-month warranty cover, and what is the claims process?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact our sales team with the order reference and a description of the fault. Replacement or repair will be arranged within the warranty period.

Q: Can you support long-term or scheduled spare parts supply for CENTUM VP systems?
A: Yes. We support both emergency single-unit procurement and scheduled long-term supply agreements for CENTUM VP spare parts. For sites managing multiple FCS cabinets or planning a multi-year maintenance program, we can provide inventory reservation, priority dispatch, and consolidated spare parts kitting. Contact our team to discuss your site’s requirements.
